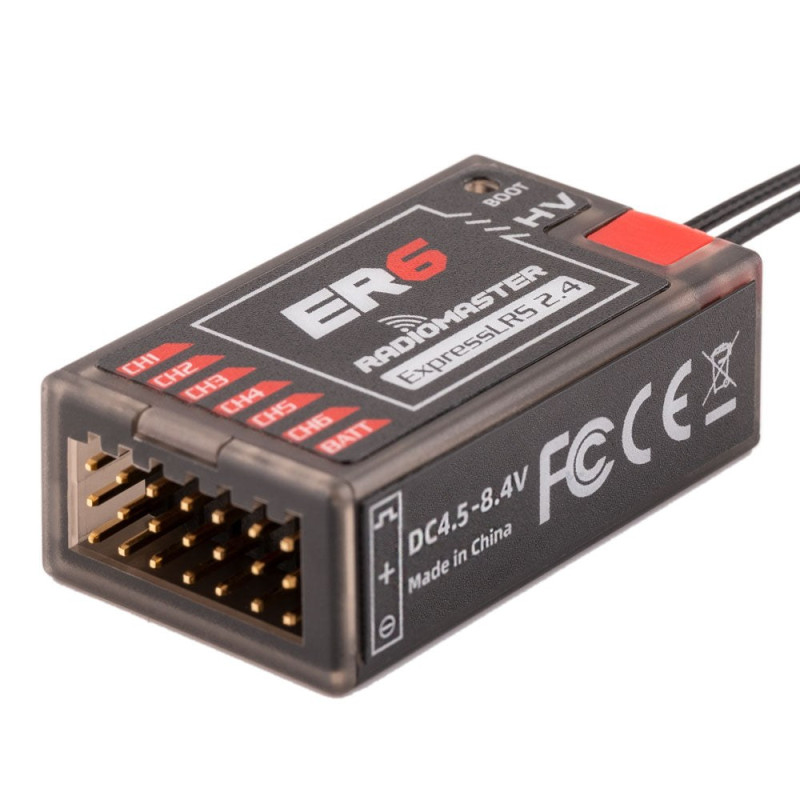

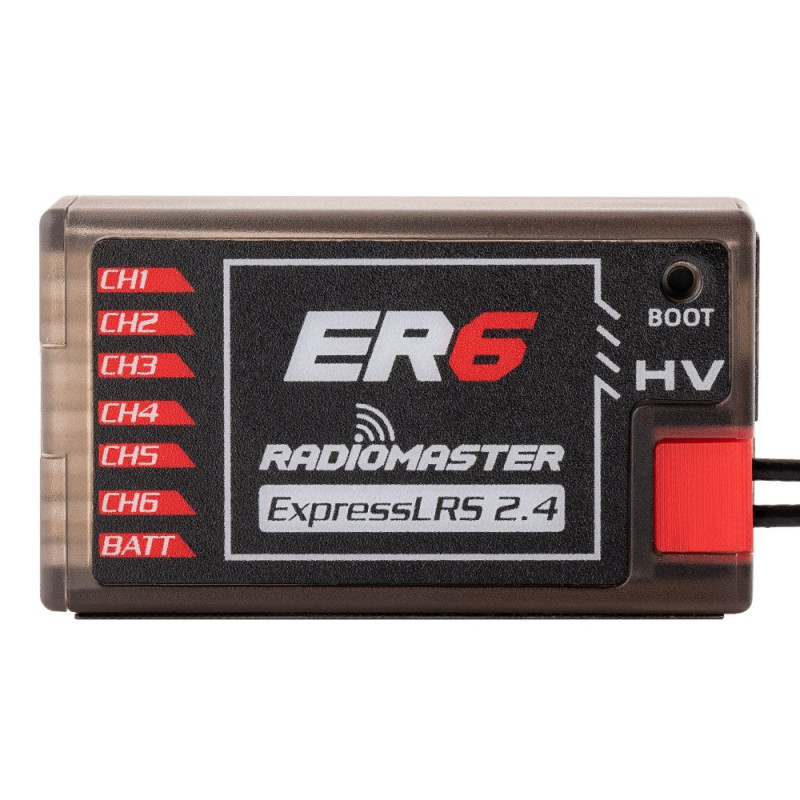

ER6 2.4GHz ELRS PWM Receiver
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Why choose ER6 2.4GHz ELRS PWM Receiver through RC-MODEL?
ER6 2.4GHz ELRS PWM Receiver is an RC product from RadioMaster. This page focuses on what an end customer needs: fit, use cases, specifications and imagery, without prices or outbound supplier detours.
Fit and use
ER6 2.4GHz ELRS PWM Receiver fits customers looking for RadioMaster items in Receiver, ExpressLRS Receivers, ER Series Receivers, with RC-MODEL support for choosing the right configuration.
- Relevant category: Receiver, ExpressLRS Receivers, ER Series Receivers
- Product identification for inquiry: model HP0157.RX-ER6 / SKU HP0157.RX-ER6
Key details
- Weight: 14.5 grams
- Dimensions: 43*25*15mm
- Channels: 6 channels
- Output channel: 6CH PWM
- Telemetry Battery voltage detection range: DC 4.0 - 35V
- Manufacturer: RadioMaster
Before ordering
- Confirm dimensions, power system, radio compatibility or material size before purchase.
- Ask us to match required accessories, adhesives, hardware, batteries or replacement parts.
- RC-MODEL helps with fit checks, availability, compatible accessories and a formal quote in Israel.
ER6 2.4GHz ELRS PWM Receiver is a RadioMaster product intended for RC aircraft, FPV, surface and telemetry receiver installations. This page presents the practical buying information in one place: compatibility, SKU, variants, radio protocol, use case and technical details.
The content is written for customer decision-making through RC-MODEL, without supplier prices or outbound purchase routes.
Key Advantages
- Organized for RC aircraft, FPV, surface and telemetry receiver installations.
- Part of the RadioMaster receiver range.
- RF/protocol context: ExpressLRS / ELRS, 2.4GHz, SBUS.
- Includes local product imagery and structured specifications for customer comparison.
Core Specifications
- Product Code: HP0157.RX-ER6
- Product Family: RadioMaster receiver range
- Protocol / RF: ExpressLRS / ELRS, 2.4GHz, SBUS
- Channels: 6 channels
- Dimensions: 43*25*15mm
- Weight: 14.5 grams
- Item: ER6 2.4GHz ELRS PWM Receiver
- Power supply: DC 4.5 - 8.4V
- Antenna type: 20cm high sensitivity dual antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 6CH PWM
- Serial Output: CRSF / Sbus
- Telemetry power: maximum 100mw (LUA Adjustable)
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Servo selection: torque, speed, gears and voltage
How to select servos for trainers, sport aircraft, large models, cars and boats without under-sizing a control surface.
How to balance an RC aircraft and find the correct CG
One of the most important setup guides: find the CG, install the flight battery, balance the aircraft and avoid nose-heavy or tail-heavy surprises.
Mandatory pre-flight checks for safer RC flying
A repeatable inspection routine for control direction, radio range, failsafe, battery, fasteners, propeller, CG and field readiness.
How to perform the first test flight of an RC aircraft
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
| Technical Specifications | |
| Manufacturer | RadioMaster |
| Brand | RadioMaster |
| Product Code | HP0157.RX-ER6 |
| All Variant SKUs | HP0157.RX-ER6 |
| Product Type | Receiver |
| RadioMaster Collections | ELRS Receivers, ER Series Receivers |
| Product Family | RadioMaster receiver range |
| Application | RC aircraft, FPV, surface and telemetry receiver installations |
| Item | ER6 2.4GHz ELRS PWM Receiver |
| Weight | 14.5 grams |
| Dimensions | 43*25*15mm |
| Protocol / RF | ExpressLRS / ELRS, 2.4GHz, SBUS |
| Channels | 6 channels |
| Firmware | Device Category: Radiomaster 2.4Ghz / Device: ER6 2.4GHz Diversity+6xPWM RX |
| Bus interface | CRSF |
| Power supply | DC 4.5 - 8.4V |
| Antenna type | 20cm high sensitivity dual antenna |
| Output channel | 6CH PWM |
| Wireless protocol | ExpressLRS 3.3.0 pre-installed |
| Telemetry power | maximum 100mw (LUA Adjustable) |
| Serial Output | CRSF / Sbus |
| Telemetry Battery voltage detection range | DC 4.0 - 35V |
