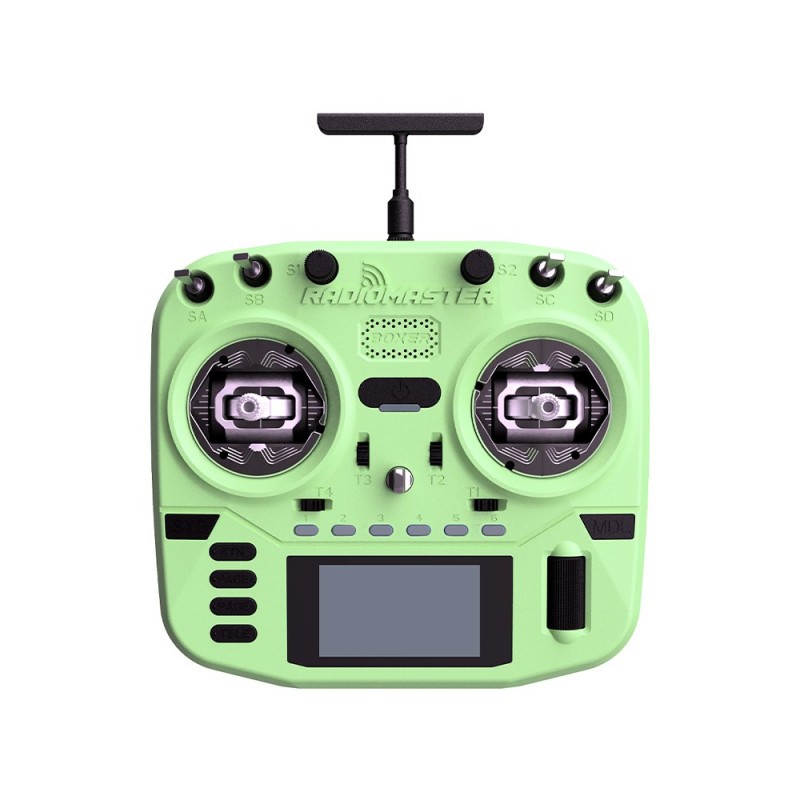

Boxer Crush Radio Controller (M2)
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Why choose Boxer Crush Radio Controller (M2) through RC-MODEL?
Boxer Crush Radio Controller (M2) is an RC product from RadioMaster. This page focuses on what an end customer needs: fit, use cases, specifications and imagery, without prices or outbound supplier detours.
Fit and use
Boxer Crush Radio Controller (M2) fits customers looking for RadioMaster items in Boxer Radios, Boxer Radio, with RC-MODEL support for choosing the right configuration.
- Relevant category: Boxer Radios, Boxer Radio
- Product identification for inquiry: model HP0157.0090-GRE / SKU HP0157.0090-GRE
Key details
- Weight: 617.1g
- Frequency: 2.400GHz-2.480GHz
- Channels: Max 16 channels (Receiver dependent)
- Size: 235*178*77mm
- Voltage Range: 6.6-8.4V DC
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
Before ordering
- Confirm dimensions, power system, radio compatibility or material size before purchase.
- Ask us to match required accessories, adhesives, hardware, batteries or replacement parts.
- RC-MODEL helps with fit checks, availability, compatible accessories and a formal quote in Israel.
Boxer Crush Radio Controller (M2) is a RadioMaster product intended for pilots who need a capable programmable transmitter for aircraft, helicopters, FPV, gliders or surface models. This page presents the practical buying information in one place: compatibility, SKU, variants, radio protocol, use case and technical details.
The content is written for customer decision-making through RC-MODEL, without supplier prices or outbound purchase routes.
Key Advantages
- Organized for pilots who need a capable programmable transmitter for aircraft, helicopters, FPV, gliders or surface models.
- Part of the Boxer transmitter platform.
- RF/protocol context: ExpressLRS / ELRS, 2.4GHz, EdgeTX.
- Compatibility note: Compatible with RadioMaster Boxer platform where applicable.
- Multiple variants are documented for easier matching to the required setup.
- Includes local product imagery and structured specifications for customer comparison.
Core Specifications
- Product Code: HP0157.0090-GRE
- Product Family: Boxer transmitter platform
- Protocol / RF: ExpressLRS / ELRS, 2.4GHz, EdgeTX
- Channels: Max 16 channels (Receiver dependent)
- Compatibility: Compatible with RadioMaster Boxer platform where applicable

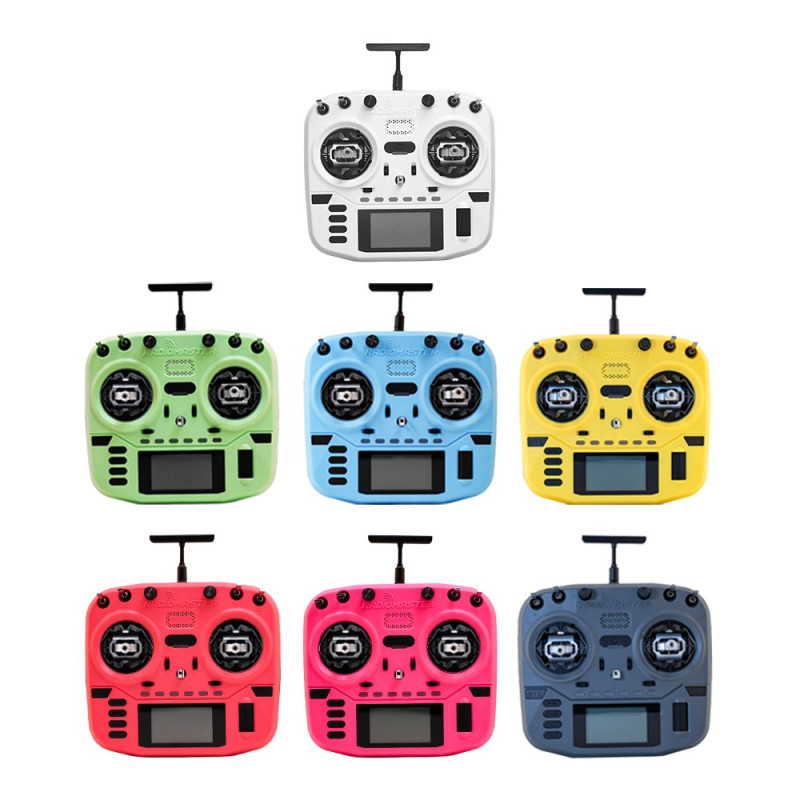

- Available Variants: ELRS / Mint Mist; ELRS / Iceberg Blue; ELRS / Lemon Twist Yellow; ELRS / Cherry Red; ELRS / Frost White; ELRS / Hot Pink; ELRS / Iron Grey
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Frequency: 2.400GHz-2.480GHz
- Weight: 617.1g
- Item: Boxer Crush Radio
- Color: Iron Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow
- Size: 235*178*77mm
- Internal RF: ExpressLRS 2.4GHz
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Servo selection: torque, speed, gears and voltage
How to select servos for trainers, sport aircraft, large models, cars and boats without under-sizing a control surface.
How to balance an RC aircraft and find the correct CG
One of the most important setup guides: find the CG, install the flight battery, balance the aircraft and avoid nose-heavy or tail-heavy surprises.
Mandatory pre-flight checks for safer RC flying
A repeatable inspection routine for control direction, radio range, failsafe, battery, fasteners, propeller, CG and field readiness.
How to perform the first test flight of an RC aircraft
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
| Technical Specifications | |
| Manufacturer | RadioMaster |
| Brand | RadioMaster |
| Product Code | HP0157.0090-GRE |
| All Variant SKUs | HP0157.0090-GRE, HP0157.0090-BLU, HP0157.0090-YEL, HP0157.0090-RED, HP0157.0090-WHT, HP0157.0090-PNK, HP0157.0090-GRY |
| Available Variants | ELRS / Mint Mist; ELRS / Iceberg Blue; ELRS / Lemon Twist Yellow; ELRS / Cherry Red; ELRS / Frost White; ELRS / Hot Pink; ELRS / Iron Grey |
| Product Type | Boxer Radio |
| RadioMaster Collections | Boxer Radio |
| Product Family | Boxer transmitter platform |
| Application | pilots who need a capable programmable transmitter for aircraft, helicopters, FPV, gliders or surface models |
| Item | Boxer Crush Radio |
| Weight | 617.1g |
| Compatibility | Compatible with RadioMaster Boxer platform where applicable |
| Protocol / RF | ExpressLRS / ELRS, 2.4GHz, EdgeTX |
| Frequency | 2.400GHz-2.480GHz |
| Internal RF | ExpressLRS 2.4GHz |
| Channels | Max 16 channels (Receiver dependent) |
| Display | 128*64 Monochrome LCD display |
| Radio Firmware | EdgeTX (Transmitter) / ExpressLRS (RF module) |
| Battery | 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included) |
| Size | 235*178*77mm |
| Color | Iron Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow |
| Voltage Range | 6.6-8.4V DC |
| Gimbal | AG01 CNC Hall Gimbal |
| Upgrade Method | USB / SD card & EdgeTX Companion PC software |
| Module Bay | JR-compatible module bay for additional modules |
| Supported protocols | Module dependent |
| Cooling fan | Built-in |
Tags: RadioMaster, HP0157.0090-GRE, Boxer Radios, Boxer Radio, RC radio
