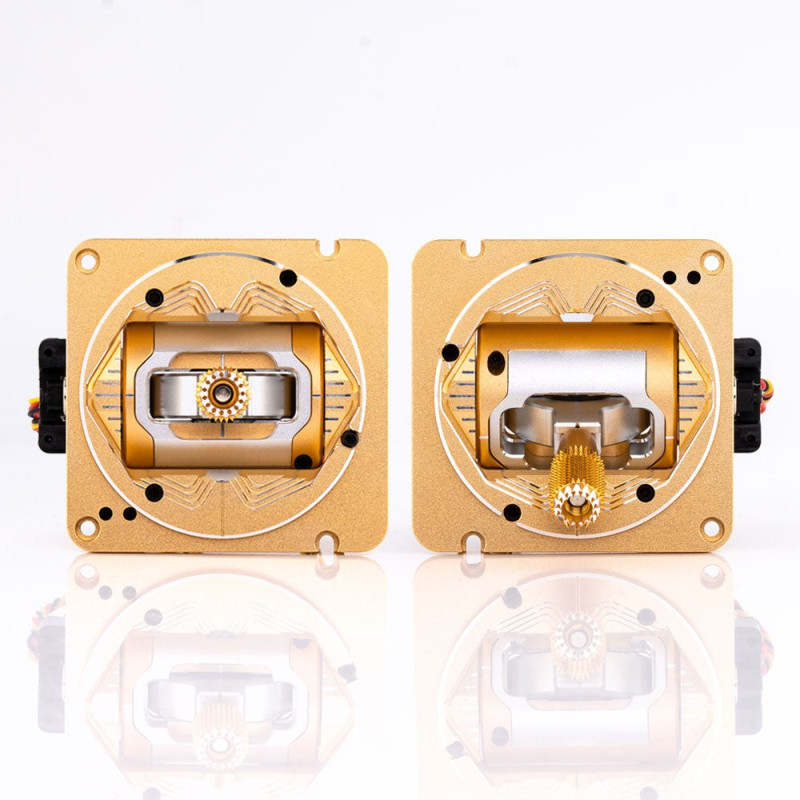

AG01 CNC Hall Gimbal Sets New Colors
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
AG01 CNC Hall Gimbal Sets New Colors is a RadioMaster product intended for transmitter feel, precision and control customization. This page presents the practical buying information in one place: compatibility, SKU, variants, radio protocol, use case and technical details.
The content is written for customer decision-making through RC-MODEL, without supplier prices or outbound purchase routes.
Key Advantages
- Organized for transmitter feel, precision and control customization.
- Part of the RadioMaster gimbal and control accessory range.
- Multiple variants are documented for easier matching to the required setup.
- Includes local product imagery and structured specifications for customer comparison.
Core Specifications
- Product Code: HP0157.AG01-SET-RED
- Product Family: RadioMaster gimbal and control accessory range

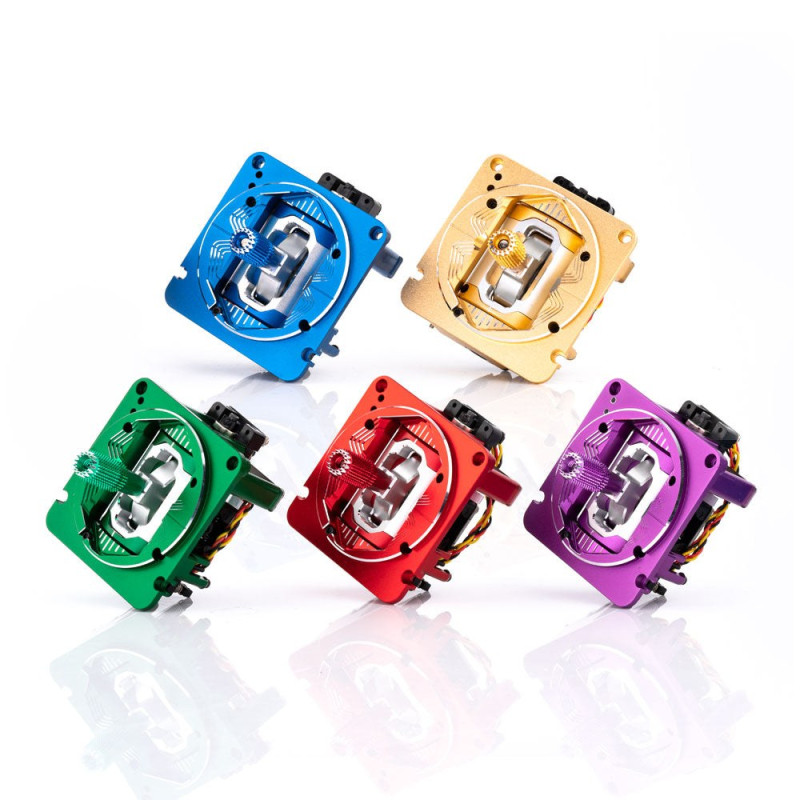

- Available Variants: Red; Gold; Blue; Purple; Green; Black
- Weight: 162g/set
- Item: AG01 CNC Hall Gimbal Sets
- Colors: Red, Blue, Gold, Green, Purple
- Sensing type: Hall
- Working voltage: DC 3.3V
- Linearity: Real-time (No delay)
- Adjustable travel range: 38°-54°
- Adjustable mode: Yes
- Adjustable tension: Yes
- Quad bearing: Yes
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
How to bind an RC transmitter and receiver
A practical binding guide for matching protocol, bind mode, receiver power, model memory, control checks and common binding mistakes.
How to set failsafe correctly on an RC aircraft
Failsafe setup for electric and fuel aircraft: throttle behavior, receiver signal loss, switch positions and safe verification before flight.
How to set Dual Rates and Expo on an RC transmitter
Make an aircraft calmer for beginners by setting low rates, high rates and expo without hiding mechanical setup problems.
How to perform the first test flight of an RC aircraft
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
| Technical Specifications | |
| Manufacturer | RadioMaster |
| Brand | RadioMaster |
| Product Code | HP0157.AG01-SET-RED |
| All Variant SKUs | HP0157.AG01-SET-RED, HP0157.AG01-SET-GLD, HP0157.AG01-SET-BLU, HP0157.AG01-SET-PUR, HP0157.AG01-SET-GRE, HP0157.AG01-SET-BLK |
| Available Variants | Red; Gold; Blue; Purple; Green; Black |
| Product Type | Gimbal |
| RadioMaster Collections | Accessories, Gimbals |
| Product Family | RadioMaster gimbal and control accessory range |
| Application | transmitter feel, precision and control customization |
| Item | AG01 CNC Hall Gimbal Sets |
| Weight | 162g/set |
| Colors | Red, Blue, Gold, Green, Purple |
| Temperature range | -20°c-85°c |
| Size | 60*53*56mm |
| Sensing type | Hall |
| Working voltage | DC 3.3V |
| Linearity | Real-time (No delay) |
| Adjustable travel range | 38°-54° |
| Adjustable mode | Yes |
| Adjustable tension | Yes |
| Quad bearing | Yes |
| ① Set the lower travel limit | Turn the screw clockwise to reduce the travel. Turn the screw counterclockwise to increase the travel. Travel range (38-54°) |
| ② Set the upper travel limit | Turn the screw clockwise to reduce the travel. Turn the screw counterclockwise to increase the travel. Travel range (38-54°) |
| ③ Up and down spring tension | Turn the screw |
| ④ Centering and Mode adjustment | When the screw is turned clockwise to its lowest point, this gimbal will not center in its up and down axis when the stick is released. When the screw is turned counter-clockwise to its highest point, this gimbal will center its up and down axis when the stic... |
| ⑤ Left and right spring tension | Turn the screw clockwise to increase the left and spring tension. Turn the screw counterclockwise to reduce the left and right spring tension. |
| Throttle tension adjustment | When there is no tension up and down, the ⑥screw adjusts the tension tightness, and the ⑦screw adjusts the scale tightness. |
