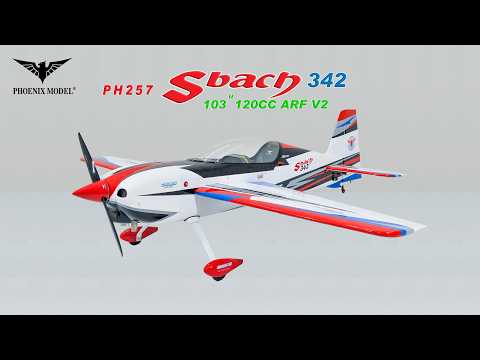

PH257-SBACH 342 103" 120cc ARF V2
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Why choose PH257-SBACH 342 103" 120cc ARF V2 through RC-MODEL?
PH257-SBACH 342 103" 120cc ARF V2 is an RC product from Phoenix Model. This page focuses on what an end customer needs: fit, use cases, specifications and imagery, without prices or outbound supplier detours.
Fit and use
PH257-SBACH 342 103" 120cc ARF V2 fits customers looking for Phoenix Model items in 3D Aerobatic Aircraft, with RC-MODEL support for choosing the right configuration.
- Relevant category: 3D Aerobatic Aircraft
- Product identification for inquiry: model PH257-SBACH / SKU PH257-SBACH
Key details
- SERVO: Metal gear hi-torque servos
- Packing: Packing BOX DIMENSION - mm X mm X mm (L x W x H)
- 2 Elevator: hi-torque 30-40 kg ( Standard size: 20x40mm )
- 1 Throttle: hi-torque 10-20 kg ( Standard size: 20x40mm ) (Gas Power)
- 4 Aileron: hi-torque 40-55 kg ( Standard size: 20x40mm )
- 2 Rudder: hi-torque 30-40 kg ( Standard size: 20x40mm )
Before ordering
- Confirm dimensions, power system, radio compatibility or material size before purchase.
- Ask us to match required accessories, adhesives, hardware, batteries or replacement parts.
- RC-MODEL helps with fit checks, availability, compatible accessories and a formal quote in Israel.
PH257-SBACH 342 103" 120cc ARF V2
PH257-SBACH 342 103" 120cc ARF V2 is presented as an information-rich 3D aerobatic RC aircraft from Phoenix Model for RC-MODEL customers who want clear product data, official imagery, and practical comparison details without storefront pricing.
Key Specifications
- Wingspan: 2616mm (103 in)
- Length: 2610mm (102.8 in)
- Flying weight: 12800-13000 g
- Wing area: 124 dm2
- Gear type: Carbon fiber for main gear (included)
- Spinner size: Carbon Spinner 115mm (included)
- Gravity CG: 190mm (7.4 in) Back from the leading edge of the wing, at the fuselage
- Engine 120-125cc Propeller: suit with your engine
- Fuel tank: 1000ml
- SERVO: Metal gear hi-torque servos
- 4 Aileron: hi-torque 40-55 kg ( Standard size: 20x40mm )
- 2 Elevator: hi-torque 30-40 kg ( Standard size: 20x40mm )
Recommended Use
This catalog page is written for pilots, builders, racers, and RC hobby users comparing 3d aerobatic aircraft products. It highlights the manufacturer, model identity, application, and measurable details that matter when choosing compatible RC equipment.
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Servo selection: torque, speed, gears and voltage
How to select servos for trainers, sport aircraft, large models, cars and boats without under-sizing a control surface.
How to balance an RC aircraft and find the correct CG
One of the most important setup guides: find the CG, install the flight battery, balance the aircraft and avoid nose-heavy or tail-heavy surprises.
Mandatory pre-flight checks for safer RC flying
A repeatable inspection routine for control direction, radio range, failsafe, battery, fasteners, propeller, CG and field readiness.
How to perform the first test flight of an RC aircraft
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
| Technical Specifications | |
| Product Type | ARF aircraft model |
| Length | 2610mm (102.8 in) |
| Wingspan | 2616mm (103 in) |
| Flying weight | 12800-13000 g |
| Wing area | 124 dm2 |
| Gear type | Carbon fiber for main gear (included) |
| Spinner size | Carbon Spinner 115mm (included) |
| Gravity CG | 190mm (7.4 in) Back from the leading edge of the wing, at the fuselage |
| SERVO | Metal gear hi-torque servos |
| Feature | - Capable of both precise and extreme 3D aerobatics - Designed for compatibility with both GP-EP flight - Factory-painted Carbon fiber Spinner (included) - Factory-painted Carbon fiber Main langding gear and tail gear (included) - Factory-painted fiberglass c... |
| Colour chart | - White (# 21010) - Ferrari Red (# 21023) - Black (# 21071) - Blue (# 21050) - Grey (# 21011) |
| Packing | Packing BOX DIMENSION - mm X mm X mm (L x W x H) |
| Fuel tank | 1000ml |
| 2 Elevator | hi-torque 30-40 kg ( Standard size: 20x40mm ) |
| 1 Throttle | hi-torque 10-20 kg ( Standard size: 20x40mm ) (Gas Power) |
| Engine 120-125cc Propeller | suit with your engine |
| 4 Aileron | hi-torque 40-55 kg ( Standard size: 20x40mm ) |
| 2 Rudder | hi-torque 30-40 kg ( Standard size: 20x40mm ) |
