PH126-DOLPHIN MK2 63" Size .46-.55 ARF
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

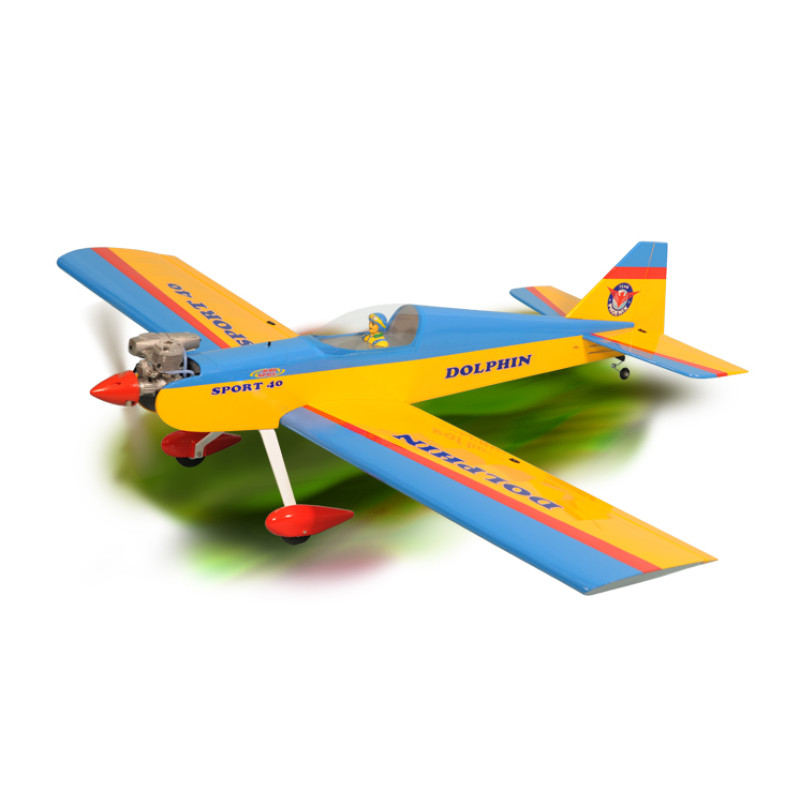

PH126-DOLPHIN MK2 63" Size .46-.55 ARF
PH126-DOLPHIN MK2 63" Size .46-.55 ARF is presented as an information-rich sport RC aircraft from Phoenix Model for RC-MODEL customers who want clear product data, official imagery, and practical comparison details without storefront pricing.
Key Specifications
- Wingspan: 1600mm (63 in)
- Length: 1285mm (50.5 in)
- Flying weight: 2800-3200 gr
- Wing area: 40.1 dm2
- Wing loading: 78g/dm2
- Wing type: Naca airfoils
- Spinner size: Plastic 58mm (included)
- Radio: 4 channel minimum (not included)
- Servo: 5 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
Recommended Use
This catalog page is written for pilots, builders, racers, and RC hobby users comparing sport aircraft products. It highlights the manufacturer, model identity, application, and measurable details that matter when choosing compatible RC equipment.
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Servo selection: torque, speed, gears and voltage
How to select servos for trainers, sport aircraft, large models, cars and boats without under-sizing a control surface.
How to balance an RC aircraft and find the correct CG
One of the most important setup guides: find the CG, install the flight battery, balance the aircraft and avoid nose-heavy or tail-heavy surprises.
Mandatory pre-flight checks for safer RC flying
A repeatable inspection routine for control direction, radio range, failsafe, battery, fasteners, propeller, CG and field readiness.
How to perform the first test flight of an RC aircraft
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
| Technical Specifications | |
| Product Type | ARF aircraft model |
| Length | 1285mm (50.5 in) |
| Motor | brushless outrunner 1000-1400 W, 480 KV (not included); RIMFIRE .46-.55 (not included) |
| Wingspan | 1600mm (63 in) |
| Flying weight | 2800-3200 gr |
| Wing area | 40.1 dm2 |
| Spinner size | Plastic 58mm (included) |
| Feature | - Designed for compatibility with both GP and EP flight - Strong Light Weight Construction - High-quality hardware package included |
| Colour chart | - Cub Yellow (# 21030) - Ferrari Red (# 21023) - Sky Blue (# 21053) - Grey (# 21011) |
| Packing | BOX DIMENSION - 1204mm X 315mm X 188mm (L x W x H) |
| Wing loading | 78g/dm2 |
| Wing type | Naca airfoils |
| Servo | 5 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included) |
| Servo mount | 21mm x 42 mm |
| Propeller | suit with your engine |
| Engine | .46-.55 / 2-stroke or .52/4-stroke glow engine (not included) |
| Experience level | Intermediate |
| Plane type | Low wing sport |
| Lipo cell | 6 cells / 4000 – 5500mAh (not included) |
| Esc | 50-80A (not included) |
| Radio | 4 channel minimum (not included) |
| Recommended receiver battery | 4.8-6V / 800-1200mAh NiMH (not included) |
Tags: Phoenix Model, PH126-DOLPHIN MK2 63" Size .46-.55 ARF, RC Airplanes, Sport Aircraft
