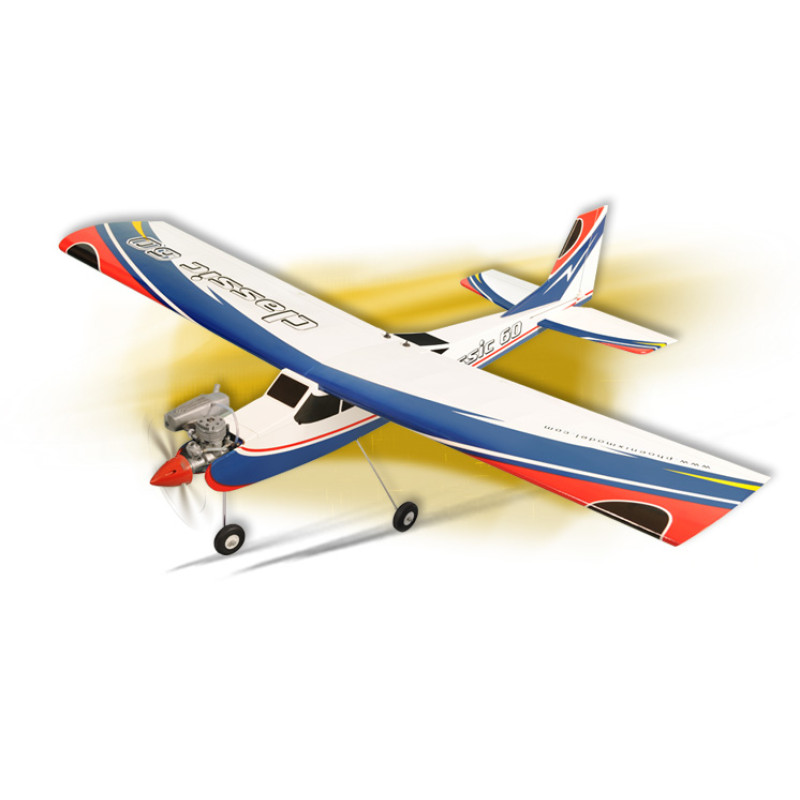

PH109-CLASSIC 68" 20cc ARF
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Why choose PH109-CLASSIC 68" 20cc ARF through RC-MODEL?
PH109-CLASSIC 68" 20cc ARF is an RC product from Phoenix Model. This page focuses on what an end customer needs: fit, use cases, specifications and imagery, without prices or outbound supplier detours.
Fit and use
PH109-CLASSIC 68" 20cc ARF fits customers looking for Phoenix Model items in Sport Aircraft, with RC-MODEL support for choosing the right configuration.
- Relevant category: Sport Aircraft
- Product identification for inquiry: model PH109-CLASSIC / SKU PH109-CLASSIC
Key details
- Packing: BOX DIMENSION - 1314mm X 360mm X 208mm (L x W x H)
- Feature: - Designed for compatibility with both GP and EP flight - Extremely lightweight laser-cut all-wood construction - All hardware included
- Length: 1371mm (53.9 in)
- Motor: brushless out runner; Rimfire.60 (not included)
- Wingspan: 1730mm (68.1 in)
- Flying weight: 3500-4200 gr
Before ordering
- Confirm dimensions, power system, radio compatibility or material size before purchase.
- Ask us to match required accessories, adhesives, hardware, batteries or replacement parts.
- RC-MODEL helps with fit checks, availability, compatible accessories and a formal quote in Israel.
PH109-CLASSIC 68" 20cc ARF
PH109-CLASSIC 68" 20cc ARF is presented as an information-rich sport RC aircraft from Phoenix Model for RC-MODEL customers who want clear product data, official imagery, and practical comparison details without storefront pricing.
Key Specifications
- Wingspan: 1730mm (68.1 in)
- Length: 1371mm (53.9 in)
- Flying weight: 3500-4200 gr
- Wing area: 50.5 dm2
- Wing loading: 73g/dm2
- Wing type: Naca airfoils
- Covering type: V-kote film
- Spinner size: Plastic 58mm (included)
- Radio: 4 channel minimum (not included)
- Servo: 5 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
Recommended Use
This catalog page is written for pilots, builders, racers, and RC hobby users comparing sport aircraft products. It highlights the manufacturer, model identity, application, and measurable details that matter when choosing compatible RC equipment.
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Servo selection: torque, speed, gears and voltage
How to select servos for trainers, sport aircraft, large models, cars and boats without under-sizing a control surface.
How to balance an RC aircraft and find the correct CG
One of the most important setup guides: find the CG, install the flight battery, balance the aircraft and avoid nose-heavy or tail-heavy surprises.
Mandatory pre-flight checks for safer RC flying
A repeatable inspection routine for control direction, radio range, failsafe, battery, fasteners, propeller, CG and field readiness.
How to perform the first test flight of an RC aircraft
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
| Technical Specifications | |
| Product Type | ARF aircraft model |
| Length | 1371mm (53.9 in) |
| Motor | brushless out runner; Rimfire.60 (not included) |
| Wingspan | 1730mm (68.1 in) |
| Flying weight | 3500-4200 gr |
| Wing area | 50.5 dm2 |
| Spinner size | Plastic 58mm (included) |
| Feature | - Designed for compatibility with both GP and EP flight - Extremely lightweight laser-cut all-wood construction - All hardware included |
| Colour chart | Not update... |
| Packing | BOX DIMENSION - 1314mm X 360mm X 208mm (L x W x H) |
| Wing loading | 73g/dm2 |
| Wing type | Naca airfoils |
| Servo | 5 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included) |
| Servo mount | 21mm x 42 mm |
| Propeller | suit with your engine; 15x6- 15x8 E APC (not included) |
| Engine | 20cc gas engine (not included) |
| Experience level | Beginer |
| Plane type | Trainer |
| Lipo cell | 6 cells / 4000 – 5500mAh (not included) |
| Esc | 60-100A (not included) |
| Radio | 4 channel minimum (not included) |
| Recommended receiver battery | 4.8-6V / 800-1200mAh NiMH (not included) |
