X20-2208 V8.0 Brushless HV Metal 6BB Servo 25Kgf.cm 0.07sec for RC Helicopter
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Why choose X20-2208 V8.0 Brushless HV Metal 6BB Servo 25Kgf.cm 0.07sec for RC Helicopter through RC-MODEL?

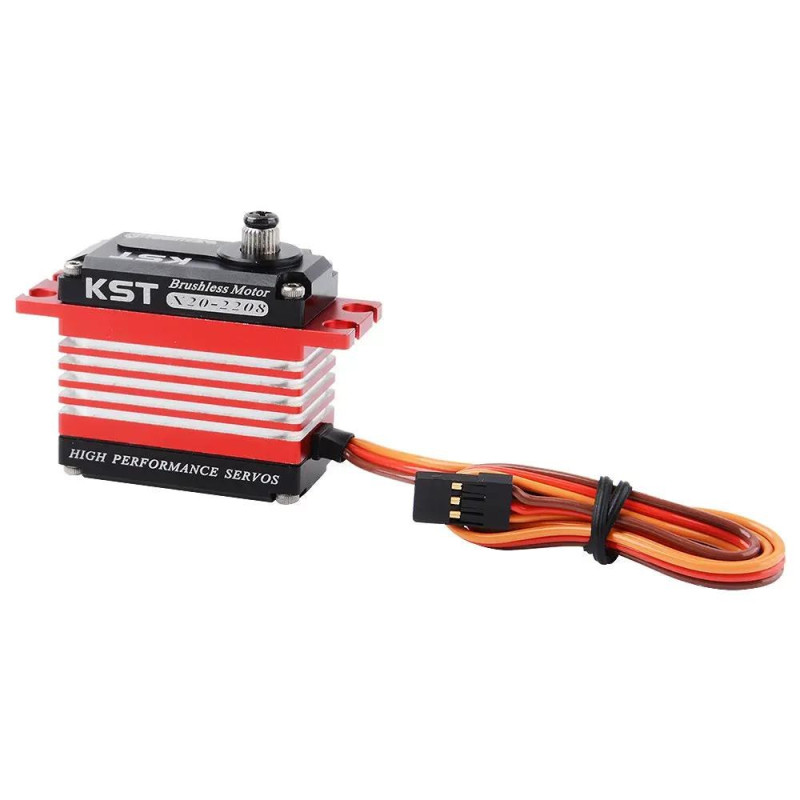

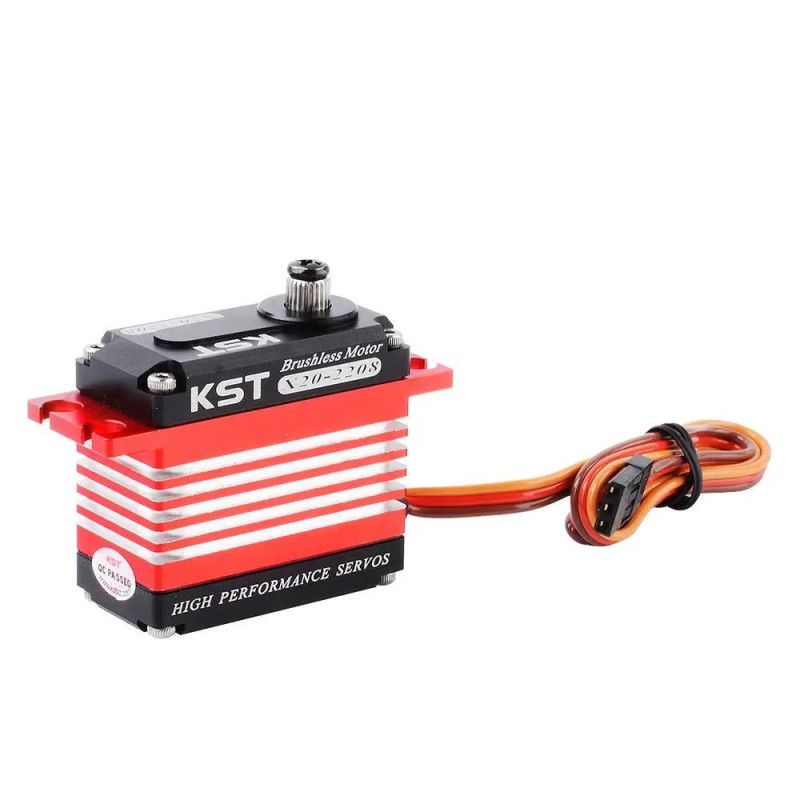

X20-2208 V8.0 Brushless HV Metal 6BB Servo 25Kgf.cm 0.07sec for RC Helicopter is an RC product from KST Servos. This page focuses on what an end customer needs: fit, use cases, specifications and imagery, without prices or outbound supplier detours.
Fit and use
X20-2208 V8.0 Brushless HV Metal 6BB Servo 25Kgf.cm 0.07sec for RC Helicopter fits customers looking for KST Servos items in Helicopter Servos, Industrial & UAV Servos, Standard Servos, with RC-MODEL support for choosing the right configuration.
- Relevant category: Helicopter Servos, Industrial & UAV Servos, Standard Servos
- Product identification for inquiry: model KST-BR0023.0059-V8 / SKU BR0023.0059-V8
Key details
- Features: Brushless DC motor; Extreme torque and Excellent speed; Hardened steel gears; 6 Ball bearings; Ideal for 500 to 800 Class EP/GP Helicopters
- Gear Set Material: Hardened Steel (HLS)
- Size Class: Standard Servos
- Manufacturer: KST Servos
- Working Frequency: 1520μs/333Hz
- Case Material: Aluminum Alloy
Before ordering
- Confirm dimensions, power system, radio compatibility or material size before purchase.
- Ask us to match required accessories, adhesives, hardware, batteries or replacement parts.
- RC-MODEL helps with fit checks, availability, compatible accessories and a formal quote in Israel.
X20-2208 V8.0 Brushless HV Metal 6BB Servo 25Kgf.cm 0.07sec for RC Helicopter is a KST Servos product selected for Car Servos, Helicopter Servos. This page is written for practical buying decisions, with the key fit, size, voltage and performance details organized in one place.
Use it to compare torque, speed, voltage range, construction, dimensions, weight, variants and accessory compatibility before choosing the right component for an RC aircraft, helicopter, car, glider, UAV or workshop installation.
Key Advantages
- Brushless DC motor
- Extreme torque and Excellent speed
- Hardened steel gears
- 6 Ball bearings
- Ideal for 500 to 800 Class EP/GP Helicopters
Core Specifications
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel (HLS)
- Ball Bearing: 6BB
- Weight: 72g±10%
- Item: X20-2208 Brushless Servo
- Operation Voltage(rated): DC7.4V
- Operation Voltage Range: DC6.0-8.4V
- Speed: 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±50°=100° Total
- Total Temperature Range: -10°C.......+65℃
- Case Material: Aluminum Alloy
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Which servo fits each RC aircraft type?
A buying table for matching servo size, torque, speed, gear type and voltage to trainers, gliders, 3D aircraft, EDF jets and Giant Scale models.
How to install servos and linkages correctly
Mechanical setup guide for servo arms, linkage angles, throw, control horns, neutral position and radio setup after geometry is correct.
How to set Dual Rates and Expo on an RC transmitter
Make an aircraft calmer for beginners by setting low rates, high rates and expo without hiding mechanical setup problems.
How to set failsafe correctly on an RC aircraft
Failsafe setup for electric and fuel aircraft: throttle behavior, receiver signal loss, switch positions and safe verification before flight.
| Technical Specifications | |
| Manufacturer | KST Servos |
| Brand | KST |
| Product Code | BR0023.0059-V8 |
| All Variant SKUs | BR0023.0059-V8 |
| Working Frequency | 1520μs/333Hz |
| Default Travel Angle | ±50°=100° Total |
| Case Material | Aluminum Alloy |
| Motor Type | Brushless DC Motor |
| Gear Set Material | Hardened Steel (HLS) |
| Position Sensor | Potentiometer |
| Ball Bearing | 6BB |
| Weight | 72g±10% |
| KST Collections | Helicopter Servos, Car Servos, Industrial, Standard Servos, X Series |
| Series | X Series |
| Size Class | Standard Servos |
| Application | Car Servos, Helicopter Servos |
| Features | Brushless DC motor; Extreme torque and Excellent speed; Hardened steel gears; 6 Ball bearings; Ideal for 500 to 800 Class EP/GP Helicopters |
| Item | X20-2208 Brushless Servo |
| Speed | 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V |
| Product Type | RC |
| Operation Voltage(rated) | DC7.4V |
| Operation Voltage Range | DC6.0-8.4V |
| Dimensions | 40mm*20mm*40mm±0.2mm |
| Total Temperature Range | -10°C.......+65℃ |
