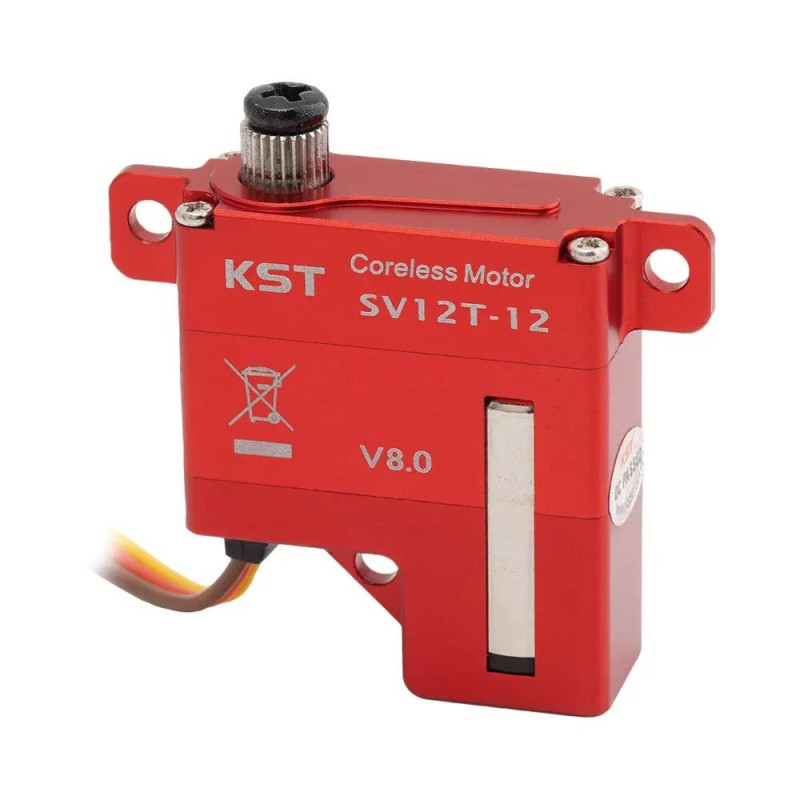

SV12T-12 & SV12S-12 Super High Voltage 12V Wing Servo for RC Gliders, RC Jets, and Industrial applications & UAVs
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Why choose SV12T-12 & SV12S-12 Super High Voltage 12V Wing Servo for RC Gliders, RC Jets, and Industrial applications & UAVs through RC-MODEL?
SV12T-12 & SV12S-12 Super High Voltage 12V Wing Servo for RC Gliders, RC Jets, and Industrial applications & UAVs is an RC product from KST Servos. This page focuses on what an end customer needs: fit, use cases, specifications and imagery, without prices or outbound supplier detours.
Fit and use
SV12T-12 & SV12S-12 Super High Voltage 12V Wing Servo for RC Gliders, RC Jets, and Industrial applications & UAVs fits customers looking for KST Servos items in Industrial & UAV Servos, Glider Wing Servos, SV Series, with RC-MODEL support for choosing the right configuration.
- Relevant category: Industrial & UAV Servos, Glider Wing Servos, SV Series
- Product identification for inquiry: model KST-BR0023.0243 / SKU BR0023.0243
Key details
- Features: SHV (Super High Voltage) DC 12V or Up to 3S LiPo Direct Drive; Supports 8.4-13.0V; High Torque & Exceptional Speed; Programmable; Large D...
- Gear Set Material: Hardened Steel
- Size Class: Mini Servos
- Package Includes: 1 * SV12T-12 Servo or SV12T-12 Servo; 2 * Plastic Servo Horn; 2 * Servo Horn Screw; 4 * Mounting Screw; Download
- Manufacturer: KST Servos
- Rated Voltage: DC 12.0V
Before ordering
- Confirm dimensions, power system, radio compatibility or material size before purchase.
- Ask us to match required accessories, adhesives, hardware, batteries or replacement parts.
- RC-MODEL helps with fit checks, availability, compatible accessories and a formal quote in Israel.
SV12T-12 & SV12S-12 Super High Voltage 12V Wing Servo for RC Gliders, RC Jets, and Industrial applications & UAVs is a KST Servos product selected for Glider Wing Servos, Industrial & UAV Servos. This page is written for practical buying decisions, with the key fit, size, voltage and performance details organized in one place.
Use it to compare torque, speed, voltage range, construction, dimensions, weight, variants and accessory compatibility before choosing the right component for an RC aircraft, helicopter, car, glider, UAV or workshop installation.
Available variants: SV12S-12 (BR0023.0243); SV12T-12 (BR0023.0244)
Key Advantages
- SHV (Super High Voltage) DC 12V or Up to 3S LiPo Direct Drive
- Supports 8.4-13.0V
- High Torque & Exceptional Speed
- Programmable
- Large Default Travel Angle (programmable)
- High Performance Coreless DC Motor
Core Specifications
- Voltage Range: DC 8.4V-13.0V
- Rated Voltage: DC 12.0V
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Ball Bearing: 2BB
- Case Dimensions: 30*12*35.5±0.2mm
- Weight: 32g±10%
- Item: SV12T-12 Servo / SV12S-12 Servo
- SV12T-12: [email protected] / [email protected] / [email protected]; 0.16sec/60°@8.4V / 0.12sec/60°@12.0V / 0.11sec/60°@13.0V
- SV12S-12: [email protected] / [email protected] / [email protected]; 0.10sec/60°@8.4V / 0.08sec/60°@12.0V / 0.07sec/60°@13.0V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±60° = 120° Total
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Servo selection: torque, speed, gears and voltage
How to select servos for trainers, sport aircraft, large models, cars and boats without under-sizing a control surface.
How to balance an RC aircraft and find the correct CG
One of the most important setup guides: find the CG, install the flight battery, balance the aircraft and avoid nose-heavy or tail-heavy surprises.
Mandatory pre-flight checks for safer RC flying
A repeatable inspection routine for control direction, radio range, failsafe, battery, fasteners, propeller, CG and field readiness.
How to perform the first test flight of an RC aircraft
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
| Technical Specifications | |
| Manufacturer | KST Servos |
| Brand | KST |
| Product Code | BR0023.0243 |
| All Variant SKUs | BR0023.0243, BR0023.0244 |
| Rated Voltage | DC 12.0V |
| Voltage Range | DC 8.4V-13.0V |
| Working Frequency | 1520μs/333Hz |
| Default Travel Angle | ±60° = 120° Total |
| Temperature Range | -10℃.......+65℃ |
| Soft Start | Yes |
| Programmable | Yes |
| Case Material | Aluminium Alloy |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |
| Ball Bearing | 2BB |
| Case Dimensions | 30*12*35.5±0.2mm |
| Weight | 32g±10% |
| KST Collections | Glider Wing Servos, Industrial, Industrial Servos, Mini Servos, SV Series |
| Series | SV Series |
| Size Class | Mini Servos |
| Application | Glider Wing Servos, Industrial & UAV Servos |
| Features | SHV (Super High Voltage) DC 12V or Up to 3S LiPo Direct Drive; Supports 8.4-13.0V; High Torque & Exceptional Speed; Programmable; Large Default Travel Angle (programmable); High Performance Coreless DC Motor; Hardened Steel Gear; Dual Ball Bearings |
| Package Includes | 1 * SV12T-12 Servo or SV12T-12 Servo; 2 * Plastic Servo Horn; 2 * Servo Horn Screw; 4 * Mounting Screw; Download |
| Item | SV12T-12 Servo / SV12S-12 Servo |
| Available Variants | SV12S-12 (BR0023.0243); SV12T-12 (BR0023.0244) |
| Product Type | RC |
| SV12T-12 | [email protected] / [email protected] / [email protected]; 0.16sec/60°@8.4V / 0.12sec/60°@12.0V / 0.11sec/60°@13.0V |
| SV12S-12 | [email protected] / [email protected] / [email protected]; 0.10sec/60°@8.4V / 0.08sec/60°@12.0V / 0.07sec/60°@13.0V |
Tags: KST Servos, BR0023.0243, Glider Wing Servos, Industrial & UAV Servos, Mini Servos, SV Series, RC servo
