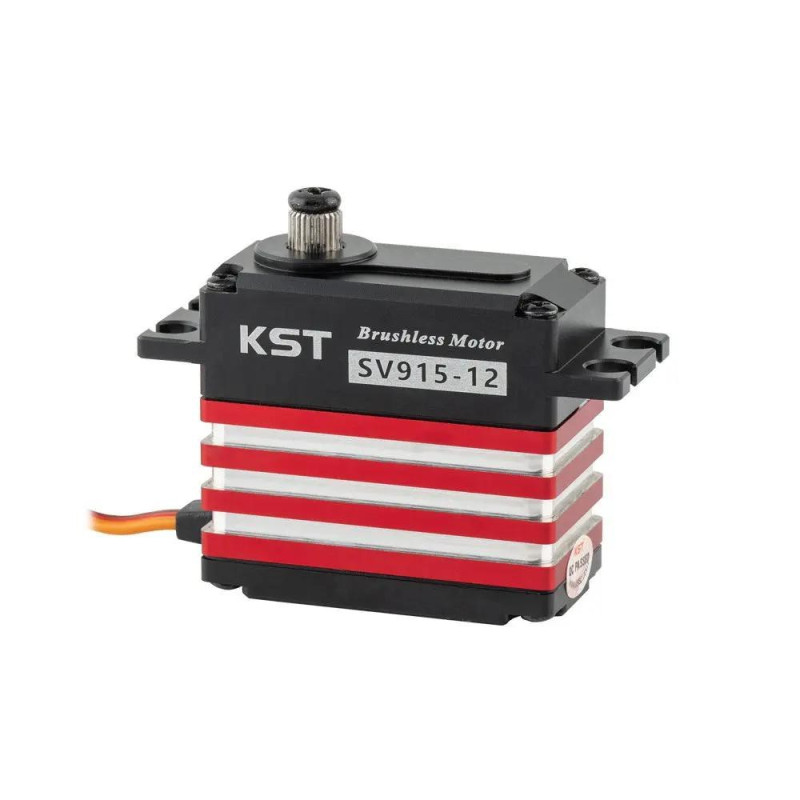

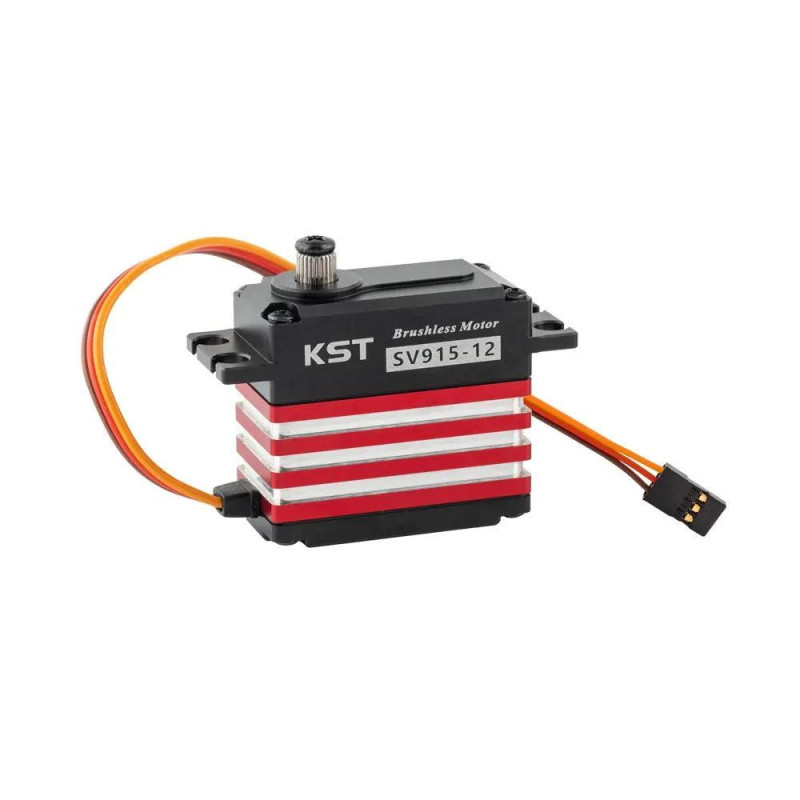

SV915-12 HV Brushless Metal Gear 30Kgf.cm 0.07sec Cyclic Servo for 550-700 Class RC Helicopters

SV915-12 HV Brushless Metal Gear 30Kgf.cm 0.07sec Cyclic Servo for 550-700 Class RC Helicopters

  • Brand:KST Servos
  • Product Code:KST-BR0023.0235
  • SKU:BR0023.0235
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 +972-9-957-7888

Why choose SV915-12 HV Brushless Metal Gear 30Kgf.cm 0.07sec Cyclic Servo for 550-700 Class RC Helicopters through RC-MODEL?

SV915-12 HV Brushless Metal Gear 30Kgf.cm 0.07sec Cyclic Servo for 550-700 Class RC Helicopters is an RC product from KST Servos. This page focuses on what an end customer needs: fit, use cases, specifications and imagery, without prices or outbound supplier detours.

Fit and use

SV915-12 HV Brushless Metal Gear 30Kgf.cm 0.07sec Cyclic Servo for 550-700 Class RC Helicopters fits customers looking for KST Servos items in Helicopter Servos, Industrial & UAV Servos, Standard Servos, with RC-MODEL support for choosing the right configuration.

  • Relevant category: Helicopter Servos, Industrial & UAV Servos, Standard Servos
  • Product identification for inquiry: model KST-BR0023.0235 / SKU BR0023.0235

Key details

  • Features: DC 12V Rated Voltage; Support 8-13V High Voltage or 2-3S LiPo Battery Direct Drive; High Frequency & Fast Response; Ultra High Torque & E...
  • Gear Set Material: Hardened Steel
  • Size Class: Standard Servos
  • Package Includes: 1 * SV915-12 Servo; 5 * Plastic Servo Horn; 1 * Servo Horn Screw; 4 * Grommet; 4 * Eyelet
  • Manufacturer: KST Servos
  • Rated Voltage: DC12V

Before ordering

  • Confirm dimensions, power system, radio compatibility or material size before purchase.
  • Ask us to match required accessories, adhesives, hardware, batteries or replacement parts.
  • RC-MODEL helps with fit checks, availability, compatible accessories and a formal quote in Israel.

SV915-12 HV Brushless Metal Gear 30Kgf.cm 0.07sec Cyclic Servo for 550-700 Class RC Helicopters is a KST Servos product selected for Helicopter Servos. This page is written for practical buying decisions, with the key fit, size, voltage and performance details organized in one place.

Use it to compare torque, speed, voltage range, construction, dimensions, weight, variants and accessory compatibility before choosing the right component for an RC aircraft, helicopter, car, glider, UAV or workshop installation.

Key Advantages

  • DC 12V Rated Voltage
  • Support 8-13V High Voltage or 2-3S LiPo Battery Direct Drive
  • High Frequency & Fast Response
  • Ultra High Torque & Excellent Speed
  • Dual Ball Bearings
  • Brushless DC Motor

Core Specifications

  • Voltage Range: DC8.0V-13V
  • Rated Voltage: DC12V
  • Motor Type: Brushless DC Motor
  • Gear Set Material: Hardened Steel
  • Ball Bearing: 2BB
  • Case Dimensions: 40.5mm*20mm*38mm±0.2mm
  • Weight: 70g±10%
  • Item: SV915-12 Servo
  • Torque: [email protected] / 28Kgf.cm@12V / 30Kgf.cm@13V
  • Speed: 0.10sec/60°@8.4V / 0.08sec/60°@12V / 0.07sec/60°@13V
  • Working Frequency: 760μs/560Hz
  • Temperature Range: -10℃.......+65℃
Relevant RC Academy guides

Learn before you buy

These guides explain the setup, safety checks and accessory choices that usually matter for this product type.

Buying guides

Which servo fits each RC aircraft type?

A buying table for matching servo size, torque, speed, gear type and voltage to trainers, gliders, 3D aircraft, EDF jets and Giant Scale models.

Technical Specifications
Manufacturer KST Servos
Brand KST
Product Code BR0023.0235
All Variant SKUs BR0023.0235
Rated Voltage DC12V
Voltage Range DC8.0V-13V
Working Frequency 760μs/560Hz
Temperature Range -10℃.......+65℃
Programmable Yes (Please refer to the Programming tool manual for correct voltage)
Case Material Aluminium Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2BB
Case Dimensions 40.5mm*20mm*38mm±0.2mm
Weight 70g±10%
KST Collections Helicopter Servos, Industrial, Standard Servos, SV Series
Series SV Series
Size Class Standard Servos
Application Helicopter Servos
Features DC 12V Rated Voltage; Support 8-13V High Voltage or 2-3S LiPo Battery Direct Drive; High Frequency & Fast Response; Ultra High Torque & Excellent Speed; Dual Ball Bearings; Brushless DC Motor; Hardened Steel Gear; CNC Aluminium Case
Package Includes 1 * SV915-12 Servo; 5 * Plastic Servo Horn; 1 * Servo Horn Screw; 4 * Grommet; 4 * Eyelet
Item SV915-12 Servo
Torque [email protected] / 28Kgf.cm@12V / 30Kgf.cm@13V
Speed 0.10sec/60°@8.4V / 0.08sec/60°@12V / 0.07sec/60°@13V
Product Type RC

Tags: KST Servos, BR0023.0235, Helicopter Servos, Industrial & UAV Servos, Standard Servos, SV Series, Gears, RC servo
