Servo selection: torque, speed, gears and voltage
How to select servos for trainers, sport aircraft, large models, cars and boats without under-sizing a control surface.

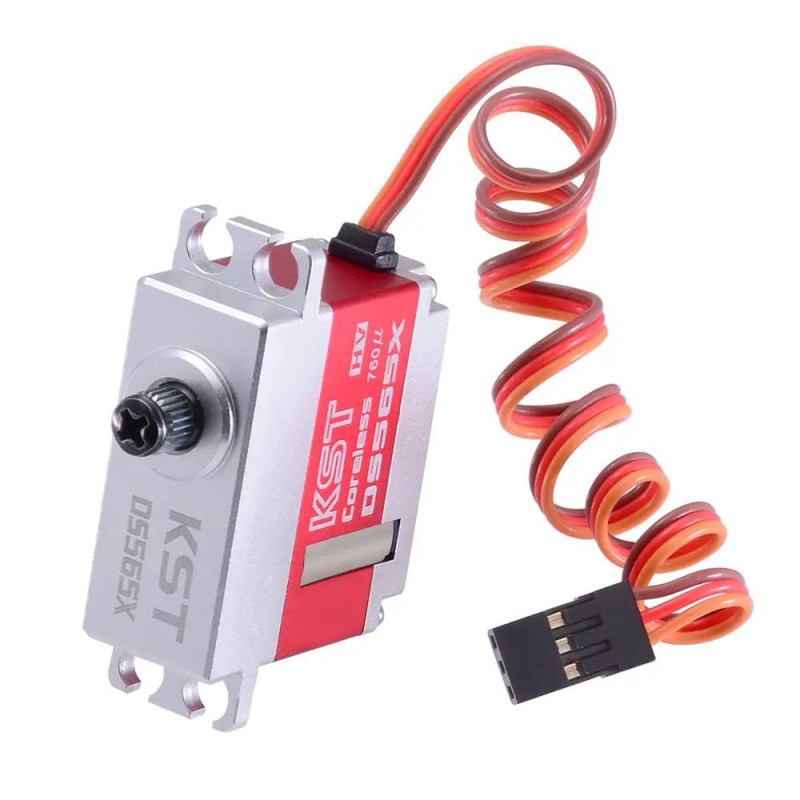

DS565X 8.4V HV Digital Metal Gear Tail Servo 6.0Kgf.cm 0.04sec for Helicopters
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Why choose DS565X 8.4V HV Digital Metal Gear Tail Servo 6.0Kgf.cm 0.04sec for Helicopters through RC-MODEL?
DS565X 8.4V HV Digital Metal Gear Tail Servo 6.0Kgf.cm 0.04sec for Helicopters is an RC product from KST Servos. This page focuses on what an end customer needs: fit, use cases, specifications and imagery, without prices or outbound supplier detours.
Fit and use
DS565X 8.4V HV Digital Metal Gear Tail Servo 6.0Kgf.cm 0.04sec for Helicopters fits customers looking for KST Servos items in Helicopter Servos, Industrial & UAV Servos, Gears, with RC-MODEL support for choosing the right configuration.
- Relevant category: Helicopter Servos, Industrial & UAV Servos, Gears
- Product identification for inquiry: model KST-BR0023.0037 / SKU BR0023.0037
Key details
- Features: Extreme Torque and Excellent Speed; Programmable; Dual Ball Bearings; CNC Aluminium Case
- Gear Set Material: Hardened Steel
- Size Class: Mini Servos

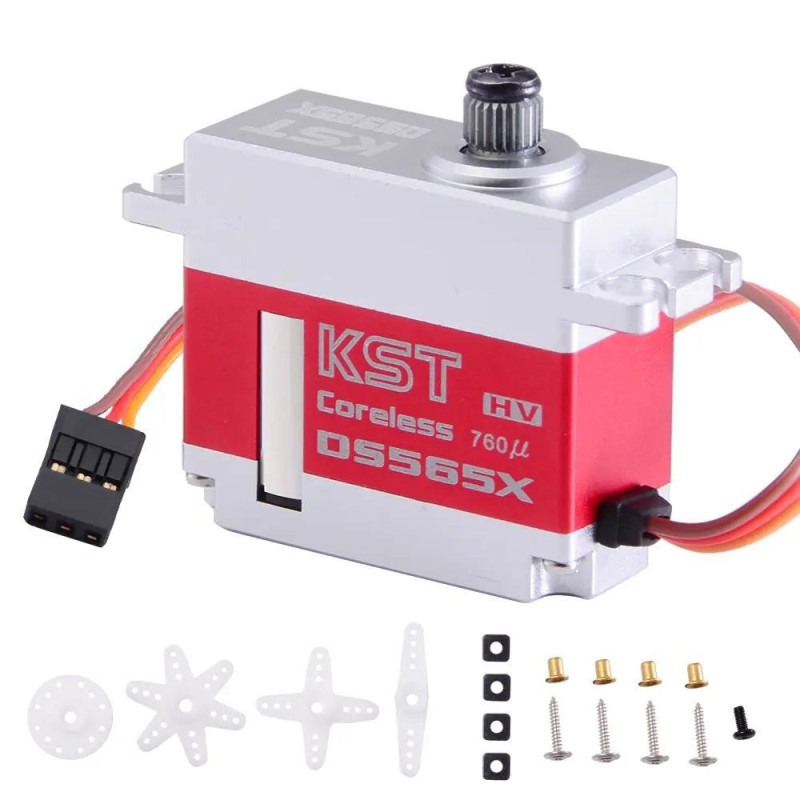

- Package Includes: 1 * KST DS565X Servo; 1 * Pack of Accessories; Download; DS565X Servo Specification
- Manufacturer: KST Servos
- Rated Voltage: DC7.4V
Before ordering
- Confirm dimensions, power system, radio compatibility or material size before purchase.
- Ask us to match required accessories, adhesives, hardware, batteries or replacement parts.
- RC-MODEL helps with fit checks, availability, compatible accessories and a formal quote in Israel.
DS565X 8.4V HV Digital Metal Gear Tail Servo 6.0Kgf.cm 0.04sec for Helicopters is a KST Servos product selected for Helicopter Servos. This page is written for practical buying decisions, with the key fit, size, voltage and performance details organized in one place.
Use it to compare torque, speed, voltage range, construction, dimensions, weight, variants and accessory compatibility before choosing the right component for an RC aircraft, helicopter, car, glider, UAV or workshop installation.
Key Advantages
- Extreme Torque and Excellent Speed
- Programmable
- Dual Ball Bearings
- CNC Aluminium Case
Core Specifications
- Voltage Range: DC6.0V-8.4V
- Rated Voltage: DC7.4V
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
- Weight: 40g±10%
- Item: DS565X Servo
- Working Frequency: 760μs/560Hz
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Which servo fits each RC aircraft type?
A buying table for matching servo size, torque, speed, gear type and voltage to trainers, gliders, 3D aircraft, EDF jets and Giant Scale models.
How to install servos and linkages correctly
Mechanical setup guide for servo arms, linkage angles, throw, control horns, neutral position and radio setup after geometry is correct.
How to set Dual Rates and Expo on an RC transmitter
Make an aircraft calmer for beginners by setting low rates, high rates and expo without hiding mechanical setup problems.
How to set failsafe correctly on an RC aircraft
Failsafe setup for electric and fuel aircraft: throttle behavior, receiver signal loss, switch positions and safe verification before flight.
| Technical Specifications | |
| Manufacturer | KST Servos |
| Brand | KST |
| Product Code | BR0023.0037 |
| All Variant SKUs | BR0023.0037 |
| Rated Voltage | DC7.4V |
| Voltage Range | DC6.0V-8.4V |
| Working Frequency | 760μs/560Hz |
| Temperature Range | -10℃……+65℃ |
| Soft Start | Programmable |
| Programmable | Yes |
| Case Material | Aluminum Alloy |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |
| Case Dimensions | 35.5mm*15mm*32.5mm±0.2mm |
| Weight | 40g±10% |
| KST Collections | Helicopter Servos, Industrial, Mini Servos, DS Series |
| Series | DS Series |
| Size Class | Mini Servos |
| Application | Helicopter Servos |
| Features | Extreme Torque and Excellent Speed; Programmable; Dual Ball Bearings; CNC Aluminium Case |
| Package Includes | 1 * KST DS565X Servo; 1 * Pack of Accessories; Download; DS565X Servo Specification |
| Item | DS565X Servo |
| Product Type | RC |
Tags: KST Servos, BR0023.0037, Helicopter Servos, Industrial & UAV Servos, Mini Servos, DS Series, Gears, RC servo
