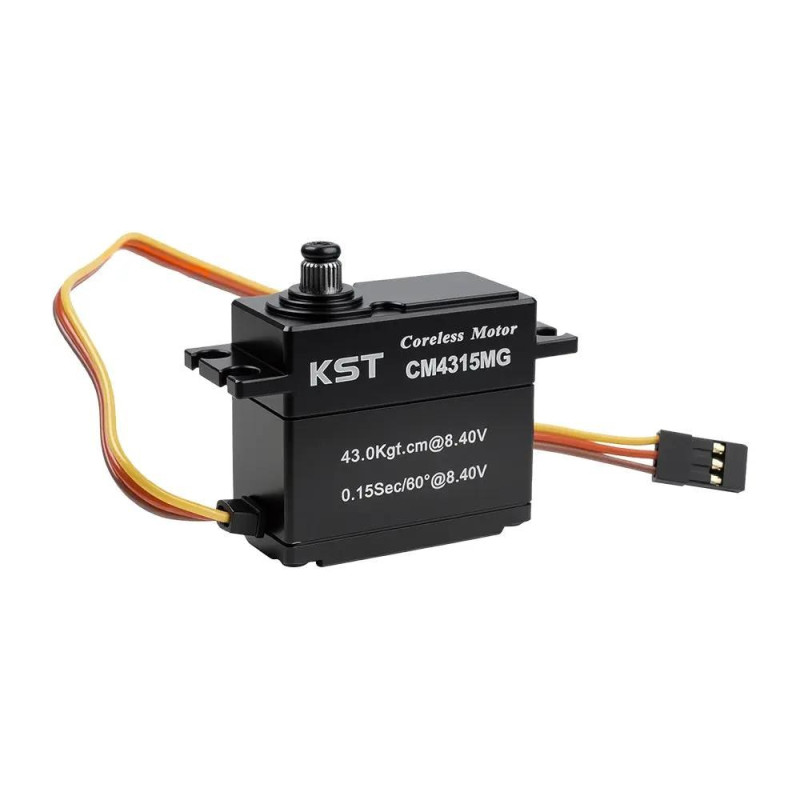

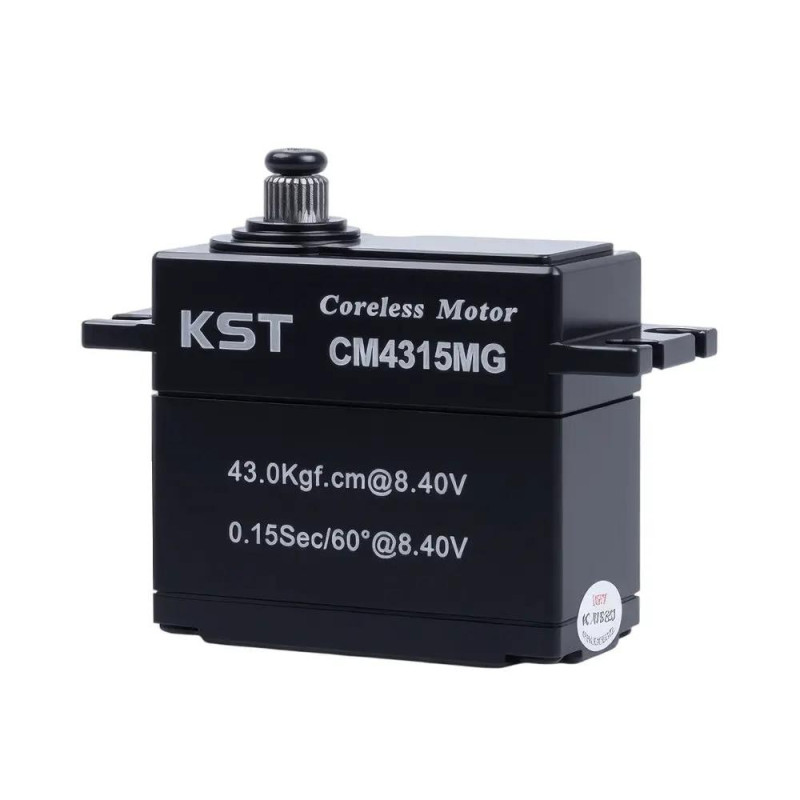

CM4315MG Coreless Metal Gear Servo IP65 Waterproof 43Kgf.cm 0.15sec/60° for 1/10 Scale RC Rock Crawler and 1/7th 1/8th Scale RC Monster Truck & Buggy

CM4315MG Coreless Metal Gear Servo IP65 Waterproof 43Kgf.cm 0.15sec/60° for 1/10 Scale RC Rock Crawler and 1/7th 1/8th Scale RC Monster Truck & Buggy

  • Brand:KST Servos
  • Product Code:KST-BR0023.0260
  • SKU:BR0023.0260
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 +972-9-957-7888

CM4315MG Coreless Metal Gear Servo IP65 Waterproof 43Kgf.cm 0.15sec/60° for 1/10 Scale RC Rock Crawler and 1/7th 1/8th Scale RC Monster Truck & Buggy is a KST Servos product selected for Car Servos. This page is written for practical buying decisions, with the key fit, size, voltage and performance details organized in one place.

Use it to compare torque, speed, voltage range, construction, dimensions, weight, variants and accessory compatibility before choosing the right component for an RC aircraft, helicopter, car, glider, UAV or workshop installation.

Key Advantages

  • Ultra High Torque & Excellent Speed
  • IP65 Waterproof
  • Double Ball Bearings
  • Coreless Dual Motor
  • Hardened Steel Gear
  • Support Soft Start

Core Specifications

  • Voltage Range: DC4.8V-8.4V
  • Rated Voltage: DC7.4V
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Ball Bearing: 2BB
  • Case Dimensions: 40.5*20*38mm±0.2mm
  • Weight: 70g±10%
  • Item: CM4315MG Servo
  • Torque: 25Kgf.cm@4.8V, 30Kgf.cm@6.0V, 36Kgf.cm@7.4V, 43Kgf.cm@8.4V
  • Speed: 0.23sec/60°@4.8V, 0.19sec/60°@6.0V, 0.16sec/60°@7.4V, 0.15sec/60°@8.4V
  • Stall Current: 3.00A@4.8V, 3.90A@6.0V, 4.80A@7.4V, 5.05A@8.4V
  • Working Frequency: 1520μs/333Hz
Relevant RC Academy guides

Learn before you buy

These guides explain the setup, safety checks and accessory choices that usually matter for this product type.

Buying guides

Which servo fits each RC aircraft type?

A buying table for matching servo size, torque, speed, gear type and voltage to trainers, gliders, 3D aircraft, EDF jets and Giant Scale models.

Technical Specifications
Manufacturer KST Servos
Brand KST
Product Code BR0023.0260
All Variant SKUs BR0023.0260
Rated Voltage DC7.4V
Voltage Range DC4.8V-8.4V
Working Frequency 1520μs/333Hz
Default Travel Angle ±50° =100° Total
Temperature Range -10℃……+65℃
Soft Start Programmable
Programmable Yes
Case Material Aluminium Alloy
Motor Type Coreless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2BB
Case Dimensions 40.5*20*38mm±0.2mm
Weight 70g±10%
KST Collections Car Servos, Industrial, Standard Servos, CM Series
Series CM Series
Size Class Standard Servos
Application Car Servos
Features Ultra High Torque & Excellent Speed; IP65 Waterproof; Double Ball Bearings; Coreless Dual Motor; Hardened Steel Gear; Support Soft Start; Programmable; Ideal for 1/10 Scale RC Rock Crawler, 1/7th and 1/8th Scale RC Monster Truck & Buggies
Package Includes 1 * CM4315MG Servo; 3 * Plastic Servo Horn; 1 * Servo Horn Screw; 4 * Mounting Screw; 4 * Rubber Grommet
Item CM4315MG Servo
Torque 25Kgf.cm@4.8V, 30Kgf.cm@6.0V, 36Kgf.cm@7.4V, 43Kgf.cm@8.4V
Speed 0.23sec/60°@4.8V, 0.19sec/60°@6.0V, 0.16sec/60°@7.4V, 0.15sec/60°@8.4V
Product Type RC
Stall Current 3.00A@4.8V, 3.90A@6.0V, 4.80A@7.4V, 5.05A@8.4V
Waterproof IP65
