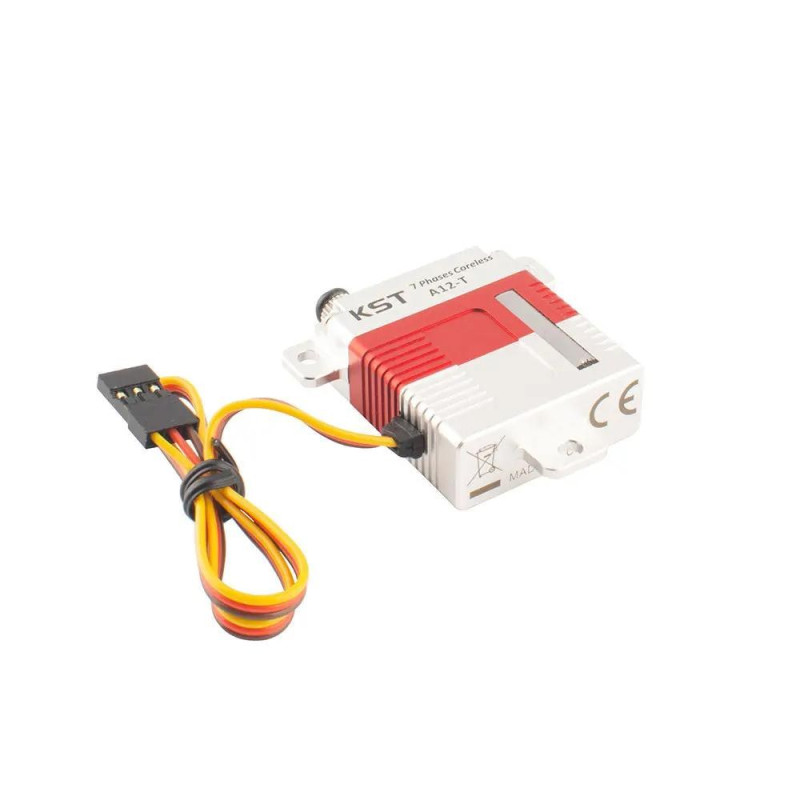

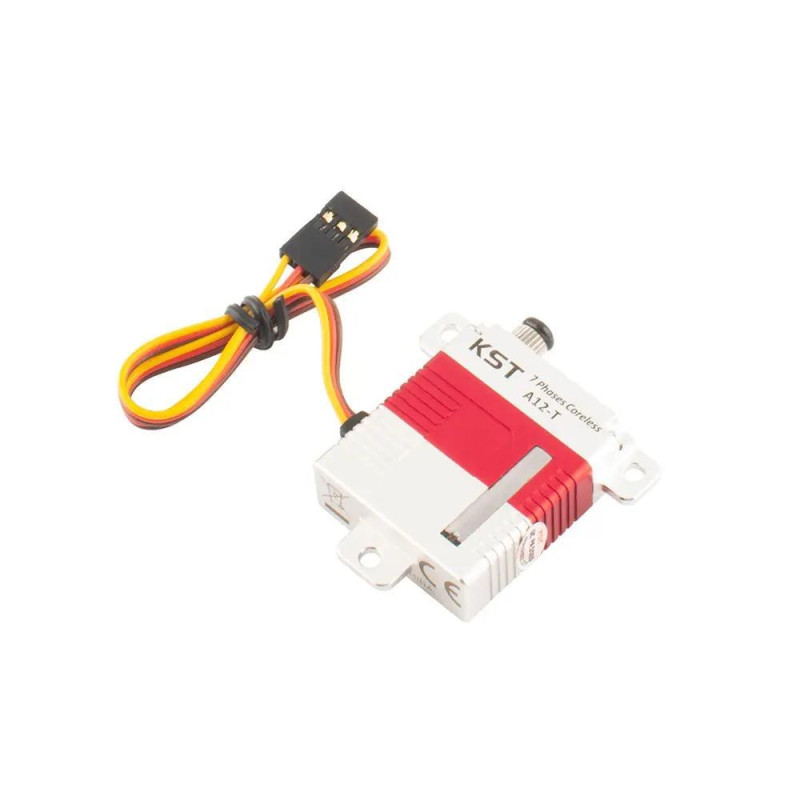

A12-T HV Mini Coreless Metal Gear Contactless Magnetic Sensors Servo 20.0Kgf.cm 0.12sec for Glider Wing
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
A12-T HV Mini Coreless Metal Gear Contactless Magnetic Sensors Servo 20.0Kgf.cm 0.12sec for Glider Wing is a KST Servos product selected for Glider Wing Servos. This page is written for practical buying decisions, with the key fit, size, voltage and performance details organized in one place.
Use it to compare torque, speed, voltage range, construction, dimensions, weight, variants and accessory compatibility before choosing the right component for an RC aircraft, helicopter, car, glider, UAV or workshop installation.
Key Advantages
- 7 Phase Coreless DC Motor
- Contactless (Magnetic Sensor)
- Programmable
- Compact and Lightweight Design
- Excellent Torque and Speed
- Excellent Heat Dissipation
Core Specifications
- Voltage Range: DC6.0V-8.4V
- Rated Voltage: DC7.4V
- Motor Type: 7 Phases Coreless DC Motor
- Gear Set Material: Hardened Steel
- Ball Bearing: 2BB
- Case Dimensions: 30mm*12mm*35.5mm±0.2mm
- Weight: 32g±10%
- Item: A12-T Digital Metal Gear HV Servo
- Torque: 1.6N.m@6.0V, 1.8N.m@7.4V, 2.0N.m@8.4V; 16.31kg-cm@6.0V, 18.35kg-cm@7.4V,20.39kg-cm@8.4V
- Speed: 0.15sec/60°@6.0V, 0.13sec/60°@7.4V, 0.12sec/60°@8.4V
- Temperature Range: -10℃……+60℃
- Soft Start: Yes
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Servo selection: torque, speed, gears and voltage
How to select servos for trainers, sport aircraft, large models, cars and boats without under-sizing a control surface.
How to balance an RC aircraft and find the correct CG
One of the most important setup guides: find the CG, install the flight battery, balance the aircraft and avoid nose-heavy or tail-heavy surprises.
Mandatory pre-flight checks for safer RC flying
A repeatable inspection routine for control direction, radio range, failsafe, battery, fasteners, propeller, CG and field readiness.
How to perform the first test flight of an RC aircraft
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
| Technical Specifications | |
| Manufacturer | KST Servos |
| Brand | KST |
| Product Code | BR0023.0206 |
| All Variant SKUs | BR0023.0206 |
| Rated Voltage | DC7.4V |
| Voltage Range | DC6.0V-8.4V |
| Temperature Range | -10℃……+60℃ |
| Soft Start | Yes |
| Programmable | Yes |
| Case Material | Aluminum Alloy |
| Motor Type | 7 Phases Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Contactless (Magnetic Sensor) |
| Ball Bearing | 2BB |
| Case Dimensions | 30mm*12mm*35.5mm±0.2mm |
| Weight | 32g±10% |
| KST Collections | Glider Wing Servos, Industrial, Mini Servos, Top Rated |
| Size Class | Mini Servos |
| Application | Glider Wing Servos |
| Features | 7 Phase Coreless DC Motor; Contactless (Magnetic Sensor); Programmable; Compact and Lightweight Design; Excellent Torque and Speed; Excellent Heat Dissipation; Designed for High Performance RC Gliders |
| Package Includes | 1 * A12-T HV Metal Servo; 2 * Plastic Servo Horn; 4 * Mounting Screw; 2 * Servo Horn Screw; Download |
| Item | A12-T Digital Metal Gear HV Servo |
| Torque | 1.6N.m@6.0V, 1.8N.m@7.4V, 2.0N.m@8.4V; 16.31kg-cm@6.0V, 18.35kg-cm@7.4V,20.39kg-cm@8.4V |
| Speed | 0.15sec/60°@6.0V, 0.13sec/60°@7.4V, 0.12sec/60°@8.4V |
