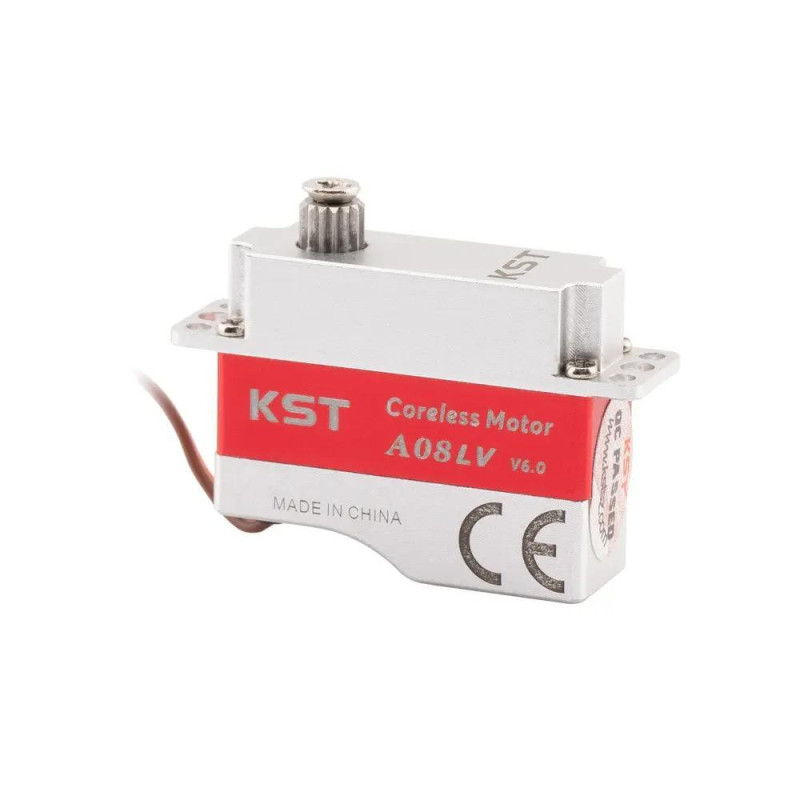

A08 LV V6.0 Micro Coreless Digital 2.0Kgf.cm 0.15sec Dual Ball Bearing 1S Servo for DLG F3K Gliders
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Why choose A08 LV V6.0 Micro Coreless Digital 2.0Kgf.cm 0.15sec Dual Ball Bearing 1S Servo for DLG F3K Gliders through RC-MODEL?
A08 LV V6.0 Micro Coreless Digital 2.0Kgf.cm 0.15sec Dual Ball Bearing 1S Servo for DLG F3K Gliders is an RC product from KST Servos. This page focuses on what an end customer needs: fit, use cases, specifications and imagery, without prices or outbound supplier detours.
Fit and use
A08 LV V6.0 Micro Coreless Digital 2.0Kgf.cm 0.15sec Dual Ball Bearing 1S Servo for DLG F3K Gliders fits customers looking for KST Servos items in Glider Wing Servos, Micro Servos, A Series, with RC-MODEL support for choosing the right configuration.
- Relevant category: Glider Wing Servos, Micro Servos, A Series
- Product identification for inquiry: model KST-BR0023.0241 / SKU BR0023.0241
Key details
- Features: DC4.2V, Supports 3.5V Low Voltage Setups; Optimized for 1S LiPo Batteries; High Torque & Exceptional Speed; Compact and Lightweight; Dual...
- Gear Set Material: Hardened Steel
- Size Class: Micro Servos
- Package Includes: 1 * A08 LV V6.0 Series Micro Servo; 4 * Plastic Servo Horns; 1 * Servo Horn Screw; 5 * Mounting Screws; Download
- Manufacturer: KST Servos
- Rated Voltage: DC4.2V
Before ordering
- Confirm dimensions, power system, radio compatibility or material size before purchase.
- Ask us to match required accessories, adhesives, hardware, batteries or replacement parts.
- RC-MODEL helps with fit checks, availability, compatible accessories and a formal quote in Israel.
A08 LV V6.0 Micro Coreless Digital 2.0Kgf.cm 0.15sec Dual Ball Bearing 1S Servo for DLG F3K Gliders is a KST Servos product selected for Glider Wing Servos. This page is written for practical buying decisions, with the key fit, size, voltage and performance details organized in one place.
Use it to compare torque, speed, voltage range, construction, dimensions, weight, variants and accessory compatibility before choosing the right component for an RC aircraft, helicopter, car, glider, UAV or workshop installation.

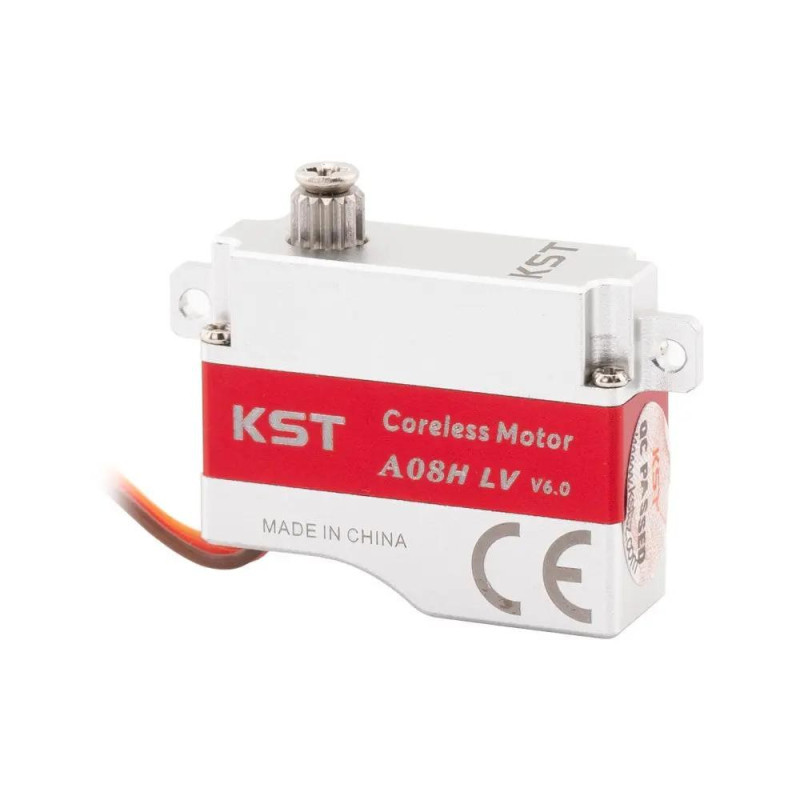

Available variants: A08 LV (BR0023.0241); A08H LV (BR0023.0241-H); A08N LV (BR0023.0241-N)
Key Advantages
- DC4.2V, Supports 3.5V Low Voltage Setups
- Optimized for 1S LiPo Batteries
- High Torque & Exceptional Speed
- Compact and Lightweight
- Dual Ball Bearings
- Coreless DC Motor
Core Specifications
- Voltage Range: DC3.5V-4.2V
- Rated Voltage: DC4.2V
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Ball Bearing: 2BB
- Case Dimensions: 23.5mm*8mm*19mm±0.2mm
- Weight: 7g±10%
- Item: A08 LV V6.0 Servo
- Torque: [email protected] / [email protected]
- Speed: 0.18sec/60°@3.5V / 0.15sec/60°@4.2V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±60° =120° Total
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Servo selection: torque, speed, gears and voltage
How to select servos for trainers, sport aircraft, large models, cars and boats without under-sizing a control surface.
How to balance an RC aircraft and find the correct CG
One of the most important setup guides: find the CG, install the flight battery, balance the aircraft and avoid nose-heavy or tail-heavy surprises.
Mandatory pre-flight checks for safer RC flying
A repeatable inspection routine for control direction, radio range, failsafe, battery, fasteners, propeller, CG and field readiness.
How to perform the first test flight of an RC aircraft
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
| Technical Specifications | |
| Manufacturer | KST Servos |
| Brand | KST |
| Product Code | BR0023.0241 |
| All Variant SKUs | BR0023.0241, BR0023.0241-H, BR0023.0241-N |
| Rated Voltage | DC4.2V |
| Voltage Range | DC3.5V-4.2V |
| Working Frequency | 1520μs/333Hz |
| Default Travel Angle | ±60° =120° Total |
| Temperature Range | -10℃.......+65℃ |
| Case Material | Aluminium Alloy |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |
| Ball Bearing | 2BB |
| Case Dimensions | 23.5mm*8mm*19mm±0.2mm |
| Weight | 7g±10% |
| KST Collections | Glider Wing Servos, Micro Servos, A Series |
| Series | A Series |
| Size Class | Micro Servos |
| Application | Glider Wing Servos |
| Features | DC4.2V, Supports 3.5V Low Voltage Setups; Optimized for 1S LiPo Batteries; High Torque & Exceptional Speed; Compact and Lightweight; Dual Ball Bearings; Coreless DC Motor; Ideal for Unpowered Gliders |
| Package Includes | 1 * A08 LV V6.0 Series Micro Servo; 4 * Plastic Servo Horns; 1 * Servo Horn Screw; 5 * Mounting Screws; Download |
| Item | A08 LV V6.0 Servo |
| Torque | [email protected] / [email protected] |
| Speed | 0.18sec/60°@3.5V / 0.15sec/60°@4.2V |
| Available Variants | A08 LV (BR0023.0241); A08H LV (BR0023.0241-H); A08N LV (BR0023.0241-N) |
| Product Type | RC |
