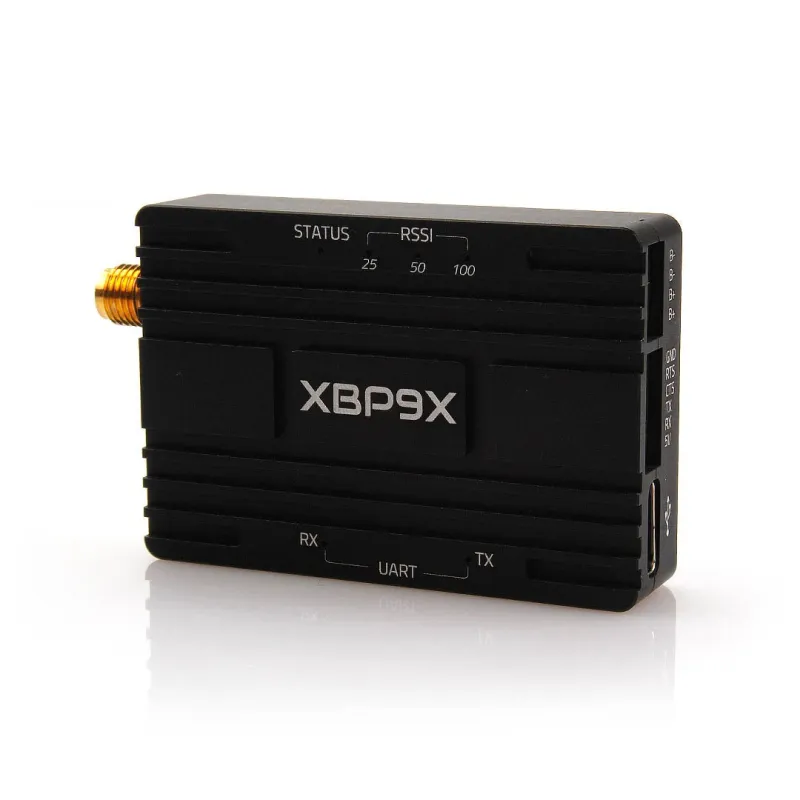

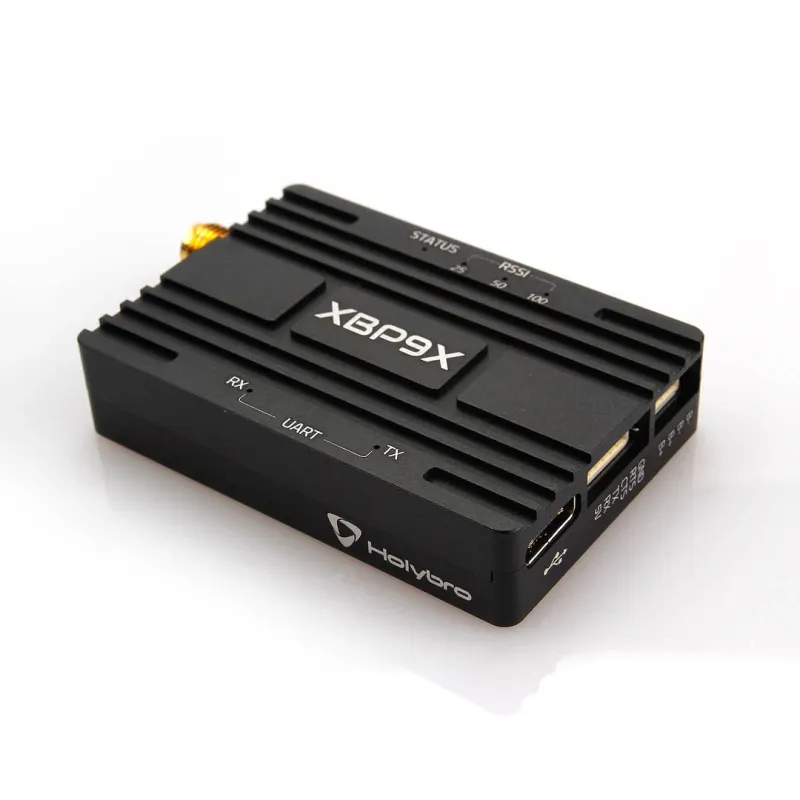

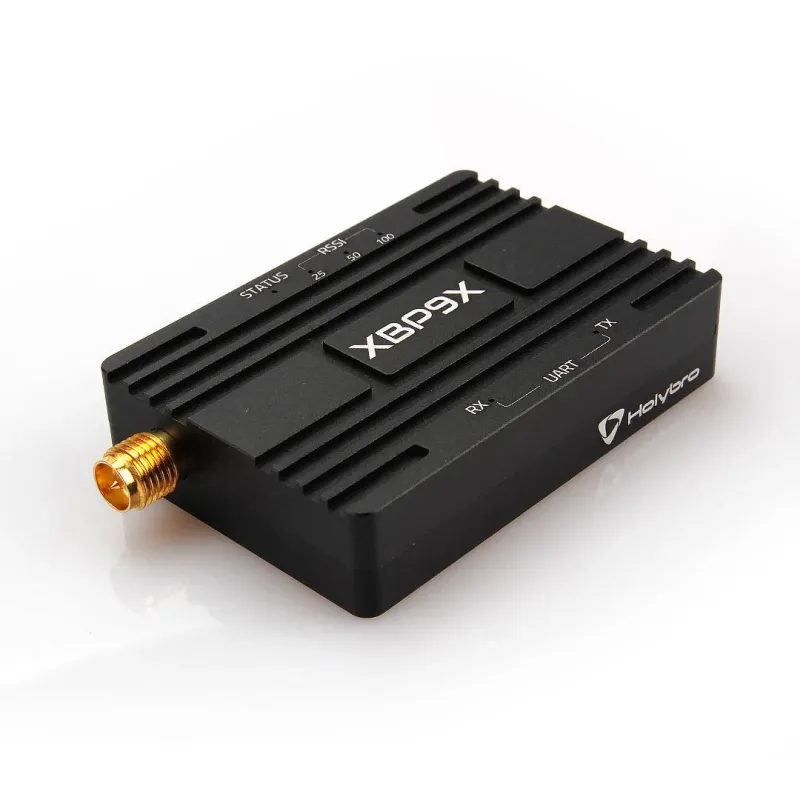

Holybro XBP9X Telemetry Radio

  • Brand:Holybro
  • Product Code:Holybro XBP9X Telemetry Radio
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

Available Options

Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

Holybro XBP9X Telemetry Radio is a Holybro catalog item in Telemetry & Data Links. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandHolybro
ModelXBP9X Telemetry Radio
FREQUENCY RANGEISM 902 to 928 MHz
TRANSMIT POWER (Software Selectable)Up to 30 dBm*
CHANNELS10 hopping sequences share 50 frequencies
RF DATA RATELow data rate: 10 kb/s; Middle data rate: 110 kb/s; High data rate: 250 kb/s
MAXIMUM DATA THROUGHPUTHigh data rate: 120 kb/s
AVAILABLE CHANNEL FREQUENCIESLow and middle data rate: 101; High data rate: 50
RECEIVER SENSITIVITYLow data rate: -113 dBm; Middle data rate: -106 dBm; High data rate: -103 dBm
RECEIVER IF SELECTIVITYLow data rate, +/- 250 kHz: 40 dB; Low data rate, +/- 500 kHz: 50 dB Middle data rate, +/- 250 kHz: 30 dB; Middle data rate, +/- 500 kHz: 40 dB High data rate, +/- 500 kHz: 30 dB; High data rate, +/- 1000 kHz: 45 dB RECEIVER RF SELECTIVITY Below 900 MHz and above 930 MHz; > 50 dB
RURAL RANGE LINE OF SIGHTLow data rate: Up to 105 km (65 mi)
URBAN RANGE LINE OF SIGHTLow data rate: Up to 18 km (11 mi)
INDOOR RANGELow data rate: Up to 300 m (1,000 feet)
MODULATIONGaussian Frequency Shift Keying Gaussian Frequency Shift Keying
SPREADING TECHNOLOGYFrequency Hopping Spread Spectrum (FHSS)
SUPPORTED NETWORK TOPOLOGIES (Software Selectable)Peer-to-peer (master/slave relationship not required), point-to-point/point-to-multipoint, mesh
ENCRYPTIONOptional 256-bit AES CBC encryption. Encryption is enabled with the ATKY command.

Manufacturer technical notes

Holybro XBP9X Radio can be configured easily using Digi’s free XCTU software or via Digi’s simplified AT or API command sets. The Radios provide secure, reliable delivery of critical data between devices with 256-bit AES encryption. With RF line-of-sight ranging up to 65 miles* and strong interference blocking capabilty, the Radios are ideal for those applications requiring the combination of range, data redundancy and data reliability.

FCC ID :MCQ-XBPSX

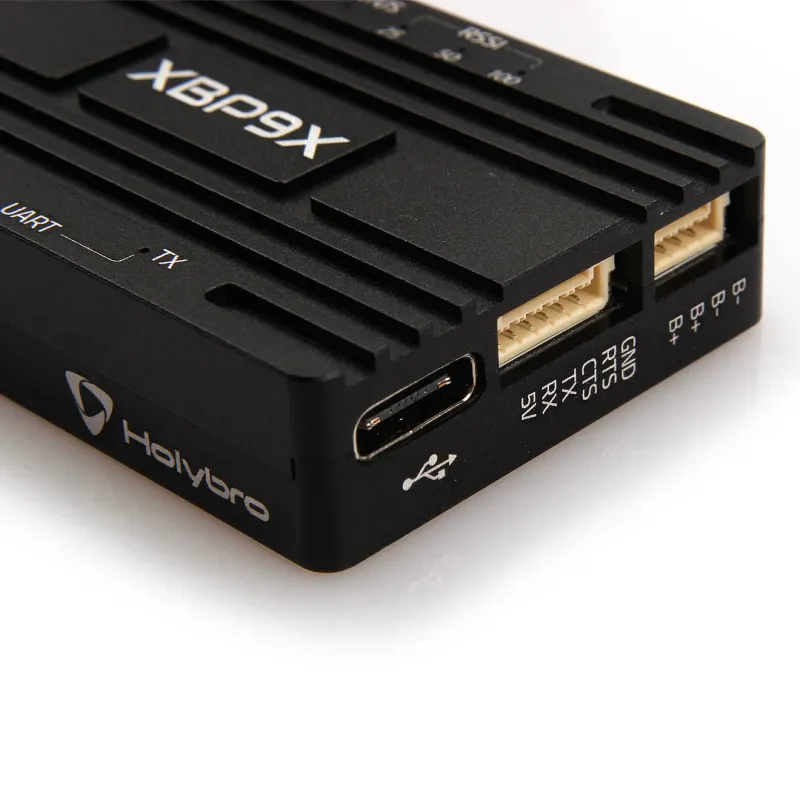

USB Type-C port, integrated USB to UART converter

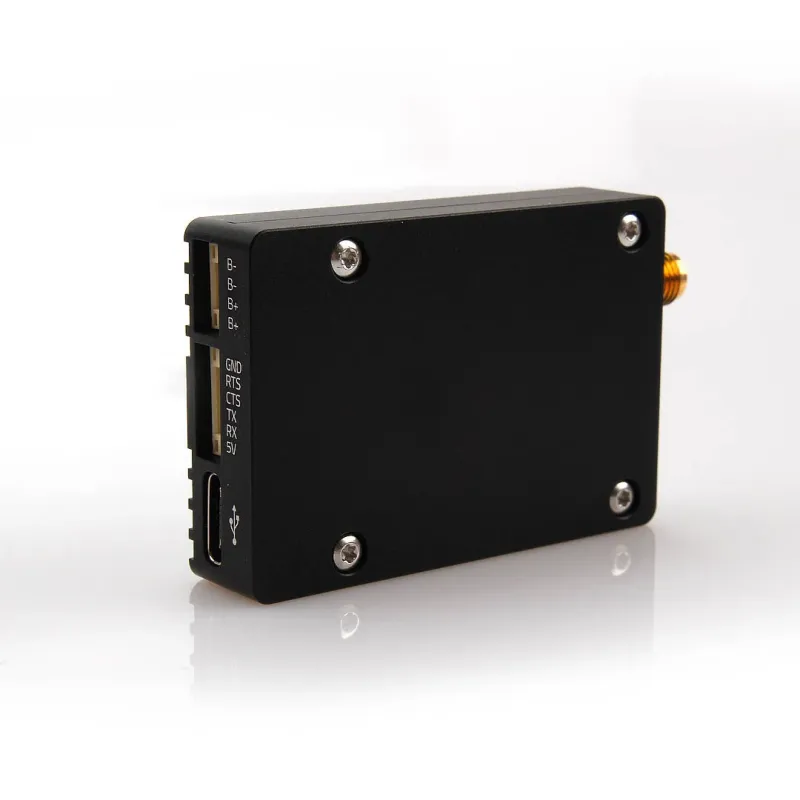

6-position JST-GH connector, can be directly connected to pixhawk4 flight controller

High voltage BEC on board, Support DC7~35V voltage supply

Can be powered by USB or flight controller in 100mW transmit power mode

UART transmission LED indicator

Three-stage RSSI LED indicator

256-bit AES encryption for secure data communications

DigiMesh networking topology for redundancy and reliability

Supply voltage: 5V DC from USB or 6-position JST-GH (100mW)

7~35V DC form 4-position JST-GH (500mW or 1000mW)

Transmit current: 300 mA/5V at 20dBm

500mA/7V at 27dBm

800 mA/7V at 30dBm

Receive current: 40 mA

Serial interface: 3.3 V UART

51.9x35.4 x 11.5mm (without antenna)

Please note: when 500MW or 1000MW output is taken, battery must be used for power supply, otherwise the transmission will be unstable.

1x XT30 Power cable

1x GH 6P to 6P cable

XBP9X_Radio_QuickStartGuide

Manufacturer technical and configuration tables

FREQUENCY RANGEISM 902 to 928 MHz
TRANSMIT POWER (Software Selectable)Up to 30 dBm*
CHANNELS10 hopping sequences share 50 frequencies
RF DATA RATELow data rate: 10 kb/s; Middle data rate: 110 kb/s; High data rate: 250 kb/s
MAXIMUM DATA THROUGHPUTHigh data rate: 120 kb/s
AVAILABLE CHANNEL FREQUENCIESLow and middle data rate: 101; High data rate: 50
RECEIVER SENSITIVITYLow data rate: -113 dBm; Middle data rate: -106 dBm; High data rate: -103 dBm
RECEIVER IF SELECTIVITYLow data rate, +/- 250 kHz: 40 dB; Low data rate, +/- 500 kHz: 50 dB Middle data rate, +/- 250 kHz: 30 dB; Middle data rate, +/- 500 kHz: 40 dB High data rate, +/- 500 kHz: 30 dB; High data rate, +/- 1000 kHz: 45 dB RECEIVER RF SELECTIVITY Below 900 MHz and above 930 MHz; > 50 dB
RURAL RANGE LINE OF SIGHTLow data rate: Up to 105 km (65 mi)
URBAN RANGE LINE OF SIGHTLow data rate: Up to 18 km (11 mi)
INDOOR RANGELow data rate: Up to 300 m (1,000 feet)
MODULATIONGaussian Frequency Shift Keying Gaussian Frequency Shift Keying
SPREADING TECHNOLOGYFrequency Hopping Spread Spectrum (FHSS)
SUPPORTED NETWORK TOPOLOGIES (Software Selectable)Peer-to-peer (master/slave relationship not required), point-to-point/point-to-multipoint, mesh
ENCRYPTIONOptional 256-bit AES CBC encryption. Encryption is enabled with the ATKY command.

Manufacturer catalog configurations

ConfigurationManufacturer SKU
XBP9X Radio（1pc）17017

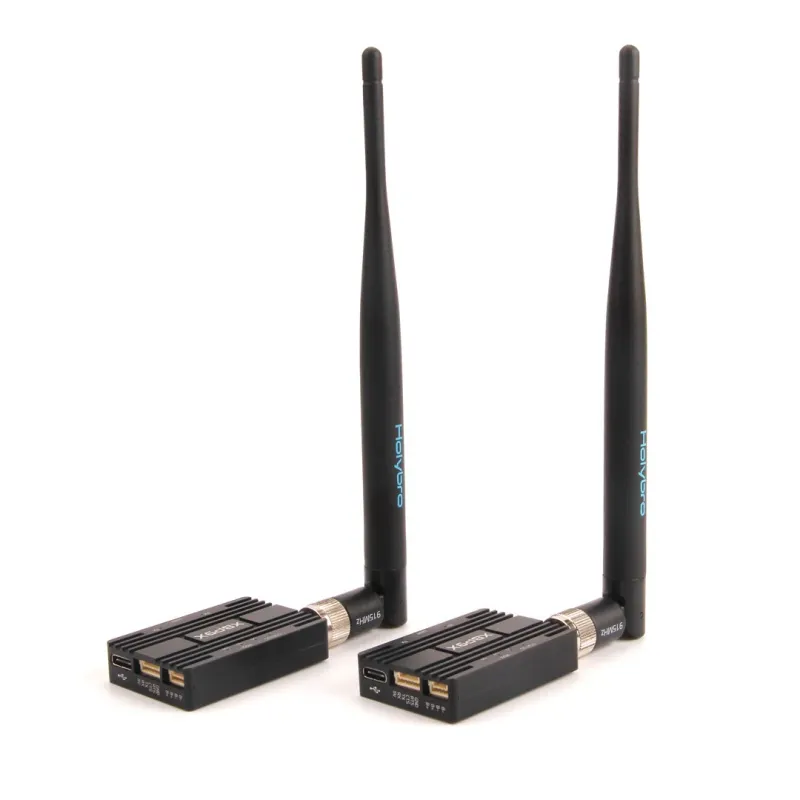

XBP9X Radio（1pair）17018

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.

  • Original manufacturer model information
  • Manufacturer documentation
  • Manufacturer documentation
