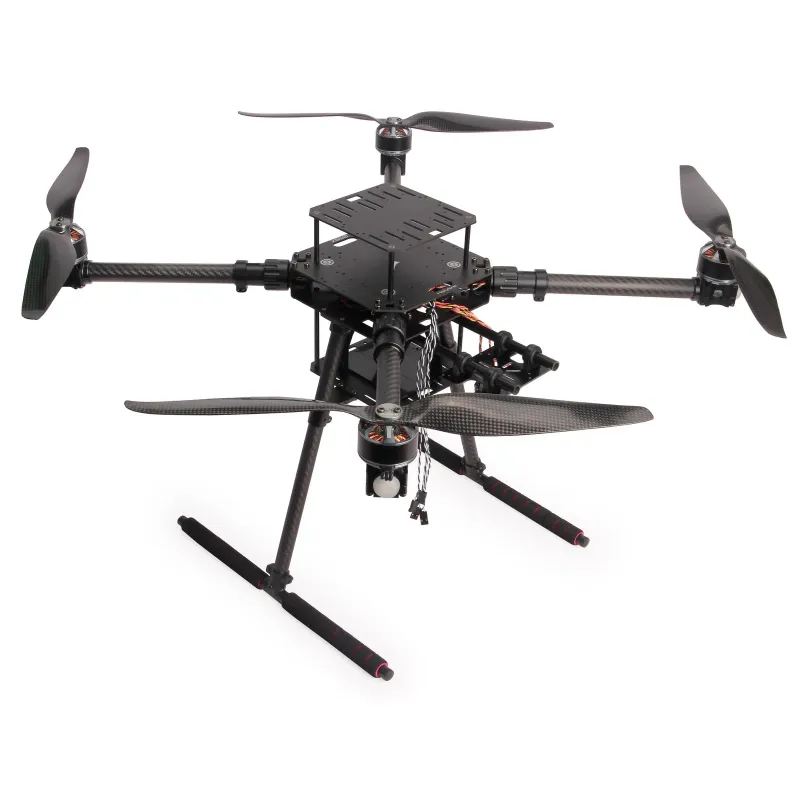

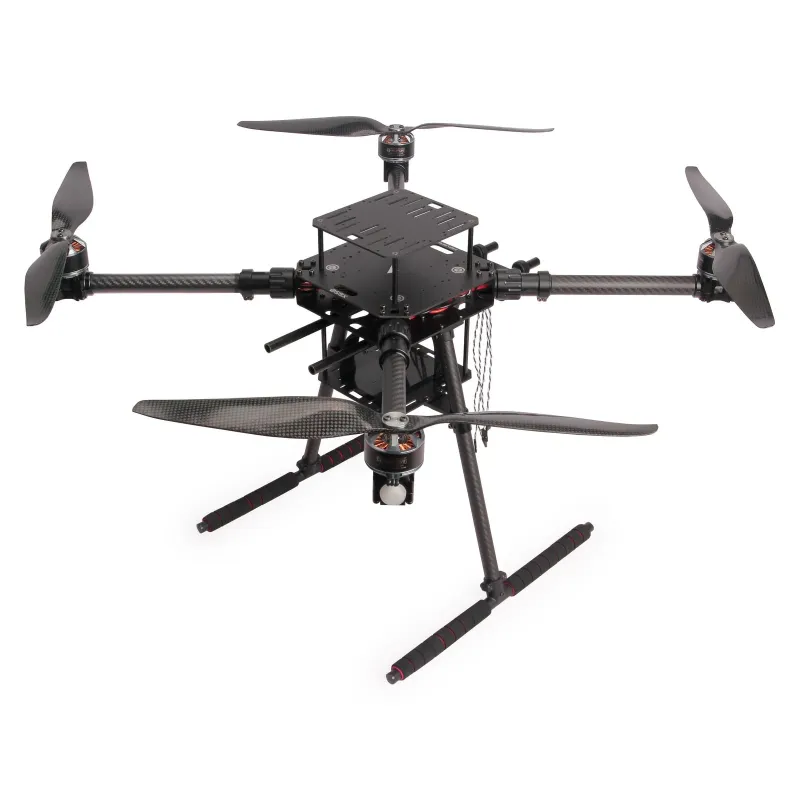

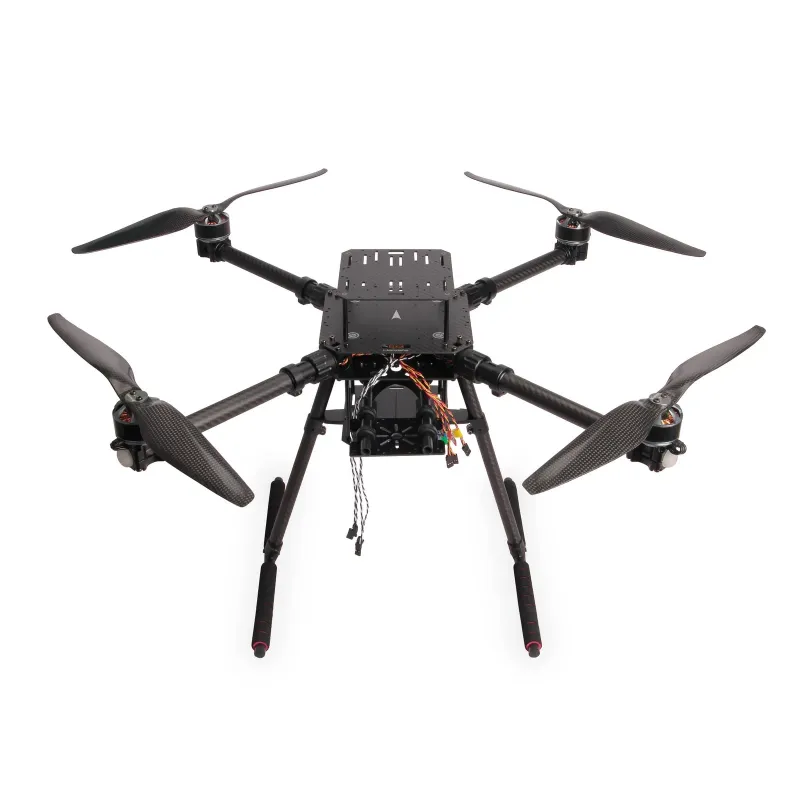

Holybro X650 Kits

Holybro X650 Kits is a Holybro catalog item in Development Kits & Frames. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

Note: Full X650 Development Kit with Flight Controller, GPS, Telemetry Radio can be purchase here.

Almost Ready-to-Fly (ARF) Kit Feature:

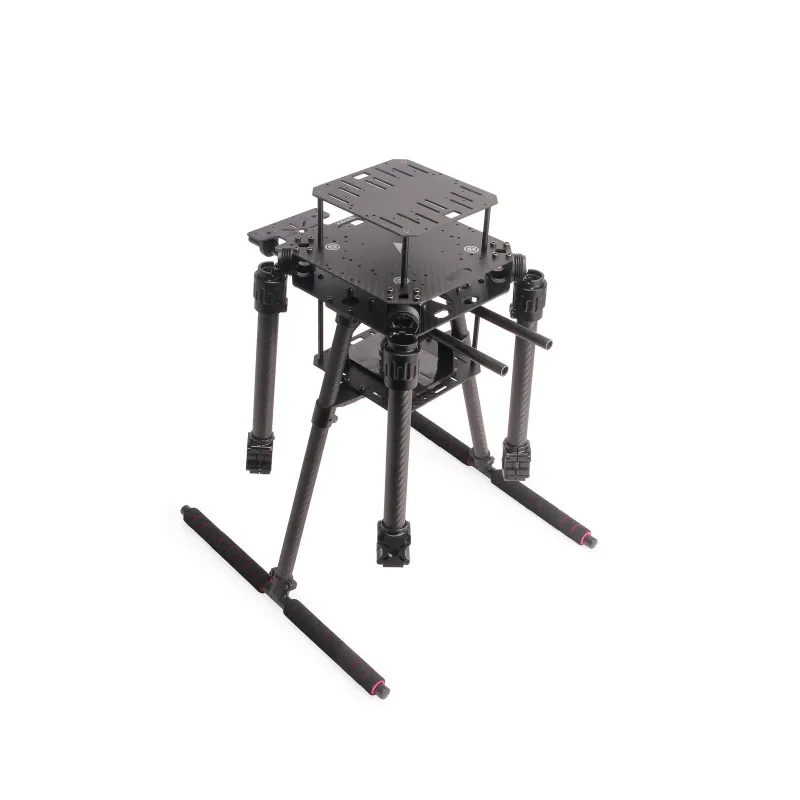

Carbon Fiber frame with foldable aluminum arm connector

New frame design with minimal assembly time, no soldering required

Easy & straightforward installation

Spacious platform for easy integration of additional accessories & battery

Pre-installed motors, ESCs, and LED with simple XT30 power plugs for PDB

Power distribution board (PDB) with XT60 & XT30 plugs

Optional depth camera mount for Intel RealSense depth camera

Mounting holes ready for Pixhawk Jetson baseboard

X650 V2 Frame Kit

Preinstalled Items: 4 Motors - Tmotor MN4014 KV330 Motor with XT30 Plug 4 ESCs - Tekko32 F4 45A ESC with XT30 Plugs 4 LED - NeoPixel WS2812 LED (Setup Instruction)

4 Motors - Tmotor MN4014 KV330 Motor with XT30 Plug

4 ESCs - Tekko32 F4 45A ESC with XT30 Plugs

4 LED - NeoPixel WS2812 LED (Setup Instruction)

Gemfan 1555 Carbon Fiber Propellers (4 pcs)

Power Distribution Board (XT60 plug for battery & XT30 plug for ESCs & peripherals)

X650 V2 Frame Only

Wheelbase: 650mm

Motor mount Mount pattern: 16-25mm

Mount pattern: 16-25mm

Body - Full Carbon Fiber Top & Bottom plate (160 x 160mm, 2mm thick)

Arm - High strength & ultra-lightweight 20mm carbon fiber tubes with newly designed aluminum foldable arm mount

Landing gear - 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.

Upper & Battery Plate - 120mm x 128mm carbon fiber plate for various payload, accessories, or battery.

Platform board - With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano

Dual 10mm Ø rod x 320 mm long rail mounting system

Two battery pads & Straps

Hand tools for installation

Flight time: 30 min (Hover with 6S 10000 mAh Battery, no additional payload)

Full Kit Weight: 2000g (without battery)

Payload: 4.3kg (without battery) 3.5kg (with 5200mAh 750 gram battery) 3.1kg (with 10000mAh 1200 gram battery)

4.3kg (without battery)

3.5kg (with 5200mAh 750 gram battery)

3.1kg (with 10000mAh 1200 gram battery)

Takeoff Weight Limit: 6300g (70% throttle)

Battery Recommendation: 6S 5000-12000mAh Lipo Battery with XT60 (Not Included)

Recommendation Combination (Not Included):

Flight Controller - Pixhawk 6C or Pixhawk 6X or Pixhawk 6X with Jetson Baseboard

Power Module - PM02D, PM03D Power Module, PM02 V3,

GPS - M10 GPS Module, H-RTK F9P Rover Lite & Helical

Telemetry Radio: SiK Telemetry Radio V3 433/915MHz

RC Radio & Receiver: RadioMaster TX16S RC Controller & RadioMaster R81 Receiver

Depth Camera Mount

Note: Full development Kit can be purchased here

X650 Assembly Guide

Motor specification

NeoPixel WS2812 LED Setup Instruction
