Holybro X500 V2 Kits

Holybro X500 V2 Kits is a Holybro catalog item in Development Kits & Frames. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

Almost Ready-to-Fly (ARF) Kit Feature:

New design and minimal assembly time (~15 minutes)

Carbon Fiber frame with fiber-reinforced nylon connectors providing easy & straightforward installation

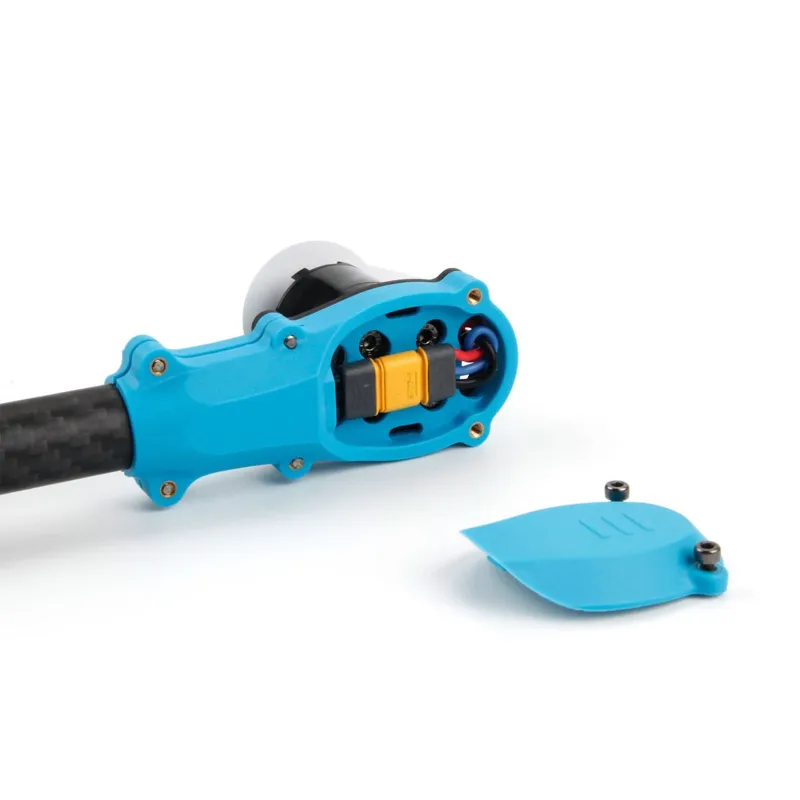

Pre-installed motors & ESCs with simple XT30 power plugs for PDB

Power distribution board (PDB) with XT60 & XT30 plugs - no soldering needed

Mount for companion computers such as Raspberry Pi & Nvidia Jetson Nano

Optional depth camera mount for Intel RealSense & Structure Core

Mounting holes ready for Pixhawk Jetson baseboard (require standoffs)

Note: Full X500 v2 Development Kit with Flight Controller, GPS, Telemetry Radio can be purchase here.

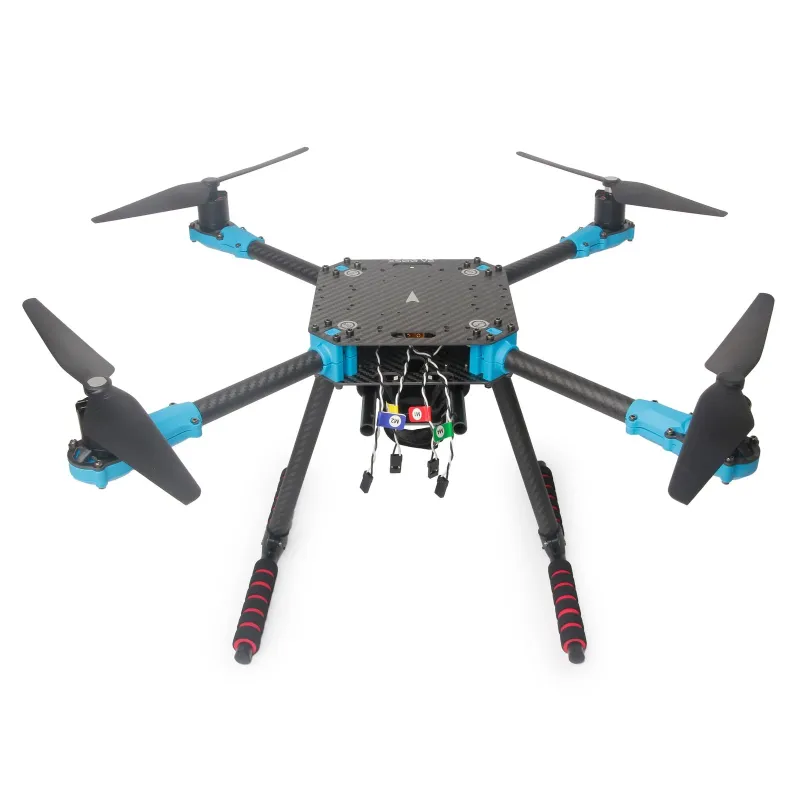

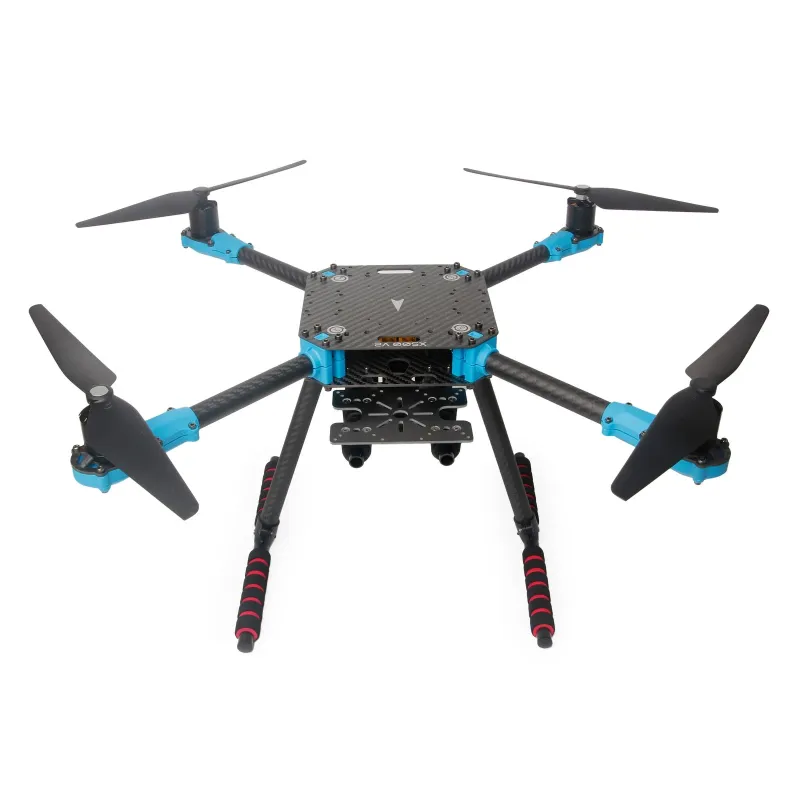

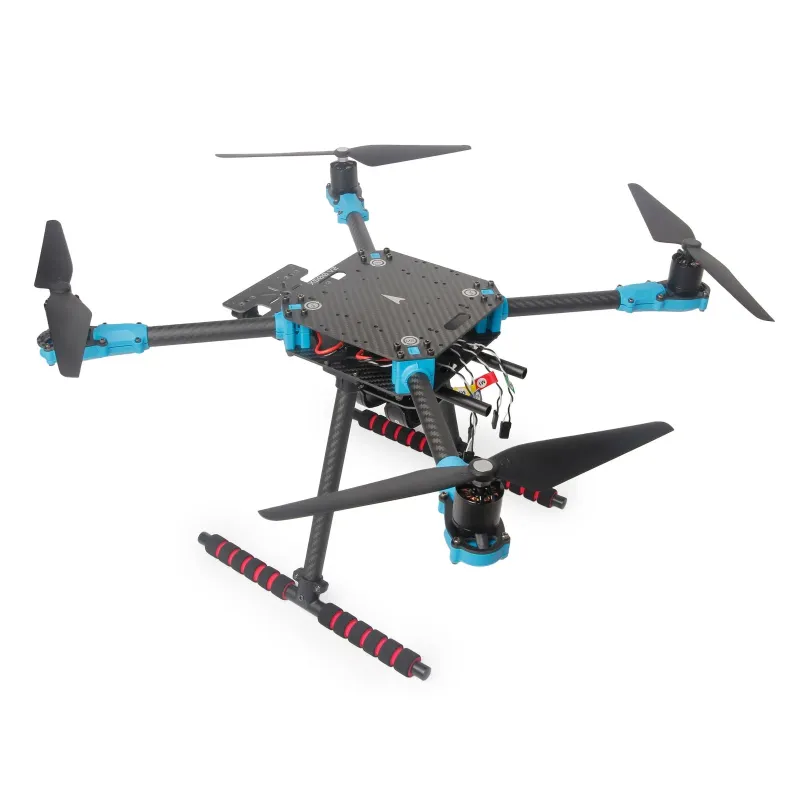

X500 V2 ARF Kit (SKU30125):

X500 V2 Frame Kit

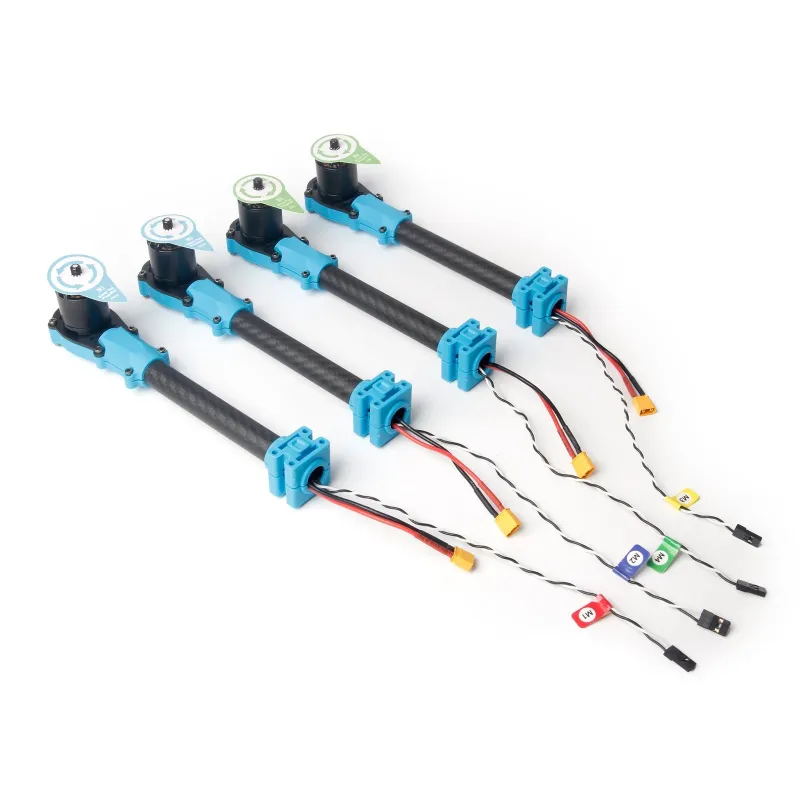

With Preinstalled Items: Motors - Holybro 2216 KV920 Motor (4 pcs) with XT30 Plug (Motor Specification can be found here) ESCs - BLHeli S ESC 20A (4 pcs) 1045 Propellers (6 pcs) with retainer Power Distribution Board – XT60 plug for battery & XT30 plug for ESCs & peripherals

Motors - Holybro 2216 KV920 Motor (4 pcs) with XT30 Plug (Motor Specification can be found here)

ESCs - BLHeli S ESC 20A (4 pcs)

1045 Propellers (6 pcs) with retainer

Power Distribution Board – XT60 plug for battery & XT30 plug for ESCs & peripherals

Newly added propeller retainer to prevent fly-offs

Note: Depth camera mount is sold separately.

Body - Full Carbon Fiber Top & Bottom plate (144 x 144mm, 2mm thick)

Arm - High strength & ultra-lightweight 16mm carbon fiber tubes with newly designed fiber-reinforced nylon connectors

Landing gear - 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.

Platform board - With mounting holes for GPS & popular companion computers such as the Raspberry Pi 4 & Jetson Nano

Dual 10mm Ø rod x 250 mm long rail mounting system

Battery mount with two Battery Straps

Hand tools for installation

Wheelbase: 500mm

Motor mount pattern: 16x16mm & 19x19mm

Frame Body: 144x144mm, 2mm thick

Landing gear height: 215mm

Space between top and bottom plates: 28mm

Flight time: ~18 minutes hover with no additional payload. Tested with 5000mAh Battery.

Payload: 1500g (without Battery, 70% Throttle)

Battery Recommendation: 4S 3000-5000mAh 20C+ with XT60 Lipo Battery (Not Included)

Flight Controller - Pixhawk 6C, Pixhawk 6x

Power Module - PM02D, PM03D Power Module, PM02 V3,

GPS - DroneCAN M8N/M9N GPS, Holybro M8N/M9N GPS, H-RTK F9P Rover Lite & Helical

X500 v2 Assembly Guide

Motor specification

Holybro_X500_V2_3D Print

A8 mini Gimbal Camera
