Holybro Standard Precision Digital Airspeed Sensors

  • Brand:Holybro
  • Product Code:Holybro Standard Precision Digital Airspeed Sensors
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

Available Options

Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

Holybro Standard Precision Digital Airspeed Sensors is a Holybro catalog item in Sensors & Remote ID. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandHolybro
ModelStandard Precision Digital Airspeed Sensors
Working Voltage (V)4.75~5.25

Manufacturer technical notes

The Holybro Digital Airspeed Sensor has a very low offset, a high resolution, and best of all, does not suffer from the noise induced by long cables and offsets in the ratio-metric output on other airspeed sensors. Supported on all Holybro Flight Controller Boards with Ardupilot & PX4.

All standard precision sensors come with temperature compensation. It measures temperature to calculate true airspeed from indicated airspeed, using the static pressure sensor on the Flight Controller. Not affected by the heat of nearby processing components, it is much closer to ambient air temperature than in previous analog sensor setups. Supported on all Pixhawk Flight Controllers, this kit comes with M3 / 6-32 mounting holes.

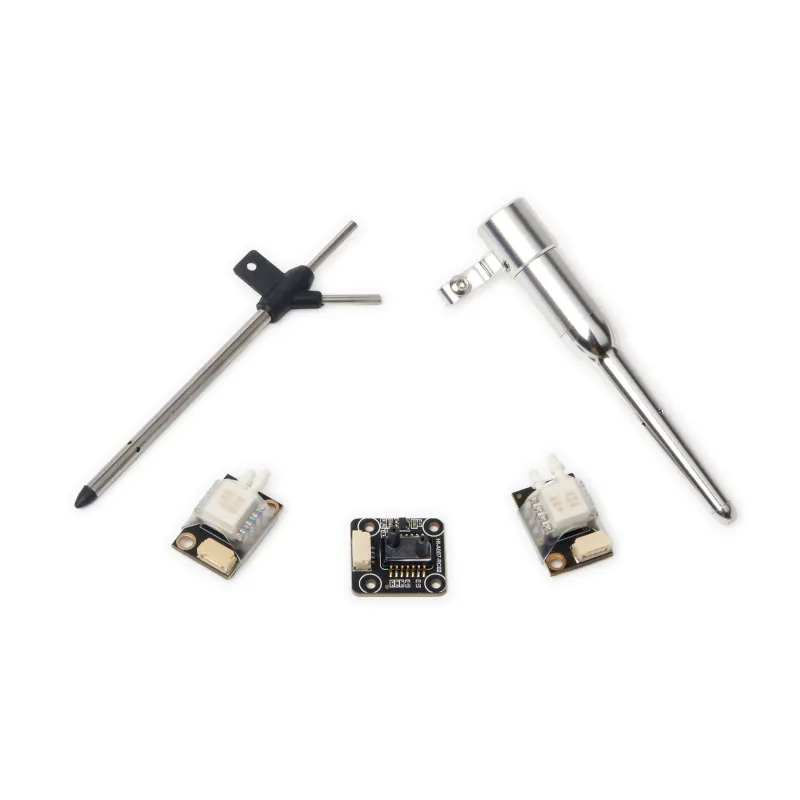

1x MS4525DO/AS1318C Digital Air Speed Sensor1x Rubber Tubing 40cm1x GH 4P Cable

1x MS5525DSO Digital Air Speed Sensor1x Rubber Tubing 100cm1x GH 4P Cable

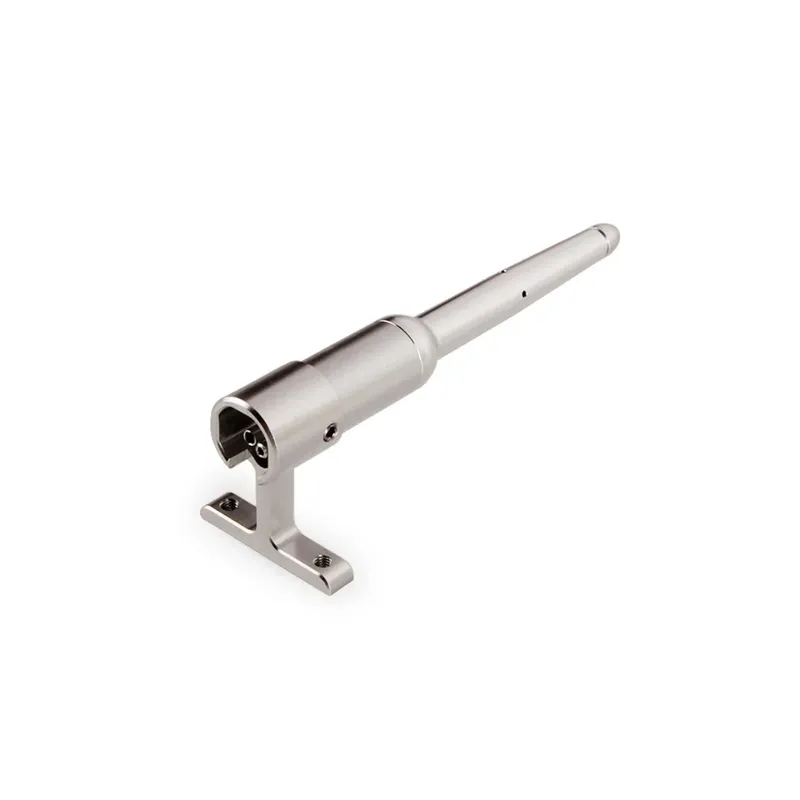

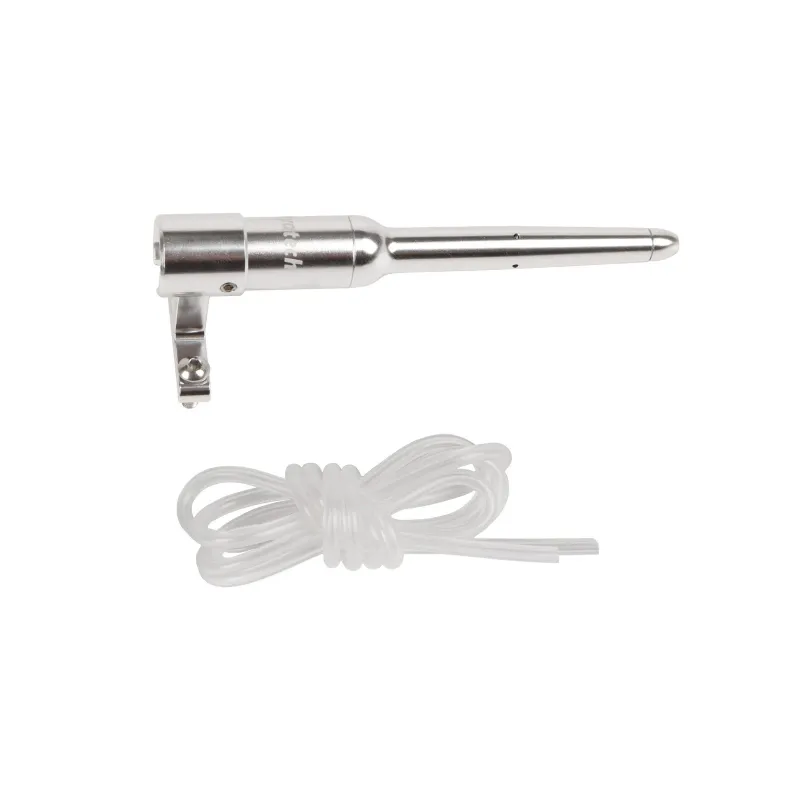

1x PT40 Pitot Tube1x Rubber Tubing 40cm

1x PT60 Pitot Tube1x Rubber Tubing 100cm

MS4525 Datasheet

AS1318C Datasheet

MS5525 Datasheet

Manufacturer technical and configuration tables

DLVRAS1318CMS4525DOMS5525DSO
Model NumberDLVR-L10DDLVR-L20DAS1318C-001PD5AI-DSDMS4525DO-DS5AI001DPMS5525DSO-DB001DS
Standard Range (psi)0.3630.725111
Burst Range (psi)7.25101020
Total Error Band±0.3%Span±1%FSS±1%FSS±2.5%FSS
Temperature Accuracy (°C)21.51.51.5
Compensated Temperature (°C)0~700~60-10~850~85
Maximum Air Speed measurement (kph)226.8320360
Pressure Resolution (bit)14141424
Temperature Resolution (bit)11111124
Update Time (ms)0.4~9.50.50.50.48~9.04
Operating Temperature (°C)-25~85-20~85-25~105-40~125
Working Voltage (V)4.75~5.25
Current Consumption (mA)~100~3~3~1.4
Sensor Module Weight (g)17.44.14.12.6
Dimensions (mm)29 x 35.5 x 16.517 x 23 x 1317 x 23 x 1320 x 22 x 11.4
InterfaceDroneCANI2C
AddressDroneCAN Auto Config0x28H0x28H0x76

Manufacturer catalog configurations

ConfigurationManufacturer SKU
MS5525DSO / PT4019010
MS5525DSO / PT6019011
MS5525DSO / Sensor Only19009
MS4525DO / PT4019003
MS4525DO / PT6019008
MS4525DO / Sensor Only19007
AS1318C / PT4019018
AS1318C / PT6019019
AS1318C / Sensor Only19017
Pitot Only / PT4032022
Pitot Only / PT6032023

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
