Holybro SiK Telemetry Radio - Long Range

Holybro SiK Telemetry Radio - Long Range is a Holybro catalog item in Telemetry & Data Links. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

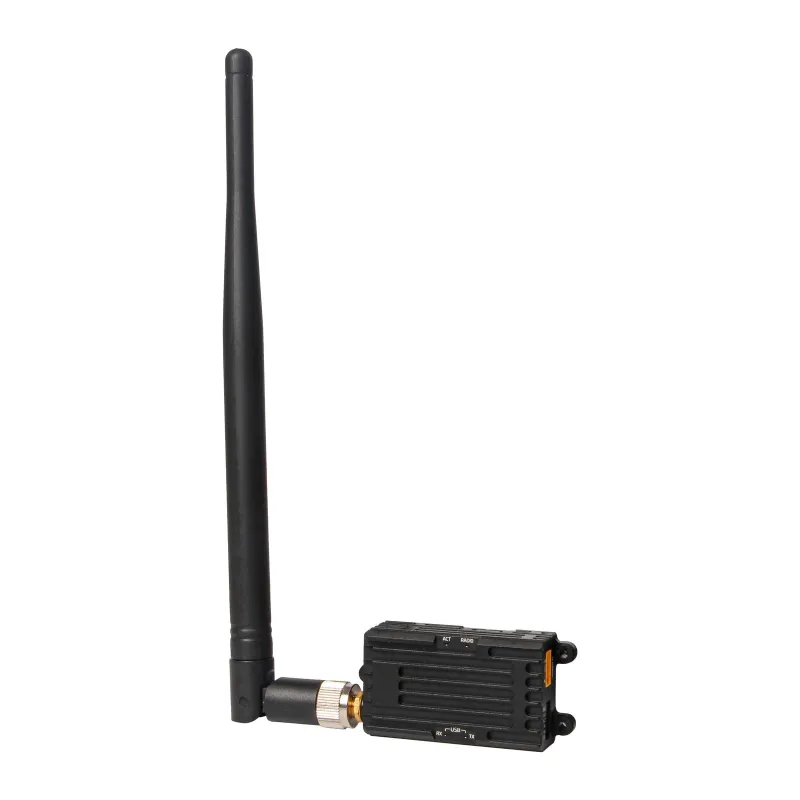

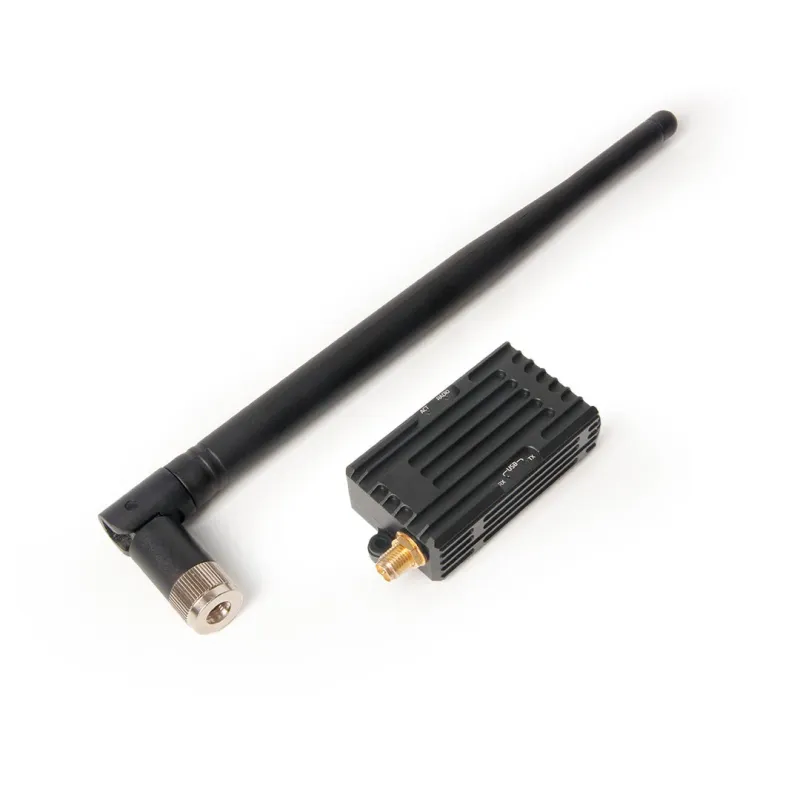

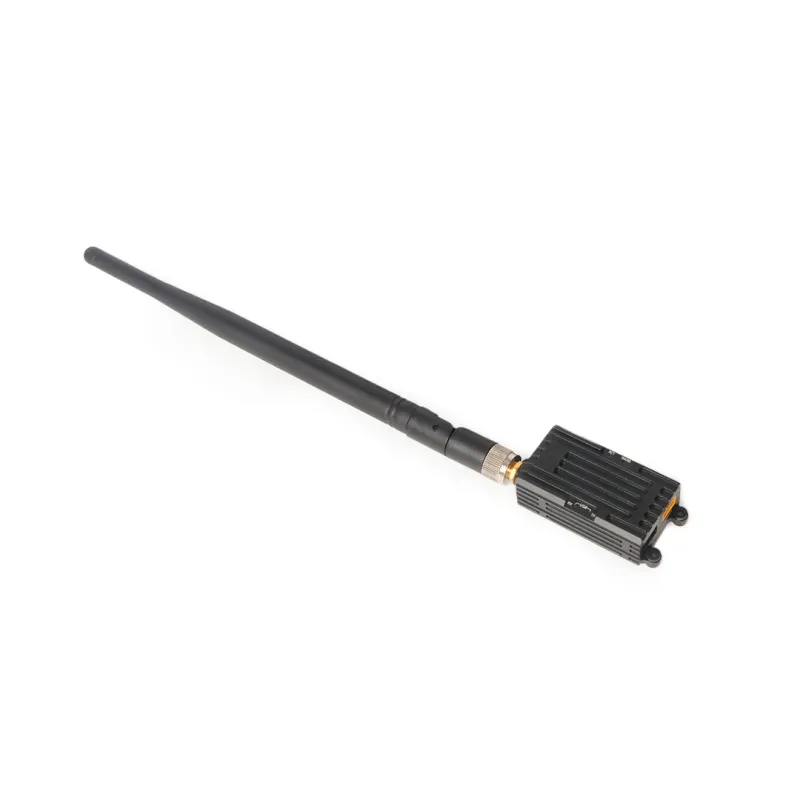

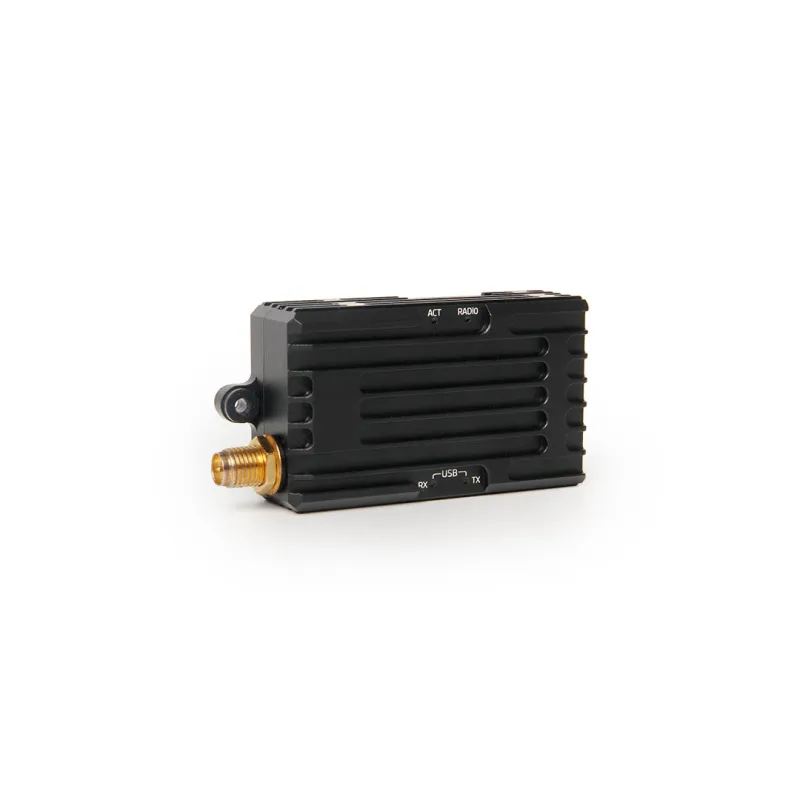

This Holybro SiK Long Range Telemetry Radio is a small, light, and inexpensive open-source radio platform with an extended range compared to the standard model.

This radio is plug-and-play, ready for all Pixhawk Standard and other similar flight controllers, providing the easiest way to set up a telemetry connection between your controller and a ground station. It uses open-source firmware that has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, and PX4.

The radios are available in 915 MHz or 433 MHz versions. Please purchase the model that is appropriate for your country/region.

FCC ID: 2BNF8-HT051WRF915 (100mW, 915.06~927.04MHz)

Open-source SIK firmware

Plug-n-play for Pixhawk Standard Flight Controllers

1W maximum RF output

The Easiest way to connect your controller and Ground Station

Interchangeable air and ground radio

6-position JST-GH connector

2-way full-duplex communication through adaptive TDM UART interface

Transparent serial link

MAVLink protocol framing

Built in FT230X/FT231 USB to BASIC UART conversion IC

Supply voltage: 7~28V DC via XT30

Transmit current: 12V/400mA at 30 dBm

Receive current: 12V/30mA

Serial interface: 3.3 V UART

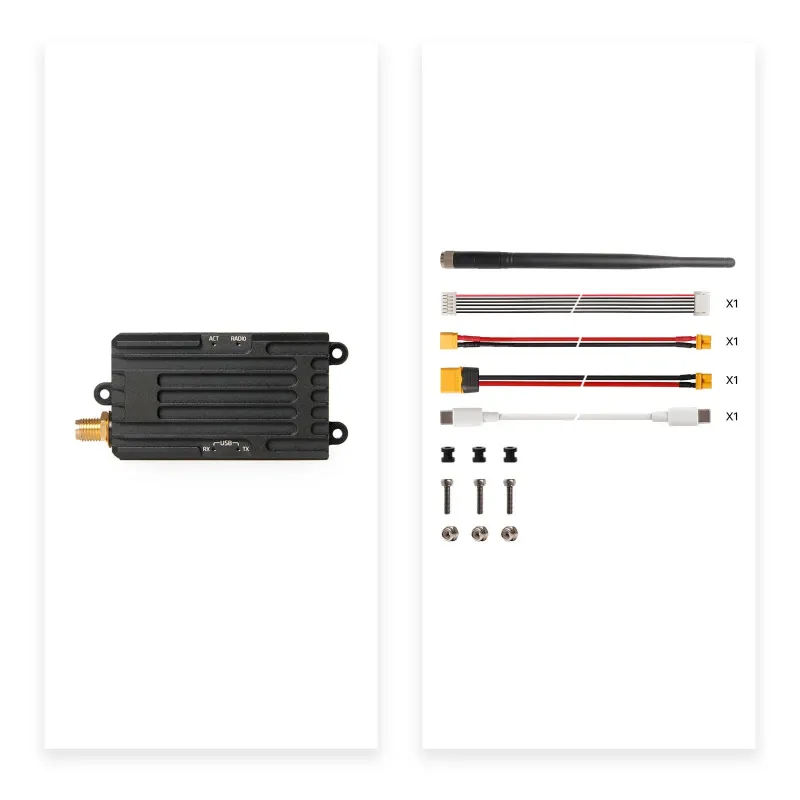

Single 1W 1W Radio modules with antennas *1 High-gain omnidirectional antenna *1 Male Type-C to male Type-C USB cable *1 Male XT30 to female XT30 adapter cable *1 Male XT30 to female XT60 adapter cable *1 JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC) Rubber damping grommet *3

1W Radio modules with antennas *1

High-gain omnidirectional antenna *1

Male Type-C to male Type-C USB cable *1

Male XT30 to female XT30 adapter cable *1

Male XT30 to female XT60 adapter cable *1

JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)

Rubber damping grommet *3

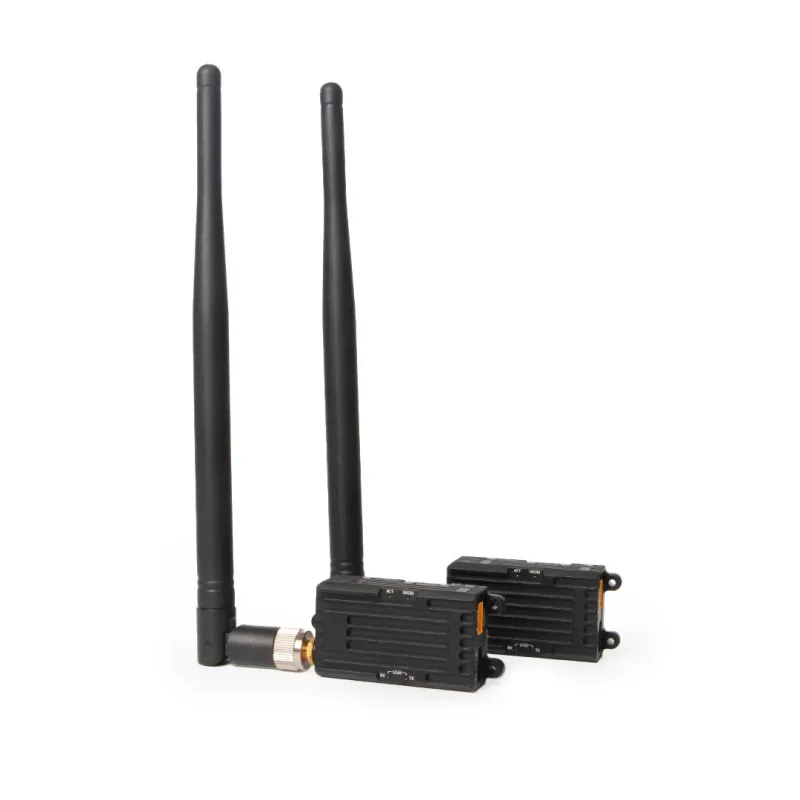

Pair 1W 1W Radio modules with antennas *2 High-gain omnidirectional antenna *2 Male Type-C to male Type-C USB cable *1 Male XT30 to female XT30 adapter cable *1 Male XT30 to female XT60 adapter cable *1 JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC) Rubber damping grommet *3

1W Radio modules with antennas *2

High-gain omnidirectional antenna *2

Telemetry-Radio-V3-Quick-Start-Guide

Manufacturer technical and configuration tables

Manufacturer catalog configurations

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
