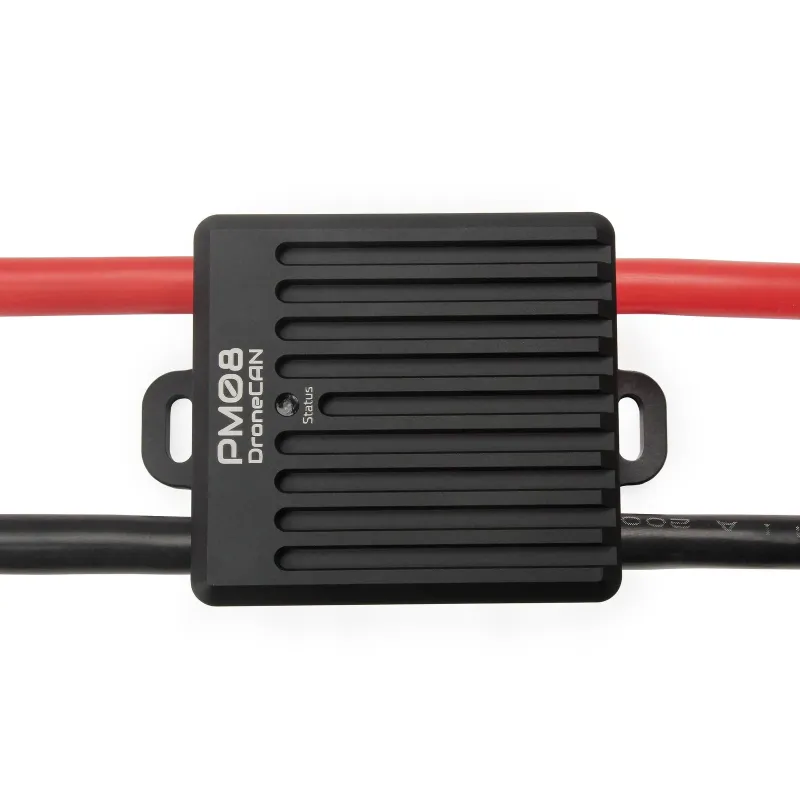

Holybro PM08-CAN Power Module 14S, 200A
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Holybro PM08-CAN Power Module 14S, 200A is a Holybro catalog item in Power Modules & Distribution. Review the model details below and request compatibility and supply information for civilian use.
Model specifications
| Brand | Holybro |
|---|---|
| Model | PM08-CAN Power Module 14S, 200A |
Manufacturer technical notes

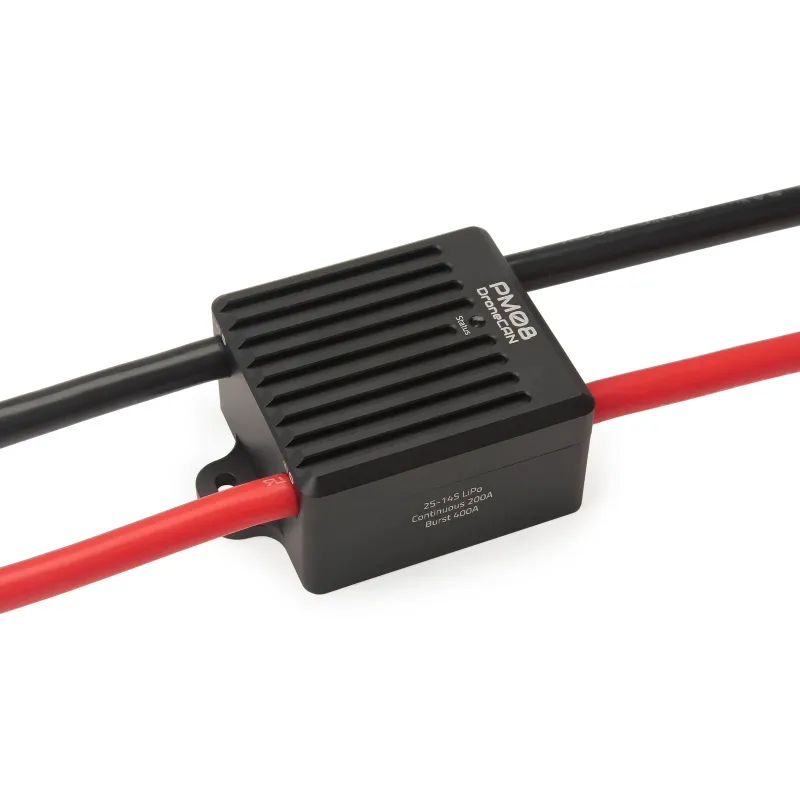

Supports 2-14S & 200A Cont, 400A Burst
DroneCAN Communication Protocol
Small & Compact Design
Two 5V Outputs with Independent BEC IC and Circuitry

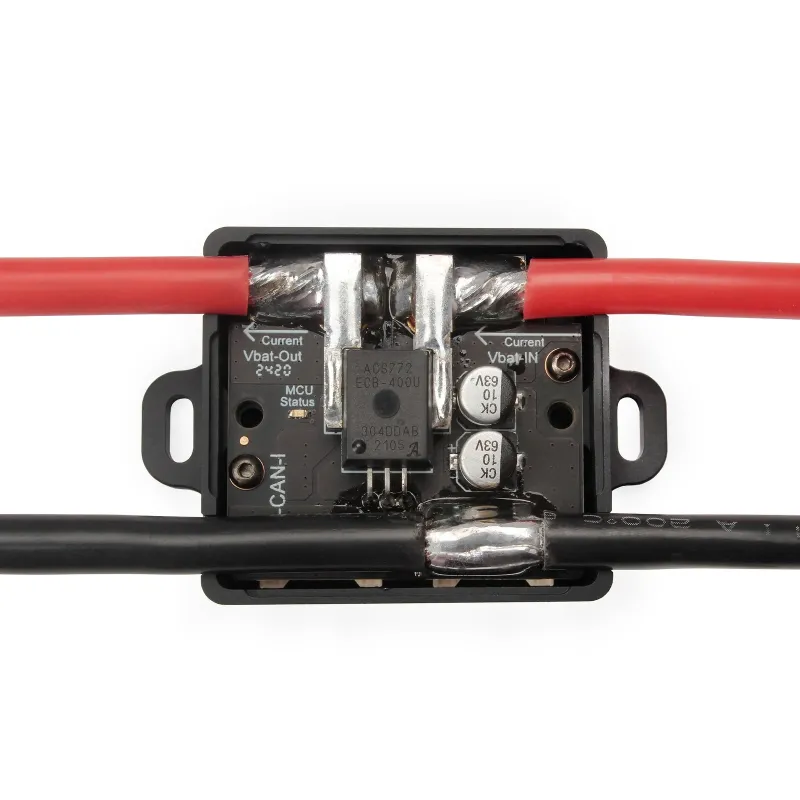

Separated Sensor and BEC Board to Minimize Electrical Noise Interference
Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
High Accuracy Temperature Sensor for Temperature Monitor
High-Efficiency Aluminum Heat Dissipation Shell
Software toggle for CAN termination resistance
Processor: STM32F405RG 168MHz 1024KB Flash 196KB RAM
Voltage input: 7~60.9V (2S~14S)
Continuous current:200A
Max current sensing: 376A
Voltage accuracy: ±0.1V
Current accuracy: ±5%
Temperature accuracy:±1℃
Wire gauge: 8 AWG (high-strand silicon-insulated)

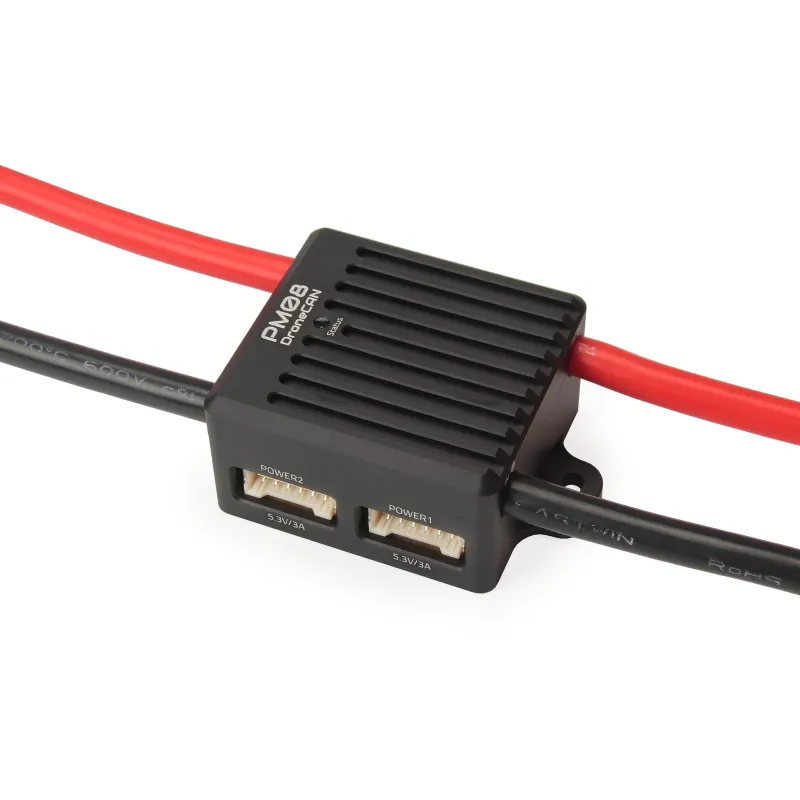

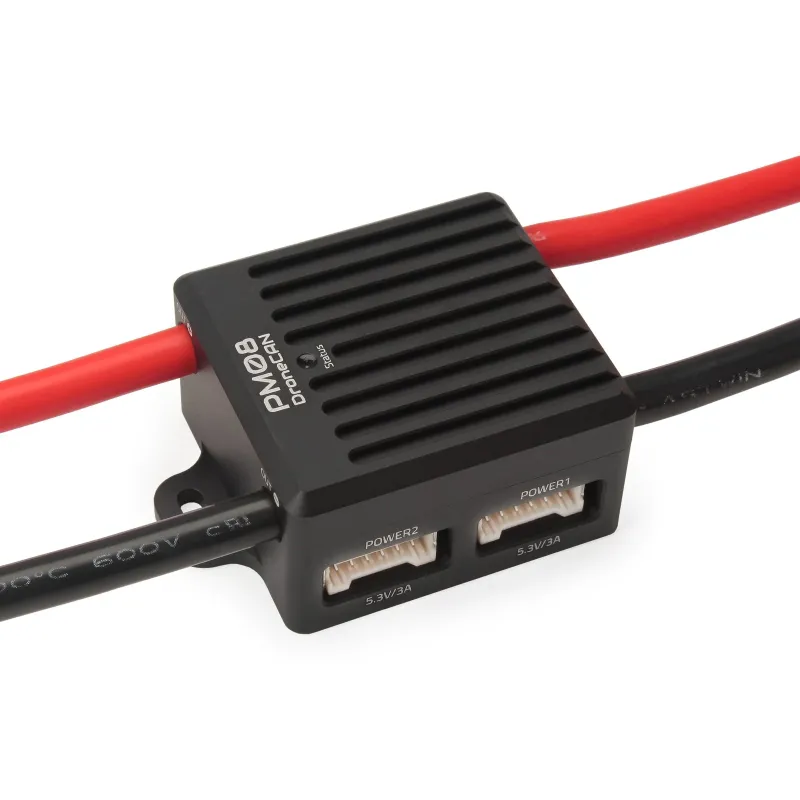

Power port output: 5.3V/3A each port
Protocol: DroneCAN
Operating temperature:-25℃~85℃
Software-Controlled CAN Termination
Firmware upgrade: Support
Calibration: Support
Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
Battery IN/OUT Options: XT90 Connectors Tinned Wires XT90 & Ring Terminals

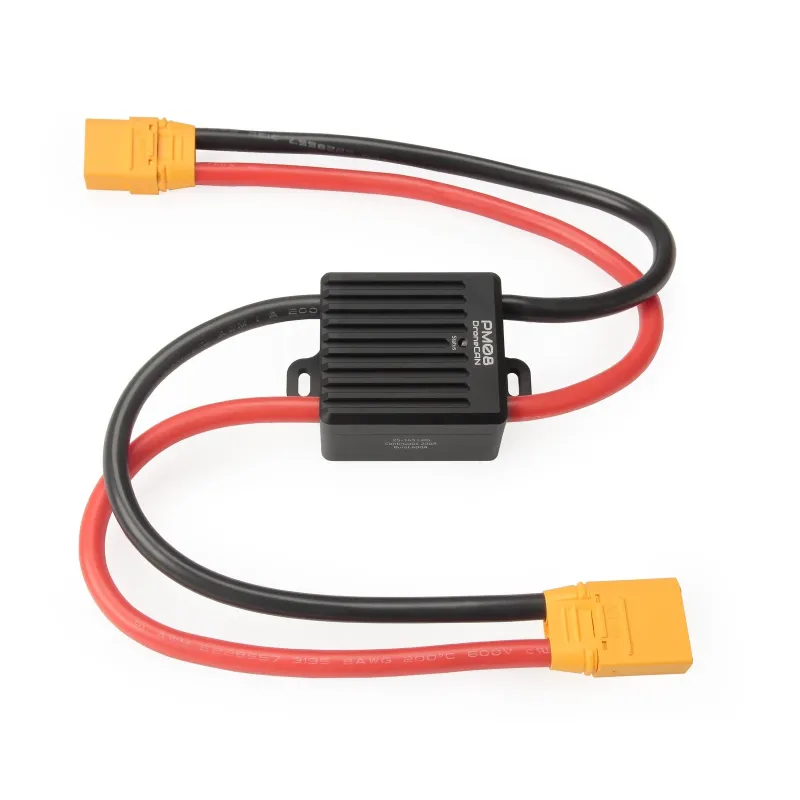

XT90 Connectors
XT90 & Ring Terminals
Flashing quickly continuously: MCU is in the bootloader stage, waiting for the firmware to be flashed
Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
Flashing slowly (one-second intervals): CAN is successfully connected
Size: 45mm×41mm×26mm (Not Include Cable)
Weight: 185g (Include Cable)
PX4 & Flight Controller Setup Instruction
PM08CAN 3D CAD File Download
Power Module Dimension
Manufacturer catalog configurations
| Configuration | Manufacturer SKU |
|---|---|
| XT90 Connectors | 15028 |
| Tinned Wires | 15029 |
| XT90 & Ring Terminal | 15030 |
