Holybro PM06 V2 Power Module

Holybro PM06 V2 Power Module is a Holybro catalog item in Power Modules & Distribution. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

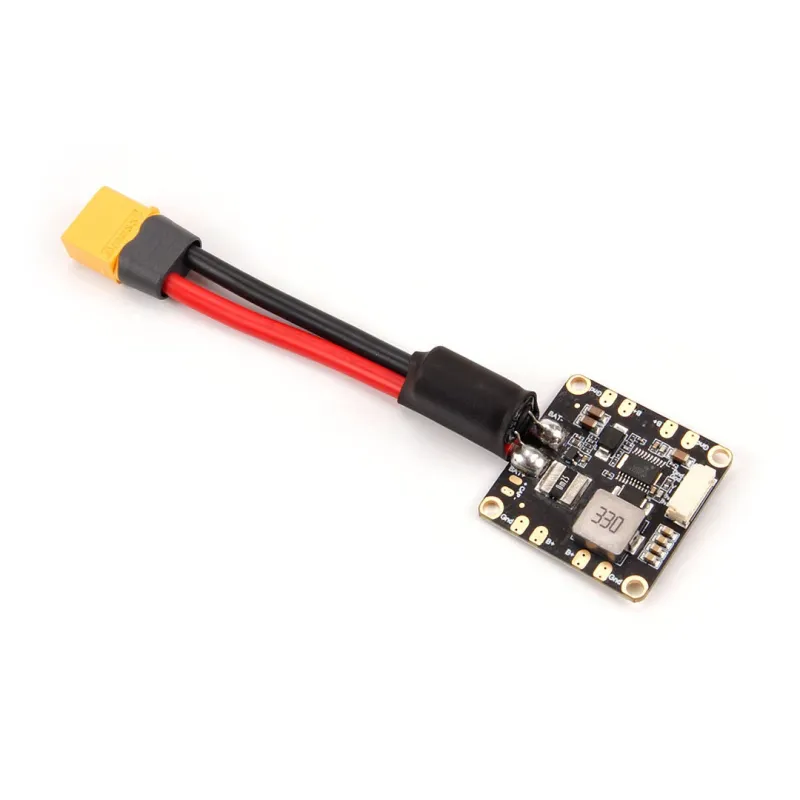

This PM06 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated power distribution for 4 ESCs. It comes with pre-soldered wires, capacitor, and XT60 connector.

Input voltage (10S version): 2S-10S

Input voltage (14S version): 2S-14S

PCB Cont. Current Rating: 70A

PCB Burst Current Rating: 120A (<60 Sec)

Output: DC 5.2V & 3A Max

Ouput Max Power : 18W

Voltage Divider: 18.182

Amperes per Volt: 36.364

The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.

This PM06 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM06D).

Dimensions: 35x35x5mm

Mounting hole: 30.5mm*30.5mm

Setup guide for PX4 & Ardupilot can be found in the Holybro Doc here.

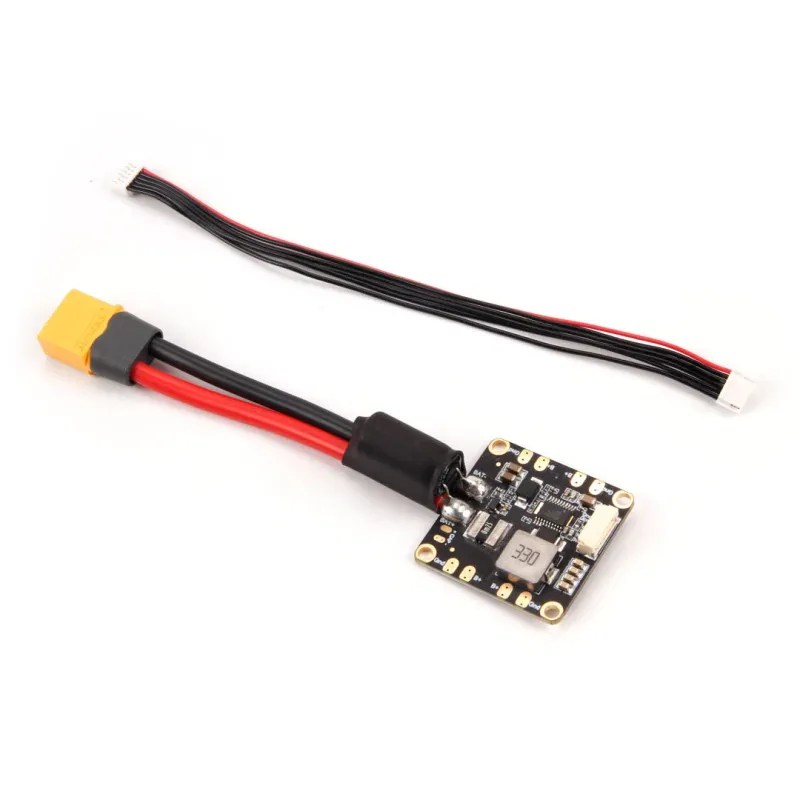

1x PM06 Power Module 1x JST GHR 6pin 1.25mm pitch cable
