Holybro PM03D Power Module

Holybro PM03D Power Module is a Holybro catalog item in Power Modules & Distribution. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

The full setup guide can be found here.

This PM uses I2C digital signal data output, Compatible with Pixhawk 5X/6X Series. NOT compatible with flight controller that uses analog PM such as the Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers.

NOT compatible with flight controller that uses analog PM such as the Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers.

Power Module Comparison Table

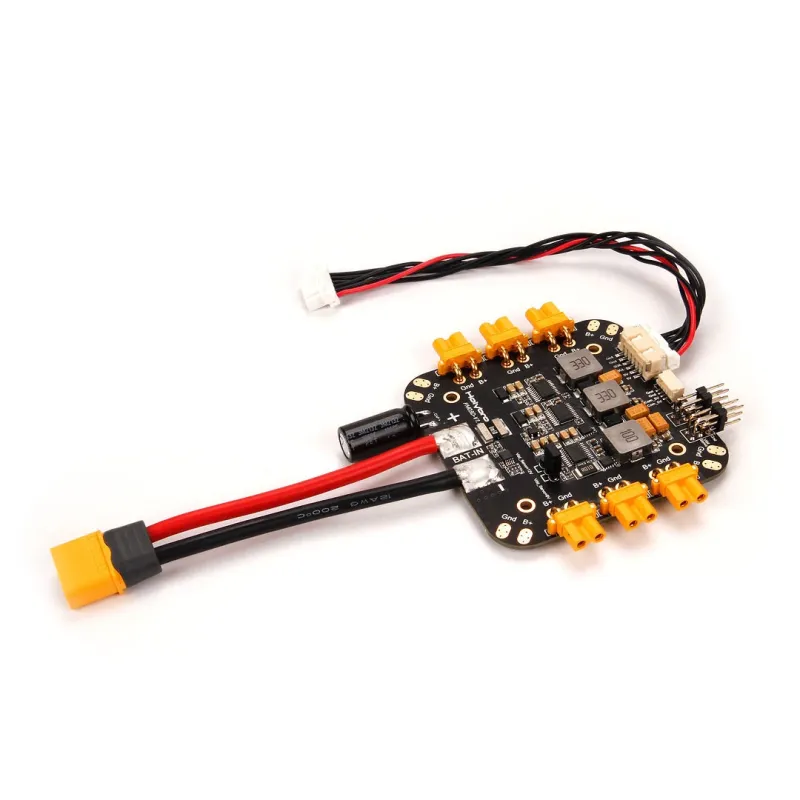

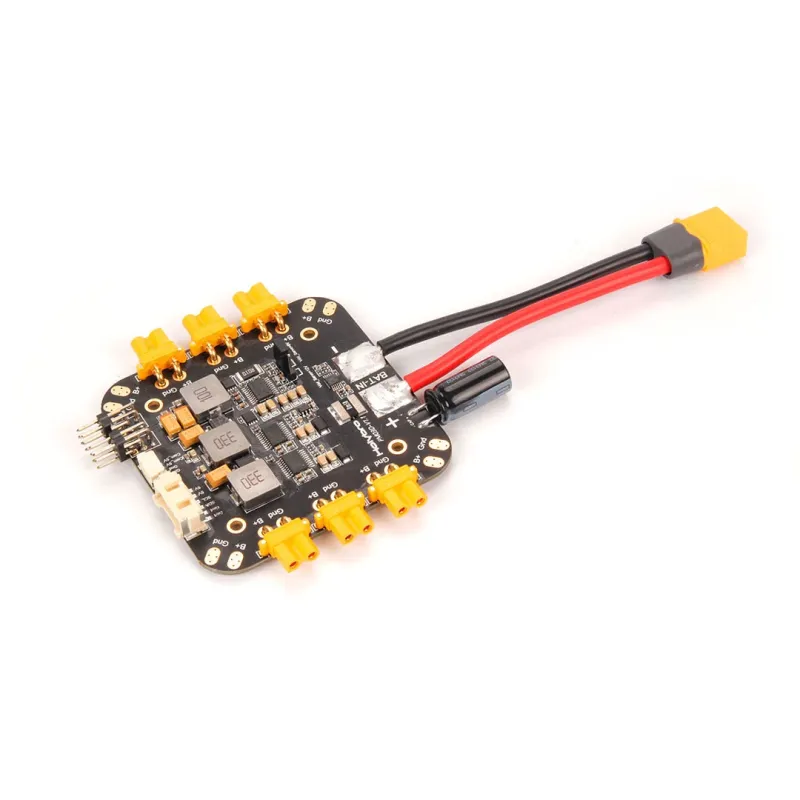

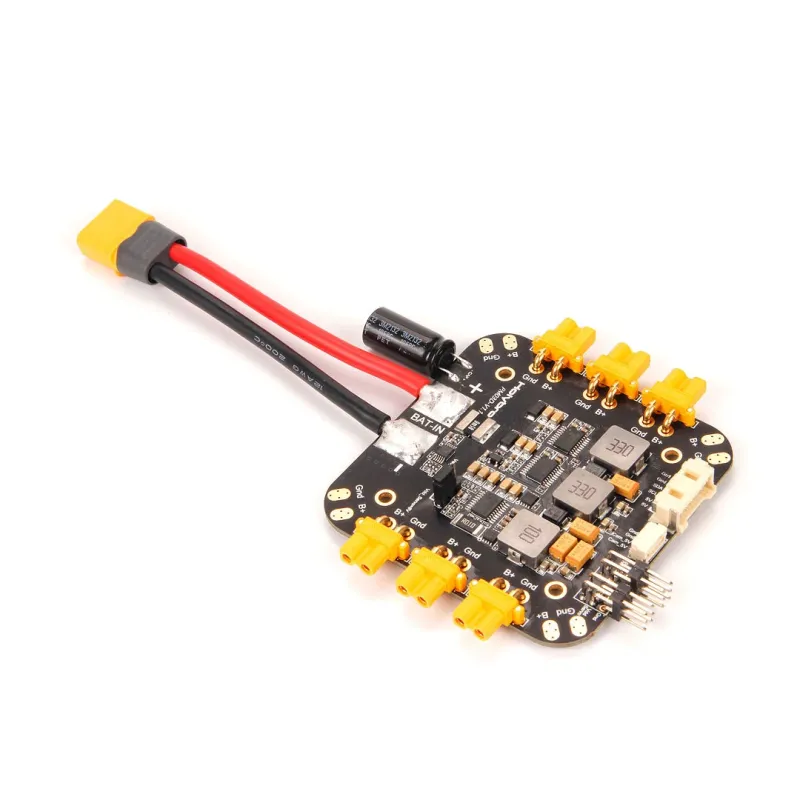

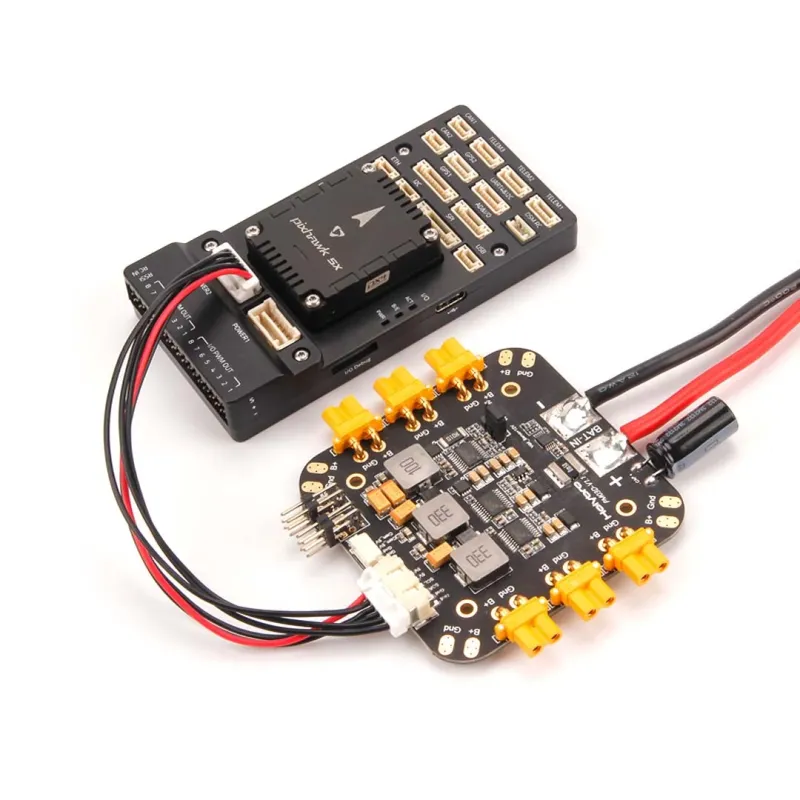

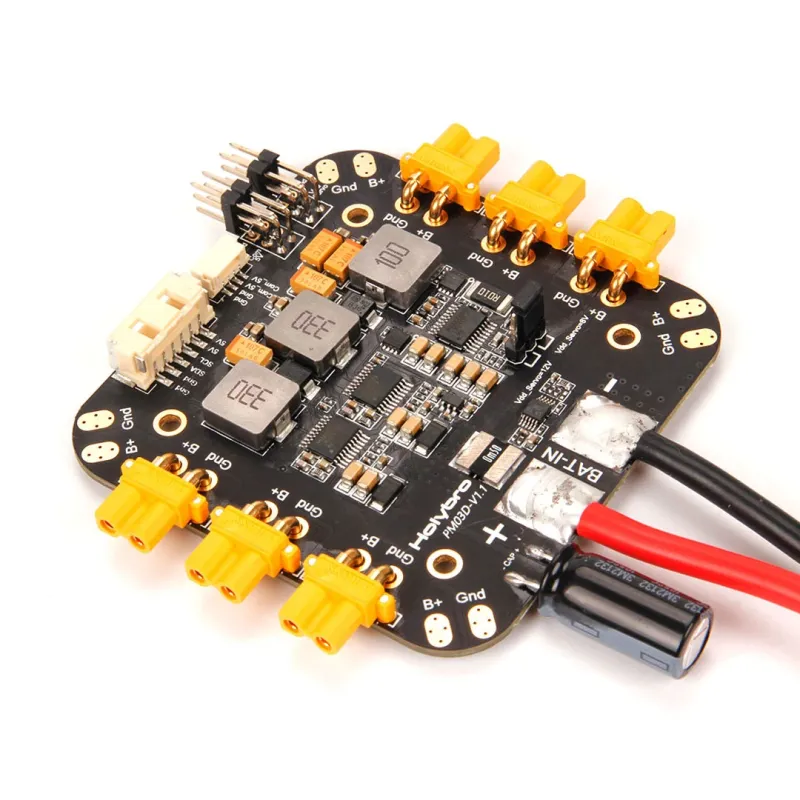

PM03D provides regulated power supply as well as current consumption and battery voltage measurements via I2C digital protocol all through a 6pin 2.00mm CLIK-Mate cable. Compatible with a flight controller that uses an I2C power monitor such as the Pixhawk 5X and up. It is designed for multi-rotors like the X500 V2. It has both XT-30 & XT-60 connectors preinstalled for motor ESCs and Battery, as well as two 5V BEC and a selectable 8V/12V output for different kinds of peripheral devices.

• Plug & play, no additional setup required for QGroundcontrol & Mission Planner• XT-30 connectors and solder pads for easy motor ESC connection• Onboard voltage regulators: two 5.2V & one selectable 8V/12V• 5V/A ports for powering companion computer or peripheral devices• Selectable 8V or 12V triple row pin header for powering peripheral device

Maximum input voltage: 6S battery

Rated current: 60A

Max current: 120A (<60 Sec)

Max current sensing: 164A

Connections XT-60 for battery XT-30 for motor & peripheral device (battery voltage) Solder pads in each corner (battery voltage) CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC) JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header) 2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin) 2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)

XT-60 for battery

XT-30 for motor & peripheral device (battery voltage)

Solder pads in each corner (battery voltage)

CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC)

JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)

2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)

2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)

Dimension: 84*78*12mm (excluding wires)

Mounting: 45*45mm

The XT60 plug and 12AWG wire that PM03D comes with is rated for 30A continuous current and 60A instantaneous current (<1 minute). If a higher current is being used, the plug type and wire size should be changed accordingly.

1x 80mm XT60 connector wire (pre-soldered)

1x Electrolytic capacitor: 220uF 63V (pre-soldered)

1x 2.0mm pitch CLIK-Mate 6pin cable (To power flight controller)

4pin JST GH to USB Type C

4pin JST GH to barrel plug (2.1*5.5mm)

4pin JST GH to barrel plug (2.5*5.5mm)

4pin Pin Dupont Cable (2pc)

Nylon standoffs & nuts

Manufacturer catalog configurations

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
