Holybro Pixhawk PWM Cable for Tekko32 4in1 ESC
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Holybro Pixhawk PWM Cable for Tekko32 4in1 ESC is a Holybro catalog item in Carrier Boards & Accessories. Review the model details below and request compatibility and supply information for civilian use.
Model specifications
| Brand | Holybro |
|---|---|
| Model | Pixhawk PWM Cable for Tekko32 4in1 ESC |
Manufacturer technical notes

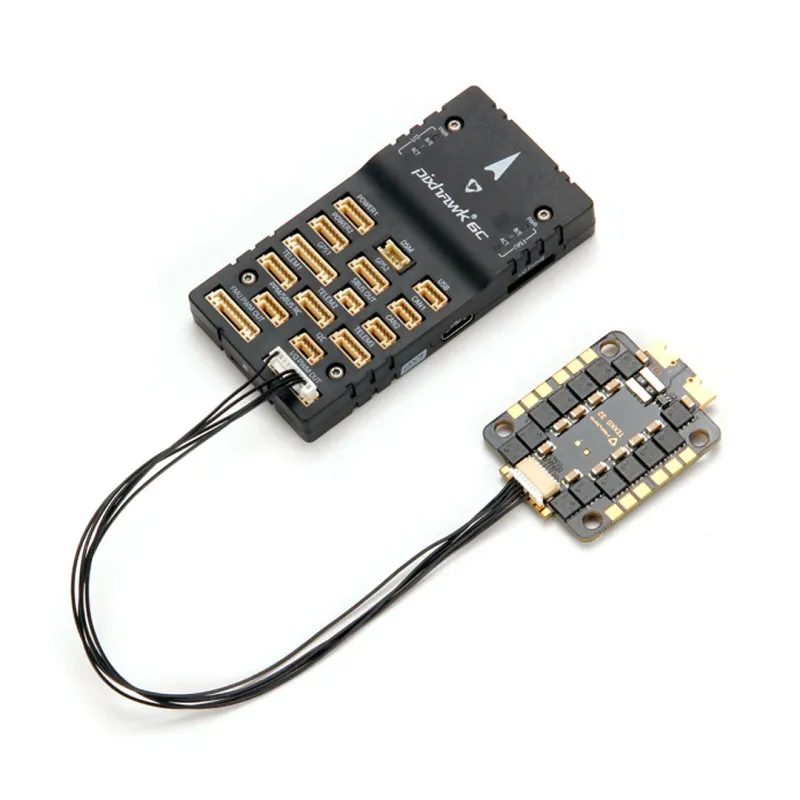

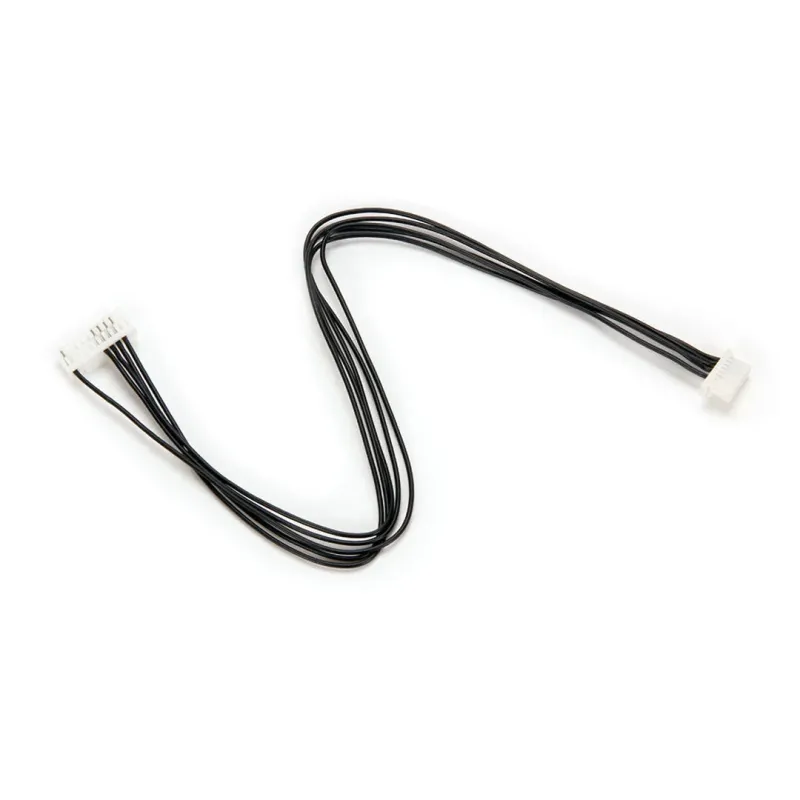

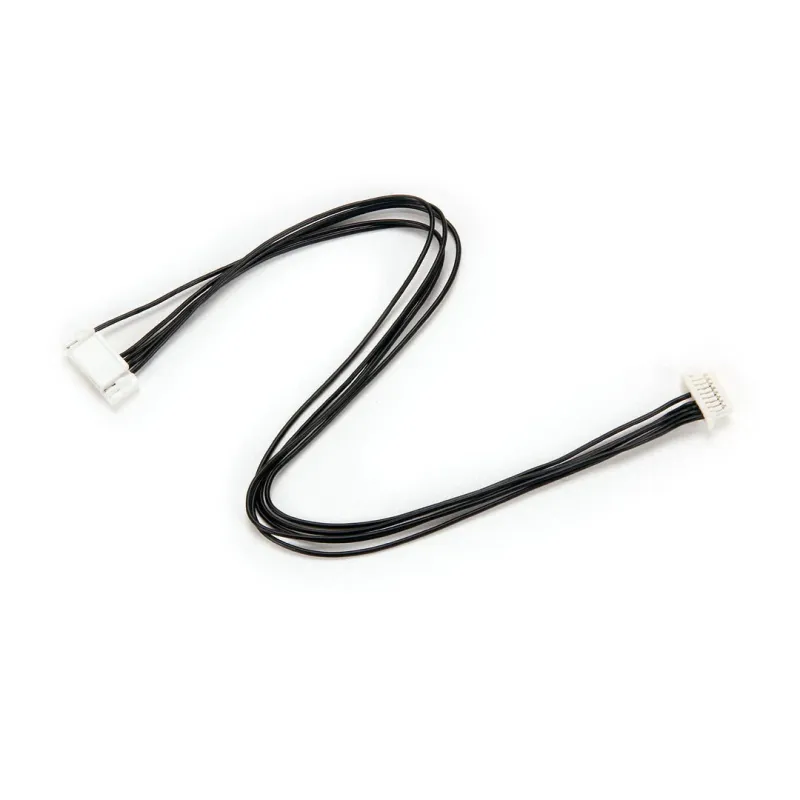

These cables provide an easy way to connect Pixhawk with Tekko32 4in1 ESCs. SKU1203 Pixhawk PWM Cable for Tekko32 4in1 ESC JST GHR 10Pin to JST SHR 8Pin 28awg 20cm.
Applicable with:
Pixhawk 6C (Excluding Pixhawk 6C Mini)
Pixhawk 6X/5X with Mini Baseboard

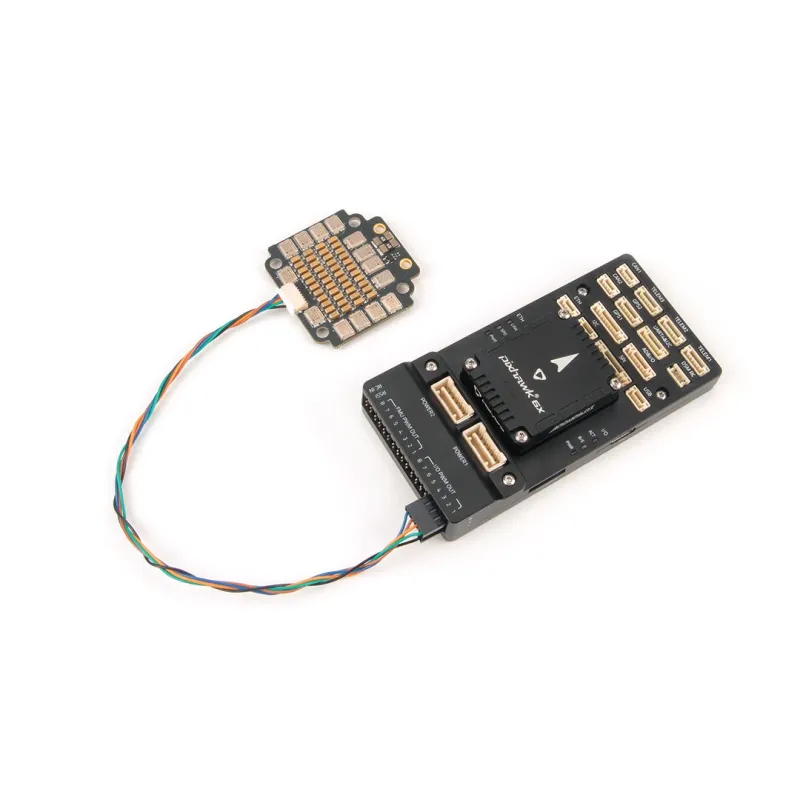

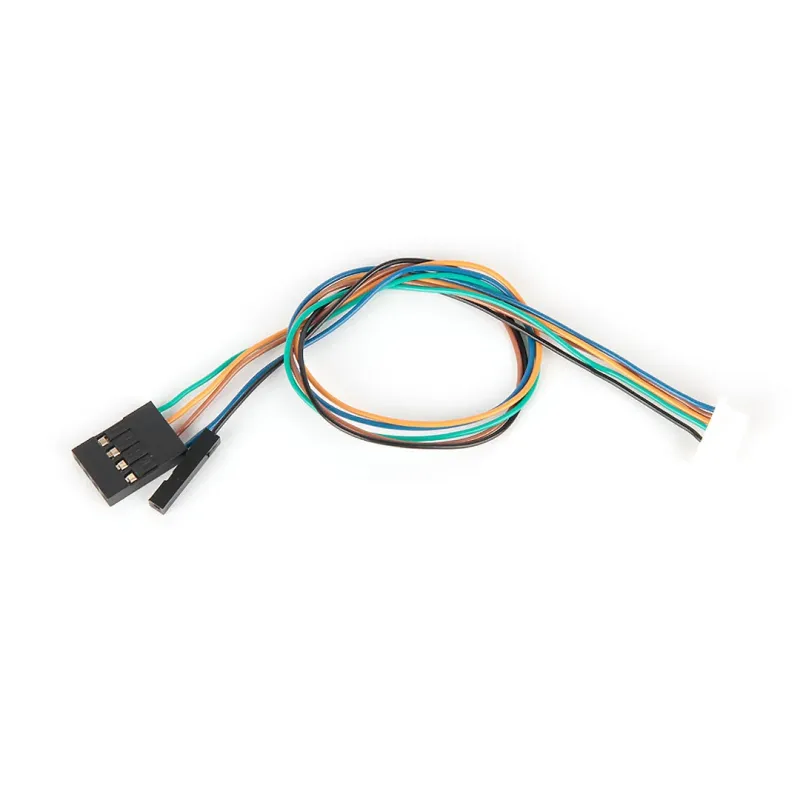

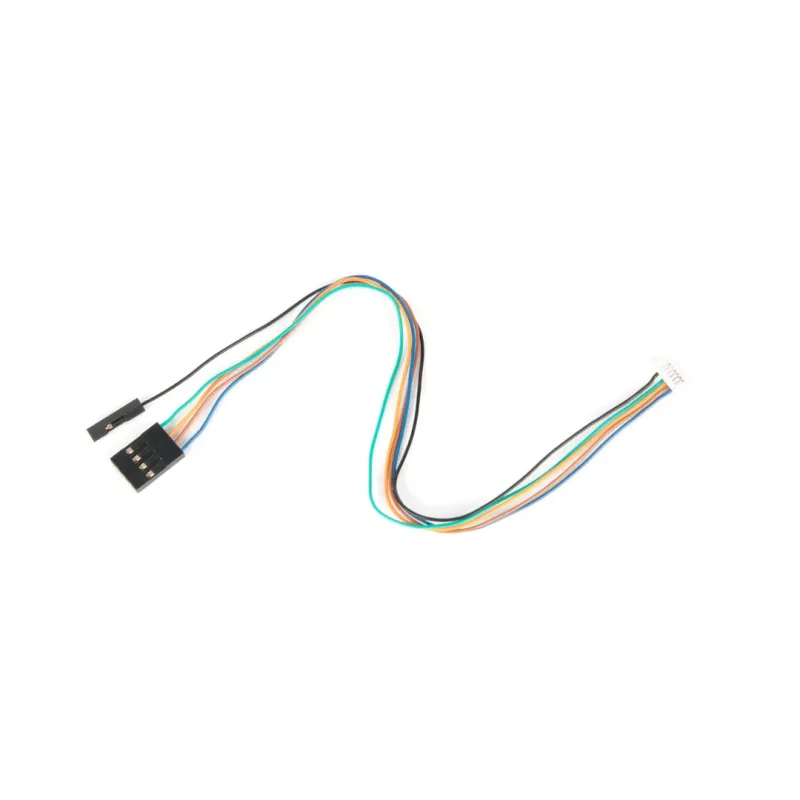

SKU1231 Pixhawk PWM Cable for Tekko32 4in1 ESC. 2.54mm Dupont to JST SHR 8Pin 28awg 20cm.
Pixhawk 6C Mini
Pixhawk 6X/5X Standard Baseboard or RPI CM4 Baseboard
Pixhawk 32 v6 & V5
Manufacturer catalog configurations
| Configuration | Manufacturer SKU |
|---|---|
| PWM OUT(GHR 10Pin) | 1203 |
| PWM OUT(2.54mm Dupont) | 1231 |
Product inquiry
Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
