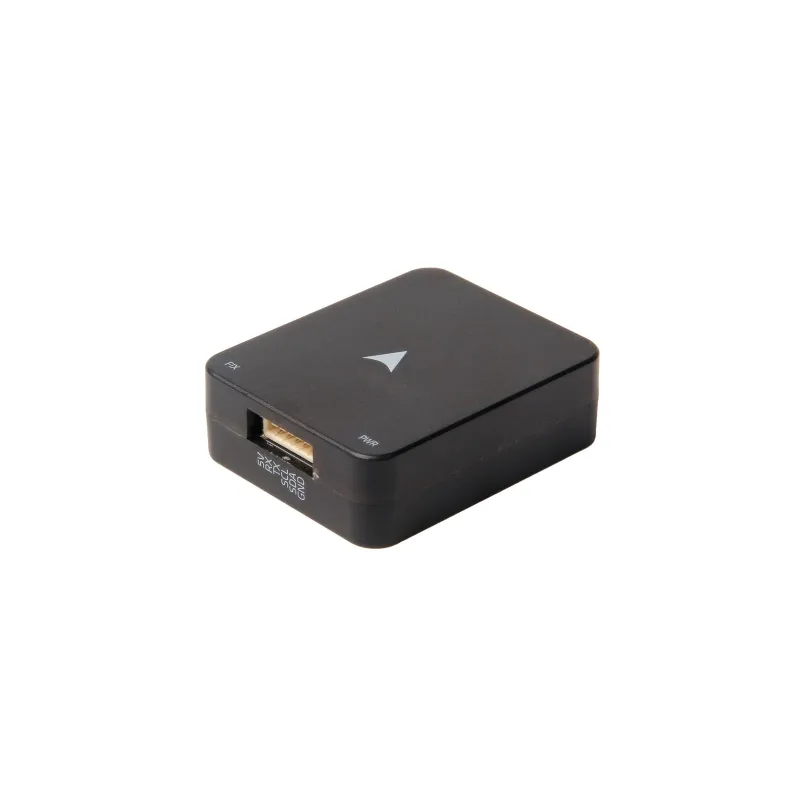

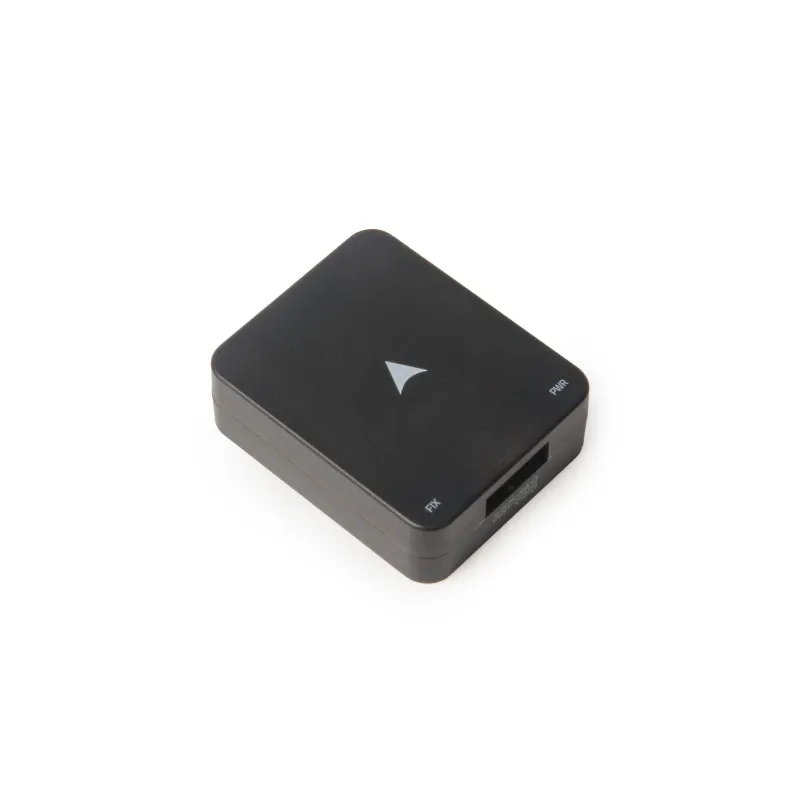

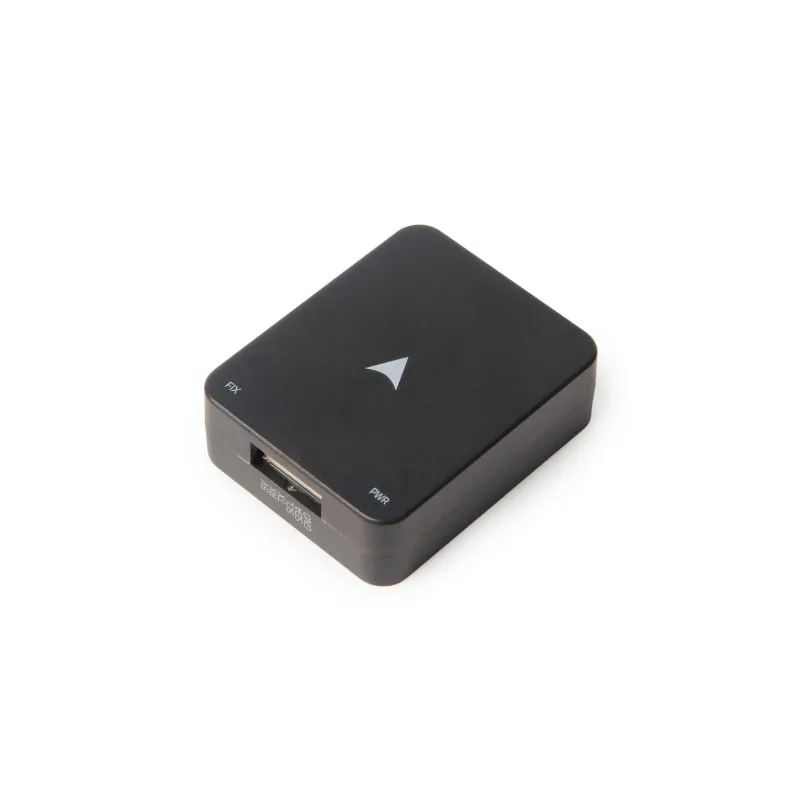

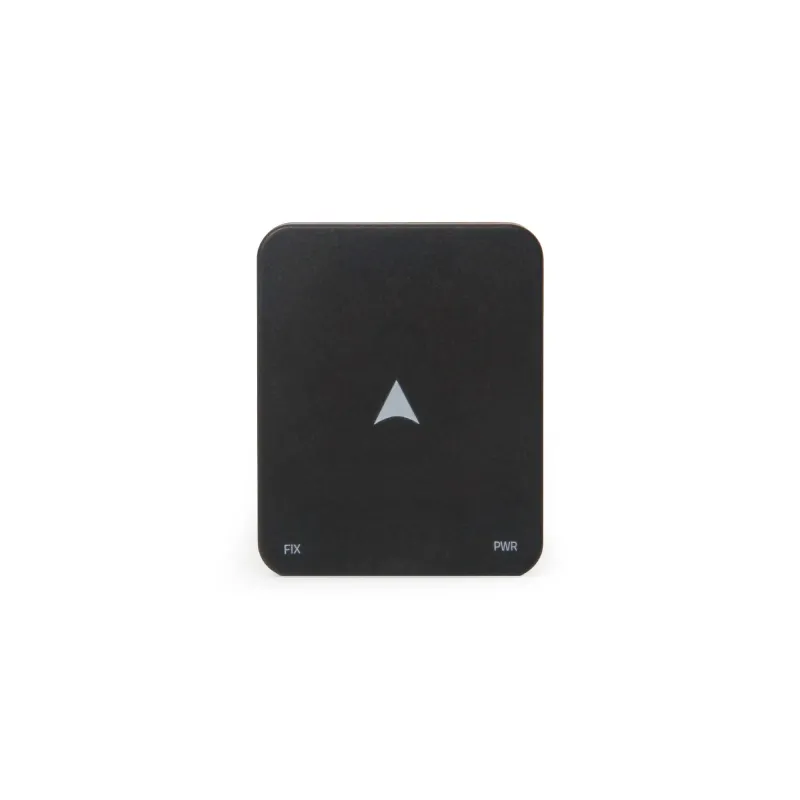

Holybro Micro M9N GPS

  • Brand:Holybro
  • Product Code:Holybro Micro M9N GPS
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

Available Options

Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

Holybro Micro M9N GPS is a Holybro catalog item in GNSS & RTK Navigation. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandHolybro
ModelMicro M9N GPS
Antenna25 x 25 x 4 mm ceramic patch antenna
Antenna Gain1.5dbi
Antenna LNA Gain22dB

Manufacturer technical notes

These Micro GPS use multi-constellation GNSS powered by u-blox M9N, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurrently. It also comes with the IST8310 or IST8308 compass.The high-gain 25 x 25 mm2 patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.

High-Speed Drone GPS Comparison:

This blog post put Holybro M10, M9N, F9P, and Matek M10Q to an ultimate test to determine which GPS units could keep pace with a high-speed drone in acro mode while ensuring precision during RTL and autonomous missions.

Ublox M9N GNSS Receiver

Accurate Positioning

Fast Navigation Update Rate

IST8310 or IST8308 Compass

Small Form Factor

IST8308 is supported by PX4 V1.16.0+ on Pixhawk 6C and 1.14.3+ on Pixhawk 6X

Holybro Documentation

3D CAD Download

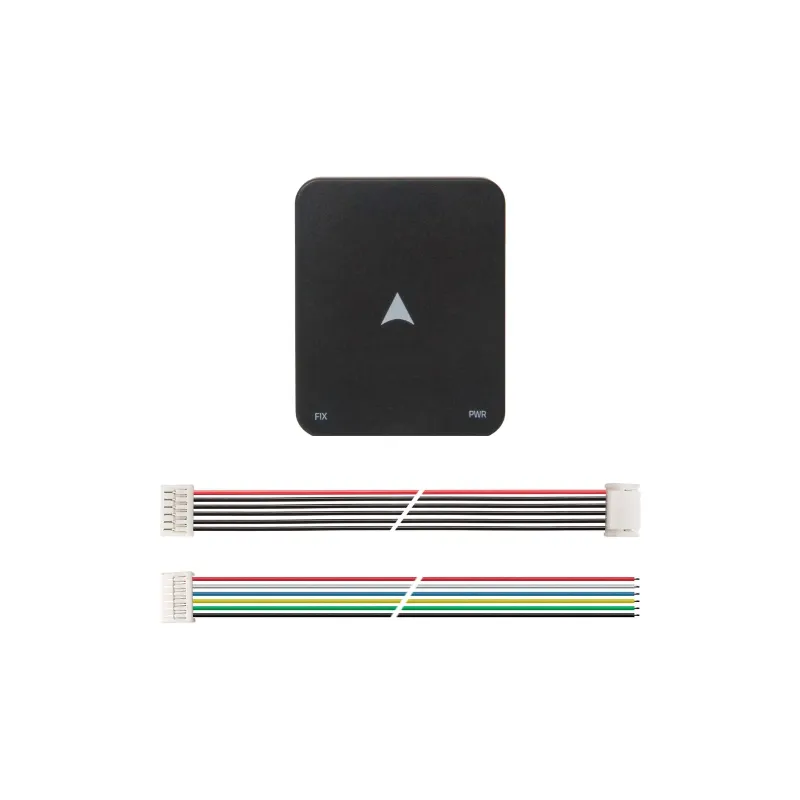

- 1x Micro GPS module *1- 1x JST GH 6-pin Connector 15 cm- 1x JST-GH 6-pin Colored Silicon Cable 15 cm

Manufacturer technical and configuration tables

Holybro Micro M10 GPSHolybro Micro M9N GPS
GNSS ReceiverUblox M10Ublox M9N
Number of Concurrent GNSSUp to 4 GNSS- BeiDou- Galileo- GLONASS- GPS- QZSSUp to 4 GNSS- BeiDou- Galileo- GLONASS- GPS- QZSS
Frequency Band- GPS L1- Galileo E1 - GLONASS L1- BeiDou B1- SBAS L1- QZSS L1- GPS L1- Galileo E1 - GLONASS L1- BeiDou B1- SBAS L1- QZSS L1
CompassIST8310 or IST8308IST8310 or IST8308
Output Protocol- UBX (U-blox)- NMEA- UBX (U-blox)- NMEA
Accuracy2.0m CEP1.5m CEP
Nav. Update RateUp to 25 Hz (single GNSS),Up to 10 Hz (4 concurrent GNSS)Up to 25 Hz (4 concerrent GNSS)
GNSS Augmentation SystemEGNOS, GAGAN, MSAS and WAASQZSS: L1SEGNOS, GAGAN, MSAS and WAASQZSS: L1S
Default Baud Rate115200115200
Input Voltage4.7-5.2V4.7-5.2V

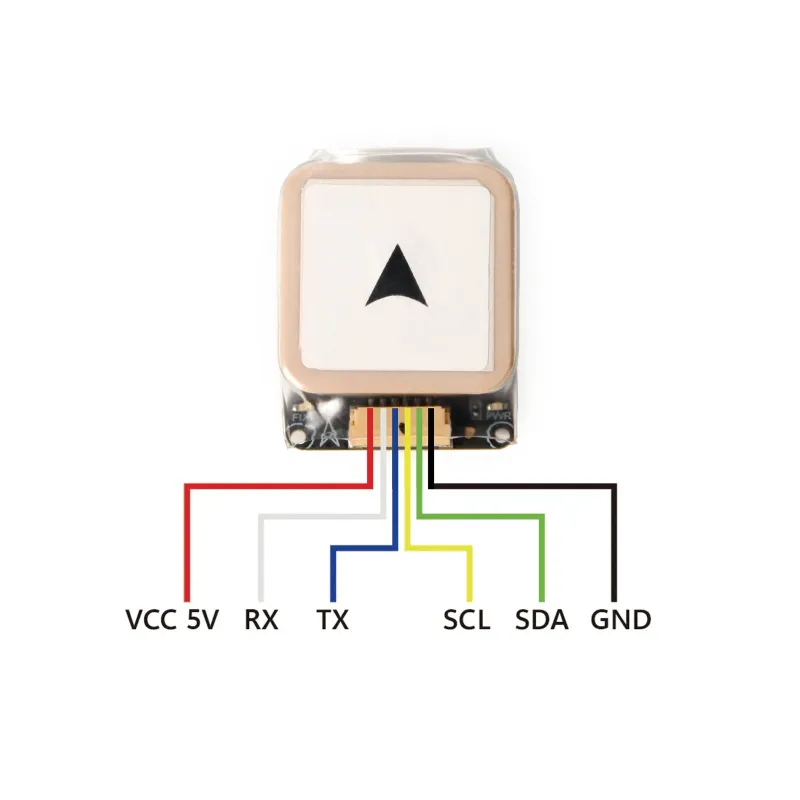

Port TypeJST-GH-6PJST-GH-6P
Antenna25 x 25 x 4 mm ceramic patch antenna
Antenna Gain1.5dbi
Antenna LNA Gain22dB
Operating Temperature-40~80℃-40~80℃
Dimension- 32 x 26 x 9mm (w/o Case)- 34 x 28 x 11mm (With Case)- 32 x 26 x 9mm (w/o Case)- 34 x 28 x 11mm (With Case)
Weight- 14g (w/o Case)- 16g (With Case)- 14g (w/o Case)- 16g (With Case)
Other- LNA MAX2659ELT+ RF Amplifier- Rechargeable Farah capacitance- Low-noise 3.3V regulator- LNA MAX2659ELT+ RF Amplifier- Rechargeable Farah capacitance- Low-noise 3.3V regulator

Manufacturer catalog configurations

ConfigurationManufacturer SKU
With Case / IST831012046
With Case / IST830812100
w/o Case / IST831012045
w/o Case / IST830812099
