Holybro Kopis2 6S V2 5"

Holybro Kopis2 6S V2 5" is a Holybro catalog item in Development Kits & Frames. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

Updated:1. Flight controller: Kakute H72. ESC: Tekko32 F4 4in1 50A ESC

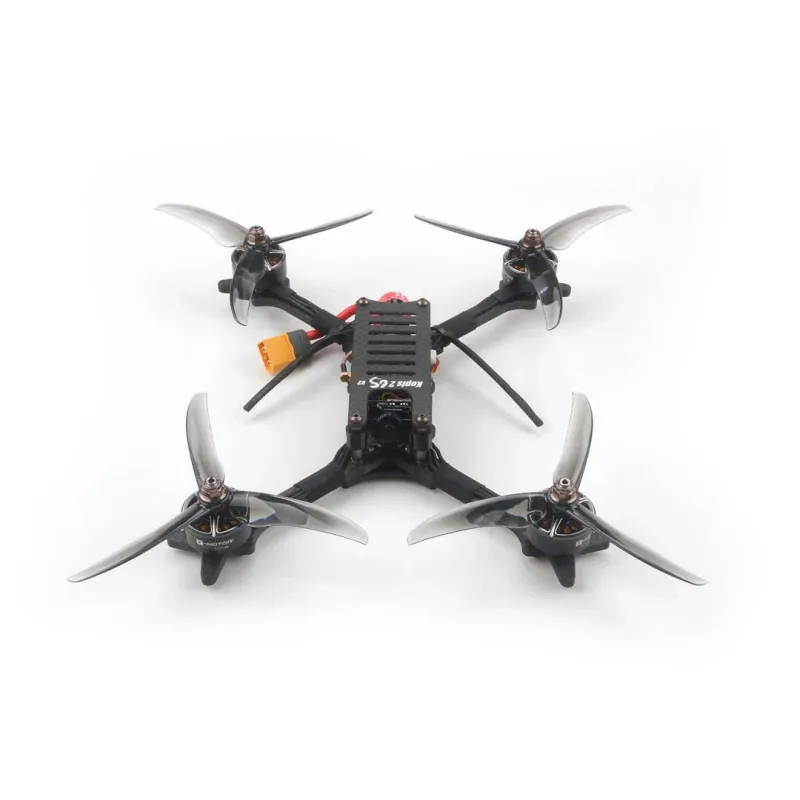

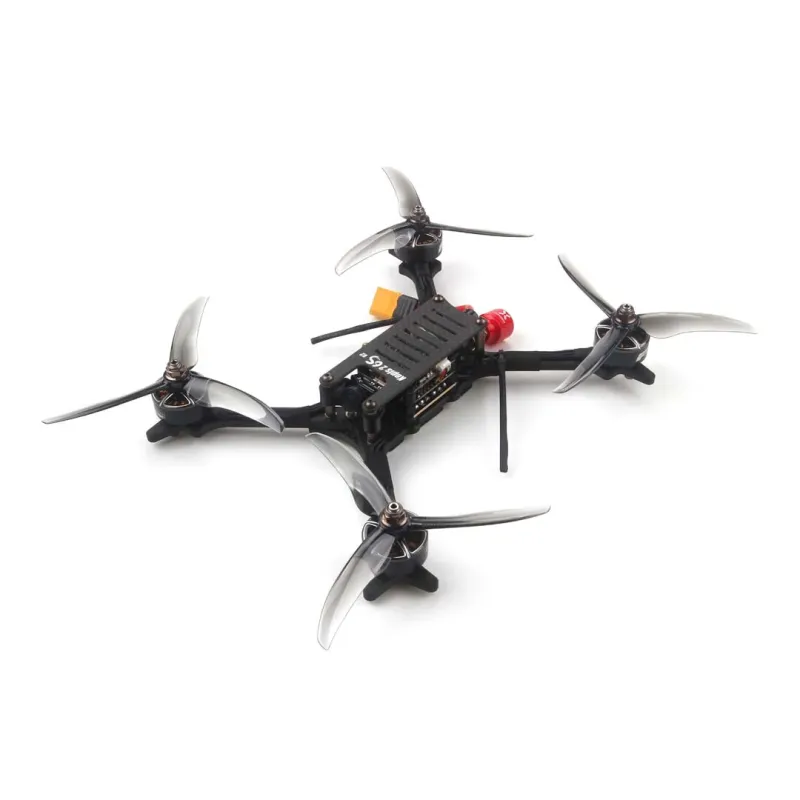

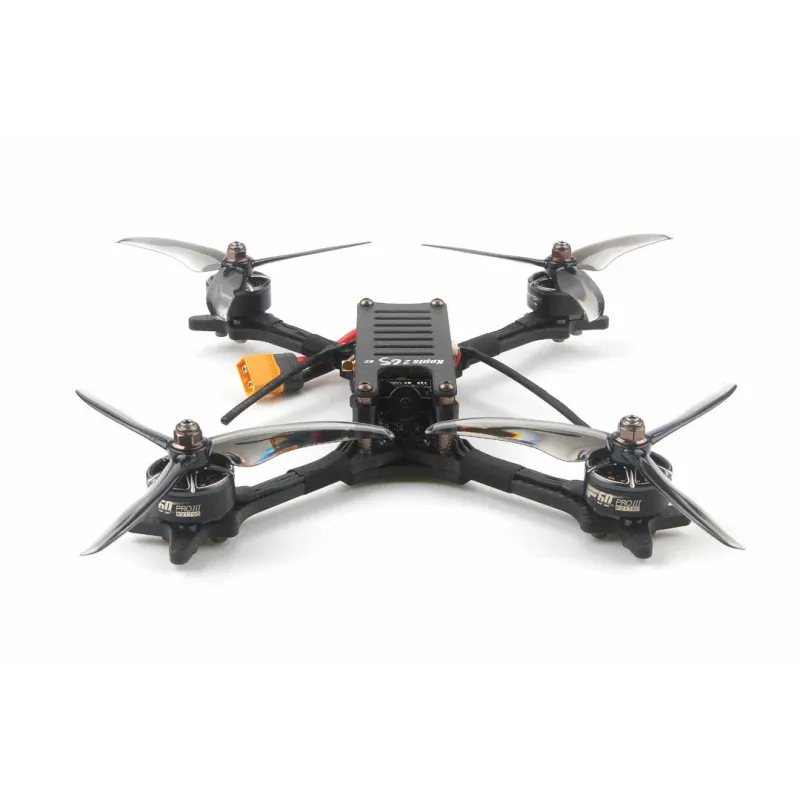

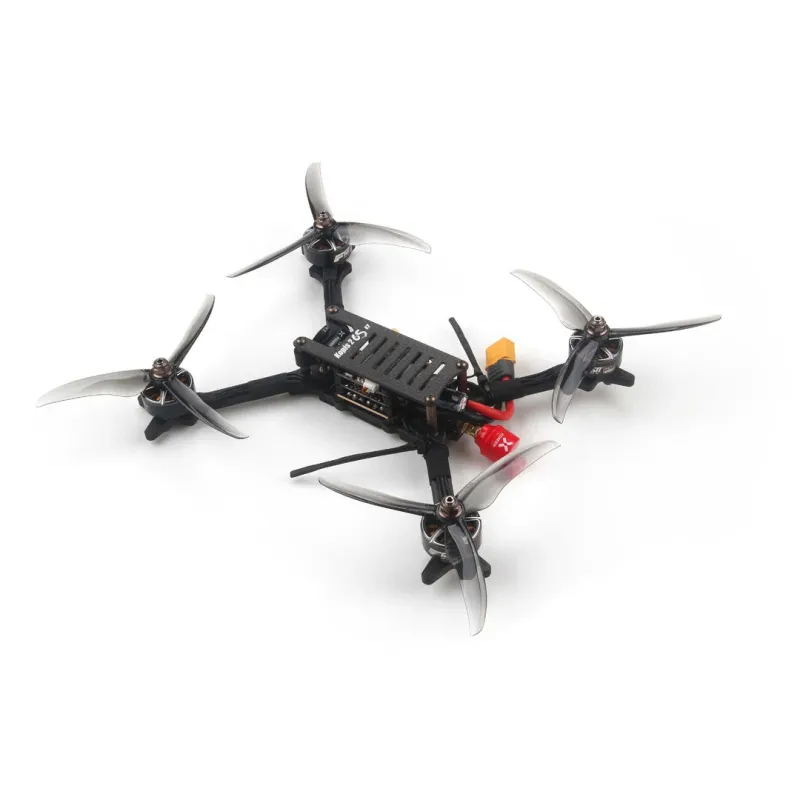

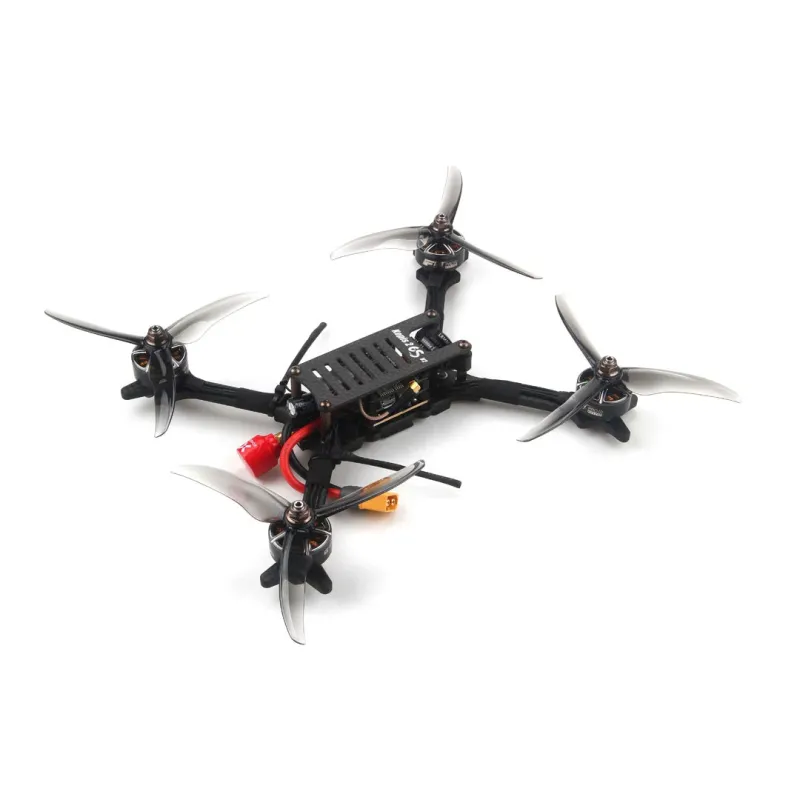

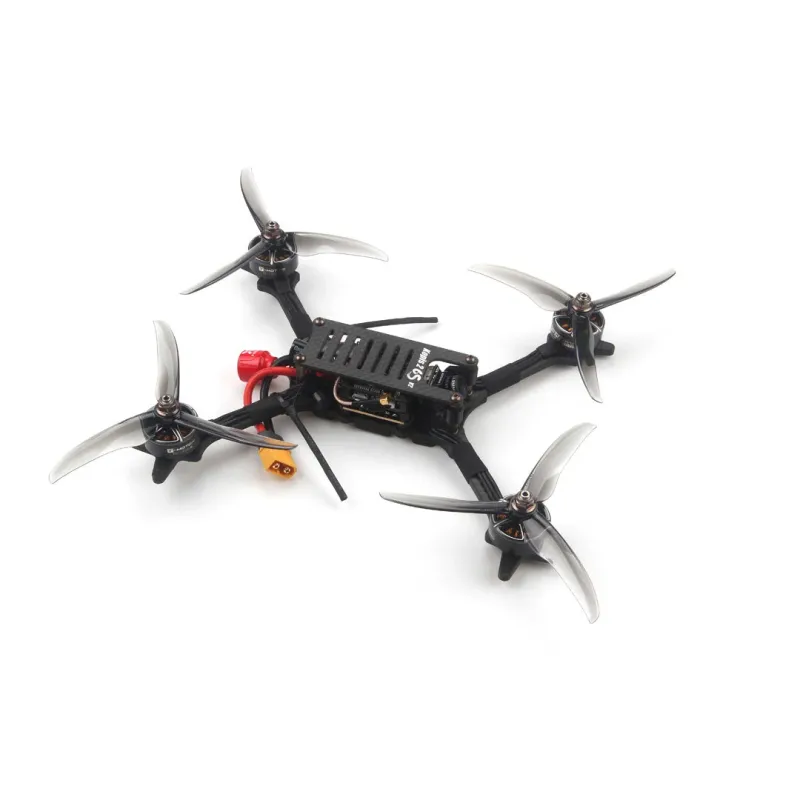

KOPIS is a high-performance ready-to-fly FPV racing drone from Holybro, Low-deck design means centralized mass and excellent handling. Stretched-X motor layout is the choice of top racers because the rear props are further from the "dirty air" coming from the front props. The result is smoother cornering and higher top speed. The FPV antenna is in a unique location behind the quad, to protect against damage. Kakute F7 flight controller and Atlatl HV V2 video transmitter give perfectly integrated control of all quadcopter systems. TMOTOR P2207 1750kv motors give awesome power and speed, just like top racers. Foxeer Micro Razer FPV Camera is light and small, with great image quality. KOPIS gives all the performance, looks, and durability of a hand-built machine, without ever having to pick up a soldering iron!

On Holybro Kopis 6S V2, the ESC installation direction has been changed while the power supply cord has been moved from the side of the quad to the tail, which will better protect the ESC. Kopis 6S V2 is equipped with a 1200TVL Foxeer Micro Razer FPV camera with higher resolution.

5mm full 3k carbon fiber

Counter-sunk screws on base for great appearance and protection of battery against damage.

KakuteH7 flight controller with soft-mounted gyro for mechanical filtering of vibration. Means you can disable more software filters for best flight handling.

Improved soft-mounting foam for KakuteH7 gives optimal balance of stiffness and damping for even better gyro performance than before!

Betaflight OSD included. Monitor voltage and battery capacity in your FPV goggles. Change PIDs and Rates using your transmitter sticks.

Atlatl HV V2 video transmitter: 5.8 GHz Standard 40-channel set. However 5645 MHz and 5925 MHz 5945 MHz are illegal in many areas, so they are not supported. If you select one of these channels, it will simply fail to work. Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW MMCX antenna connector for easy, secure connection. Won’t break or come loose like the IPEX connector used on other vTX. Control the vTX channel and transmit power from the OSD using your transmitter sticks or from your Transmitter. No more picking up the quad to change vTX settings!

Standard 40-channel set. However 5645 MHz and 5925 MHz 5945 MHz are illegal in many areas, so they are not supported. If you select one of these channels, it will simply fail to work.

Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW

MMCX antenna connector for easy, secure connection. Won’t break or come loose like the IPEX connector used on other vTX.

Control the vTX channel and transmit power from the OSD using your transmitter sticks or from your Transmitter. No more picking up the quad to change vTX settings!

Buzzer included.

Foxeer Micro Razer FPV Camera

Adjustable camera uptilt from 0 degrees to 90 degrees.

Serial receiver supported (SBUS, iBUS, Spektrum).

MCU - STM32H743 32-bit processor running at 480 MHz

Barometer - BMP280

Onboard Bluetooth chip - ESP32-C3 SpeedyBee IOS & Android App Compatible Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm).

SpeedyBee IOS & Android App Compatible

Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm).

VTX ON/OFF Pit Switch – Switch can be enable using USER1 in Betaflight Mode tab. Warning: Do not enable this pit switch if you are using DJI FPV Remote Controller

Warning: Do not enable this pit switch if you are using DJI FPV Remote Controller

6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)

9x PWM Outputs (8 Motor Output, 1 LED)

Battery input voltage: 2S-8S

BEC 5V 2A Cont.

BEC 9V 3A Cont.

Tekko32 F4 4in1 50A ESC

Continuous Current: 50A x4

Burst Current: 60A x4

Supports 4-6S battery

Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.

ESC telemetry Supported

Onboard analog current sensor

BLHeli_32 firmware

1000uf 35v capacitor included (highly recommended for 6s setup)

Amperage meter scale ratio: 120

Supports 6S battery

Wheelbase:220mm

Weight 325 grams without battery or props

1x KOPIS2 FPV racing drone 1x 5.8GHz FPV antenna 4x T5143S Propeller 4x T5147 Propeller 1x battery strap(installed)

Please note: Starting from April 12th, 2022, all Kopis BNF will no longer include the Kopis Carry case.

Holybro_Kopis2_6S_V2 Manual.pdf

Camera Mount-TPU-Kopis2 6S&SE.stl
