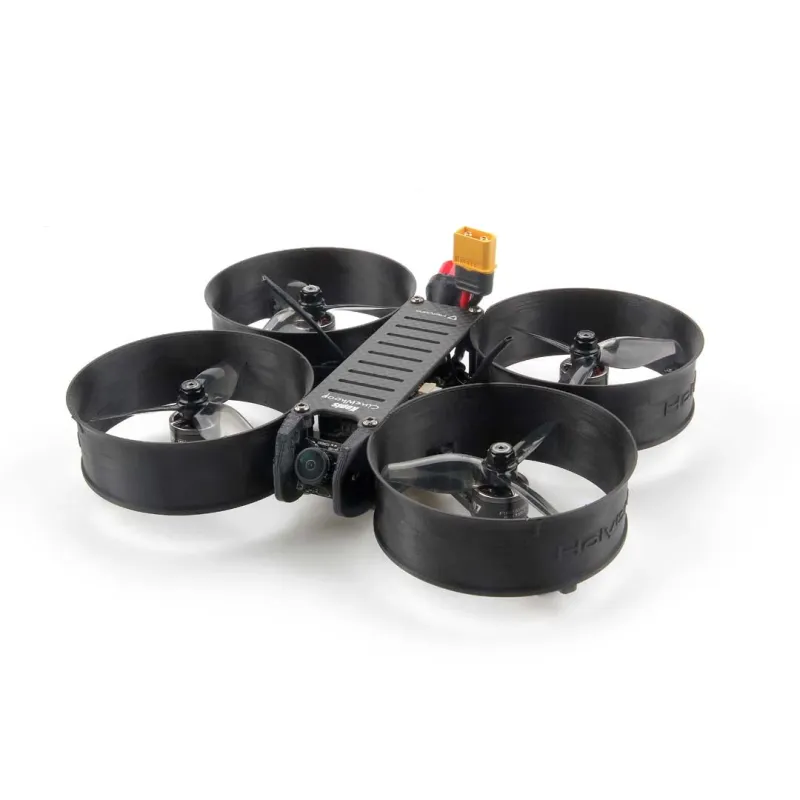

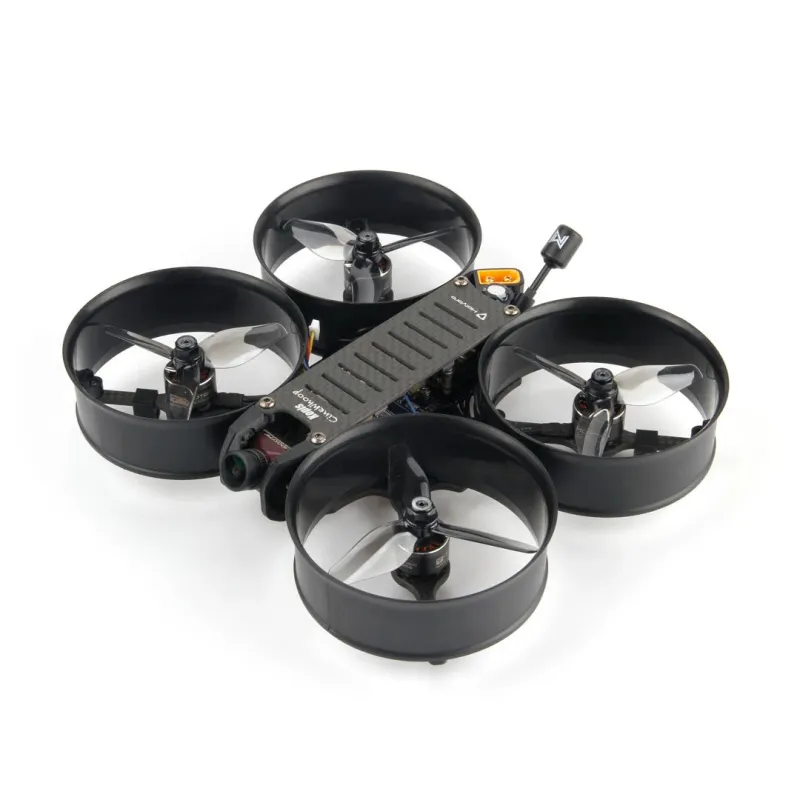

Holybro Kopis CineWhoop 3"

Holybro Kopis CineWhoop 3" is a Holybro catalog item in FPV Video Systems. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

1.FC:Kakute H7 V1.3 2.Digital HD Camera(HD version):Caddx Nebula Pro Vista Kit Digital HD FPV system3.ESC:Tekko32 F4 4in1 mini 50A ESC

MCU - STM32H743 32-bit processor running at 480 MHz

Barometer - BMP280

Onboard Bluetooth chip - ESP32-C3 SpeedyBee IOS & Android App Compatible Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm) in Betaflight

SpeedyBee IOS & Android App Compatible

Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm) in Betaflight

6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)

9x PWM Outputs (8 Motor Output, 1 LED)

2x JST-SH1.0 8pin ESC port (4in1 ESCs, x8/Octocopter compatible)

1x JST-SH1.0 6pin VTX port (For HD System like Caddx Vista & Air Unit)

Battery input voltage: 3S - 8S

BEC 5V 2A Cont.

Mounting - 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets

Dimension - 35x35mm

F4 MCU with BLHELI32 firmware

Continuous Current: 50A x4

Burst Current: 60A x4

Battery Supports: 4-6S

PWM Frequency: 16k to 96k

Supports DShot 150/300/600/1200/2400

Supports MultiShot/OneShot/Proshot/PWM etc.

ESC telemetry Supported

Onboard analog current sensor

BLHeli_32 firmware

1000uf 35v capacitor included (highly recommended for 6s setup)

Dimension: 32 x 40 mm

Analog version #30065,30066VTx:Atlatl HV V2FPV camera:Foxeer Micro FPV Camera

Recommend battery: 650mah~1300mah 4s

1x Kopis CineWhoop FPV racing drone

4x T3140 Propeller

2x Battery strap(installed)

HD version #30126,#30113

Weight:254g（included Nebula Pro Vista Kit）

Caddx Nebula Pro Vista Kit Digital HD FPV system(Optional)

Please note: Starting from April 12th, 2022, all Kopis BNF will no longer include the Kopis Carry case.

Holybro_Kopis_CineWhoop(Analog VTx version)_Manual.pdf

Kopis CineWhoop_3inch(KAKUTE H7 V1) DUMP

Kopis CineWhoop-3D_Print.rar

GoPro_HERO5_TPU_3D_Print.stl

Manufacturer catalog configurations
