Holybro Kakute H7 v2 Stacks

Holybro Kakute H7 v2 Stacks is a Holybro catalog item in FPV Video Systems. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

MCU - STM32H743 32-bit processor running at 480 MHz

Barometer - BMP280

Onboard Bluetooth chip - ESP32-C3 SpeedyBee IOS & Android App Compatible Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm).

SpeedyBee IOS & Android App Compatible

Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm).

VTX ON/OFF Pit Switch – Switch can be enable using USER1 in Betaflight Mode tab. Warning: Do not enable this pit switch if you are using DJI FPV Remote Controller

Warning: Do not enable this pit switch if you are using DJI FPV Remote Controller

6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)

9x PWM Outputs (8 Motor Output, 1 LED)

2x JST-SH1.0_8pin port (4in1 ESCs, x8/Octocopter compatible)

1x JST-GH1.25_6pin port (For HD System like Caddx Vista & Air Unit)

Battery input voltage: 7V to 42V

BEC 5V 2A Cont.

BEC 9V 1.5A Cont.

Mounting - 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets

Dimension - 35x35mm

PWM Frequency: 16k to 96k

Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

Continuous Current: 50A x4

Burst Current: 60A x4

Supports 4-6S battery

Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.

ESC telemetry Supported

Onboard analog current sensor

BLHeli_32 firmware

1000uf 35v capacitor included (highly recommended for 6s setup)

Amperage meter scale ratio: 168

Dimensions: 45x37x6mm / Weight: 13.8g

Mounting holes: M4 30.5x30.5mm (M3 grommets included)

Metal-cased MOSFET for excellent heat dissipation

Massive on-board capacitance for noise filtering at 2068uf

3 oz copper PCB design to allow bigger current and better heat dissipation

Continuous Current: 65A x4

Burst Current: 75A x4

Amperage meter scale ratio: 180

Dimensions: 43 x 44mm / Weight: 15.8g

Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.

Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.

SmartAudio input allows remote control by the flight controller. Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.

All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used.

MMCX connector is durable and easy to use. Rated for 100’s of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors.

LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad.

Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.

0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.

Built in microphone, so you can listen to your motors while you fly, no matter how far away you fly.

Standard 36mm form factor allows you to mount the Atlatl directly on your flight controller stack.

Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW

Audio: 6.5 MHz Mono

Protocol：smart audio2.0

Antenna Connector: MMCX

Input Voltage: 7 to 28 volts (2-6S LiPo) with absolute maximum 42 volts

Dimensions: 35x25x7mm (Includes USB height)

Mounting Holes: Standard 30.5mm square to center of holes

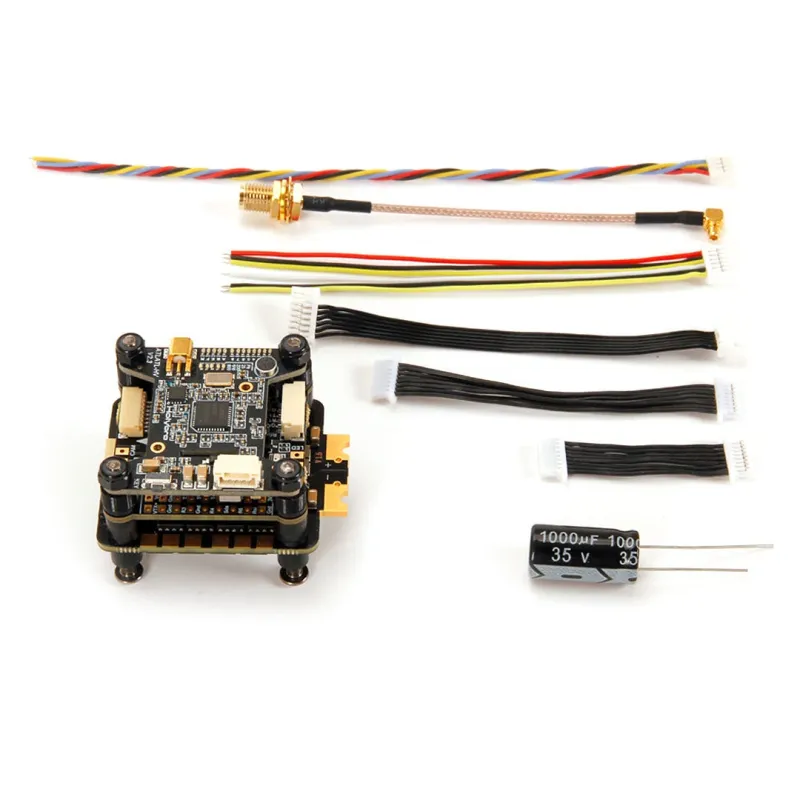

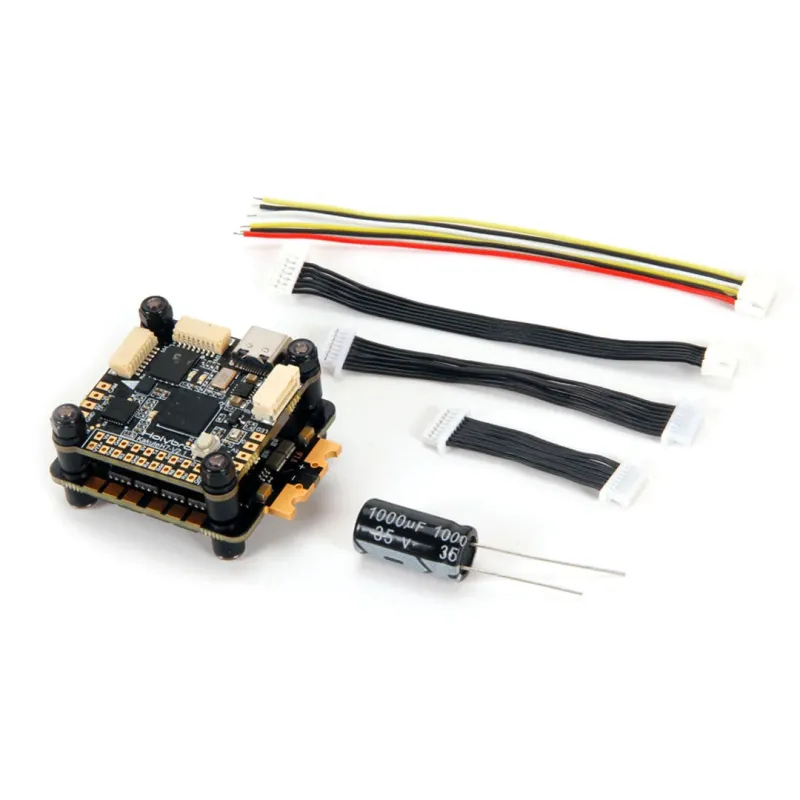

1x Kakute H7 V2 STACK

1x Electrolytic capacito: 1000uF 35v

1x 8pin to 8pin 1mm pitch 65mm cable

1x 8pin to 8pin 1mm pitch 25mm cable

1x JST GHR 8pin to JST GHR 6pin 80mm cable (for DJI/Caddx HD System)

1x JST GHR 6pin 100mm cable(for Caddx HD Systems)

1x Kakute H7 BT STACK

1x 80mm SMA–MMCX Cable

1x JST GHR 4pin 150mm cable

Manufacturer catalog configurations
