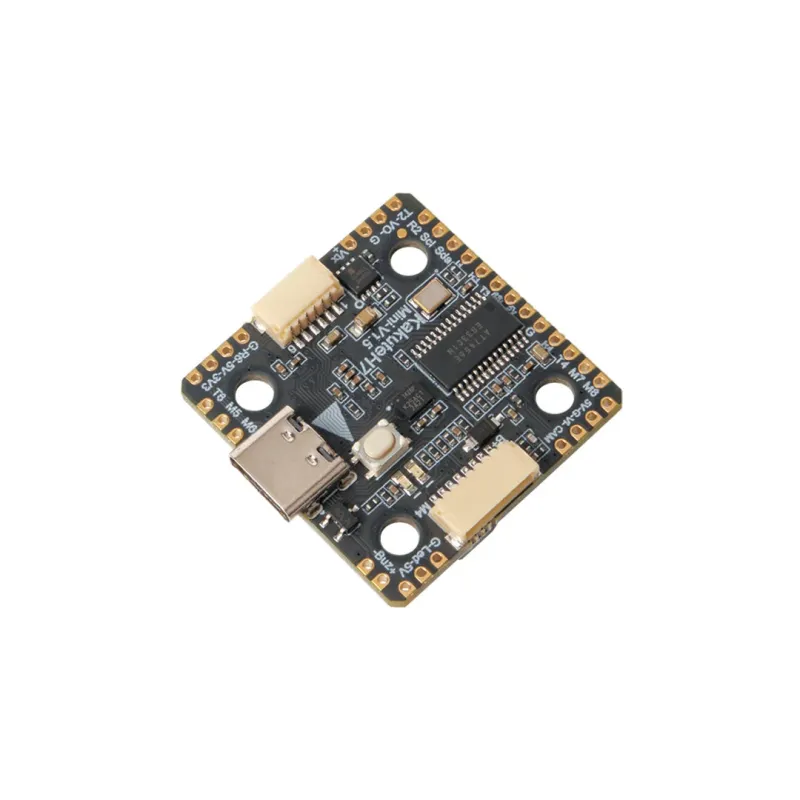

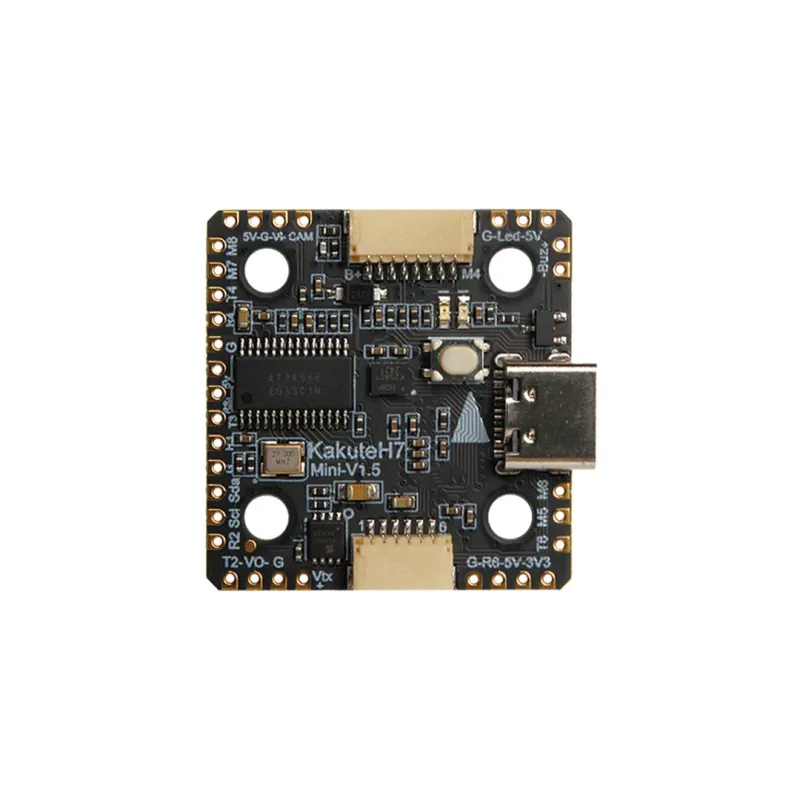

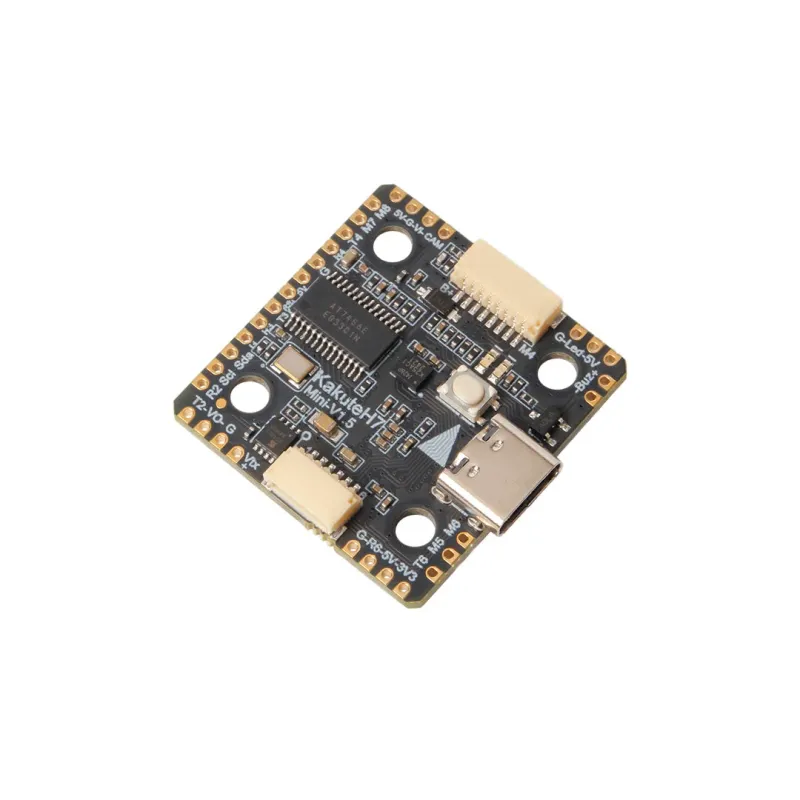

Holybro Kakute H7 Mini

Holybro Kakute H7 Mini is a Holybro catalog item in Autopilots & Flight Controllers. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

Tip: The VTX power switch is controlled by the USER1 mode in Betaflight. If the USER1 mode is not present, enter the following command in the CLI:set pinio_box=40,255,255,255save

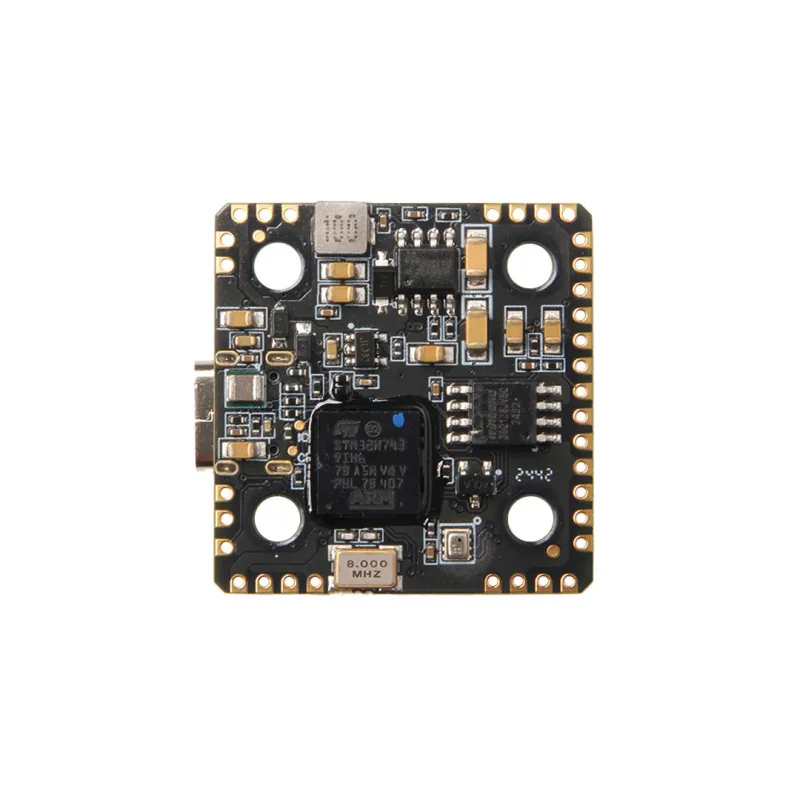

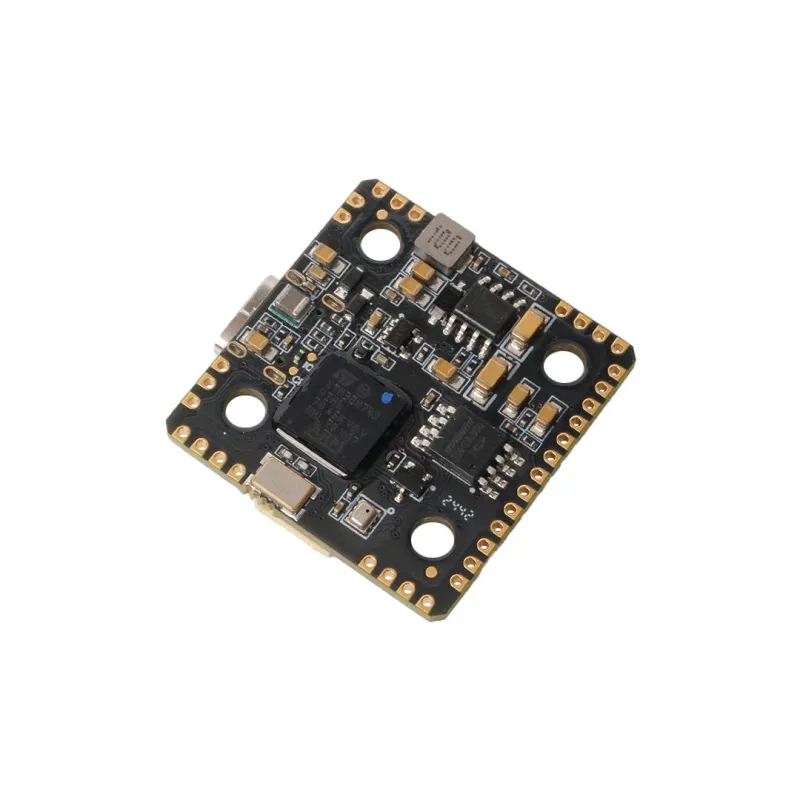

MCU - STM32H743 32-bit processor running at 480 MHz

IMU ICM-42688-P (V1.5) BMI270 (V1.3)

ICM-42688-P (V1.5)

Barometer - SPA06

Onboard Flash: 128Mbits

VTX ON/OFF Pit Switch – Switch can be enabled using USER1 in Betaflight Mode tab. Warning: Do not enable this pit switch if you are using the DJI FPV Remote Controller

6x UARTs (1,2,3,4,6,7)

9x PWM Outputs (8 Motor Outputs, 1 LED)

Battery input voltage: 2S-6S BEC 5V 2A

Mounting - 20 x 20mm, Φ3.6mm hole with M3 & M2 Grommets

Dimension - 31x30x6mm

JST-SH1.0_8pin port (For 4in1 ESCs)

JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)

Version Difference

1x Kakute H7 Mini Flight Controller

4x M2 Silicon Grommets

4x M3 Silicon Grommets

1x JST-SH1.0_8pin Cable (For ESCs)

2x JST-SH1.0_6pin Cable (For DJI Air Unit)

1x JST-SH1.0_6pin Colored Silicon Cable (For Caddx HD System and other VTX)
