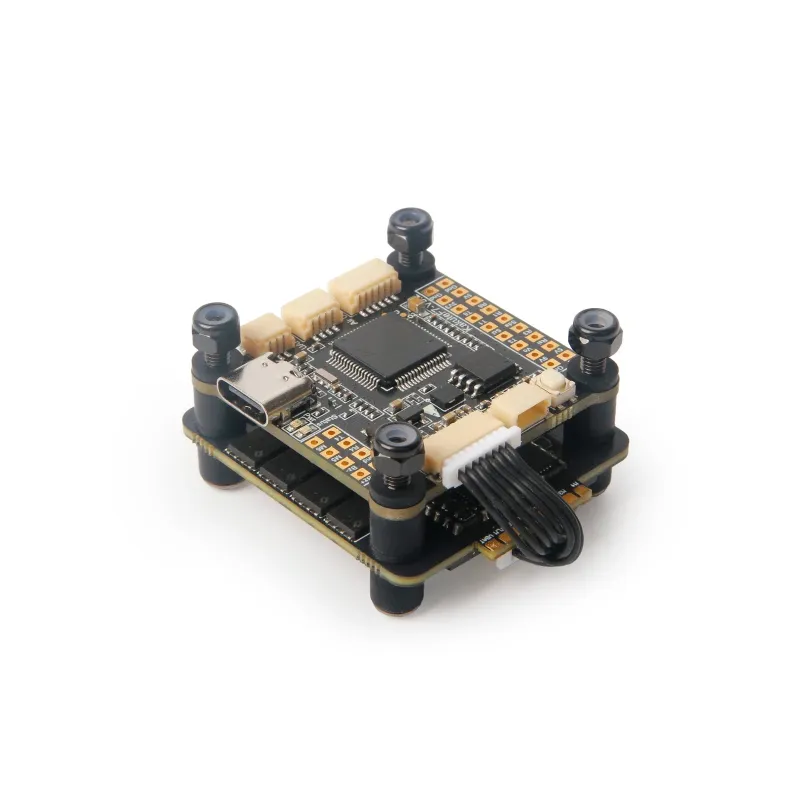

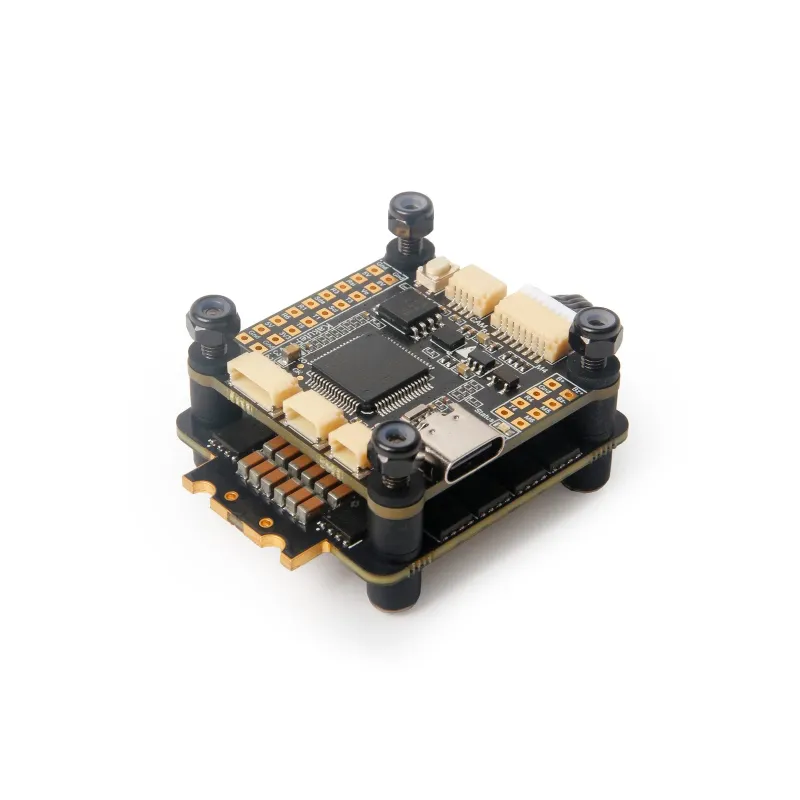

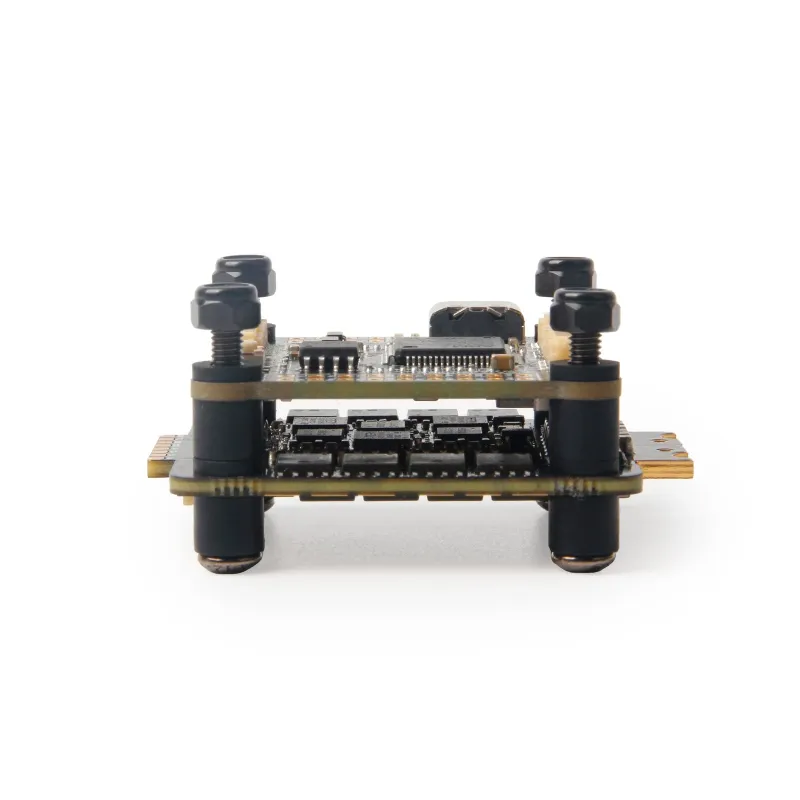

Holybro Kakute F722 Stacks

  • Brand:Holybro
  • Product Code:Holybro Kakute F722 Stacks
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

Available Options

Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

Holybro Kakute F722 Stacks is a Holybro catalog item in FPV Video Systems. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandHolybro
ModelKakute F722 Stacks

Manufacturer technical notes

High-performance STM32 F722 MCU with speeds up to 216MHz.

ICM42688P gyroscope, independent low-noise power supply.

Various Ports for quick & easy setup: ESC port, Digital VTX port, Analog VTX port, Receiver port, and LED port.

Built-in analog video OSD, 16 Mbytes black box,

High power synchronous rectifier BEC, supports up to 8S input and provides stable 9V/3A & 5V/2A output.

MCU: STM32F722 32-bit processor, 216MHz, 256Kbytes RAM, 512Kbytes Flash

IMU: ICM42688-P (SPI)

Barometer: BMP280 (legacy) or SPA06

5x hardware UARTS (UART1,2,3,4,6)

7x PWM Outputs (6 Motor Output, 1 LED)

Onboard 16 Mbytes for Blackbox logging

Battery input voltage: 3S - 8S

BEC: 9V/3A, 5V/2A, 3.3V/0.2A

Connector 2x JST-SH 8pin port for ESC 1x JST-SH 6pin port for HD VTX 2x JST-SH 4pin port for Receiver & Analog Camera 1x JST-SH 3pin port for LED

2x JST-SH 8pin port for ESC

1x JST-SH 6pin port for HD VTX

2x JST-SH 4pin port for Receiver & Analog Camera

1x JST-SH 3pin port for LED

Dimensions: 35x35mm

Mounting Holes: Standard 30.5 x 30.5 mm

Betaflight Target: KAKUTEF7MINIV3

INAV Target: KAKUTEF7MINIV3

PWM Frequency: 16k to 96k

Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

Metal-cased MOSFET for excellent heat dissipation

Massive on-board capacitance for noise filtering at 2068uf

3 oz copper PCB design to allow bigger current and better heat dissipation

1x Tekko32 F4 4in1 50A ESC/Tekko32 F4 4in1 60A ESC/Tekko32 F4 Metal 4in1 65A ESC

1x Electrolytic capacito: 1000uF 35v

1x 8pin to 8pin 1mm pitch 65mm cable

1x 8pin to 8pin 1mm pitch 25mm cable

1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System)

1x JST SH 6pin 100mm cable(for Caddx HD Systems)

Manufacturer catalog configurations

ConfigurationManufacturer SKU
Kakute F722 / Tekko32 F4 4in1 50A ESC11069+31102
Kakute F722 / Tekko32 F4 4in1 60A ESC20264
Kakute F722 / Tekko32 F4 Metal 4in1 65A ESC11069+31097

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
