Holybro High Precision RTK GNSS Antennas

  • Brand:Holybro
  • Product Code:Holybro High Precision RTK GNSS Antennas
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

Available Options

Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

Holybro High Precision RTK GNSS Antennas is a Holybro catalog item in GNSS & RTK Navigation. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandHolybro
ModelHigh Precision RTK GNSS Antennas
PolarizationRHCP

Manufacturer technical notes

High Precision GNSS Antenna(HANT-X627A) *1

Male-male SMA-TNC cable(length: 5m) *1

1/4'' Female to 5/8'' -11 Male Adapter *1

GNSS Antenna HANT-X627A_SpecGNSS Antenna HANT-X603A_SpecGNSS Antenna HANT-X623A_SpecGNSS Antenna HANT-X622A_SpecGNSS Antenna HANT-X625A SpecGNSS Antenna HANT-8605A_Spec

Manufacturer technical and configuration tables

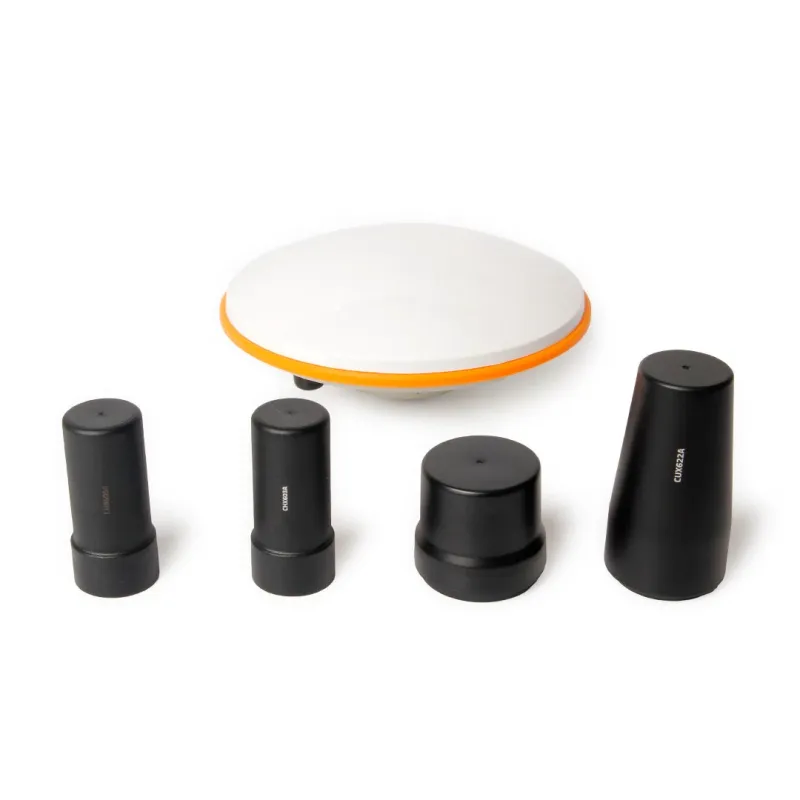

HANT-8605AHANT-X622A & HANT-X625AHANT-X603AHANT-X623AHANT-X627A
SKU31265X622A: 31267 X625A: 33003312643126631268
Support BandGPS L1/L5BDS B2a/B1I/B1GLONASS G1Galileo E5a/E1GPS L1/L2/L5BDS B1/B2/B3GLONASS L1/L2/L3Galileo E1/ E5a/E5b/E6L-BandGPS L1/L2/L5BDS B1/B2/B3GLONASS L1/L2/L3Galileo E1/E5a/E5bGPS L1/L2/L5BDS B1/B2/B3GLONASS L1/L2Galileo E1/E5a/E5bQZSS L1/L2/L5/L6IRNSS L5SBAS L1/L5L-BandGPS L1/L2/L5BDS B1I/B2I/B3I/B1C/B2a/B2bGalileo E1/E5a/E5b/E6GLONASS L1/L2/L3QZSS L1/L2/L5/L6IRNSS L5L-Band
PolarizationRHCP
Max Gain2dBi3.5dBi2.5dBi2.8dBi5.5dBi
LNA Gain23±2dBX622A: 33±2dB X625A: 25±2dB33dB (typical)33±2dB40±2dB
Operation Voltage+3.3～+12VDC+3.3～+12VDC+3.3～+12VDC+3.3～+5VDC+3.3～+12VDC
Operation Current≤35mAX622A: ≤55mA X625A: ≤45mA≤35mA≤55mA≤45mA
Connector TypeSMA MaleTNC female
IP Rating*IP65IP67IP65IP67IP67
DimensionsΦ27.5*59mmΦ40*75.2mmΦ27.5*59mmΦ43.6*40.8mmΦ152*62.2mm
Weight≤25g≤38g≤25g≤30.5g≤500g

Manufacturer catalog configurations

ConfigurationManufacturer SKU
HANT-X603A31264
HANT-X623A31266
HANT-X627A31268
HANT-X622A31267
HANT-X625A33003
HANT-8605A31265
