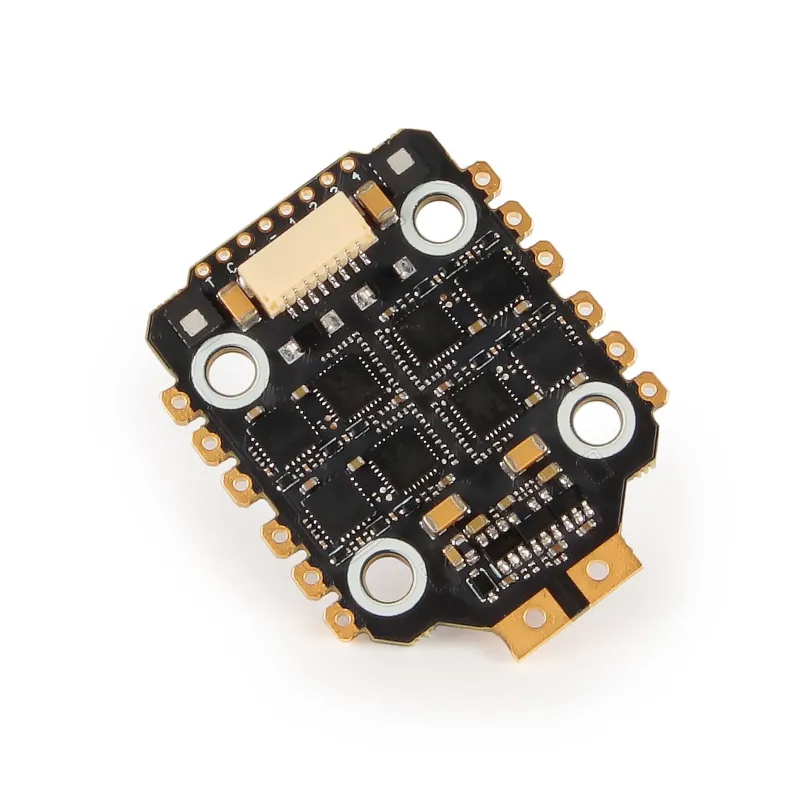

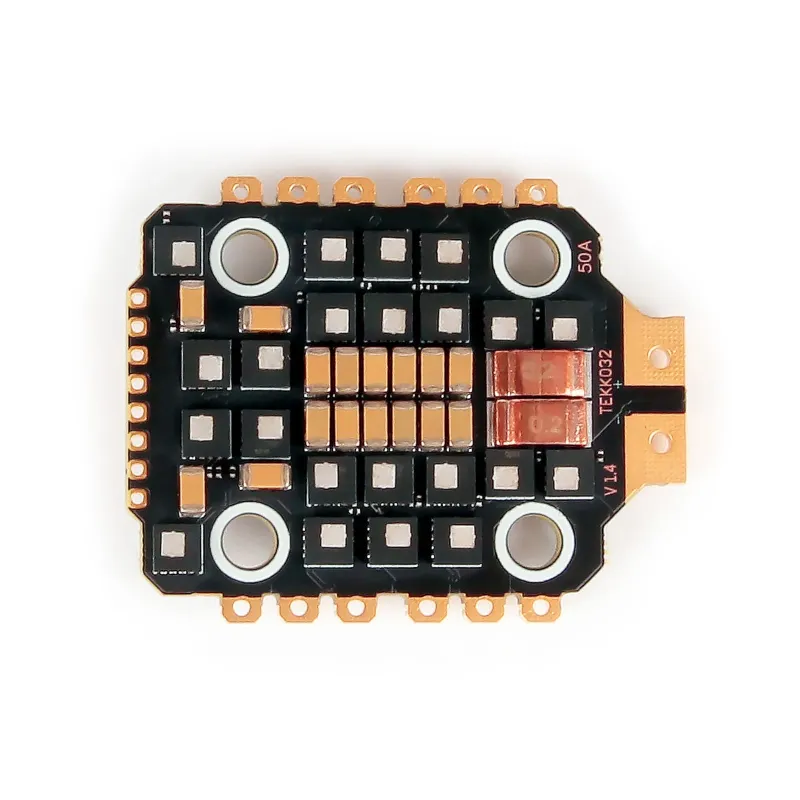

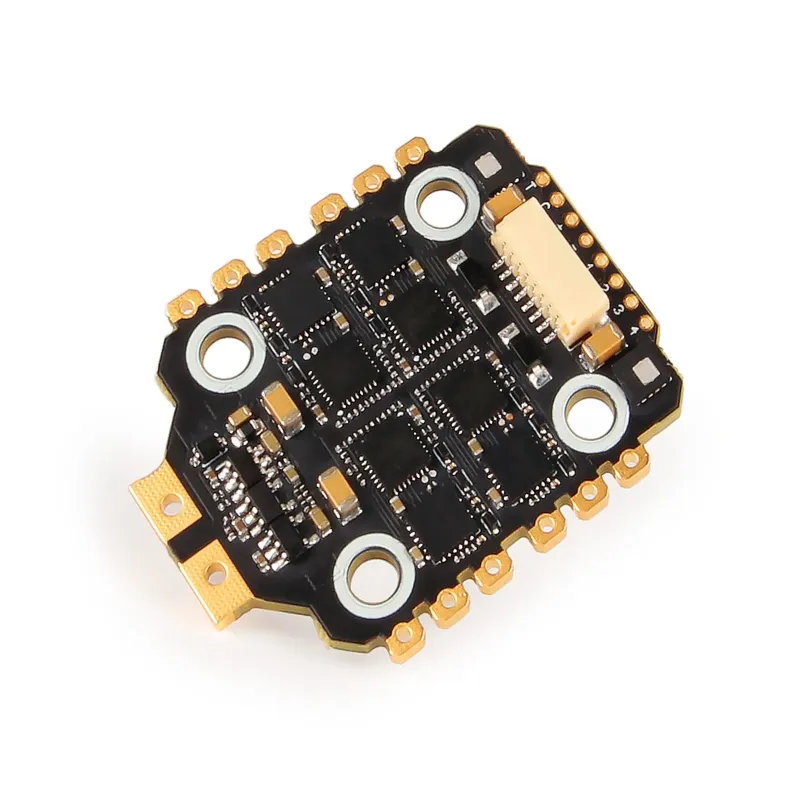

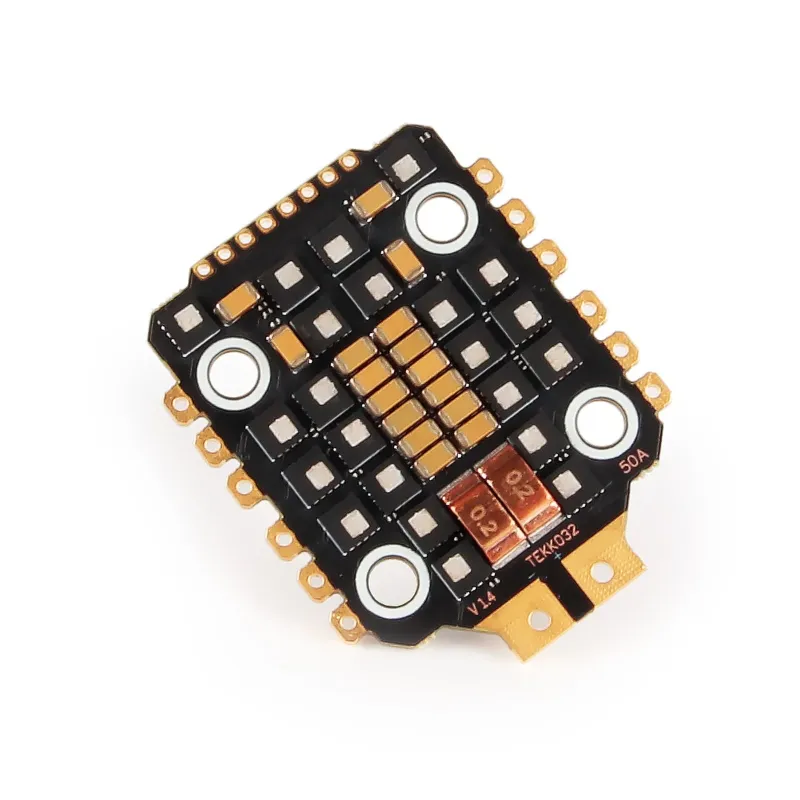

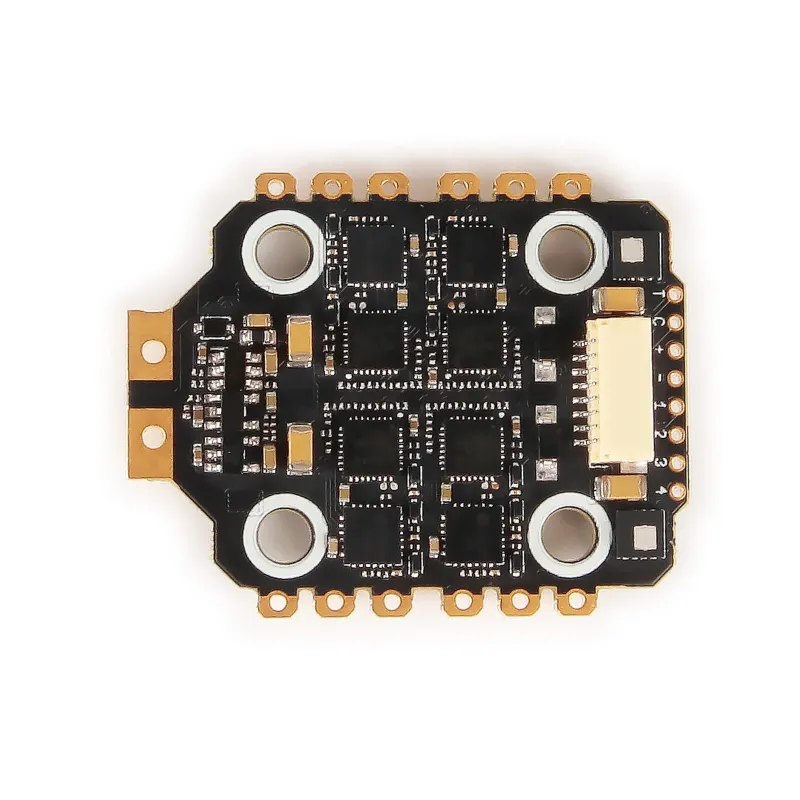

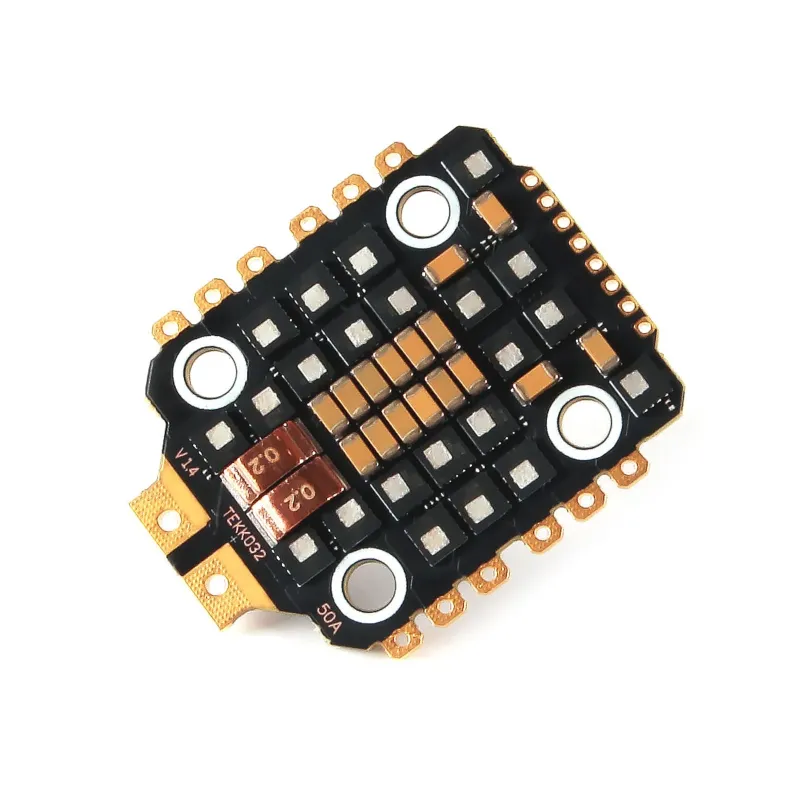

Holybro Tekko32 F4 4in1 Mini 50A ESC (AM32)

  • Brand:Holybro
  • Product Code:Holybro 31155
  • SKU:31155
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

Holybro Tekko32 F4 4in1 Mini 50A ESC (AM32) is a Holybro catalog item in ESCs & Motor Controllers. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandHolybro
ModelTekko32 F4 4in1 Mini 50A ESC (AM32)
Manufacturer SKU31155

Manufacturer technical notes

All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink

Separate drive & control circuit, reducing the electrical interference to the control circuit

Continuous current: 50A x4

Burst current: 60A x4

Battery support: 4S

PWM frequency: 16k to 96k

Support DShot 150/300/600/1200/2400

Support MultiShot/OneShot/Proshot/PWM, etc.

ESC telemetry Support

Onboard analog current sensor

1000uf 35v capacitor included

Dimensions: 32 x 40 mm

Tekko32 F4 4 in 1 mini 50A ESC *1

M2 Anti-Vibration Silicone Grommet Insert *4

M3 Anti-Vibration Silicone Grommet Insert *4

Electrolytic capacitor: 1000uF 35v *1

8pin to 8pin 1mm pitch 65mm cable*1

8pin to 8pin 1mm spacing 25mm cable*1

AM32 ESC Firmware Overview AM32 ESC Configurator

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.

  • Original manufacturer model information

Manufacturer Resources

Relevant RC Academy guides

Learn before you buy

These guides explain the setup, safety checks and accessory choices that usually matter for this product type.

Tags: Holybro, 31155
