Holybro ST VL53L1X Lidar

Holybro ST VL53L1X Lidar is a Holybro catalog item in Sensors & Remote ID. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

The VL53L1X is a state-of-the-art, Time-of-Flight (ToF), laser-ranging sensor, enhancing the ST FlightSense™ product family. It is the fastest miniature ToF sensor on the market with accurate ranging up to 4 m and fast ranging frequency up to 50 Hz.

Fully integrated miniature module

Emitter: 940 nm invisible laser (Class1)

SPAD (single photon avalanche diode) receiving array with integrated lens

Low-power microcontroller running advanced digital firmware

Pin-to-pin compatible with the VL53L0X FlightSense™ ranging sensor

Fast and accurate long distance ranging

Up to 400 cm distance measurement

Up to 50 Hz ranging frequency

Typical full field-of-view (FoV): 27 °

Programmable region-of-interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced

Programmable ROI position on the receiving array, providing multizone operation control from the host

Easy integration

Single reflowable component

Can be hidden behind many cover window materials

Software driver and code examples for turnkey ranging

Single power supply (2v8)

I²C interface (up to 400 kHz)

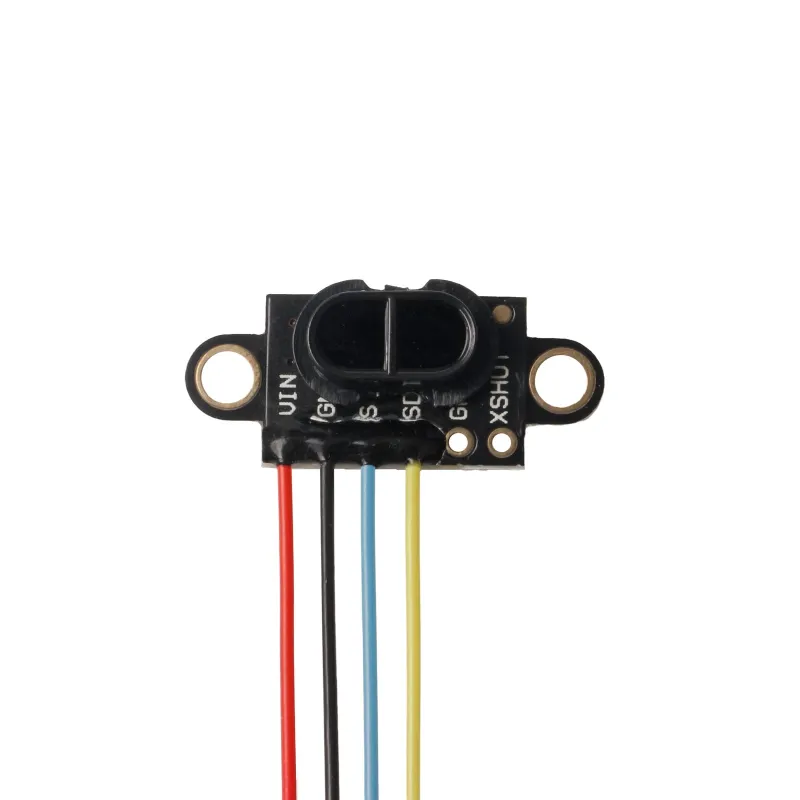

Shutdown and interrupt pins

Working voltage: 3.3-5v

Communication interface: I2C

Dimensions: 25x10.7x3.2mm

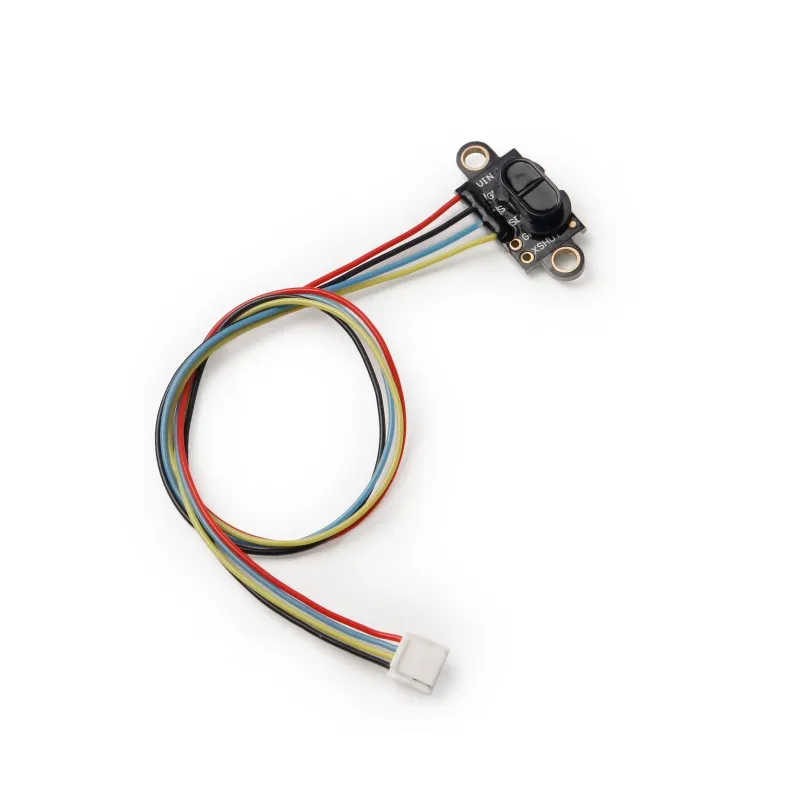

1x GH4P 200mm Cable(installed)

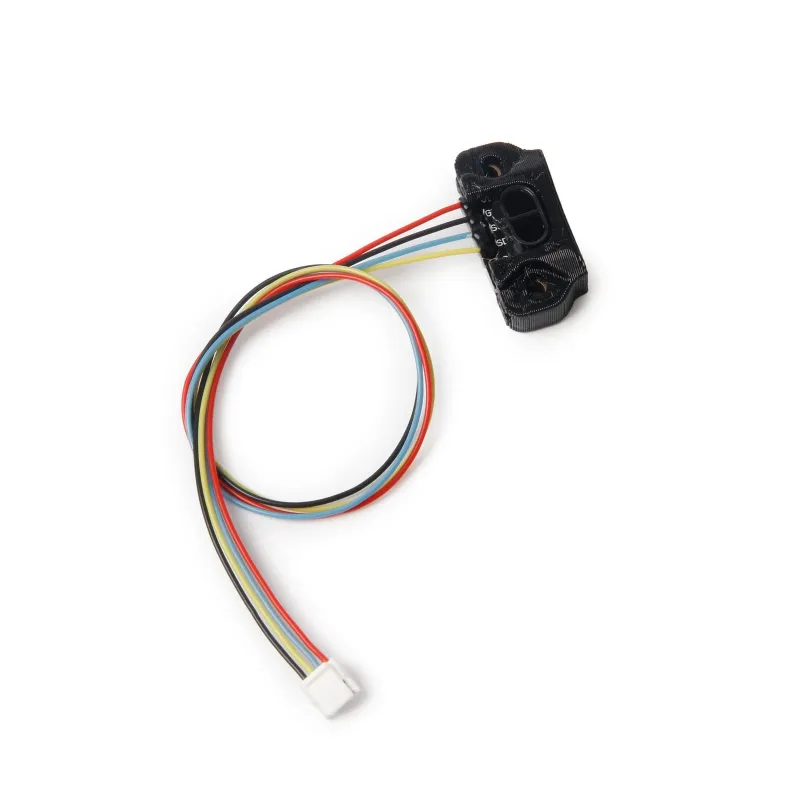

1x TPU Protective Case Shell

VL53L1X_QuickStartGuide

Some Tips:

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.

• Original manufacturer model information
• Manufacturer documentation
