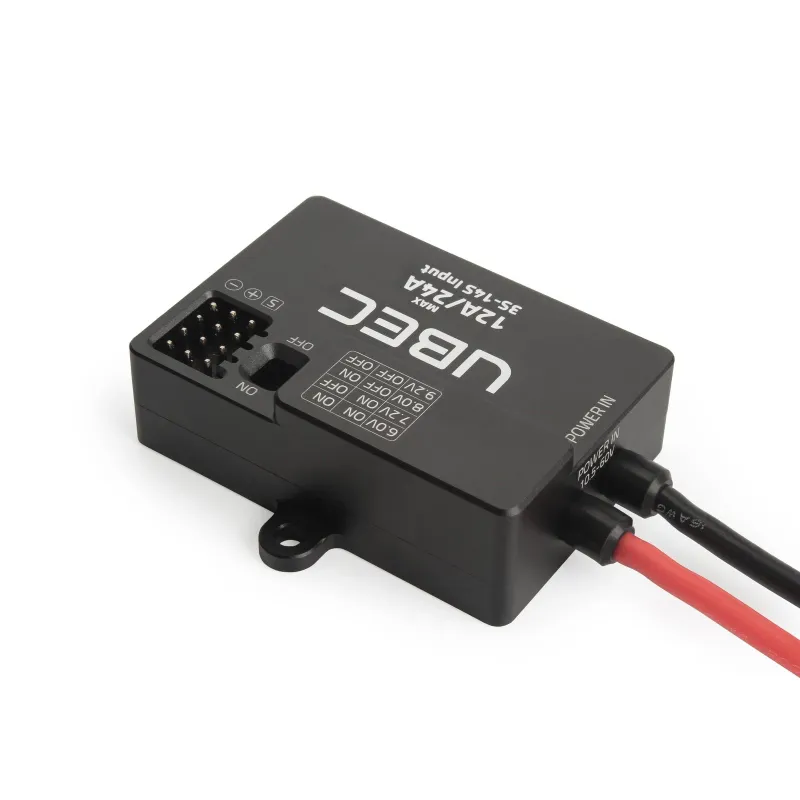

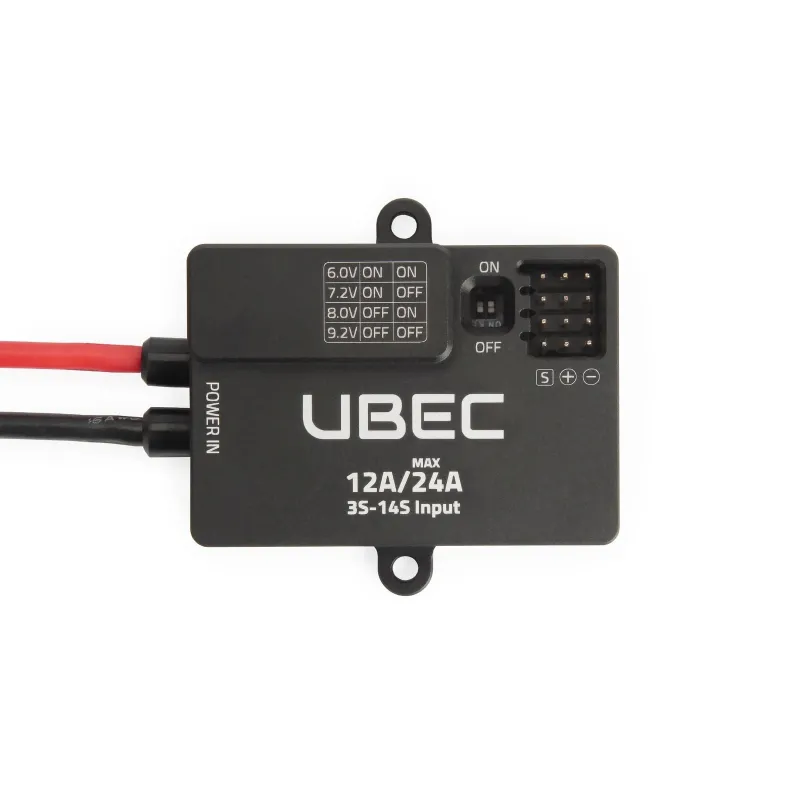

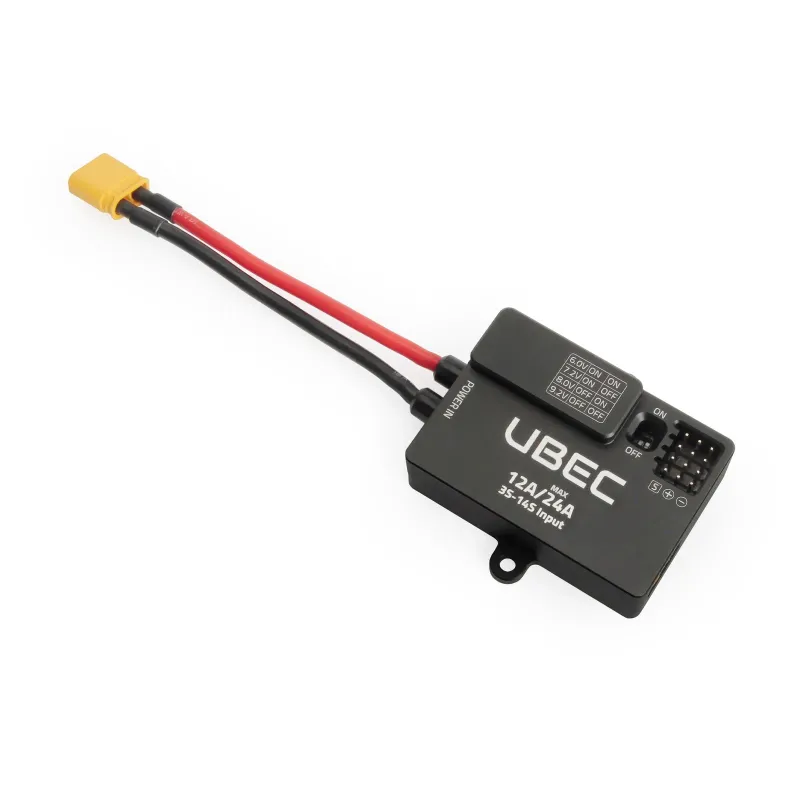

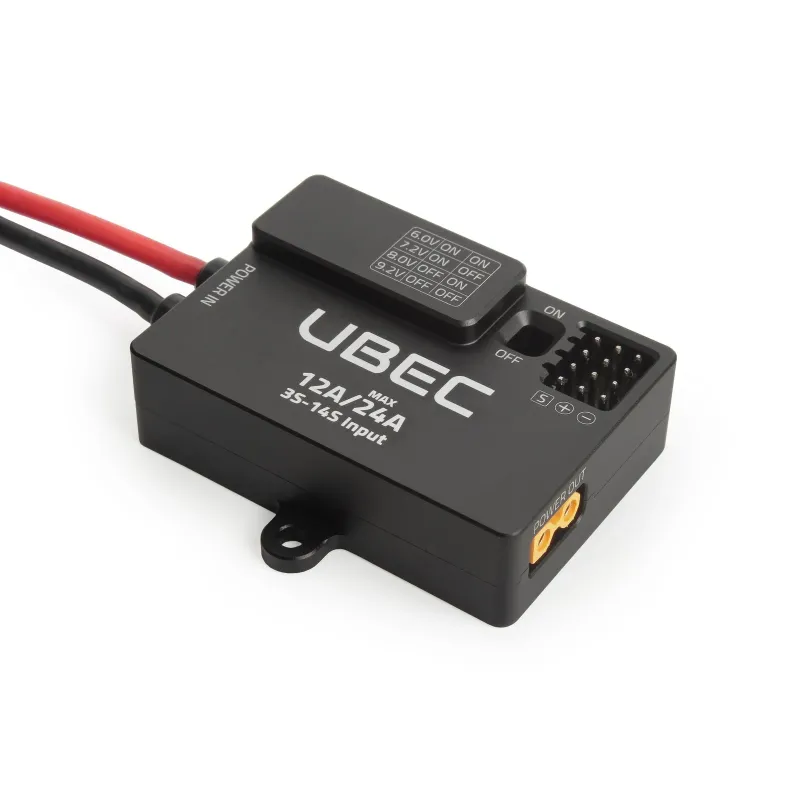

Holybro UBEC 12A (3-14S)

Holybro UBEC 12A (3-14S) is a Holybro catalog item in Power Modules & Distribution. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

UBEC 12A (3-14S) is a synchronous step-down regulator from a high voltage or widely varying input supply. It draws the DC voltage from a 3-14S LiPo battery and drops the voltage to a level suitable for receivers and other electronic devices, and keeps providing a stable current output of up to 12Amp. The output voltage can be adjusted by the onboard DIP switches.

High efficiency DC-DC regulator chip for transfer efficiency of over 90%

Adjustable output voltage (6.0V/7.2V/8.0V/9.2V) applicable for devices with different voltages

4-channel parallel header pin outputs for servos

XT30 output for high current devices

Multiple protections including over-current, (output end) short circuit, overheat, and low-voltage cutoff

Metal housing for quick heat dissipation and less electromagnetic interference.

Input voltage: 3~14S (XT30)

Output voltage: 6.0V/7.2V/8.0V/9.2V (Adjustable by using onboard DIP Switches)

Output Current Continuous: 12A Burst: 24A

Continuous: 12A

Size: 48x33.6x16.3 mm

1x UBEC Power Module

1x XT30 18AWG Cable

1x DuPont 3P Cable

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.

• Original manufacturer model information
