Holybro PM02D Power Module(2S-12S)
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Holybro PM02D Power Module(2S-12S) is a Holybro catalog item in Power Modules & Distribution. Review the model details below and request compatibility and supply information for civilian use.
Model specifications
| Brand | Holybro |
|---|---|
| Model | PM02D Power Module(2S-12S) |
| Manufacturer SKU | 15011 |
Manufacturer technical notes
PM02D HV version is supported by PX4. For Ardupilot, it is supported in version 4.4 and later. Full setup guide can be found here.
This PM uses I2C digital signal data output, Compatible with Pixhawk 5X/6X Series. NOT compatible with flight controller that uses analog PM such as the Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers.
NOT compatible with flight controller that uses analog PM such as the Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers.
Power Module Comparison Table

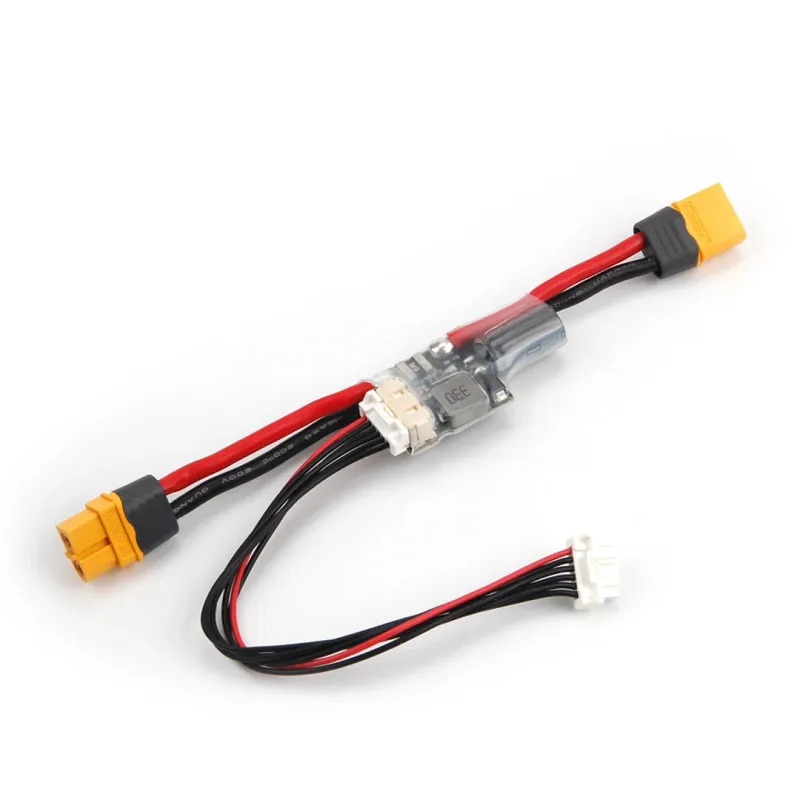

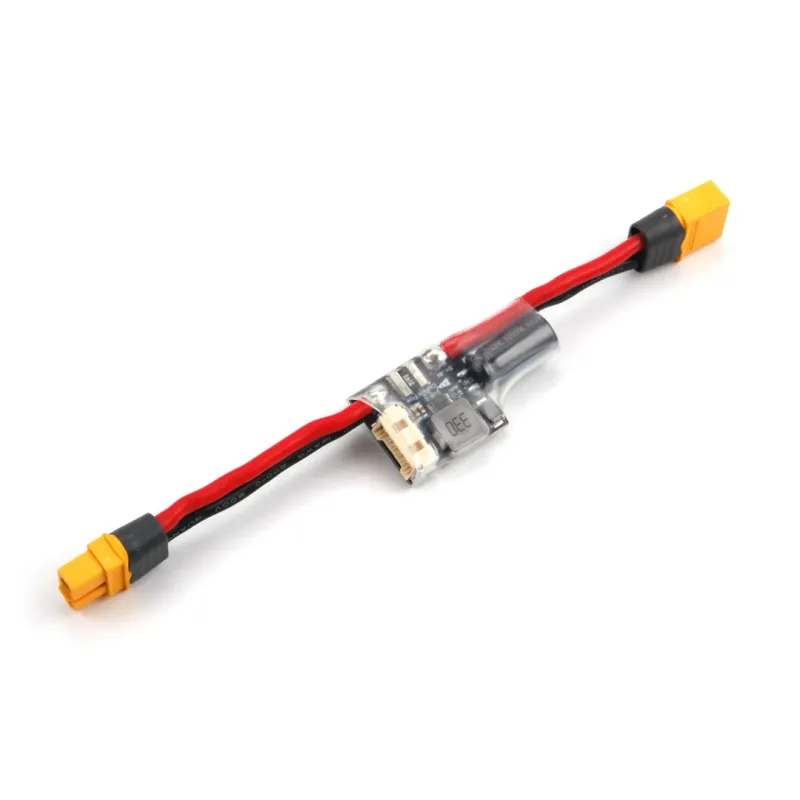

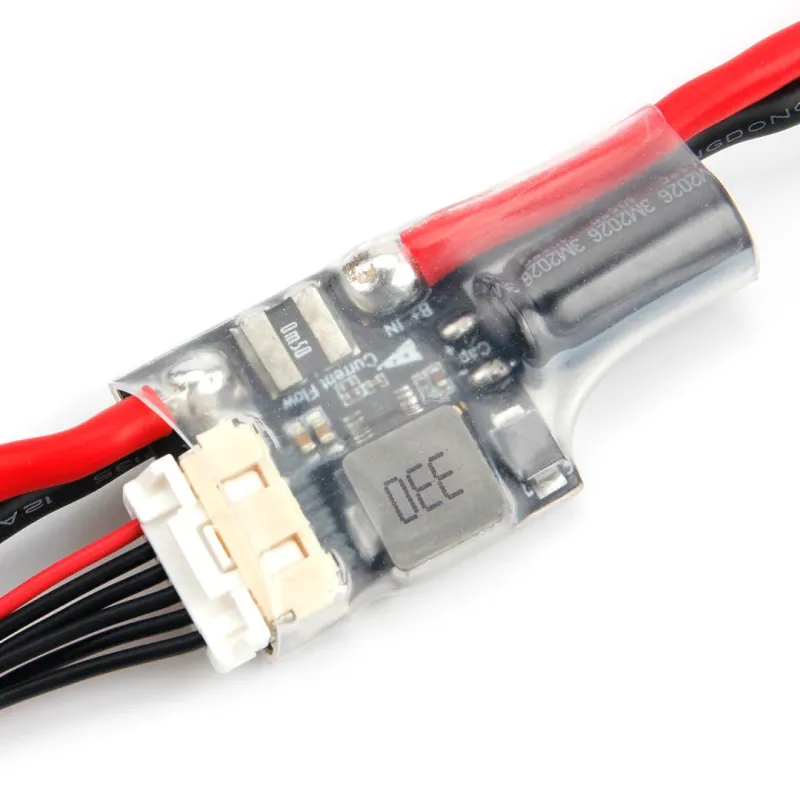

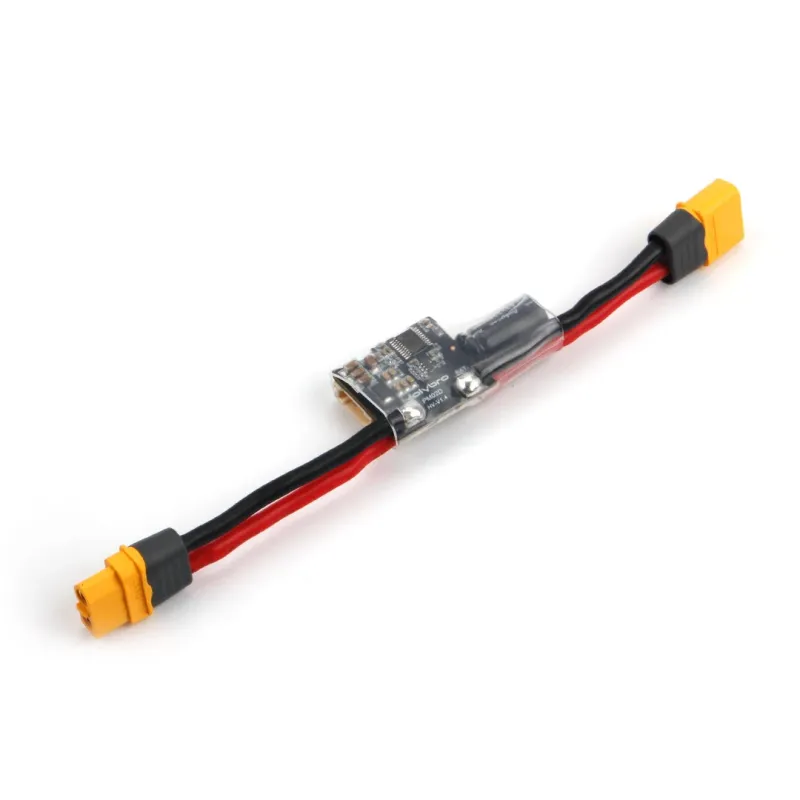

PM02D provides regulated power supply for your Pixhawk® 5X & 6X from the battery, as well as current consumption and battery voltage measurements, all through a 6pin cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from LiPo batteries up to 12S (HV). The Power Module comes completely assembled with XT60 connectors, wrapped in shrink tubing for physical damage protection.It is not designed to power servos, please use your aircraft's ESC/BEC for that. The Molex 2.00mm pitch CLIK-Mate Wire-to-Board connector is rated for 3.0A current per contact.
Input voltage : 2S-12S
PCB Cont. Current Rating: 60A
PCB Burst Current Rating: 100A (<60 Sec)
Max current sensing: 327A
Voltage and current monitor with I2C compatible interface
Outputs 5.2V and 3A max
Current Rating:
The PM02D comes with XT60 plugs with 14 AWG silicone wires rated for 30A continuous current and 60A burst current (<1 minute). If a higher current is needed, the plug type and wire size should be changed accordingly. You can refer to this chart as reference.
If you are using the PM02D HV version, you must set SENS_EN_INA228 to enable.Full setup guide can be found here.
Product inquiry
Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
- Original manufacturer model information
- Manufacturer documentation
- Manufacturer documentation
- Manufacturer documentation
