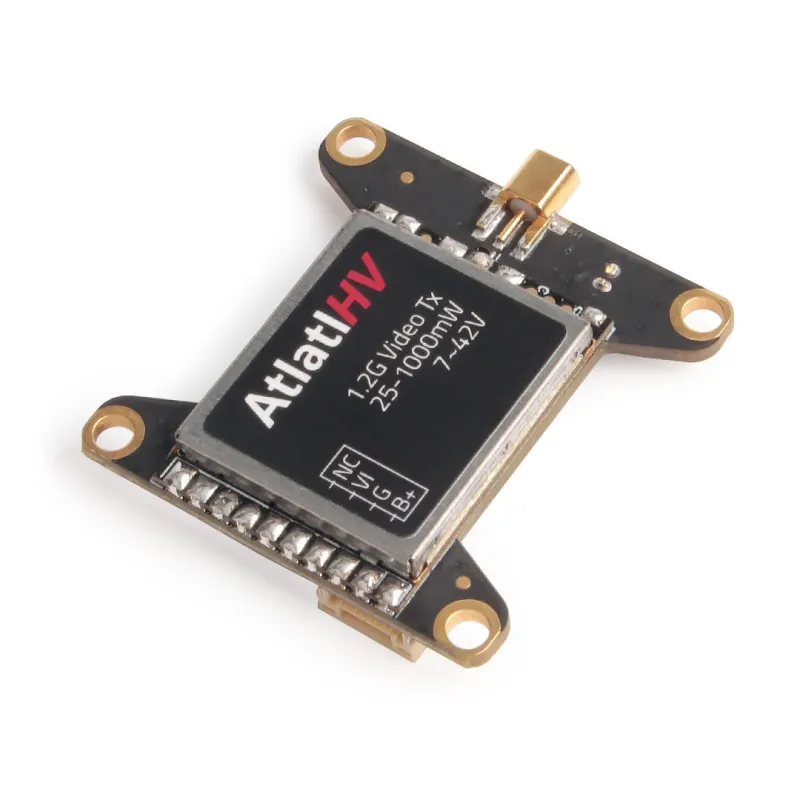

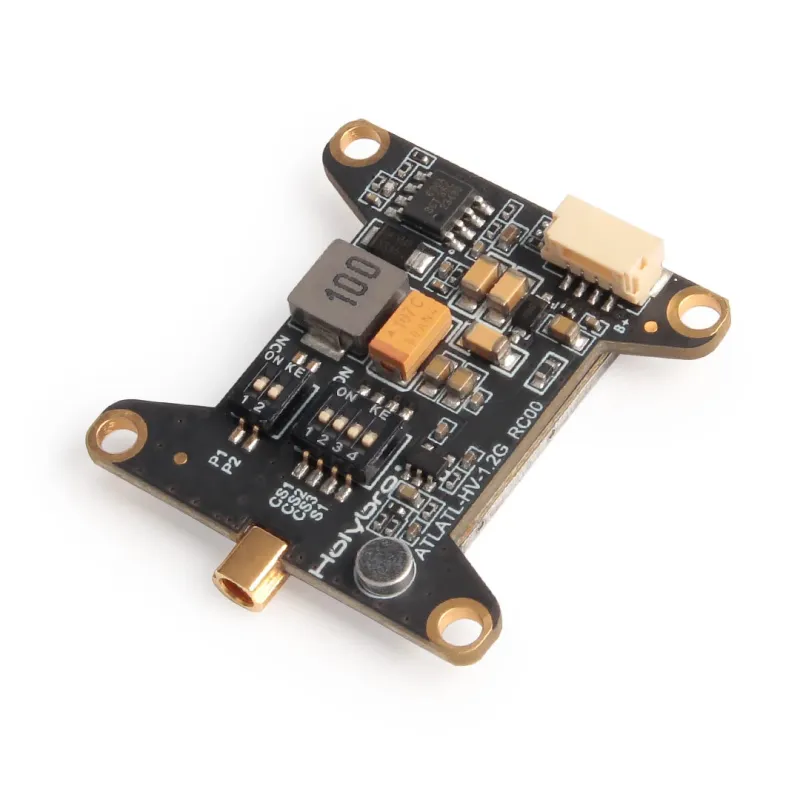

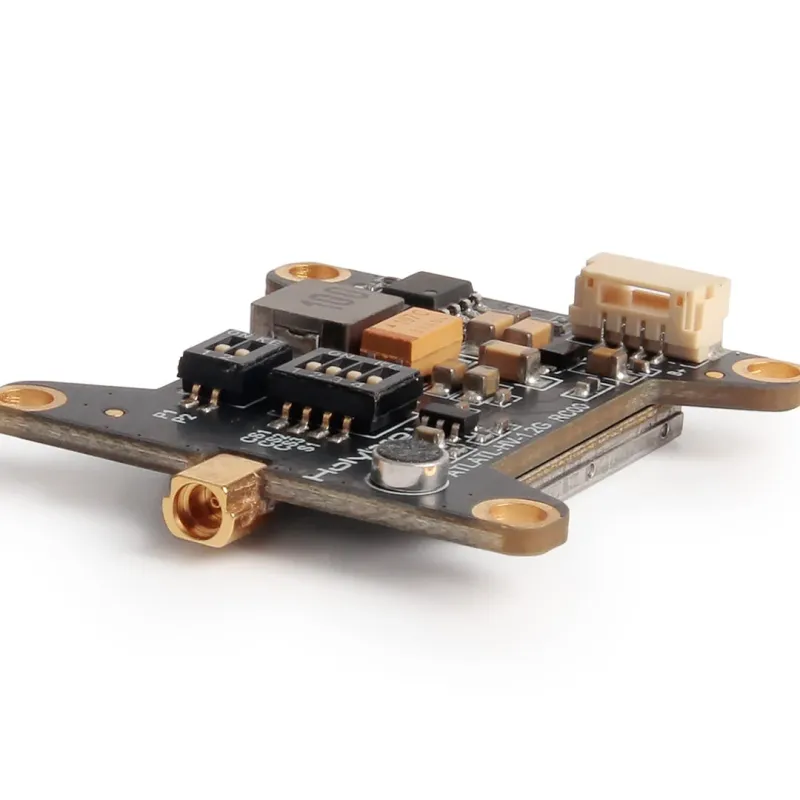

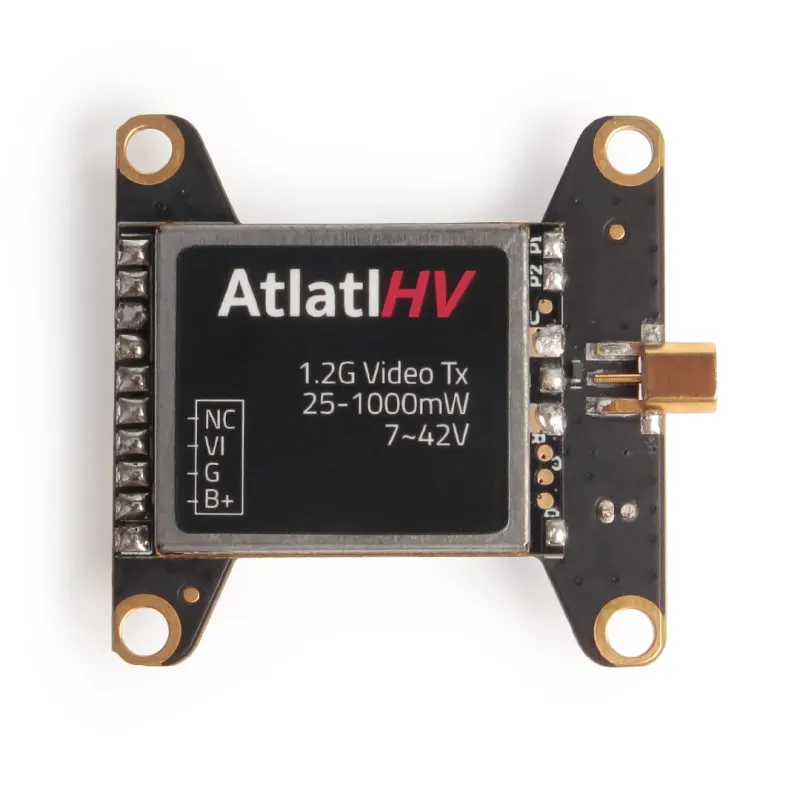

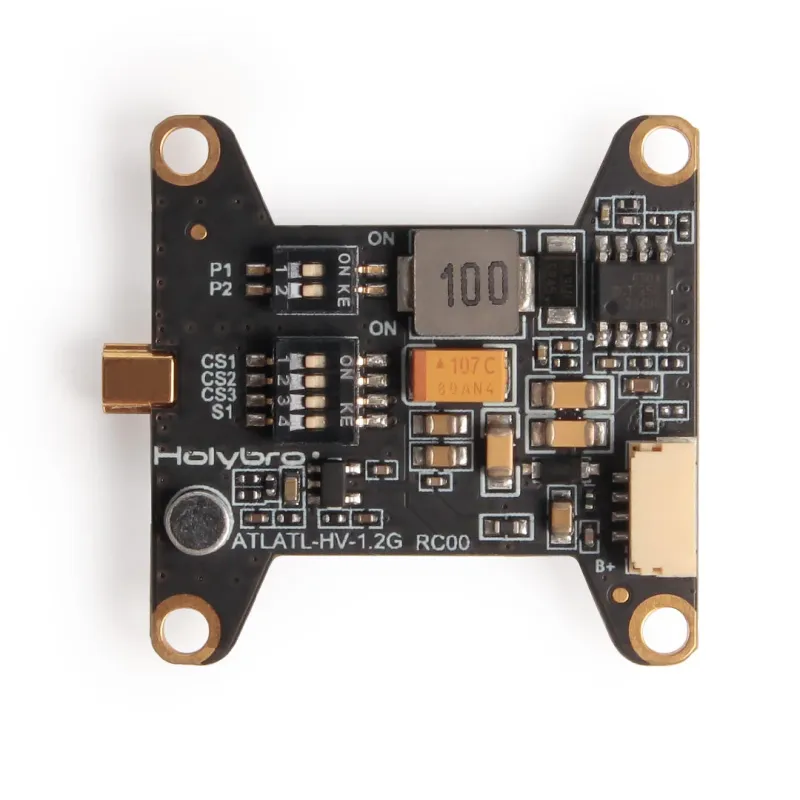

Holybro Atlatl HV V2 VTX - 1.2GHz 1W

Holybro Atlatl HV V2 VTX - 1.2GHz 1W is a Holybro catalog item in FPV Video Systems. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

The Atlatl HV V2 VTX - 1.2GHZ 1W is a low-frequency signal VTX compared to VTX with 5.8G frequency band. It has excellent diffraction ability and has stronger anti-interference and penetration. Images are clearer and more stable, the transmission distance is longer, and it is more suitable for long-range and various complex environments.

Note: Powering on without antenna can result in damage!

Supports up to 9 frequency Channels.

Variable transmit power: Pit/25/200/1000mw

Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.

Onboard microphone, so you can listen to your motors while you fly, no matter how far away you fly.

Standard 30.5 x 30.5mm mounting holes, allows you to mount the Atlatl directly in your flight controller stack.

Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 1000 mW

Audio: 6.5 MHz Mono (6.0 MHz Optional)

Antenna Connector: MMCX

Input Voltage: 2-8S LiPo

Dimensions: 35x35x9mm (Including connector)

Mounting Holes: Standard 30.5mm square to center of holes

Weight: 9.3g (VTX Only)

VTX Board with Heat Sink *1

80mm SMA--MMCX Cable *1

150mm 4pin JST GH wire *1

Manufacturer technical and configuration tables

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.

• Original manufacturer model information
