Holybro Atlatl HV V2
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Holybro Atlatl HV V2 is a Holybro catalog item in FPV Video Systems. Review the model details below and request compatibility and supply information for civilian use.
Model specifications
| Brand | Holybro |
|---|---|
| Model | Atlatl HV V2 |
| Manufacturer SKU | 13008 |
Manufacturer technical notes
Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.
Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.
SmartAudio input allows remote control by the flight controller. Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.

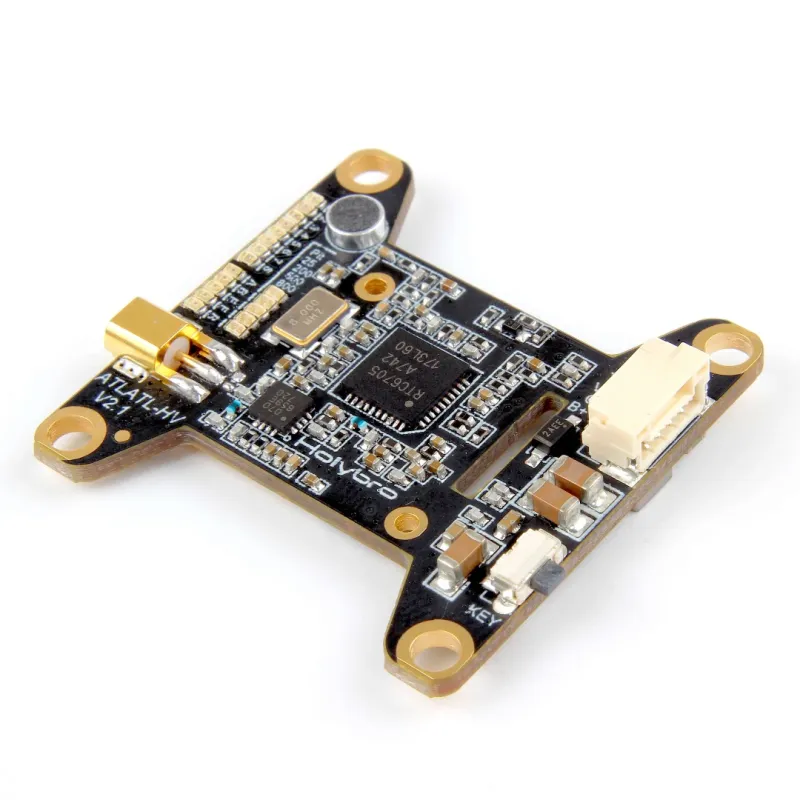

All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used.

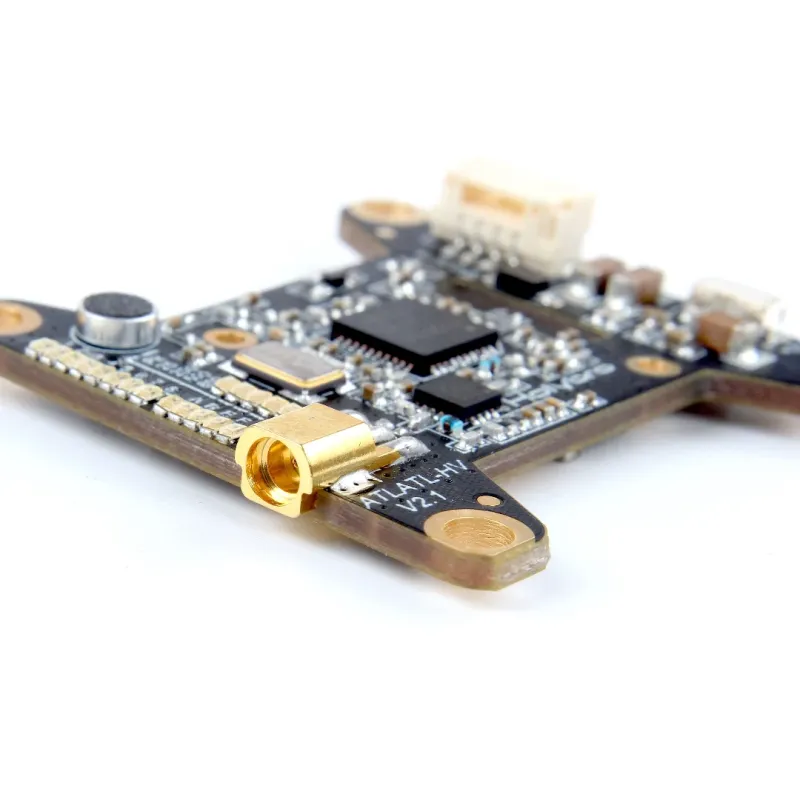

MMCX connector is durable and easy to use. Rated for 100’s of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors.
LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad.
Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.
0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
Built in microphone, so you can listen to your motors while you fly, no matter how far away you fly.
Standard 36mm form factor allows you to mount the Atlatl directly on your flight controller stack.
Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW
Audio: 6.5 MHz Mono
Protocol?smart audio2.0
Antenna Connector: MMCX
Input Voltage: 7 to 28 volts (2-6S LiPo) with absolute maximum 42 volts
Dimensions: 35x25x7mm (Includes USB height)
Mounting Holes: Standard 30.5mm square to center of holes

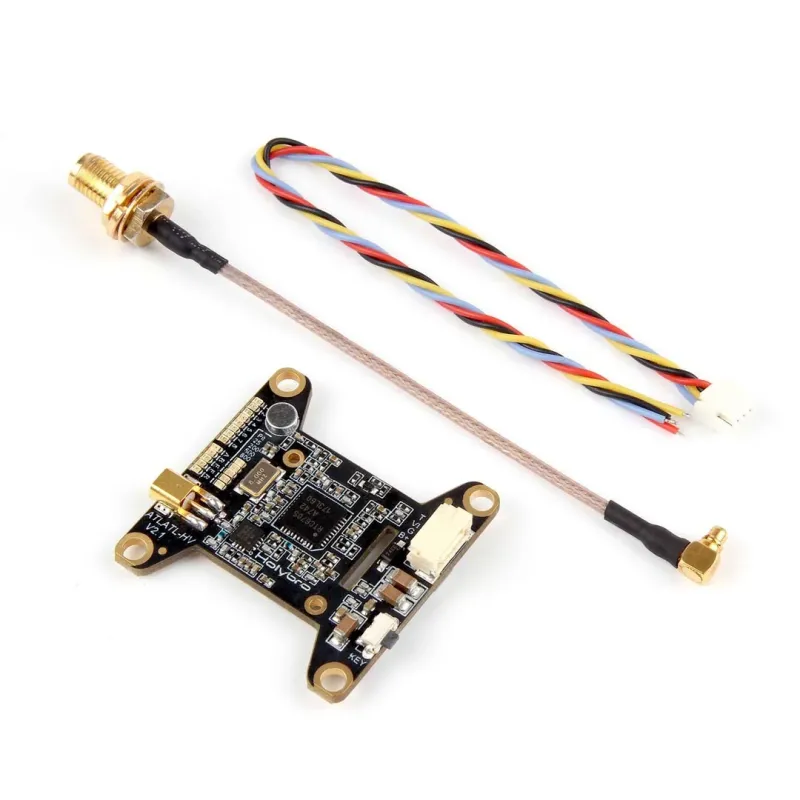

80mm SMA--MMCX Cable *1
150mm 4pin JST GH wire *1
Holybro-Atlatl-HV-v2-Manual
ATLATL HV V2-VTx table
Product inquiry
Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
- Original manufacturer model information
- Manufacturer documentation
