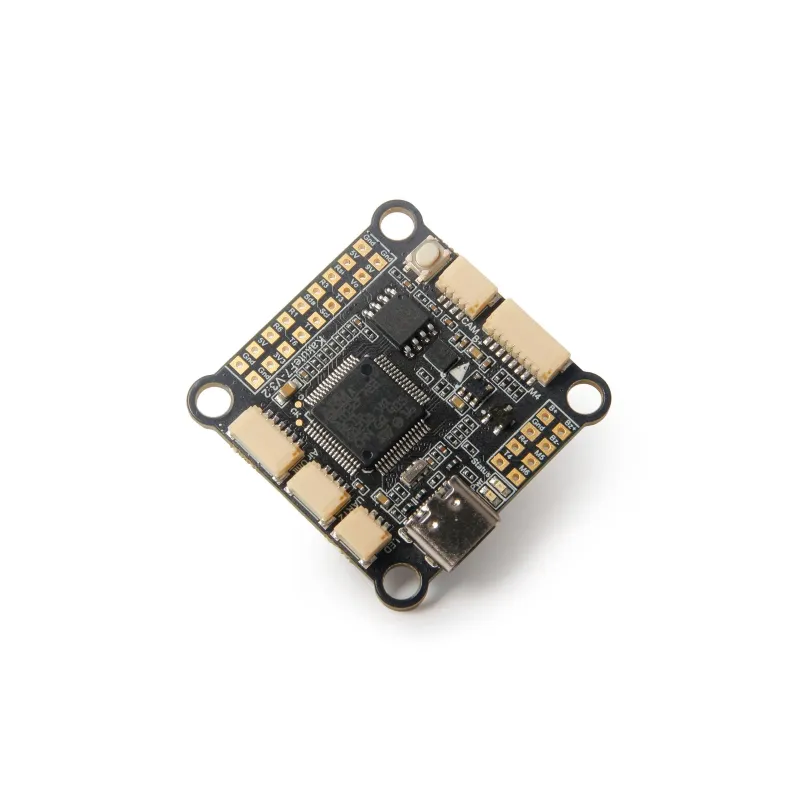

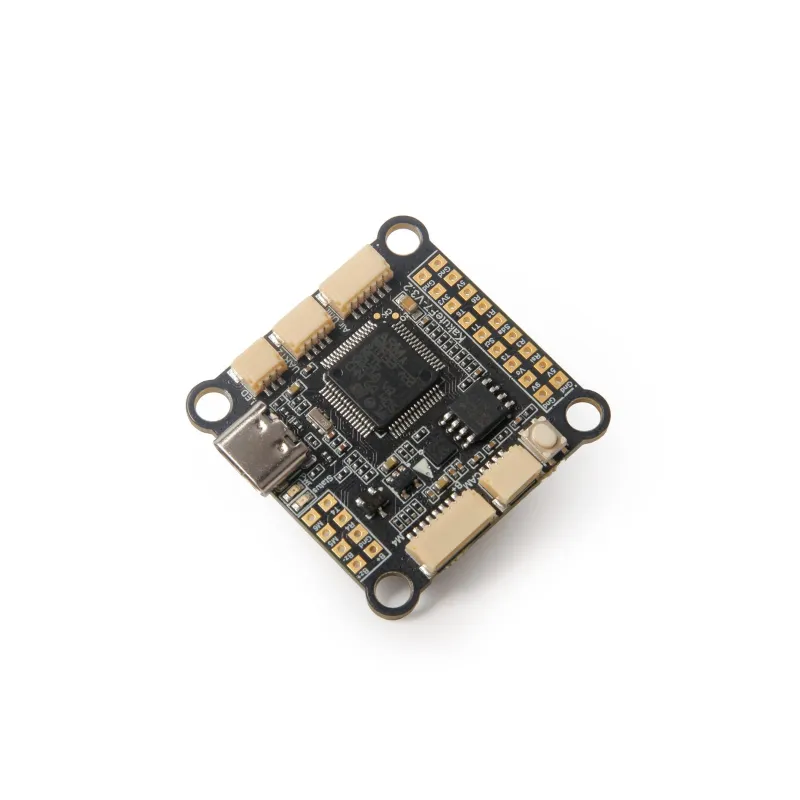

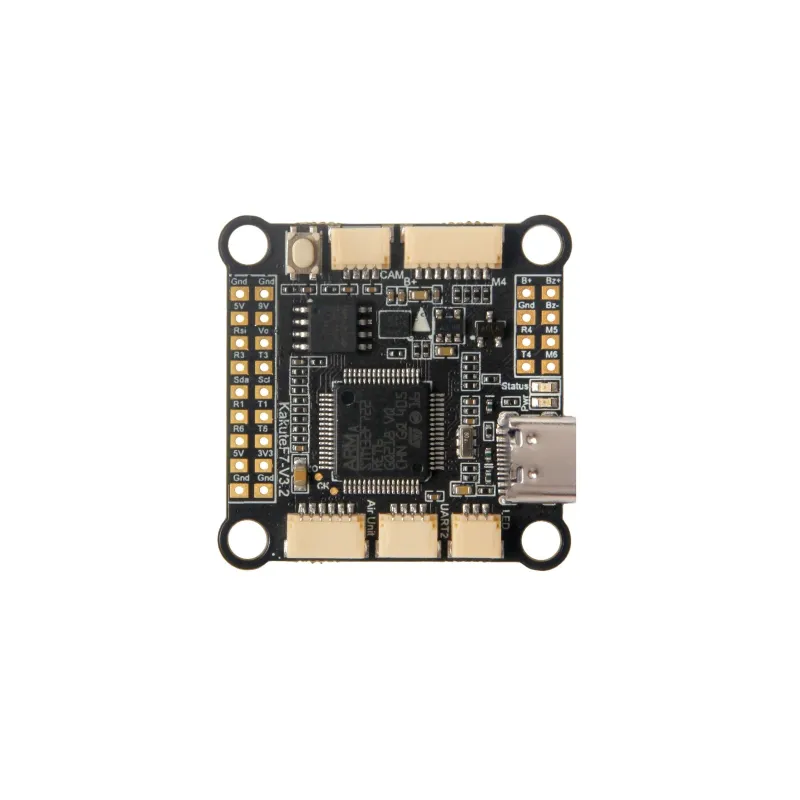

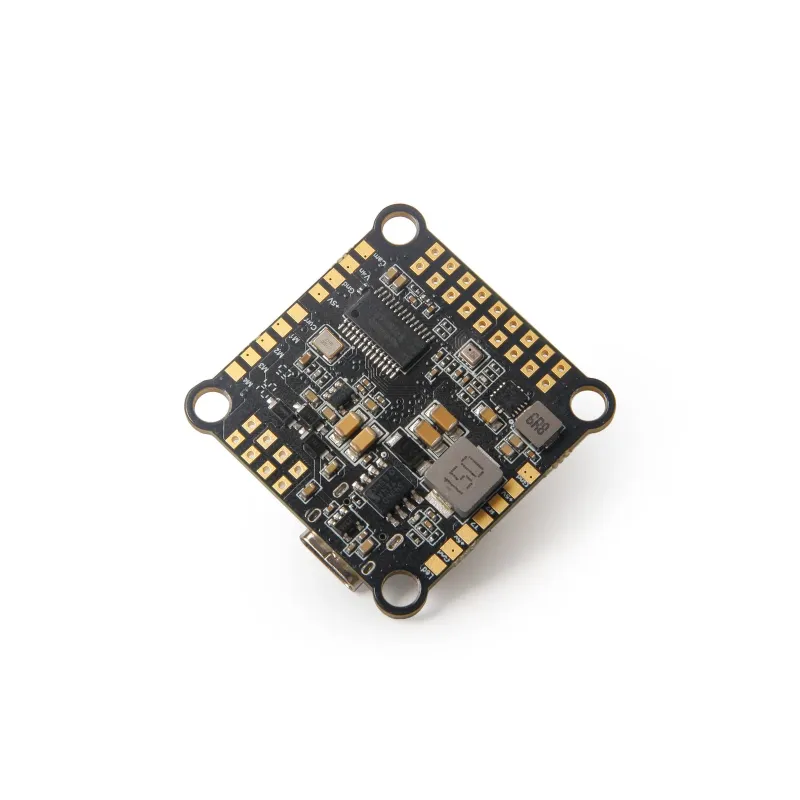

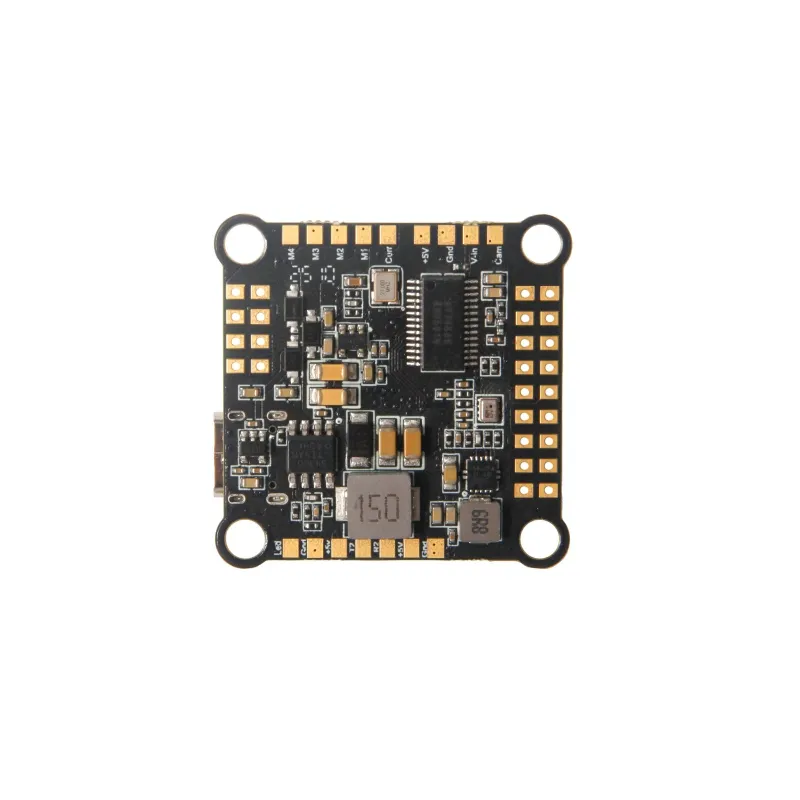

Holybro Kakute F722 Flight Controller

  • Brand:Holybro
  • Product Code:Holybro 11069
  • SKU:11069
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

Holybro Kakute F722 Flight Controller is a Holybro catalog item in Autopilots & Flight Controllers. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandHolybro
ModelKakute F722 Flight Controller
Manufacturer SKU11069

Manufacturer technical notes

High-performance STM32 F722 MCU with speeds up to 216MHz

ICM42688P gyroscope, independent low-noise power supply

Various Ports for quick & easy setup: ESC port, Digital VTX port, Analog VTX port, Receiver port, and LED port

Built-in analog video OSD, 16 Mbytes black box

High power synchronous rectifier BEC, supports up to 8S input and provides stable 9V/3A & 5V/2A output

MCU: STM32F722 32-bit processor, 216MHz, 256Kbytes RAM, 512Kbytes Flash

IMU: ICM42688-P (SPI)

Barometer: BMP280 (legacy) or SPA06

5x hardware UARTS (UART1,2,3,4,6)

7x PWM Outputs (6 Motor Output, 1 LED)

Onboard 16 Mbytes for Blackbox logging

Battery input voltage: 3S - 8S

BEC: 9V/3A, 5V/2A, 3.3V/0.2A

Connector 2x JST-SH 8pin port for ESC 1x JST-SH 6pin port for HD VTX 2x JST-SH 4pin port for Receiver & Analog Camera 1x JST-SH 3pin port for LED

2x JST-SH 8pin port for ESC

1x JST-SH 6pin port for HD VTX

2x JST-SH 4pin port for Receiver & Analog Camera

1x JST-SH 3pin port for LED

Dimensions: 35x35mm

Mounting Holes: Standard 30.5 x 30.5

Betaflight Target: KAKUTEF7MINIV3

INAV Target: KAKUTEF7MINIV3

User Manual & Pinout

1x Kakute F722 Flight Controller

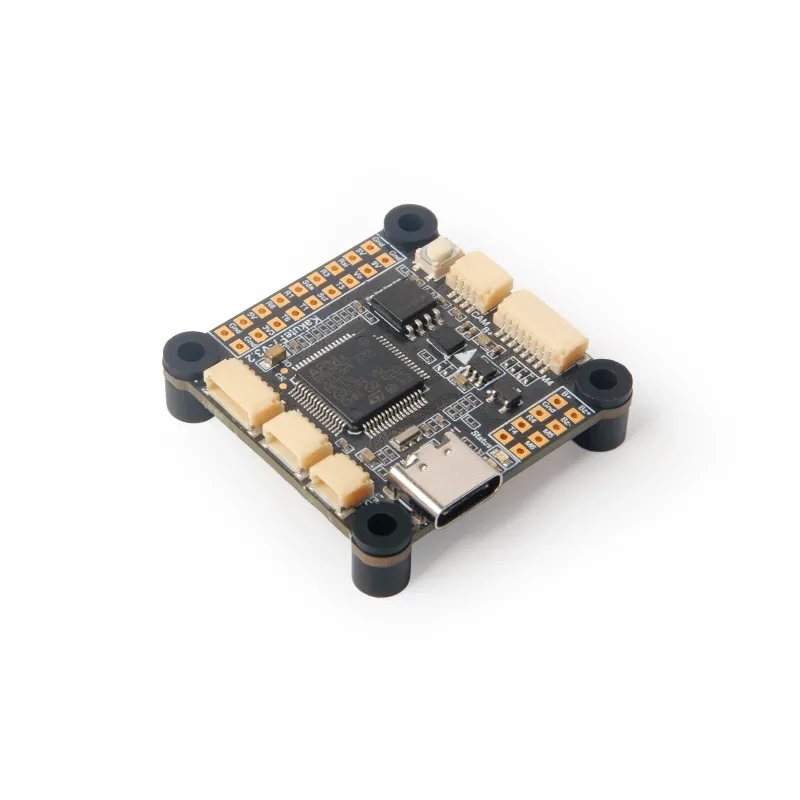

4x M3 Silicon Grommets

1x JST-SH1.0_8pin 150mm Cable (For ESCs)

2x JST-SH1.0_6pin 80mm & 150mm Cable (For DJI Air Unit)

1x JST-SH1.0_6pin Colored Silicon 150mm Cable (For Caddx HD System and other VTX)

1x JST-SH1.0_4pin to Dupont 150mm Cable

1x JST-SH1.0_3pin to Dupont 150mm Cable

1x JST-SH1.0_4pin to Molex1.25 150mm Cable

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
