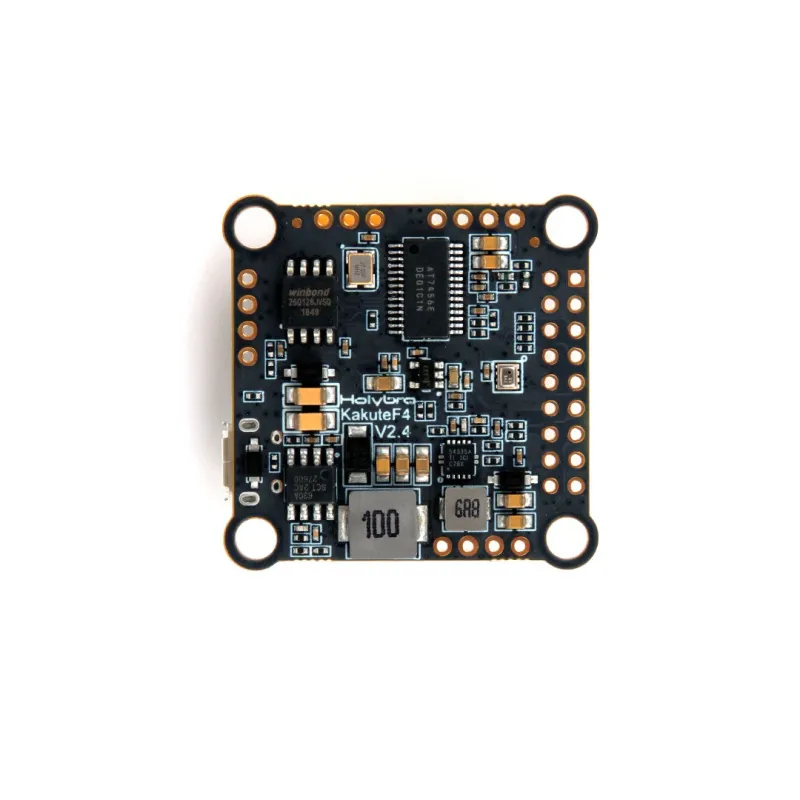

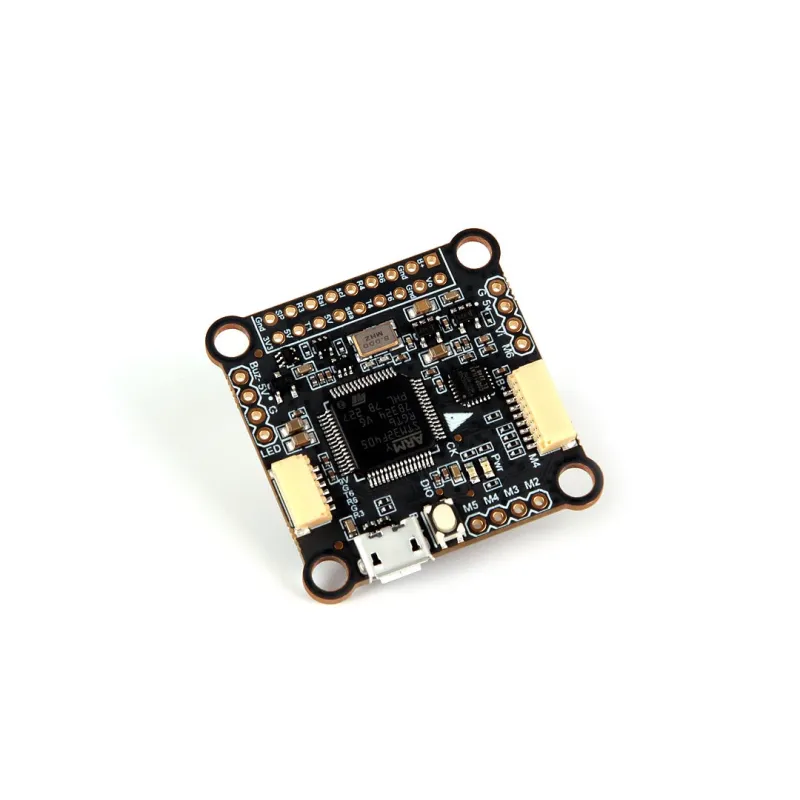

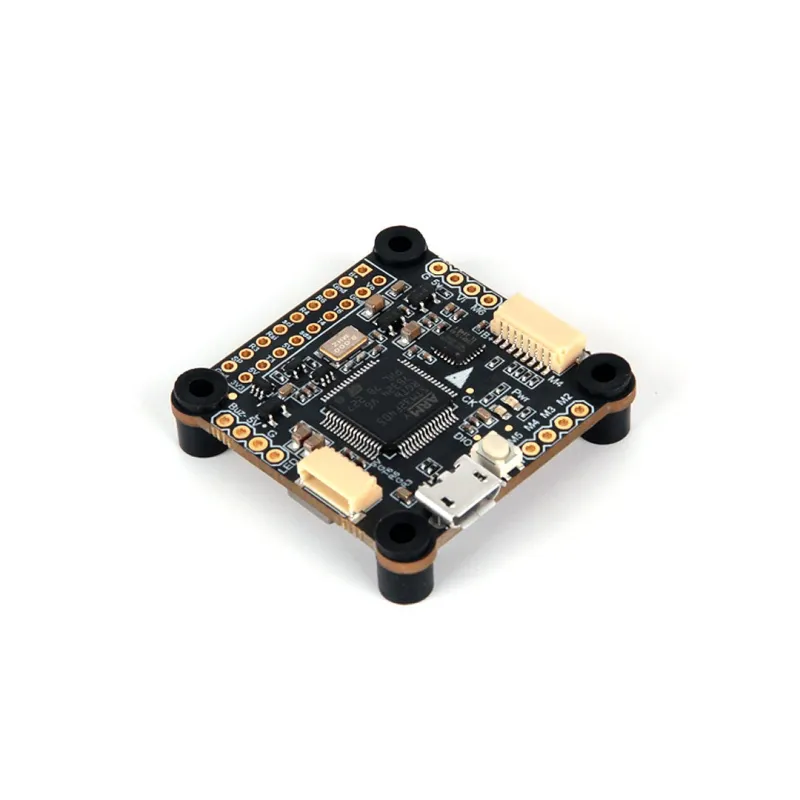

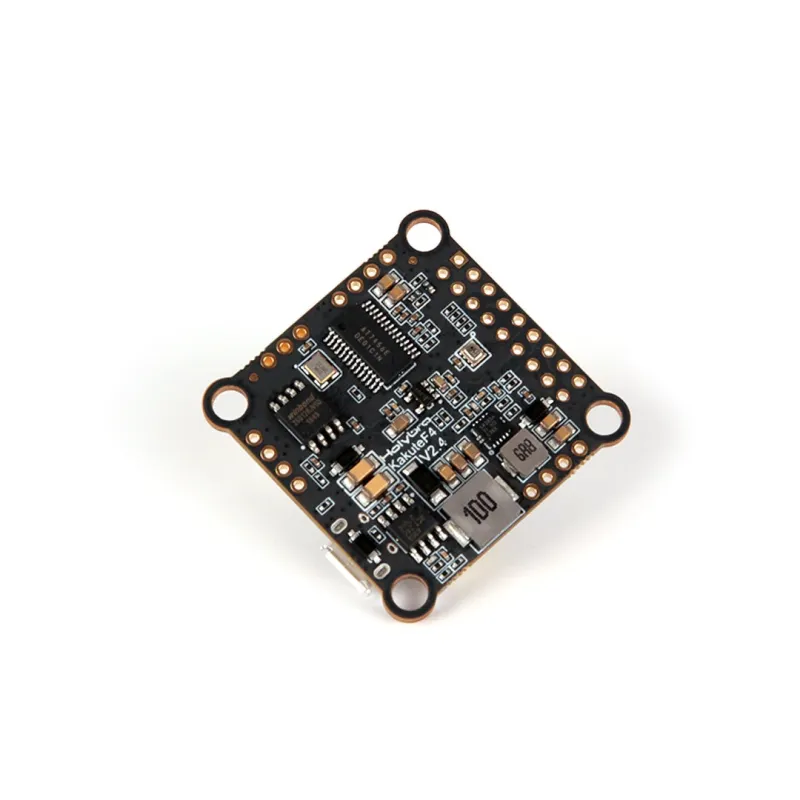

Holybro Kakute F4 V2.4 (MPU6000)

Holybro Kakute F4 V2.4 (MPU6000) is a Holybro catalog item in Autopilots & Flight Controllers. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

The Holybro Kakute F4 V2.4 Flight Controller includes plug-and-play DJI O3 HD camera plug, 4in1 ESC ports, barometer, OSD, 5x UARTs, logging capability with built-in flash , 5V and 9V/3A BEC, easy soldering layout and much more.The Kakute F4 V2.4 is DJI HD ready. It has an easy plug-and-play port with an on-board 9V/A regulator designed to power your HD video transmitter like DJI O3 Air Unit & Caddx Vista while supporting analog system. It has 5x dedicated UART ports with built-in inversion for peripherals. It is also ready for autonomous flight with the on-board barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers

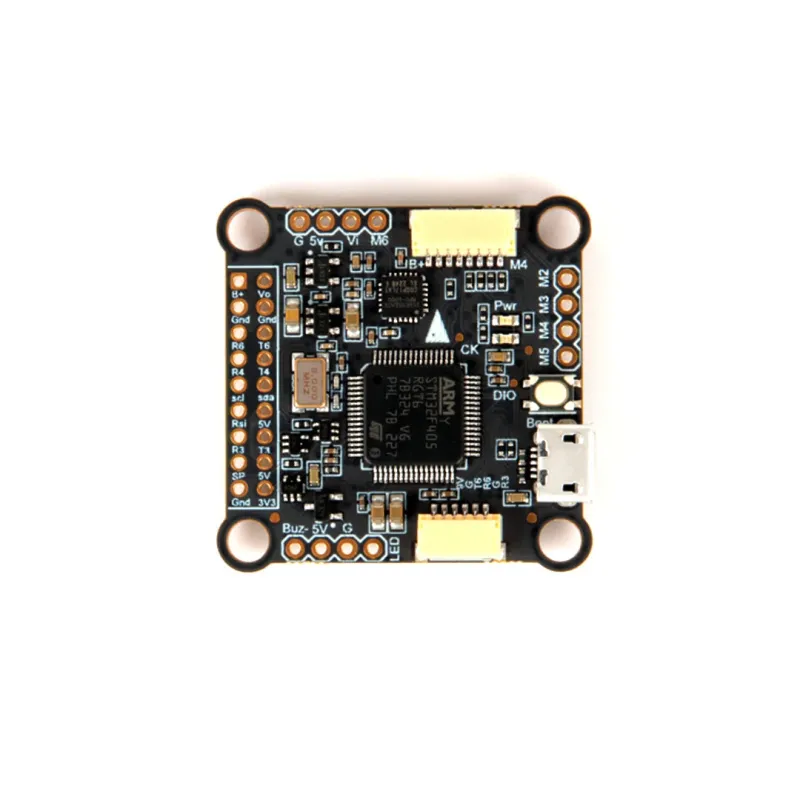

MCU - STM32F405

Barometer - BMP280

5x UARTs (1,3,4,5,6,7)

128 Mbit Dataflash chip

Battery input voltage: 2S-8S

BEC 9V/3A - Optimized for DJI O3 Air unit

7x PWM Outputs (6 Motor Output, 1 LED)

Supports serial receivers (SBUS, iBus, Spektrum, Crossfire, ESLR).

Mounting - 30 x 30mm, Φ4mm hole with M3 Grommets

Dimension - 37x37mm

JST-SH1.0_8pin port (For 4in1 ESCs)

JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)

Manual & Pin Diagram

1x Kakute F4 V2

4x Anti-Vibration Silicone Grommet Insert *4

1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System)

1x JST SH 6pin 100mm cable(for Caddx HD Systems)

1x JST SH 8pin 100mm cable(for ESCs)
