Holybro FETtec FC G4 v1.7

Holybro FETtec FC G4 v1.7 is a Holybro catalog item in Autopilots & Flight Controllers. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Manufacturer technical notes

Updated:New Rev1.7Recommending method:

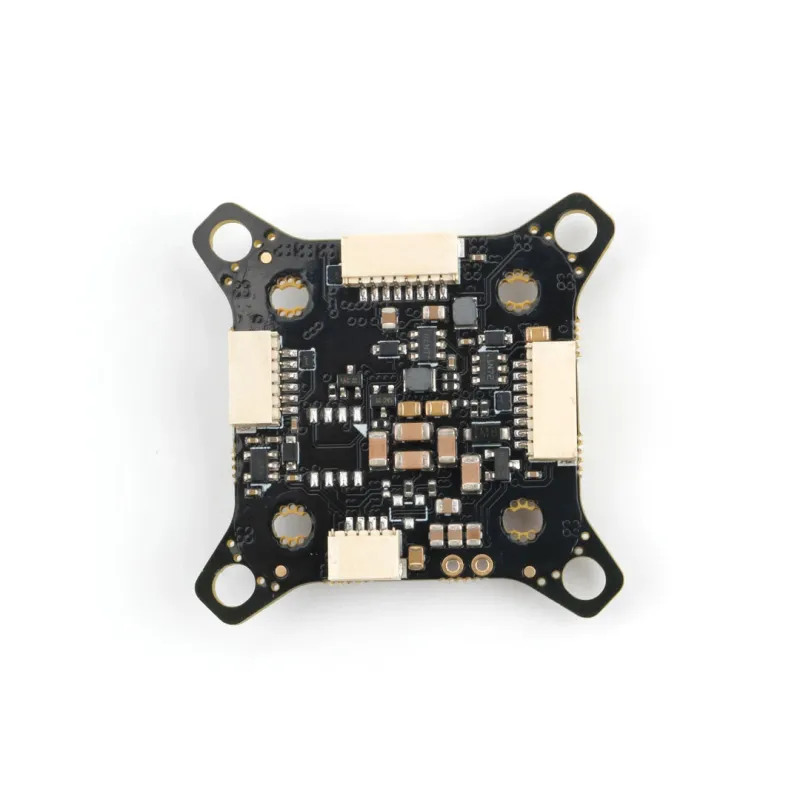

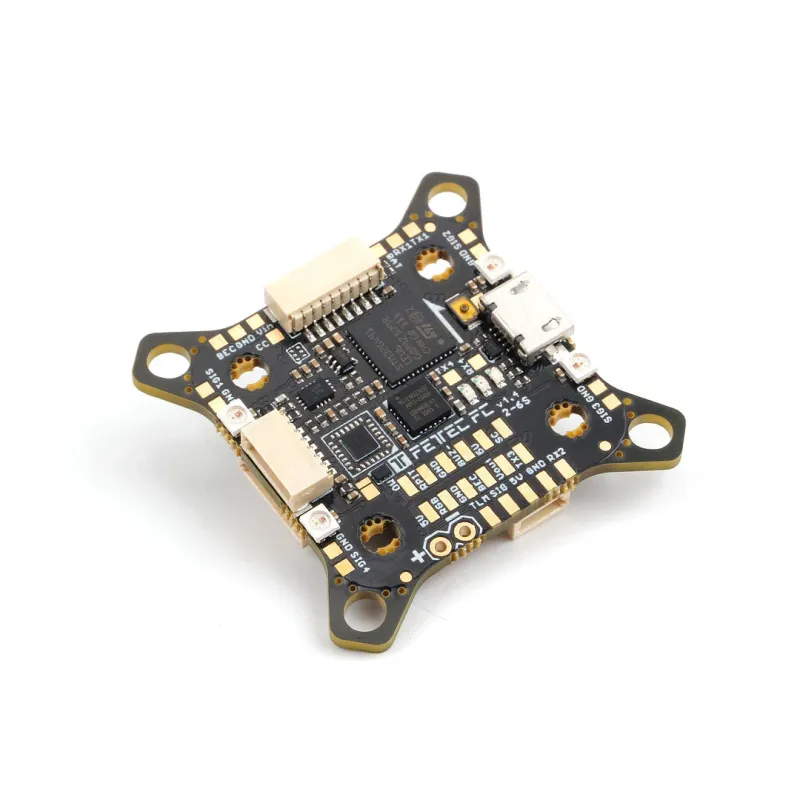

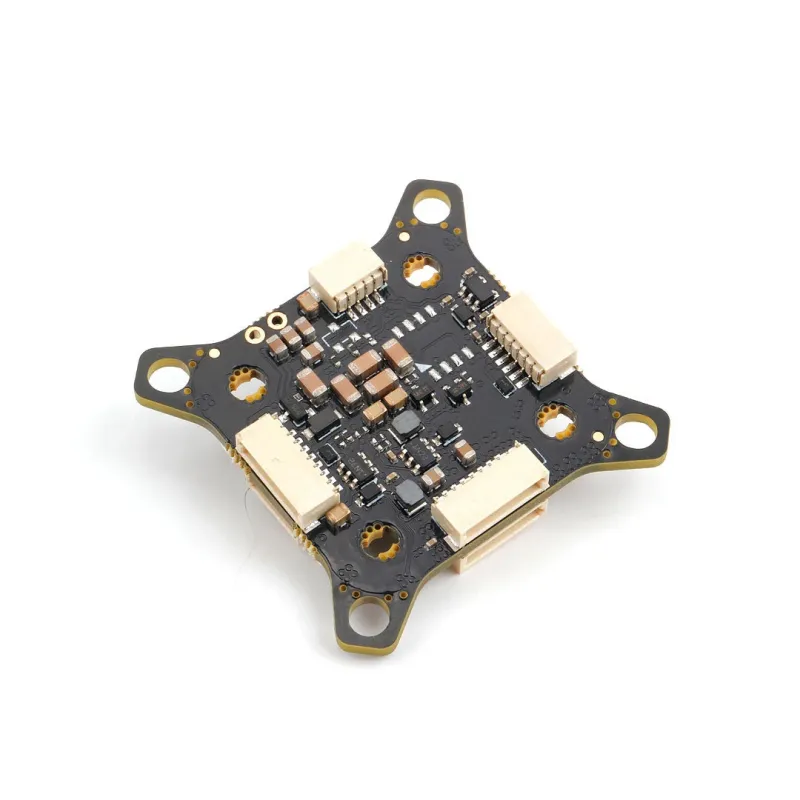

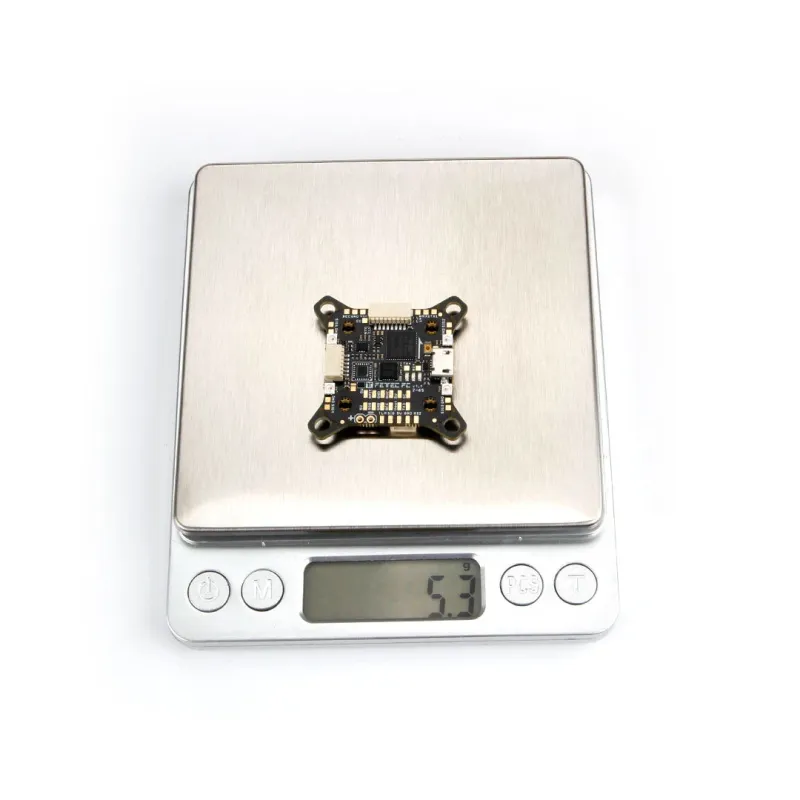

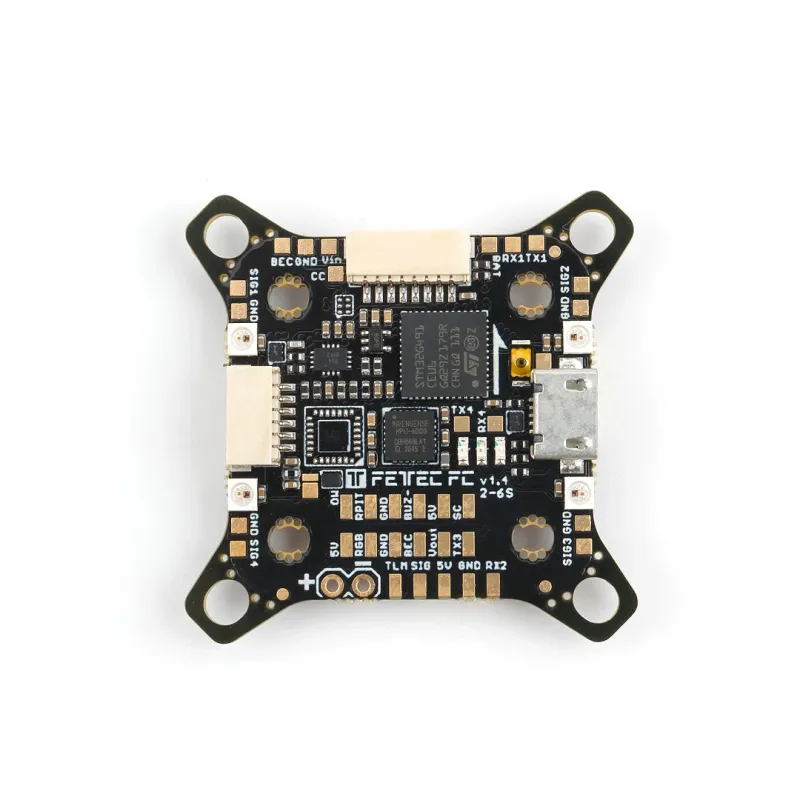

The Holybro FETtec FC G4 features the latest STM32 G4 MCU with math accelerator for the ultimate in flight performance, onboard OSD for KISS flight tuning, 2 dedicated BECs for 5V and 16V switchable power, DSHOT2400 outputs for support of up to 8 motors, and dual 20x20 and 30x30 mounting holes.

Specifications:

Latest STM32G4 Processor 180Mhz + Math accelerator Gyro IIM-42652 SPI

Latest STM32G4 Processor

180Mhz + Math accelerator

Gyro IIM-42652 SPI

Supply voltage 6-27V (2S-6S Lipo)

2x dedicated onboard BEC (2A each) 5V BEC for RX 5V/16V BEC for VTX (switchable and real Pit*)

2x dedicated onboard BEC (2A each)

5V/16V BEC for VTX (switchable and real Pit*)

Improved IO protection

All IOs of the microcontroller e.g. in connectors or solder pads are protected against voltage or current spikes

2x 8 pin connector for solder free ESC connection Connector 1: ESC signal 1-4, telemetry, VCC, GND Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND

2x 8 pin connector for solder free ESC connection

Connector 1: ESC signal 1-4, telemetry, VCC, GND

Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND

1x 8 pin connector for solder free VTX, cam connection and OSD or digital systems real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3

1x 8 pin connector for solder free VTX, cam connection and OSD or digital systems

real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3

2x 6 pin connectors for serials RX1, TX1, 3.3V, VCC, 5V, GND RX3, VCS/TX3, RGB LED, VCC, 5V, GND

2x 6 pin connectors for serials

RX1, TX1, 3.3V, VCC, 5V, GND

RX3, VCS/TX3, RGB LED, VCC, 5V, GND

1x 4 pin connector for receiver Signal, TLM, 5V, GND

1x 4 pin connector for receiver

Signal, TLM, 5V, GND

5 UART serials UART 1 free UART 2 used for Receiver UART 3 free UART 4 free UART 5 used for ESCs / TLM / Onewire

UART 2 used for Receiver

UART 5 used for ESCs / TLM / Onewire

4 ESC solder pads (Signal/GND) in each corner

4 tiny RGB LEDs (selectable color)

Supported ESC protocols PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire

Supported ESC protocols

PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire

FETtec Alpha FC firmware (KISS FC firmware flashable)

Connector type: JST-SH-1mm

*real Pit-Mode: A power supply pin which is remotely switchable

1X FETtec KISS FC G4

1X 8 Pin SH1.0 Cable

1X 6 Pin SH1.0 Cable

4X M2 Anti-Vibration Silicone Grommet Insert
