A10-13L kv1300 + 4,4:1

A10-13L kv1300 + 4,4:1

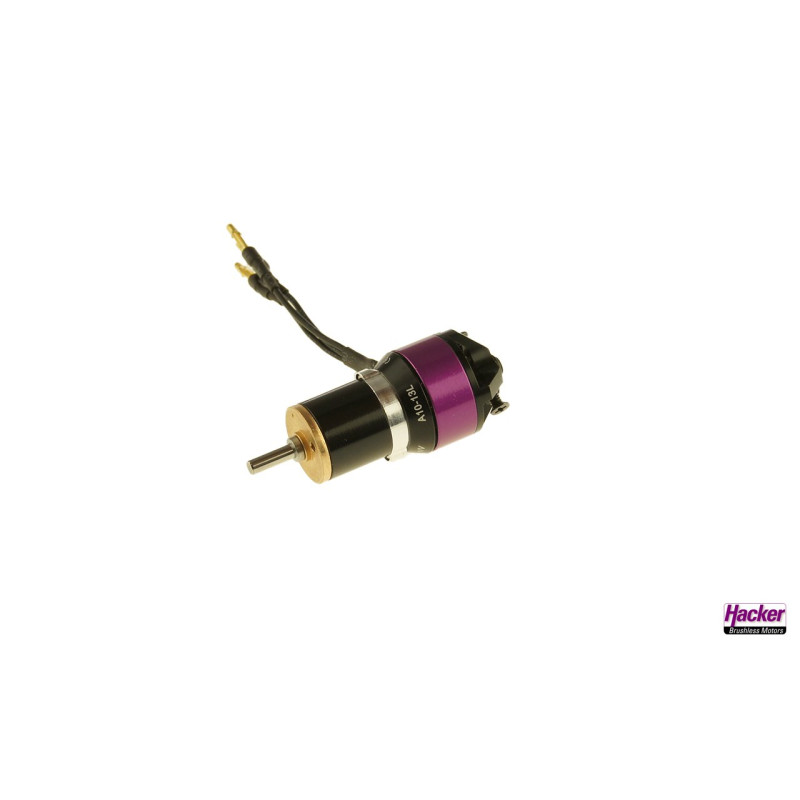

A10-13L kv1300 + 4,4:1 is a professional A10 geared item from Hacker Motor GmbH, prepared for the RC-MODEL catalog with customer-facing information, official product imagery, structured specifications and no storefront supplier pricing.

Recommended use

This product is relevant for RC builders and pilots looking for a10 geared, replacement parts, upgrades or setup components. Use it when planning a new model build, maintaining an existing aircraft, boat or radio system, or comparing compatible electronic and power-system parts.

What to check before ordering

Confirm the physical dimensions, weight, voltage, current rating, connector style, shaft size, cell count, propeller range and installation space against your model. RC-MODEL can help verify compatibility when you provide the model name and part number.

Key details

• max. power range [W] (max.15 sec.): 85
• Poles: 12
• Idle current (I0) at 8.4V [A]: 0,39
• Internal resistance (Ri) [Ohm]: 0,28
• Gear reducing: 4,4 : 1
• Recommended timing [°]: 20 - 25
• Switching Frequency [kHz]: 8
• Controller recommendation [A] (depending on setup): 12
• Leerlaufdrehzahl pro Volt (kv) ohne Getriebe: 1300
• Weight [g]: 40
• Length [mm]/[in]: 43
• Outer diameter [mm]/[in]: 21
• Shaft diameter [mm]/[in]: 3
• Prop Adapter: No

A10-13L kv1300 + 4,4:1 Product description and features The A10 motors are compact outrunner motors from our A-series and offer high efficiency at low weight. The A10 motors are available as direct drive and as gear drive for small motor and glider models. This small weight-optimized high-end direct drive is often used in motor and 3D models around 200g take-off weight. The gearbox version is used in the HLG and RES class and is perfect for all small and light glider models up to approx. 700g ta

Reference SKU/model: 97104410. Mention this reference when contacting RC-MODEL for availability or fitment support.
