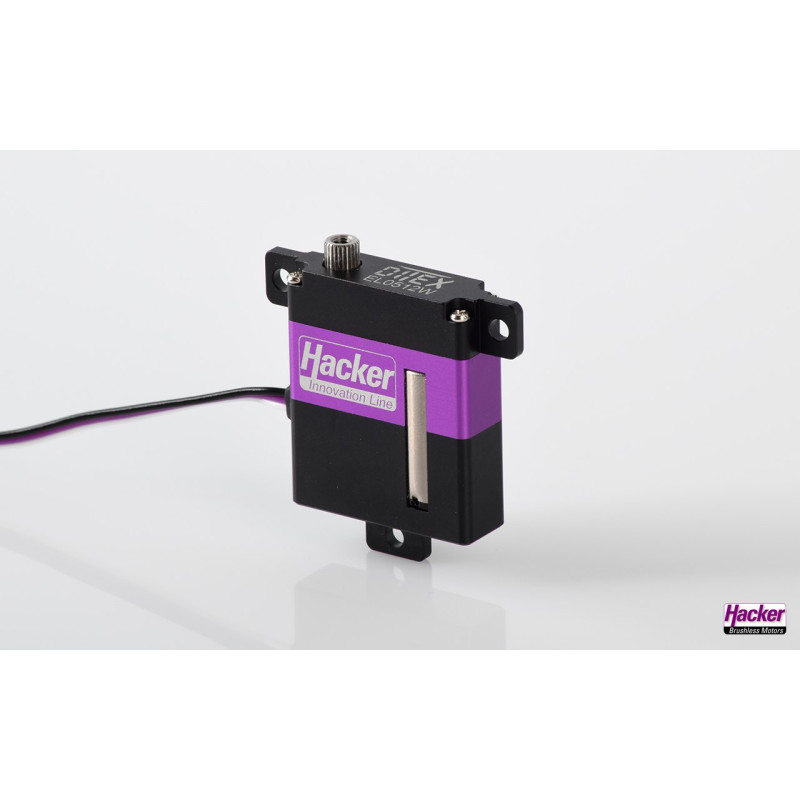

DITEX EL0512W

DITEX EL0512W is a professional Hacker DITEX EL Servos item from Hacker Motor GmbH, prepared for the RC-MODEL catalog with customer-facing information, official product imagery, structured specifications and no storefront supplier pricing.

Recommended use

This product is relevant for RC builders and pilots looking for hacker ditex el servos, replacement parts, upgrades or setup components. Use it when planning a new model build, maintaining an existing aircraft, boat or radio system, or comparing compatible electronic and power-system parts.

What to check before ordering

Confirm the physical dimensions, weight, voltage, current rating, connector style, shaft size, cell count, propeller range and installation space against your model. RC-MODEL can help verify compatibility when you provide the model name and part number.

Key details

  • Recommended application area: Flat servo suitable for flat wings.
  • Classification: Wing servo
  • Length: 30mm (1.18in)
  • Width: 10mm (0.39in)
  • Height: 35.5mm (1.4in)
  • Weight incl. connection cable: 29g (1.02oz)
  • High voltage capable: yes
  • Voltage 1 (V1): 6V
  • Voltage 2 (V2): 7.4V
  • Max. input voltage: 8.4V
  • Regulating time V1/60°: 0.14s
  • Regulating time V2/60°: 0.13s
  • Pulling load V1: 4.5kg/cm
  • Pulling load V2: 6kg/cm

DITEX EL0512W Product description and features Low-profile servo with all-aluminium housing and metal gearbox. 6.0 kilograms of actuating force at 7.4 volts and an actuating speed of 0.13 seconds for 60 degrees. Suggested application area Low-profile servo for applications with low installation depth. Delivery contents 1 DITEX EL0512W, servo arms and fixing material. DITEX EL0512W Product description and features Low-profile servo with all-aluminium housing and metal gearbox. 6.0 kilograms of ac

Reference SKU/model: 51000512. Mention this reference when contacting RC-MODEL for availability or fitment support.

Relevant RC Academy guides

Learn before you buy

These guides explain the setup, safety checks and accessory choices that usually matter for this product type.

Buying guides

Which servo fits each RC aircraft type?

A buying table for matching servo size, torque, speed, gear type and voltage to trainers, gliders, 3D aircraft, EDF jets and Giant Scale models.

Technical Specifications
Manufacturer Hacker Motor GmbH
Product Type Hacker DITEX EL Servos
SKU 51000512
EAN 4250320228363
Availability In stock
Recommended application area Flat servo suitable for flat wings.
Classification Wing servo
Length 30mm (1.18in)
Width 10mm (0.39in)
Height 35.5mm (1.4in)
Weight incl. connection cable 29g (1.02oz)
High voltage capable yes
Voltage 1 (V1) 6V
Voltage 2 (V2) 7.4V
Regulating time V1/60° 0.14s
Regulating time V2/60° 0.13s
Pulling load V1 4.5kg/cm
Pulling load V2 6kg/cm
Housing type Aluminium
Motor type Coreless
Transmission type Steel
Number of output cogs 25 (Futaba/Savöx compatible)
Angle measurement Potentiometer
Programmable no
Soft start no
Max. input voltage 8.4V
Frequency 55Hz to 333Hz
Telemetry no
Outer diameter output in mm 4,9
