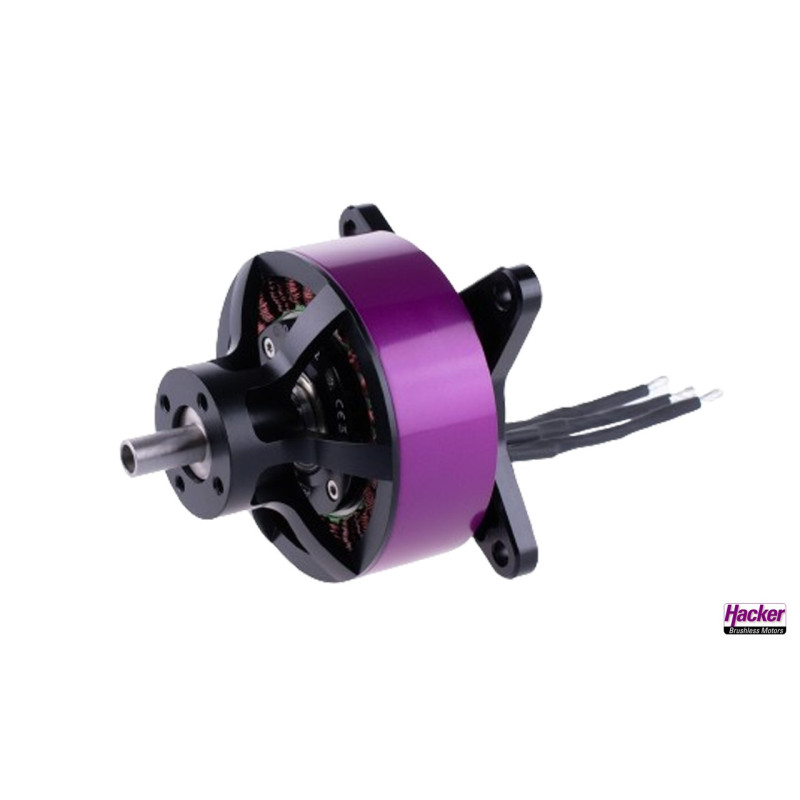

Q80-9M V2 kv160

Q80-9M V2 kv160

Q80-9M V2 kv160 is a professional Hacker Q80 item from Hacker Motor GmbH, prepared for the RC-MODEL catalog with customer-facing information, official product imagery, structured specifications and no storefront supplier pricing.

Recommended use

This product is relevant for RC builders and pilots looking for hacker q80, replacement parts, upgrades or setup components. Use it when planning a new model build, maintaining an existing aircraft, boat or radio system, or comparing compatible electronic and power-system parts.

What to check before ordering

Confirm the physical dimensions, weight, voltage, current rating, connector style, shaft size, cell count, propeller range and installation space against your model. RC-MODEL can help verify compatibility when you provide the model name and part number.

Key details

• max. power range [W] (max.15 sec.): 5500
• Poles: 28
• Turns: 9
• Idle current (I0) at 8.4V [A]: 1,3
• Internal resistance (Ri) [Ohm]: 0,015
• Recommended timing [°]: 25 - 30
• Switching Frequency [kHz]: 8
• Controller recommendation [A] (depending on setup): 140 - 300
• Idle speed per volt (kv): 160
• Weight [g]: 1035
• Length [mm]/[in]: 80
• Outer diameter [mm]/[in]: 89
• Prop Adapter: Ja
• Mounting cross: Ja

Q80-9M V2 kv160 Product description and features The Q80-8M V2 kv180 for aerobatic models up to approx. 10 kg. The Q80 V2 is a robust and durable motor. This motor is used in 3D / aerobatic models with a wingspan of 2.20 to 2.30 meters. The models weigh up to 8 kg in the 3D range. Aerobatic models up to 10 kg. This motor is also popular in scale models. The models weigh up to 17 kg. Historical fighter planes up to 13 kg. The prop driver with 30 mm bolt circle and 4 x M5 screws transfers the high

Reference SKU/model: 37418022. Mention this reference when contacting RC-MODEL for availability or fitment support.
