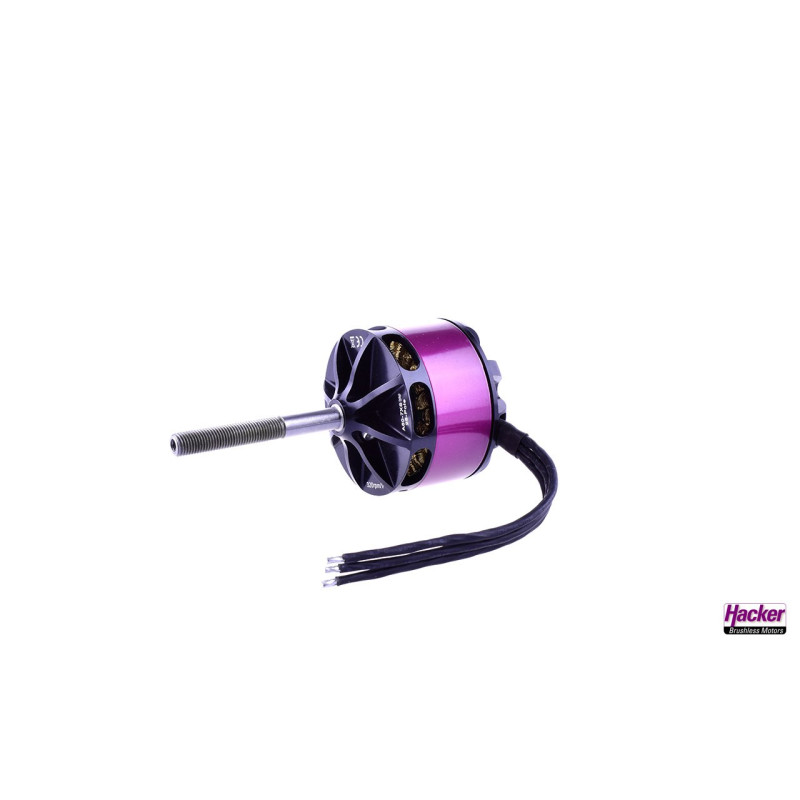

A60-5XS V4 28-Pole kv420

A60-5XS V4 28-Pole kv420

A60-5XS V4 28-Pole kv420 is a professional A60 motor planes item from Hacker Motor GmbH, prepared for the RC-MODEL catalog with customer-facing information, official product imagery, structured specifications and no storefront supplier pricing.

Recommended use

This product is relevant for RC builders and pilots looking for a60 motor planes, replacement parts, upgrades or setup components. Use it when planning a new model build, maintaining an existing aircraft, boat or radio system, or comparing compatible electronic and power-system parts.

What to check before ordering

Confirm the physical dimensions, weight, voltage, current rating, connector style, shaft size, cell count, propeller range and installation space against your model. RC-MODEL can help verify compatibility when you provide the model name and part number.

Key details

• max. power range [W] (max.15 sec.): 2200
• Poles: 28
• Turns: 5
• Idle current (I0) at 8.4V [A]: 2,4
• Internal resistance (Ri) [Ohm]: 0,012
• Recommended timing [°]: 25
• Switching Frequency [kHz]: 8
• Controller recommendation [A] (depending on setup): 99 - 130
• Idle speed per volt (kv): 420
• Weight [g]: 446
• Length [mm]/[in]: 57
• Outer diameter [mm]/[in]: 60
• Shaft diameter [mm]/[in]: 8
• Prop Adapter: Ja

A60-5XS V4 28-Pole kv420 Product description and features The A60 outrunners are the largest and most powerful motors in the Hacker A series. They are used in all facets of RC flying, including sports planes, warbirds, F3A models, 3D aerobatic models, FES gliders and helicopters. Depending on the length and speed of the selected motor, the drive is powered by 6 to 12 S Lipo. Due to the integrated fan and the large, reinforced ball bearings, these motors are very robust and durable. The A60-XS an

Reference SKU/model: 33726633. Mention this reference when contacting RC-MODEL for availability or fitment support.
