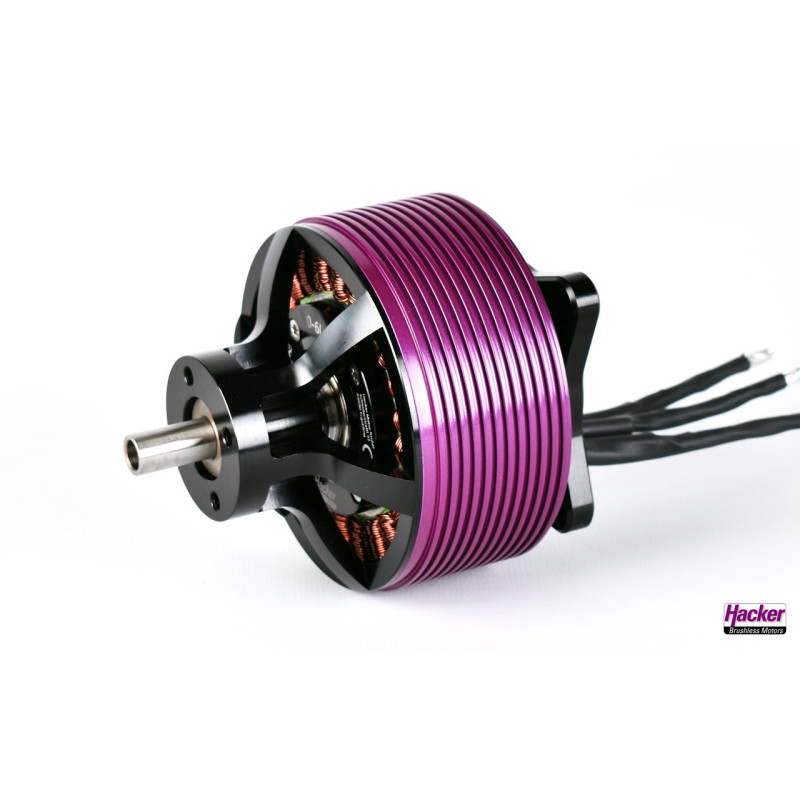

Q80-5L-V2 HD kv200

Q80-5L-V2 HD kv200

Q80-5L-V2 HD kv200 is a professional Hacker Q80 item from Hacker Motor GmbH, prepared for the RC-MODEL catalog with customer-facing information, official product imagery, structured specifications and no storefront supplier pricing.

Recommended use

This product is relevant for RC builders and pilots looking for hacker q80, replacement parts, upgrades or setup components. Use it when planning a new model build, maintaining an existing aircraft, boat or radio system, or comparing compatible electronic and power-system parts.

What to check before ordering

Confirm the physical dimensions, weight, voltage, current rating, connector style, shaft size, cell count, propeller range and installation space against your model. RC-MODEL can help verify compatibility when you provide the model name and part number.

Key details

• max. power range [W] (max.15 sec.): 7000
• Poles: 28
• Turns: 5
• Recommended timing [°]: 25
• Switching Frequency [kHz]: 8
• Controller recommendation [A] (depending on setup): 165 - 300
• Idle speed per volt (kv): 200
• Weight [g]: 1335
• Length [mm]/[in]: 89,3
• Outer diameter [mm]/[in]: 88,5
• Prop Adapter: Ja
• Mounting cross: Ja
• Gold plug mm (recommended): 5,5 - 8
• Backmount mountable: Ja

Q80-5L-V2 HD kv200 Product description and features The Q80-5L-V2 HD kv200 for F3A-X models up to approx. 15kg in the Akro IMAC class. The new electromagnetic design of the magnets has optimized the geometry, resulting in a larger magnet volume and even better efficiency. The ribbed back ring ensures better cooling. The Q80-V2-HD series is better cooled and can therefore convert more power. Thanks to consistent further development, the torque has been optimized with the same number of windings.

Reference SKU/model: 10109879. Mention this reference when contacting RC-MODEL for availability or fitment support.
