A40-10S V4G kv1600 + 6,7:1 PG

A40-10S V4G kv1600 + 6,7:1 PG

A40-10S V4G kv1600 + 6,7:1 PG is a professional A40-8-Pole mit Getriebe item from Hacker Motor GmbH, prepared for the RC-MODEL catalog with customer-facing information, official product imagery, structured specifications and no storefront supplier pricing.

Recommended use

This product is relevant for RC builders and pilots looking for a40-8-pole mit getriebe, replacement parts, upgrades or setup components. Use it when planning a new model build, maintaining an existing aircraft, boat or radio system, or comparing compatible electronic and power-system parts.

What to check before ordering

Confirm the physical dimensions, weight, voltage, current rating, connector style, shaft size, cell count, propeller range and installation space against your model. RC-MODEL can help verify compatibility when you provide the model name and part number.

Key details

• max. power range [W] (max.15 sec.): 1500
• Poles: 8
• Turns: 10
• Idle current (I0) at 8.4V [A]: 2,75
• Internal resistance (Ri) [Ohm]: 0,012
• Gear reducing: 6,7:1
• Recommended timing [°]: 15 - 20
• Switching Frequency [kHz]: 8
• Controller recommendation [A] (depending on setup): 70 - 90
• Leerlaufdrehzahl pro Volt (kv) ohne Getriebe: 1600
• Weight [g]: 247
• Length [mm]/[in]: 74
• Outer diameter [mm]/[in]: 41,7
• Shaft diameter [mm]/[in]: 6

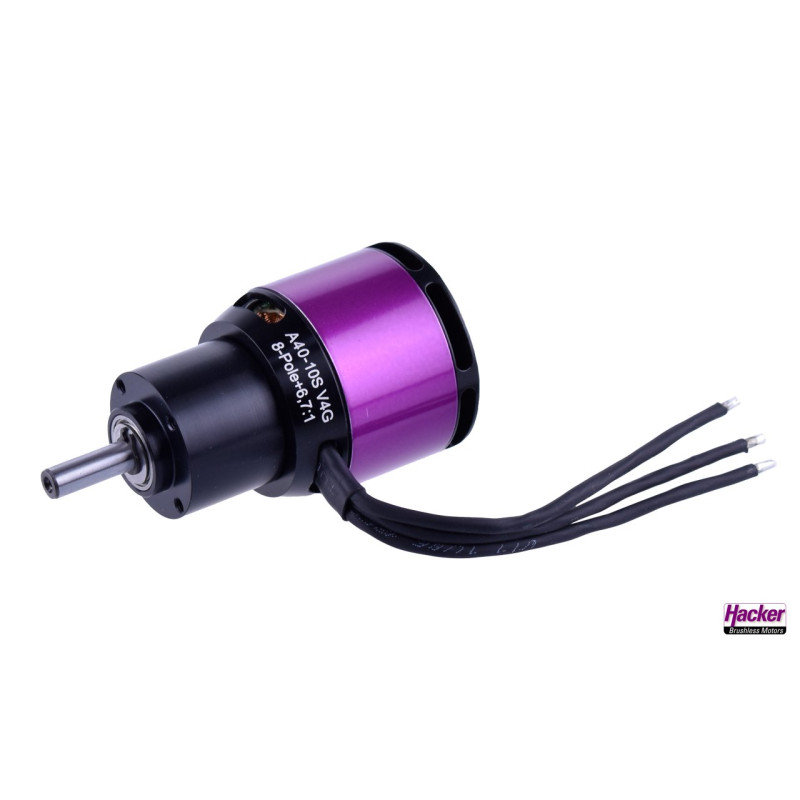

A40-10S V4G kv1600 + 6,7:1 PG Product description and features This A40 gear drive is equipped with the 8-pole version of the A40-S motor, which has proven itself thousands of times over. The high-torque, high-speed external rotor in combination with the efficient 6.7:1 planetary gearbox has been specially developed for larger electric gliders up to approx. 8 kg take-off weight. Thanks to the perfect coordination of motor and gearbox, this power pack can drive propellers up to 23 inches efficien

Reference SKU/model: 10109537. Mention this reference when contacting RC-MODEL for availability or fitment support.
