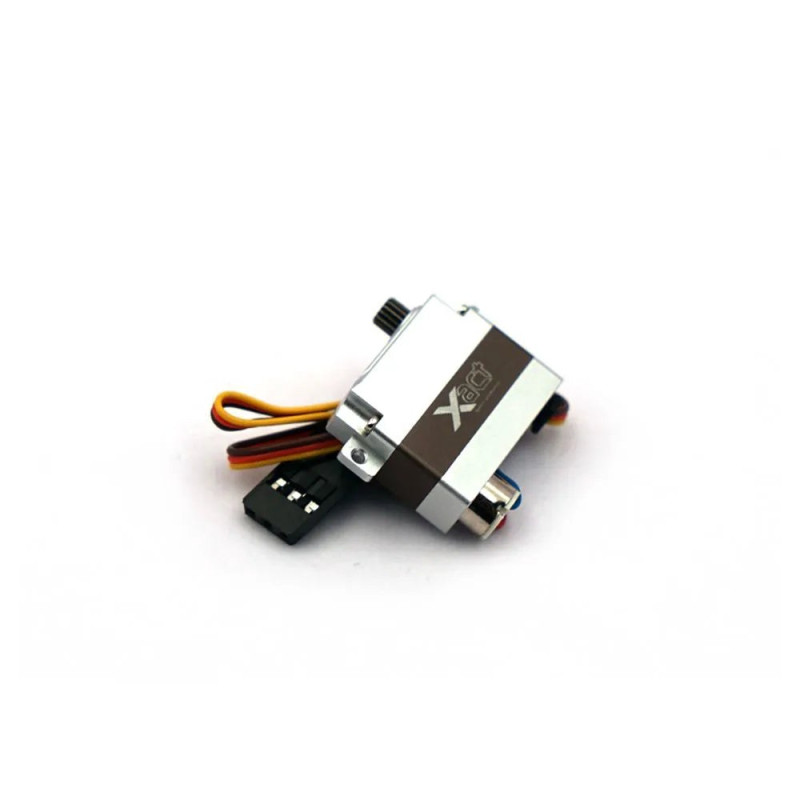

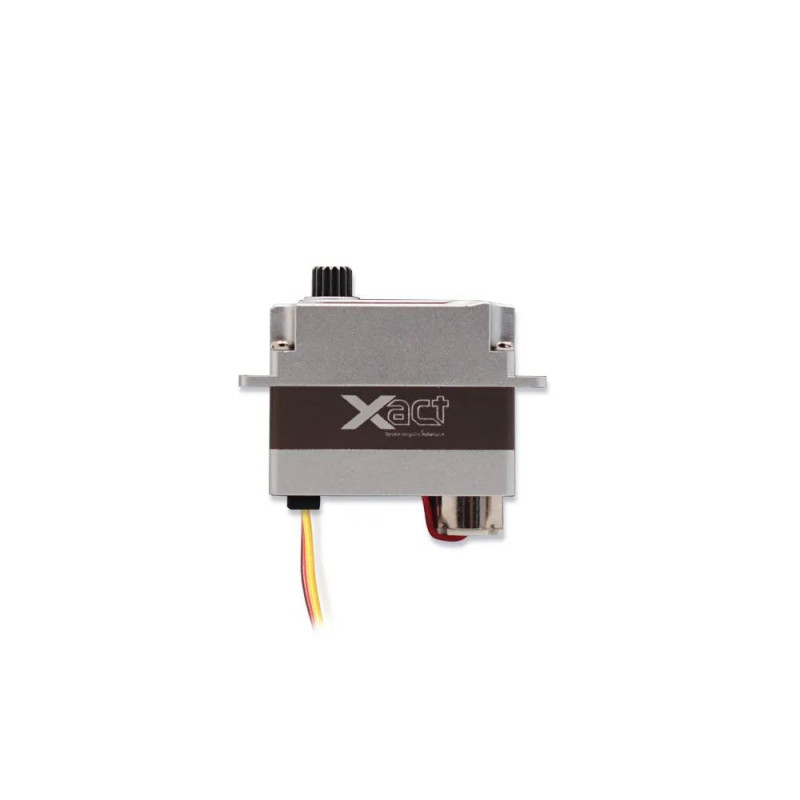

FrSky Xact Coreless 5600 Series Servo
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Why choose FrSky Xact Coreless 5600 Series Servo through RC-MODEL?
FrSky Xact Coreless 5600 Series Servo is an RC product from FrSky. This page focuses on what an end customer needs: fit, use cases, specifications and imagery, without prices or outbound supplier detours.
Fit and use
FrSky Xact Coreless 5600 Series Servo fits customers looking for FrSky items in FrSky Servos, Xact Coreless Servos, Micro Servos, with RC-MODEL support for choosing the right configuration.
- Relevant category: FrSky Servos, Xact Coreless Servos, Micro Servos
- Product identification for inquiry: model FRSKY-03050633 / SKU 03050633
Key details
- Servo Horn Spline: Φ4 15T
- Weight: 10g (W5651H) / 9.5g (HV5611); 10g(W5652H) / 9.5g(HV5612)
- Operating Voltage Range: 3.7-8.4V
- FrSky Collections: MICRO SERVO, Servos, XACT CORELESS SERIES
- Product Family: FrSky servo range
- Application: servo-controlled RC aircraft, gliders, helicopters, cars or accessory mechanisms
Before ordering
- Confirm dimensions, power system, radio compatibility or material size before purchase.
- Ask us to match required accessories, adhesives, hardware, batteries or replacement parts.
- RC-MODEL helps with fit checks, availability, compatible accessories and a formal quote in Israel.
FrSky Xact Coreless 5600 Series Servo is an original FrSky product from the FrSky servo range family. This page is organized for practical buying decisions, with the fit, RF protocol, channel count, voltage, compatible accessories and installation role presented clearly.
It is suited for servo-controlled RC aircraft, gliders, helicopters, cars or accessory mechanisms. The information focuses on what an end customer needs to choose confidently, without exposing supplier pricing or directing the customer away from RC-MODEL.
Available variants: [03050633] W5651H; [03050634] W5652H
Key Advantages
- The Xact series coreless servos utilize a fully CNC machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance. The Xact series servos are available in multiple form factors and configurations to fit many different model types especially where power, reliability, and precision are required.
- These high-quality servos support the FBUS protocol, which allows telemetry data (like real-time current, voltage, temperature, etc.) of Xact servos to be transmitted back to the radio by connecting either FBUS capable receiver or flight controller. The Xact servos offer configurable servo travel (90° / 120° / 180°). Servo travel along with other options are now available to be set via the ETHOS Xact configuration tool or the Freelink app.
- Supports F.Port 2.0 (FBUS), SBUS and PWM protocol
- High durability with metal gear and all-aluminum CNC machined protective case
- 3.7 to 8.4V wide voltage capable operation with good speed performance
- Built-in dual precision balls bearing with hall sensor (W5651H) / potentiometer sensor (HV5611)
Core Specifications
- Product Code: 03050633
- Product Family: FrSky servo range
- Protocol / RF: FBUS, SBUS
- Voltage: 8.4V, 3.7v, 4.2v, 8.4v
- Dimensions: 19*8*23mm (L*W*H)
- Weight: 10g (W5651H) / 9.5g (HV5611); 10g(W5652H) / 9.5g(HV5612)
- Motor Type: Coreless
- Servo Horn Spline: Φ4 15T
- Operating Voltage Range: 3.7-8.4V
- Max Refresh Rate: 333Hz
- Manufacturer: FrSky
- Brand: FrSky
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Servo selection: torque, speed, gears and voltage
How to select servos for trainers, sport aircraft, large models, cars and boats without under-sizing a control surface.
How to balance an RC aircraft and find the correct CG
One of the most important setup guides: find the CG, install the flight battery, balance the aircraft and avoid nose-heavy or tail-heavy surprises.
Mandatory pre-flight checks for safer RC flying
A repeatable inspection routine for control direction, radio range, failsafe, battery, fasteners, propeller, CG and field readiness.
How to perform the first test flight of an RC aircraft
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
| Technical Specifications | |
| Weight | 10g (W5651H) / 9.5g (HV5611); 10g(W5652H) / 9.5g(HV5612) |
| Operating Voltage Range | 3.7-8.4V |
| Manufacturer | FrSky |
| Brand | FrSky |
| Product Code | 03050633 |
| Available Variants | [03050633] W5651H; [03050634] W5652H |
| FrSky Collections | MICRO SERVO, Servos, XACT CORELESS SERIES |
| Product Family | FrSky servo range |
| Application | servo-controlled RC aircraft, gliders, helicopters, cars or accessory mechanisms |
| Protocol / RF | FBUS, SBUS |
| Voltage | 8.4V, 3.7v, 4.2v, 8.4v |
| All Variant SKUs | 03050633, 03050634 |
| Dimensions | 19*8*23mm (L*W*H) |
| Motor Type | Coreless |
| Servo Horn Spline | Φ4 15T |
| Max Refresh Rate | 333Hz |
