FrSky TWIN X-Lite S Transmitter w/ Dual 2.4GHz Protocol

FrSky TWIN X-Lite S Transmitter w/ Dual 2.4GHz Protocol is an original FrSky product from the Twin TW dual 2.4GHz radio system family. This page is organized for practical buying decisions, with the fit, RF protocol, channel count, voltage, compatible accessories and installation role presented clearly.

It is suited for FrSky transmitter setups for pilots who need flexible RF protocols, model memory and telemetry integration. The information focuses on what an end customer needs to choose confidently, without exposing supplier pricing or directing the customer away from RC-MODEL.

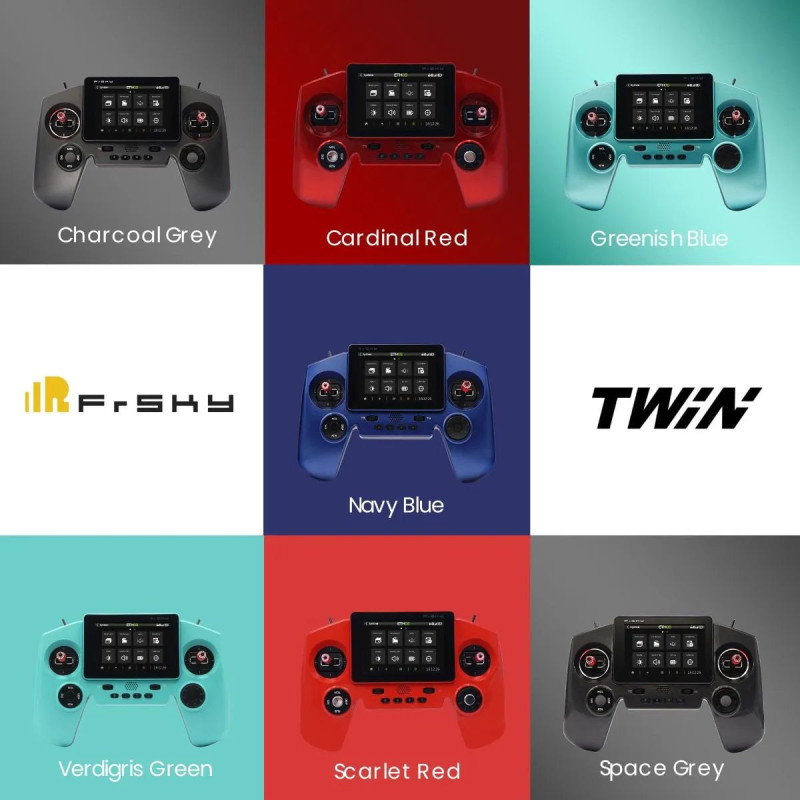

Available variants: [03010176] Space Grey; [03010177] Cardinal Red; [03010185] Greenish Blue; [03010186] Navy Blue

Key Advantages

• The TWIN X Lite S is a powerful radio system that features dual 2.4G frequencies simultaneously on the same receiver in TW mode. The TW active-active protocol is different from the general active-standby redundancy solutions, with this protocol, dual 2.4G frequency bands are active on the TWIN series RF module and receiver at the same time. It has two 2.4G internal RF antennas mounted to provide multi-directional and wider coverage for transmitting signals compared to a single antenna design. Taking advantage of these features, the TWIN system can provide less latency and higher reliability at a faster data rate with confidence.
• In addition to the TW mode, TWIN X Lite S also supports ACCST D16, ACCESS, and ELRS 2.4G (Compatible) modes, this means users can benefit from a wide range of compatible receiver options to choose from and bind to when building the RC model.
• SLIDE SCREEN & UPGRADED ERGONOMIC COMPACT DESIGN

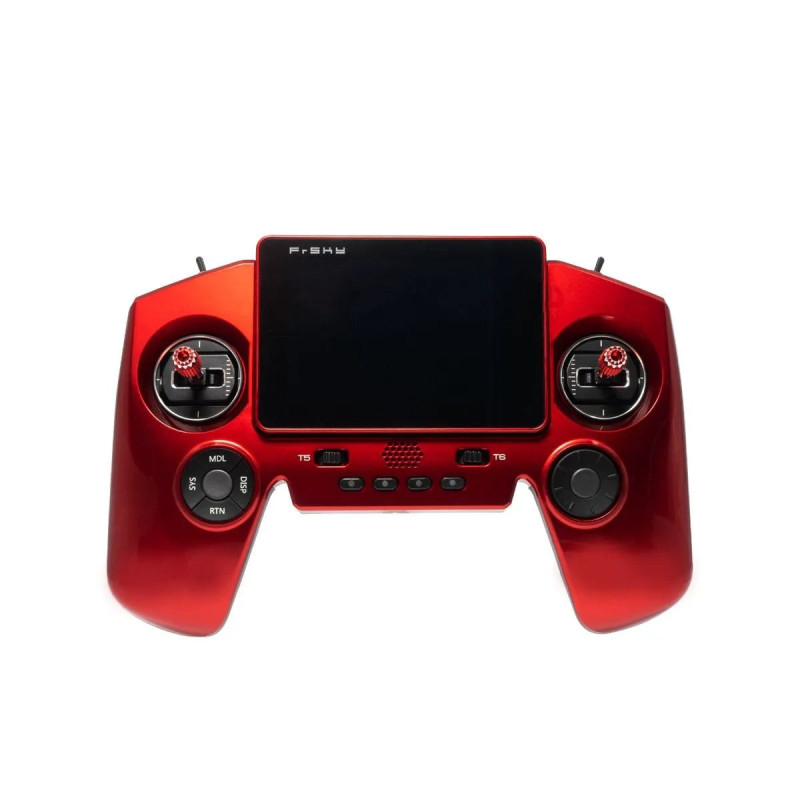

• The Twin X Lite S size and shape have been designed to make the radio compact, lightweight, and easy to carry. It adopts a 3.5-inch color touch slide screen, the sliding function saves space and ensures the comfort of using other functional trims, buttons, etc. By sliding out the screen, the hidden foldable tab will be exposed and can be used to attach the strap or other potentially more flexible uses. In addition, TWIN X Lite S provides a high-brightness matte touch screen, which greatly enhances the visibility of users in strong outdoor sunlight.
• The power button and 4 standard trims (for adjusting gimbal sticks) are positioned under the screen. The TWIN X Lite S includes an additional 2 trims and 4 customizable buttons placed in a convenient location on the radio panel for real-time and frequent operation. For example, when flying an RC glider, you can use the extra trims to adjust the angle of the flaps/surface to adapt to the real-time air environment. The momentary buttons, sliders, and switches on the top are easier to reach. In addition, the momentary buttons have been redesigned and improved to withstand larger pressure, and the button cap areas are now more comfortable to press.
• With the integrated 6-axis sensor unit, users can use the TWIN X Lite S as a motion-sensing controller to control the inputs of a model during flight or use it to point a camera in the desired direction.

Core Specifications

• Product Code: 03010176
• Product Family: Twin TW dual 2.4GHz radio system
• Protocol / RF: ACCESS, Tandem TD 2.4GHz + 900MHz, Twin TW dual 2.4GHz, 2.4GHz
• Channels: 24 channels
• Voltage: 8.4V, 7.4V, 5V, 0.2V
• Supports 4 RF protocols: ACCST D16 / ACCESS / ELRS (Compatible) / TW Mode
• ●Dimension: 197*131*68mm(L*W*H)
• ●Weight: 392g(Battery Excl.)/ 459g(Battery Incl.)
• ●Operating System: ETHOS
• ●Internal RF Module: TW-ISRM
• ●Number of Channels: 24 channels
• ●Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
