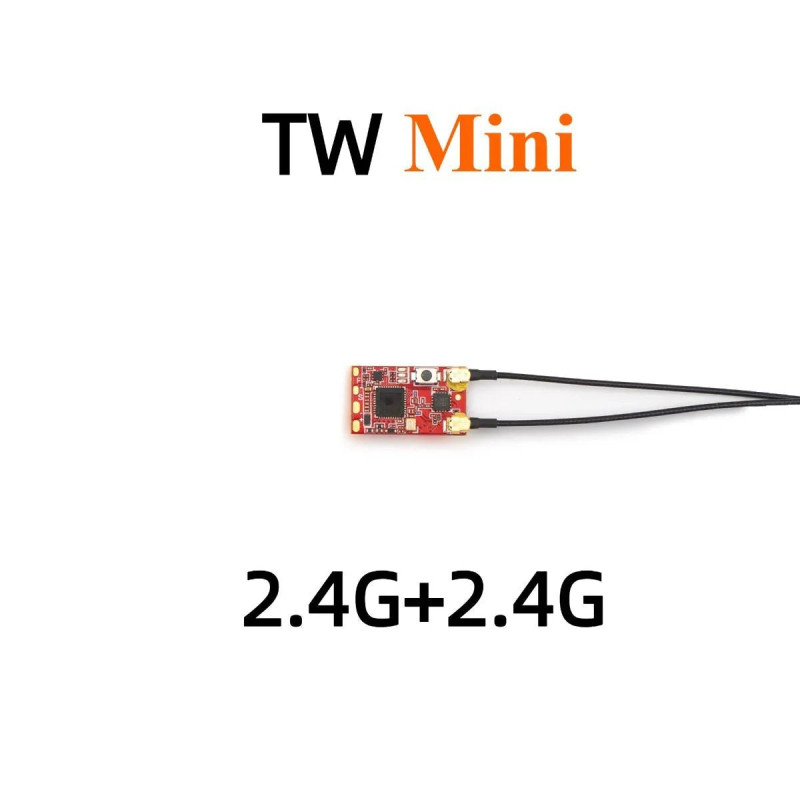

FrSky TW Mini Receiver

FrSky TW Mini Receiver is an original FrSky product from the Twin TW dual 2.4GHz radio system family. This page is organized for practical buying decisions, with the fit, RF protocol, channel count, voltage, compatible accessories and installation role presented clearly.

It is suited for radio receiver installations for RC aircraft, helicopters, gliders and advanced telemetry setups. The information focuses on what an end customer needs to choose confidently, without exposing supplier pricing or directing the customer away from RC-MODEL.

Key Advantages

• FrSky TW Mini Receiver——Resilience and long-range communi-cations, typically tens of kilometers are achievable
• TWIN series TW Mini receiver features a new stable TW protocol that benefits from simultaneously integrating dual active 2.4G frequency bands. The TW active-active protocol is different from the general active-standby redundancy solutions (where one receiver takes over signal control only when the other is in Failsafe mode), with the TW protocol, dual 2.4G frequency bands are active on the TW series receiver at the same time.
• This receiver is designed for RC users who want to benefit from resilience and long-range in their radio communi-cations, typically tens of kilometers are achievable. The TW Mini receiver is lightweight and tiny, making it suitable for building into racing drones or airplanes with limited installation space and weight constraints.
• The TW Mini receiver is equipped with 2x 2.4G antennas. The TW Mini includes one SBUS output channel, it supports telemetry functions through FBUS / S.Port. By setting the TW Mini to use FBUS protocol in the ETHOS system, the signal control and telemetry can be connected to any device that supports FBUS protocol through only one line to achieve bidirectional transmission, also simplifying the model build using fewer wires.
• Simultaneous working dual 2.4G TW mode
• Black Box function

Core Specifications

• Product Code: FRSKY-TW-MINI-RECEIVER
• Product Family: Twin TW dual 2.4GHz radio system
• Protocol / RF: Twin TW dual 2.4GHz, 2.4GHz, FBUS, S.Port, SBUS
• Channels: 16 channels, 24 channels
• Voltage: 10V, 2.8V, 5V
• Compatibility: TWIN series Radio & RF module in TW mode
• Weight: 2.2g
• Frequency: Dual 2.4GHz
• Dimension: 20.5×12mm (L*W)
• Operating Voltage: 3.5-10V (Please ensure the supplied voltage exceeds 2.8V during the use.)
• Operating Current: ≤50mA@5V
• Antenna connector: IPEX1
