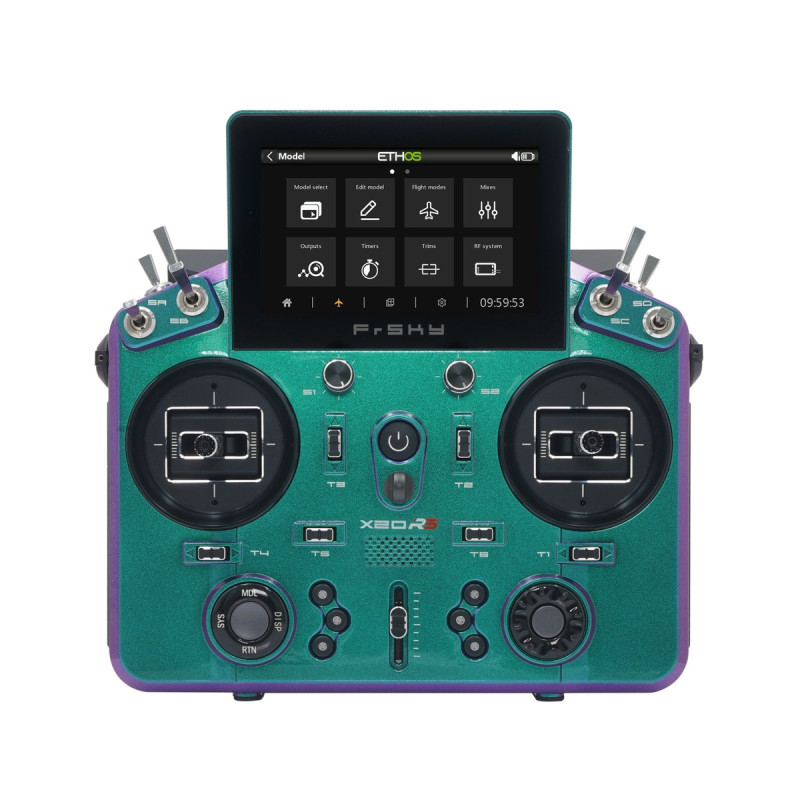

FrSky TANDEM X20RS - EASY TRAVELl-ADJUSTABLE MC20R GIMBALS

FrSky TANDEM X20RS - EASY TRAVELl-ADJUSTABLE MC20R GIMBALS is an original FrSky product from the Tandem TD dual-band radio system family. This page is organized for practical buying decisions, with the fit, RF protocol, channel count, voltage, compatible accessories and installation role presented clearly.

It is suited for FrSky transmitter setups for pilots who need flexible RF protocols, model memory and telemetry integration. The information focuses on what an end customer needs to choose confidently, without exposing supplier pricing or directing the customer away from RC-MODEL.

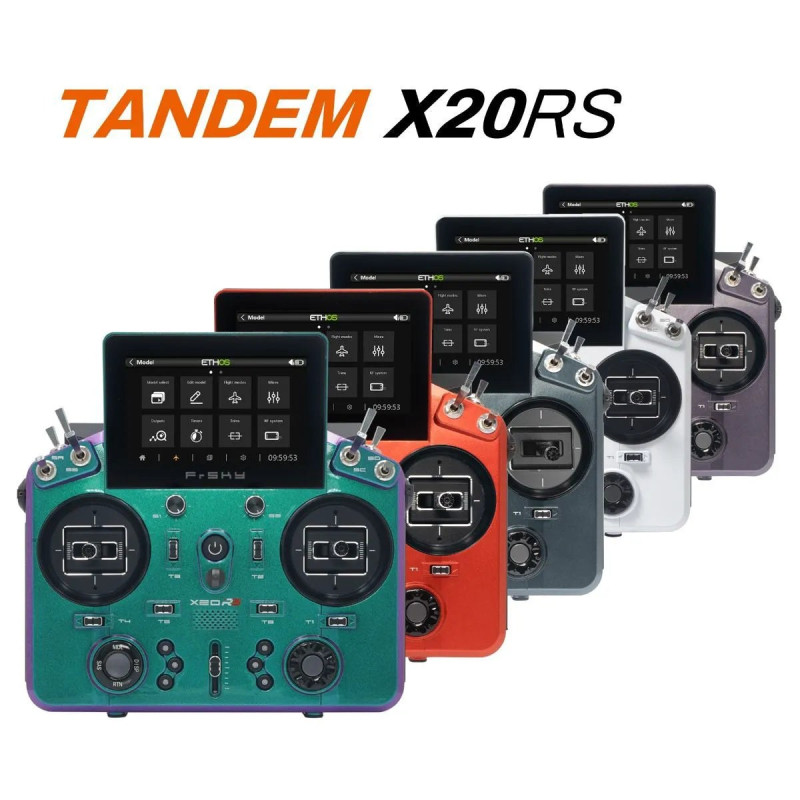

Available variants: Salte Gray; Blackish Green; Cherry Red; Porcelain White; Chameleon

Key Advantages

• With solid performance based on the dual-band 900M/2.4G RF signal link with multiple operating combinations of RF modes, the TANDEM X20R & X20RS versions are equipped with the TD-ISRM Pro built-in RF module which is capable of supporting multiple protocols (like TW, TD, etc), with same RF capability as X20 Pro editions.
• The TD-ISRM Pro RF module has the dual 2.4G TW RF mode and supports simultaneous activation of working under TW and ACCESS R9 modes with the same module. In this configuration, the TW receiver and ACCESS R9 receiver can be connected via the SBUS IN/OUT ports to achieve redundant backup. This RF signal connection solution makes use of three different RF links at the same time in RC applications. This further enhances the RF signal’s reliability, particularly in long-distance RC operations scenarios.
• DIFFERENCES IN APPEARANCE & FUNCTIONAL INPUTS
• The X20R and X20RS have changed from the original X20 design in appearance. The bottom hand grip adopts the overall design of the PRO version, eliminating the need for an additional grip cover, and allowing the bottom part to be fully grasped by the palm for a more comfortable and relaxed grip. Additionally, the Lite-type external module slot has been adjusted to provide more fitting installation space for external modules of different shapes, making it more convenient.
• R and RS versions add 2 extra trims, allowing for more precise tunings during the operations. The slider levers on both sides of the transmitter support adjusting the positioning of the center, catering to different users’ habits and preferences. The primary input components, including trim caps, center-slider caps, and knobs are all made from metal, offering rugged quality and enhanced durability for outdoor use.
• UPGRADED ROBUST ANTENNA HANDLE & EXTERNAL LoRa ANTENNA CONNECTORS

Core Specifications

• Product Code: 03010232
• Product Family: Tandem TD dual-band radio system
• Protocol / RF: ACCESS, Tandem TD 2.4GHz + 900MHz, Twin TW dual 2.4GHz, 2.4GHz, 900MHz
• Voltage: 8.4V, 7.4V, 5V, 0.2V
• Compatibility: ACCST D16 & ACCESS & TD & TW receivers
• Weight: 892g(Battery Excl.) / 1024g(Battery Incl.)
• Dimension: 205*213*90mm (L*W*H)
• Operating System: ETHOS
• Internal RF module: TD-ISRM Pro
• Number of Channels: Up to 24
• Built-in Flash Storage: 8GB
• Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
