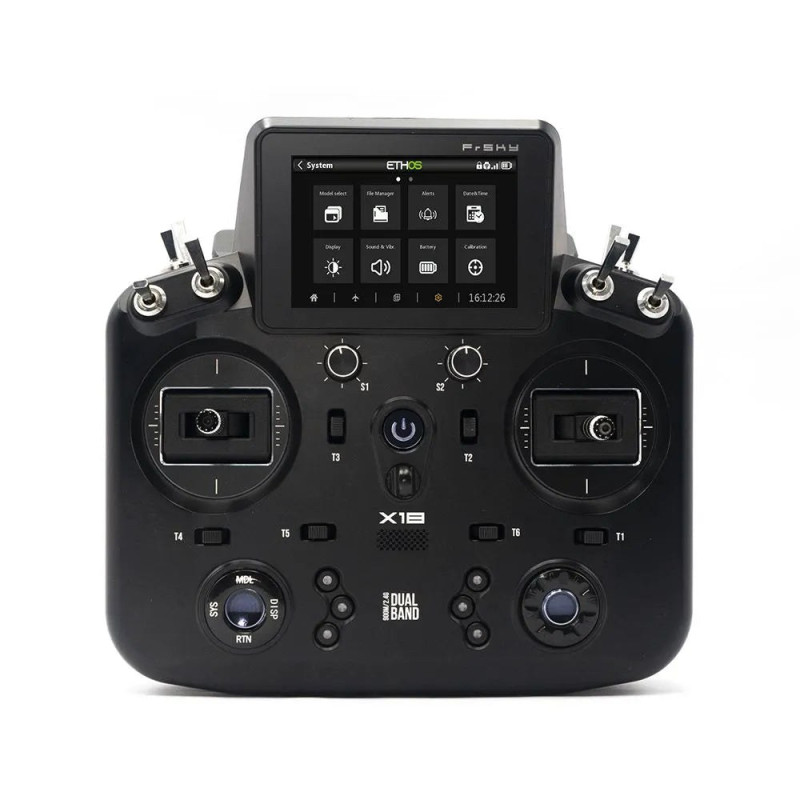

FrSky Tandem X18 Dual-Band Transmitter

FrSky Tandem X18 Dual-Band Transmitter is an original FrSky product from the Tandem TD dual-band radio system family. This page is organized for practical buying decisions, with the fit, RF protocol, channel count, voltage, compatible accessories and installation role presented clearly.

It is suited for FrSky transmitter setups for pilots who need flexible RF protocols, model memory and telemetry integration. The information focuses on what an end customer needs to choose confidently, without exposing supplier pricing or directing the customer away from RC-MODEL.

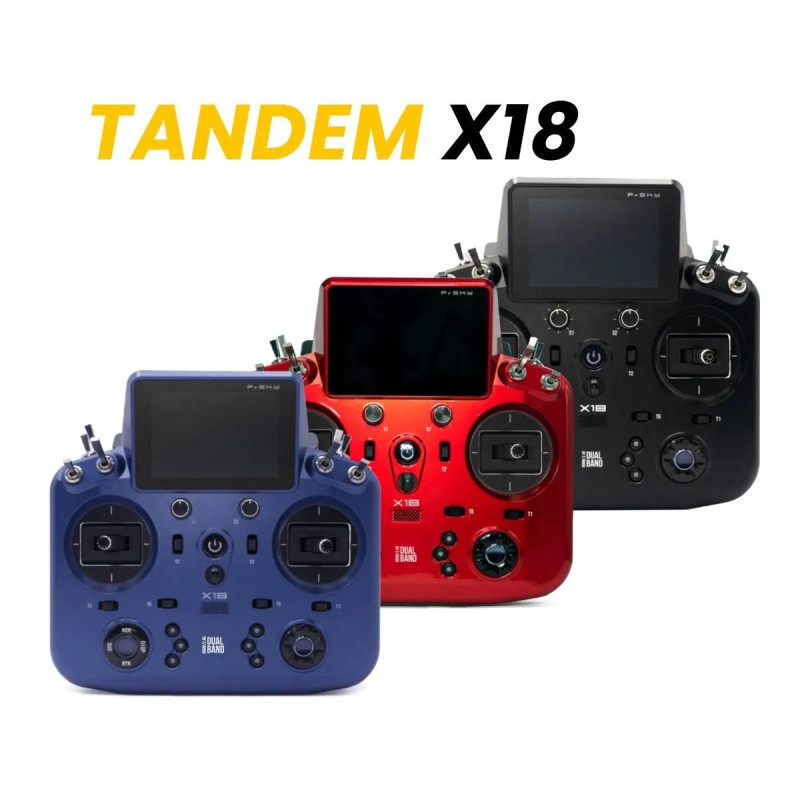

Available variants: [03010150] Black; [03010148] Blue; [03010171] Red

Key Advantages

• The Tandem X18 dual-band telemetry radio benefits from an enhanced ergonomic design with rounded and more comfortable hand grips, along with an improved case design to make the radio fully stable when standing. The radio includes easy-to-reach sliders and switches, 4 standard stick trims with additional 2 extra trims added to provide more flexibility with flight attitude adjustments while operating the radio. The X18 includes further enhancements with integrated flash storage which improves and simplifies storage operation and use, and the interior of the radio has been designed with space and weight in mind, while still keeping all ETHOS setting and control features for the pilot to enjoy.
• Internal 900MHz/2.4GHz Dual-Band & External Module Bay
• The TD dual-band RF system combines both the features and advantages of FrSky 900MHz and 2.4GHz RF together in one system. The TD features real simultaneous dual-band longrange control with telemetry that achieves reliable end-to-end 4ms latency while maintaining a robust and high-quality signal link. The entire range of TD, ACCESS & ACCST D16 receivers are supported. The built-in TANDEM RF System supports ACCESS and ACCST D16 protocols.
• In addition, the Tandem X18 includes a rear Lite version module bay to offer more options to connect external devices. FrSky welcomes working compatibility with the 3rd party products with their own developed technology following FrSky verified 3rd party compatibility-testing program.
• ETHOS is a thoroughly new operating system, designed from the ground up by RC experts, providing users a powerful, intuitive, and flexible experience that can maximize the fun of RC Hobby!
• Hardware

Core Specifications

• Product Code: 03010150
• Product Family: Tandem TD dual-band radio system
• Protocol / RF: ACCESS, Tandem TD 2.4GHz + 900MHz, Twin TW dual 2.4GHz, 2.4GHz, 900MHz
• Channels: 24 channels
• Voltage: 8.4V, 7.4V, 5V, 0.2V
• Compatibility: ACCST D16 & ACCESS & TD receivers
• Weight: 687g (Battery Excl.) / 820g (Battery Incl.)
• Dimension: 200*192*95mm (L*W*H)
• Operating System: ETHOS
• Internal RF Module: TANDEM
• Number of Channels: Up to 24 channels
• Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
