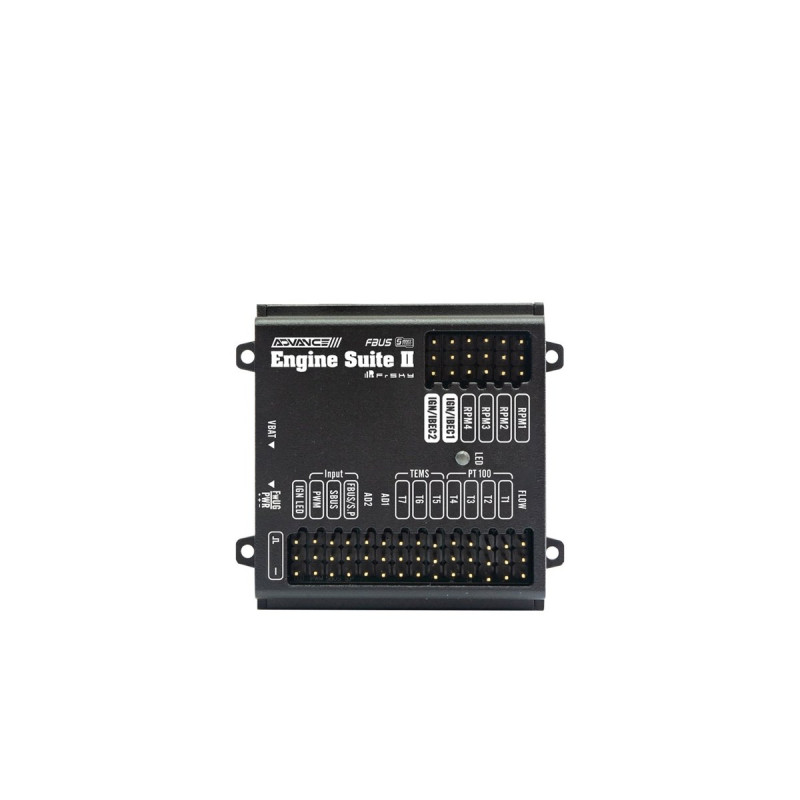

FrSky Advanced Engine SuiteII (AES II)
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Why choose FrSky Advanced Engine SuiteII (AES II) through RC-MODEL?
FrSky Advanced Engine SuiteII (AES II) is an RC product from FrSky. This page focuses on what an end customer needs: fit, use cases, specifications and imagery, without prices or outbound supplier detours.
Fit and use
FrSky Advanced Engine SuiteII (AES II) fits customers looking for FrSky items in FrSky Accessories, Telemetry & Sensors, Sensors, with RC-MODEL support for choosing the right configuration.
- Relevant category: FrSky Accessories, Telemetry & Sensors, Sensors
- Product identification for inquiry: model FRSKY-03062004 / SKU 03062004
Key details
- Application: telemetry monitoring, engine data, current, voltage, RPM, GPS or flight performance feedback
- Dimension: 50×46.4x18mm (L×W×H)
- Weight: 53.5g
- FrSky Collections: ADVANCED ENGINE SUITE (AES), SENSORS & MODULES
- Voltage: 13V, 5V, 3V-12V, 3.3V
- Battery Voltage Input Range: 4.5-13V
Before ordering
- Confirm dimensions, power system, radio compatibility or material size before purchase.
- Ask us to match required accessories, adhesives, hardware, batteries or replacement parts.
- RC-MODEL helps with fit checks, availability, compatible accessories and a formal quote in Israel.
FrSky Advanced Engine SuiteII (AES II) is an original FrSky product from the ACCESS / Archer receiver system family. This page is organized for practical buying decisions, with the fit, RF protocol, channel count, voltage, compatible accessories and installation role presented clearly.
It is suited for telemetry monitoring, engine data, current, voltage, RPM, GPS or flight performance feedback. The information focuses on what an end customer needs to choose confidently, without exposing supplier pricing or directing the customer away from RC-MODEL.
Available variants: AES Ⅱ [03062004]; AES Ⅱ [03062004] with TEMS[04100427]; AES Ⅱ [03062004] with PT100[04100488]; AES Ⅱ [03062004] with Flow Meter[03040703]; AES Ⅱ [03062004] with TEMS[04100427] and Flow Meter[03040703]
Key Advantages
- Advanced Engine Suite II (AES II) is a multi-functional management box suitable for application in airplanes equipped with engines.
- Through the VBAT (XT30/PWR) power port, users can use the same battery to power all connected devices, eliminating the trouble of providing an independent power supply for the ignition control unit. AES also adopts a safety solution to avoid potential risks caused by interference between the connected ignition and receiver devices.
- The AES module is equipped with a wealth of sensor interfaces, including 2 sets of 2 RPM sensor ports, 1 flowmeter sensor port, and 7 temperature (4 PT100 type & 3 TEMS Type) sensor ports. In addition, AES also provides 2 AD ports, allowing users to flexibly use different types of AD devices required in your airplane. At the same time, through the FBUS/S. Port feature of the connected receiver, users can monitor the telemetry data in real-time on the transmitter to know the aircraft’s operating status.
- Ignition Battery Eliminator Design (Independent battery is NOT needed.)
- Anti-interference Capability between Ignition & Receiver Parts
- 2 Powering Ports for Ignition Kill Switch Unit
Core Specifications
- Product Code: 03062004
- Product Family: ACCESS / Archer receiver system
- Protocol / RF: ACCESS, Twin TW dual 2.4GHz, FBUS, S.Port, SBUS
- Voltage: 13V, 5V, 3V-12V, 3.3V
- Weight: 53.5g
- Dimension: 50×46.4x18mm (L×W×H)
- Battery Voltage Input Range: 4.5-13V
- Battery Input Connector: XT30
- Operating Current: 20mA@5V
- RPM1/RPM2 Port: 3V-12V (Requires the driven current＞5mA)
- RPM3/RPM4 Port: 0 -3.3V (Requires the driven current＞5mA)
- Flow Port: 3.3V
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
How to bind an RC transmitter and receiver
A practical binding guide for matching protocol, bind mode, receiver power, model memory, control checks and common binding mistakes.
How to set failsafe correctly on an RC aircraft
Failsafe setup for electric and fuel aircraft: throttle behavior, receiver signal loss, switch positions and safe verification before flight.
How to set Dual Rates and Expo on an RC transmitter
Make an aircraft calmer for beginners by setting low rates, high rates and expo without hiding mechanical setup problems.
How to perform the first test flight of an RC aircraft
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
| Technical Specifications | |
| Dimension | 50×46.4x18mm (L×W×H) |
| Weight | 53.5g |
| Operating Current | 20mA@5V |
| Manufacturer | FrSky |
| Brand | FrSky |
| Product Code | 03062004 |
| Available Variants | AES Ⅱ [03062004]; AES Ⅱ [03062004] with TEMS[04100427]; AES Ⅱ [03062004] with PT100[04100488]; AES Ⅱ [03062004] with Flow Meter[03040703]; AES Ⅱ [03062004] with TEMS[04100427] and Flow Meter[03040703] |
| FrSky Collections | ADVANCED ENGINE SUITE (AES), SENSORS & MODULES |
| Product Family | ACCESS / Archer receiver system |
| Application | telemetry monitoring, engine data, current, voltage, RPM, GPS or flight performance feedback |
| Protocol / RF | ACCESS, Twin TW dual 2.4GHz, FBUS, S.Port, SBUS |
| Voltage | 13V, 5V, 3V-12V, 3.3V |
| All Variant SKUs | 03062004, 04100427, 04100488, 03040703 |
| Battery Input Connector | XT30 |
| Battery Voltage Input Range | 4.5-13V |
| RPM1/RPM2 Port | 3V-12V (Requires the driven current＞5mA) |
| RPM3/RPM4 Port | 0 -3.3V (Requires the driven current＞5mA) |
| Flow Port | 3.3V |
| AD1/AD2 Port | 0-3.3V |
Tags: FrSky, 03062004, Advanced Engine Suite, Telemetry & Sensors, FrSky Accessories, Sensors, RC radio
